(VROF35) 9.5mL Cell for Reflection Measurement, 35x15mm, Wall Thickness 2mm, Fused
$67.00
This cylindrical cuvette is for reflection-based light scattering measurements, with a path length of 31 mm. Resistant to most chemicals. Use up to 600°C. The price is for 1 piece.
In Stock
Add to Wishlist
CompareAdd to Wishlist
- Type: Fused
Description

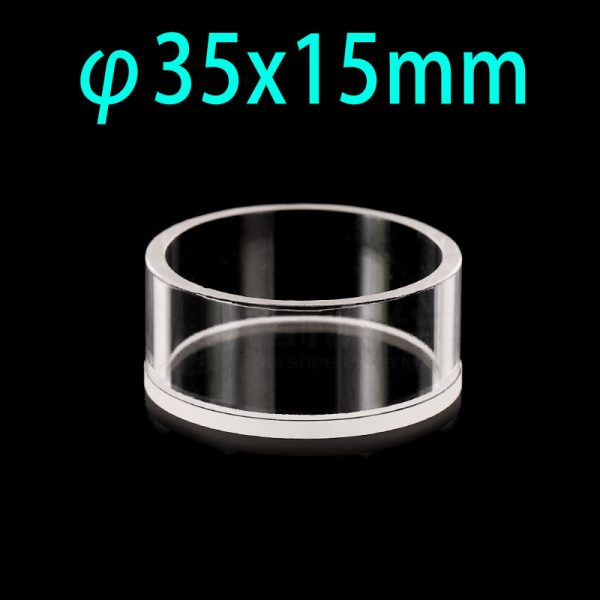

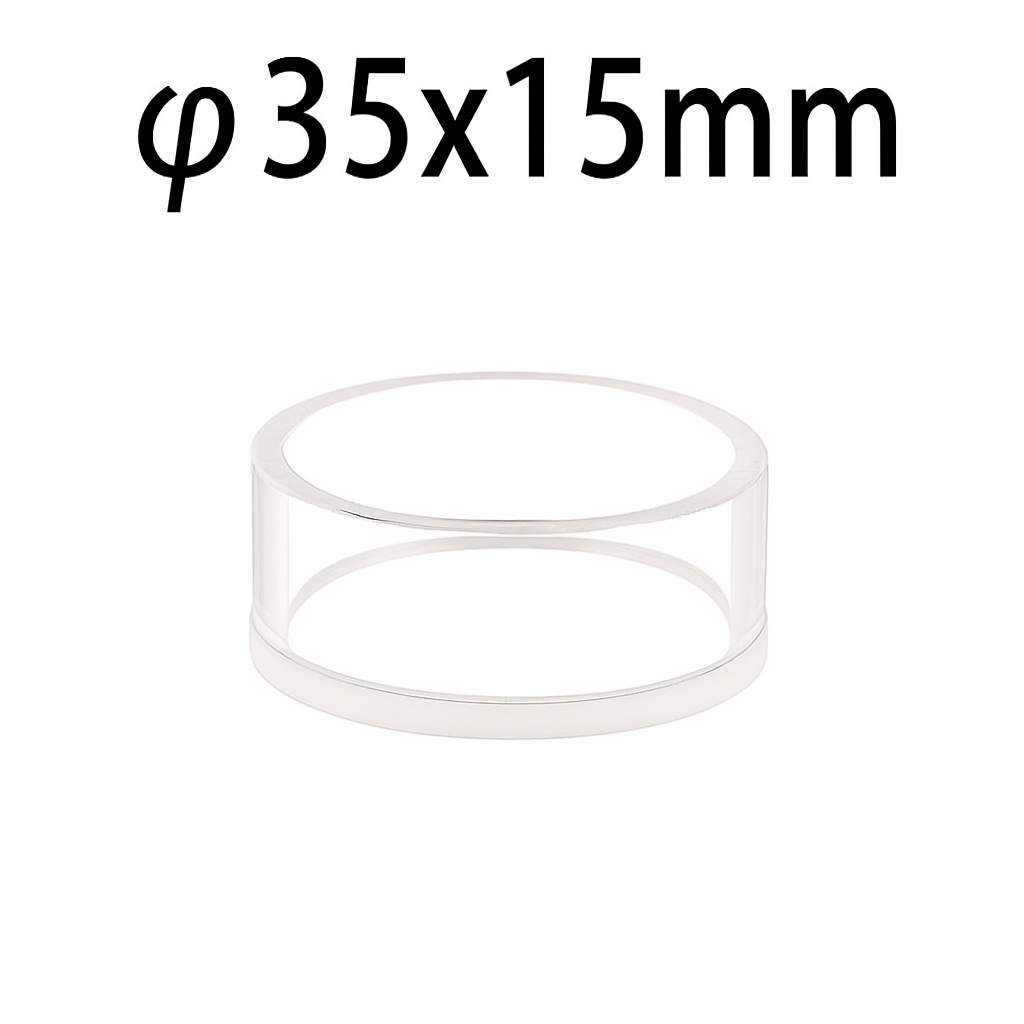

VROF35 Reflection Measurement Quartz Cell is a compact fused quartz cell specifically designed for reflection and optical surface measurements. Featuring a 35 × 15 mm clear aperture and a 2 mm wall thickness, this cell delivers excellent optical clarity and dimensional stability. Its smaller size makes it ideal for high-precision measurements where space efficiency and stability are essential.
Key Advantages
- 35 × 15 mm optical window ensures accurate reflection measurements with minimal distortion.
- 2 mm wall thickness provides structural stability while maintaining good transmission.
- Fused fabrication guarantees clean optical surfaces and superior chemical and thermal resistance.
- Wide UV/VIS spectral range (190–2500 nm) compatible with most spectrophotometers.
- Perfect for reflection spectroscopy, thin-film testing, and optical surface evaluation.
Fused Fabrication Features
- Can be heated up to 600 °C (1112 °F) for thermal measurement applications.
- Assembled with quartz powder — micro-gaps may stain over time, so long-term sample storage is not recommended.
- Excellent resistance to most acids and bases except HF.
- Not suitable for strong organic solvents such as toluene and acetone, which may damage the fused structure and shorten lifespan.
- No adhesives used — ensuring a clean optical path with low background noise.
Typical Applications
- Reflection spectroscopy and surface measurements
- Mirror coating and thin-film analysis
- Material surface testing and optical metrology
- Industrial and R&D optical evaluations
Technical Specifications
| Type | Reflection Measurement Cell | Fabrication Method | Fused* |
| Article No. | VROF35 | Wavelength Range | UV/VIS (190 – 2500 nm) |
| Clear Aperture | 35 × 15 mm | Wall Thickness | 2 mm |
| Volume | 9.5 mL | Material | Fused Quartz |
| Thermal Resistance | Up to 600 °C (1112 °F) | Chemical Resistance | Excellent (except HF and strong organics) |
Disclaimer: Fused quartz cells provide excellent optical quality and chemical resistance. Avoid using hydrofluoric acid (HF) and aggressive organic solvents like toluene and acetone, which can damage the fused structure and shorten the product’s lifespan. For best performance, avoid long-term storage of staining samples and keep the optical surface clean.
| Image | Part No. | Volume (ml) | Lightpath (mm) | Inner Width | Clear Walls | Footer (mm) | Height (mm) | Types | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|
 | VNE085 | - | 6.5 | 11.5 | 2 | - | 45 | Reflection Cell | |
 | VNE084 | - | 11 | 11 | 2 | 12 | 45 | Reflection Cell | |
 | VROF7 | 0.25 | 5 | 5 | All | 7 | 15 | Reflection Cell | |
 | VROM8 | 0.25 | 5 | 5 | All | 8 | 15 | Reflection Cell | |
 | VROF10 | 0.8 | 8 | 8 | All | 10 | 20 | Reflection Cell | |
 | VROF12 | 1.3 | 10 | 10 | All | 12 | 20 | Reflection Cell | |
 | VROF15 | 4.5 | 13 | 13 | All | 15 | 35 | Reflection Cell | |
 | VROF15-2 | 3 | 11 | 11 | All | 15 | 35 | Reflection Cell | |
 | VROF16 | 14.5 | 14 | 14 | All | 16 | 100 | Reflection Cell | |
 | VROF29 | 16 | 25 | 25 | All | 29 | 38 | Reflection Cell | |
 | VROF30 | 14 | 26 | 26 | All | 30 | 30 | Reflection Cell | |
 | VROF35 | 9.5 | 31 | 31 | All | 35 | 15 | Reflection Cell | |
 | VROF350 | 40 | 33 | 33 | All | 35 | 50 | Reflection Cell | |
 | VROF44 | 20 | 40 | 40 | All | 44 | 20 | Reflection Cell | |
 | VROF55 | 69 | 50 | 50 | All | 55 | 38 | Reflection Cell | |
 | VROF50 | 93 | 50 | 50 | All | 55 | 50 | Reflection Cell | |
 | VROF64 | 64 | - | - | All | 64 | 38 | Reflection Cell | |
 | VRM15P | 0.7 | 15 | 15 | All | 17 | 5 | Reflection Cell | |
 | VRM15 | 0.7 | 15 | 15 | All | 17 | 5 | Reflection Cell |
