(VRM15P) 0.7mL Cell for Reflection Measurement with Cover, 17×5 mm, Wall 1mm, Fused
$268.00
This cylindrical cuvette is for reflection-based light scattering measurements, with a path length of 15 mm. Resistant to most chemicals. Use up to 1200°C. The price is for 1 piece.
In Stock
Add to Wishlist
CompareAdd to Wishlist
- Type: Molded
Description
VRM15P Reflection Measurement Cell is a compact and versatile quartz cell designed specifically for reflection and surface measurement experiments. With a 0.7 mL internal volume and a low-profile 17 × 5 mm body, it provides excellent light reflectance control and minimal sample consumption — making it ideal for optical research and material characterization.

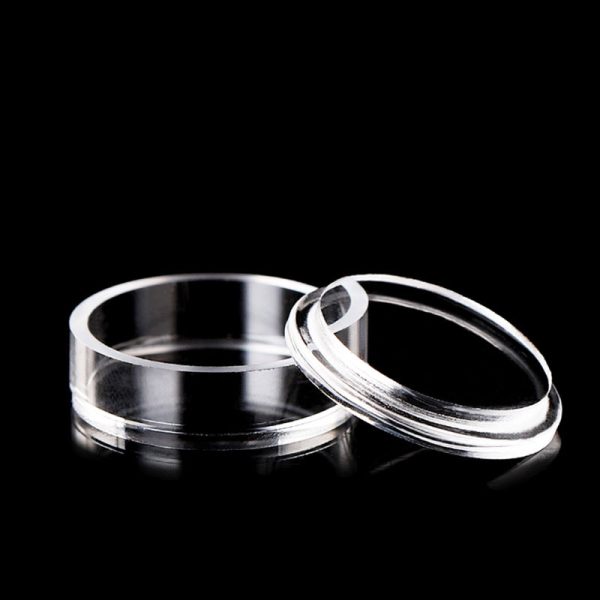

The cell features a 15 mm inner diameter and comes with a precision-matched cover (ID 17 mm × 2.5 mm) to protect the sample surface and minimize contamination or evaporation during measurement. Its quartz construction ensures excellent UV/VIS transmission and strong chemical resistance.
Typical Applications
- Reflection and surface measurement
- Thin-film and coating studies
- Photometric and spectroscopic analysis
- Optical material testing and R&D
- OEM instrument integration
Key Features
- 0.7 mL volume suitable for small sample measurements
- Compact geometry (17 mm × 5 mm) minimizes optical loss
- Quartz construction for excellent UV/VIS transmission (190–2500 nm)
- Comes with a matching cover (ID 17 mm × 2.5 mm)
- Stable, precise design for reflection measurement setups

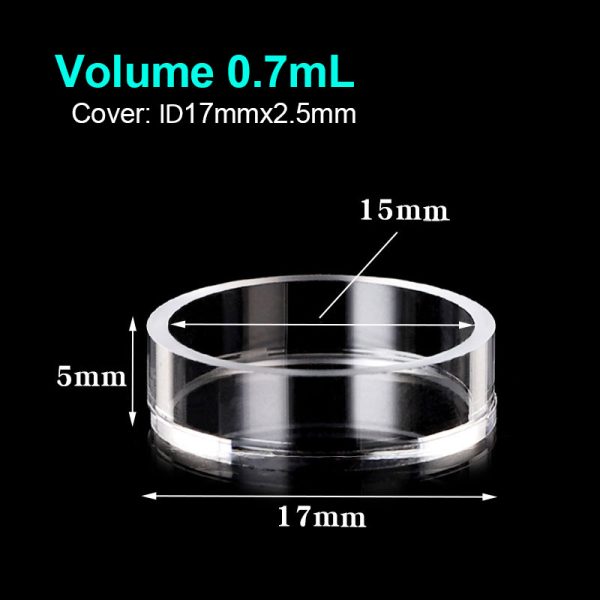

Technical Specifications
| Type | Reflection Measurement Cell | Volume | 0.7 mL |
| Article No. | VRM15P | Material | Quartz |
| Outer Diameter | 17 mm | Inner Diameter | 15 mm |
| Height | 5 mm | Cover | ID 17 mm × 2.5 mm |
| Wavelength Range | UV/VIS (190 – 2500 nm) | ||
| Fabrication Method | Fused* | Package | Cell & Cover |
Note: This reflection cell is optimized for optical and material analysis, offering stable light reflectance properties. Ideal for thin film, surface coating, and spectroscopic reflection measurements.
| Image | Part No. | Volume (ml) | Lightpath (mm) | Inner Width | Clear Walls | Footer (mm) | Height (mm) | Types | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|
 | VNE085 | - | 6.5 | 11.5 | 2 | - | 45 | Reflection Cell | |
 | VNE084 | - | 11 | 11 | 2 | 12 | 45 | Reflection Cell | |
 | VROF7 | 0.25 | 5 | 5 | All | 7 | 15 | Reflection Cell | |
 | VROM8 | 0.25 | 5 | 5 | All | 8 | 15 | Reflection Cell | |
 | VROF10 | 0.8 | 8 | 8 | All | 10 | 20 | Reflection Cell | |
 | VROF12 | 1.3 | 10 | 10 | All | 12 | 20 | Reflection Cell | |
 | VROF15 | 4.5 | 13 | 13 | All | 15 | 35 | Reflection Cell | |
 | VROF15-2 | 3 | 11 | 11 | All | 15 | 35 | Reflection Cell | |
 | VROF16 | 14.5 | 14 | 14 | All | 16 | 100 | Reflection Cell | |
 | VROF29 | 16 | 25 | 25 | All | 29 | 38 | Reflection Cell | |
 | VROF30 | 14 | 26 | 26 | All | 30 | 30 | Reflection Cell | |
 | VROF35 | 9.5 | 31 | 31 | All | 35 | 15 | Reflection Cell | |
 | VROF350 | 40 | 33 | 33 | All | 35 | 50 | Reflection Cell | |
 | VROF44 | 20 | 40 | 40 | All | 44 | 20 | Reflection Cell | |
 | VROF55 | 69 | 50 | 50 | All | 55 | 38 | Reflection Cell | |
 | VROF50 | 93 | 50 | 50 | All | 55 | 50 | Reflection Cell | |
 | VROF64 | 64 | - | - | All | 64 | 38 | Reflection Cell | |
| VRM15P | 0.7 | 15 | 15 | All | 17 | 5 | Reflection Cell | |
 | VRM15 | 0.7 | 15 | 15 | All | 17 | 5 | Reflection Cell |
