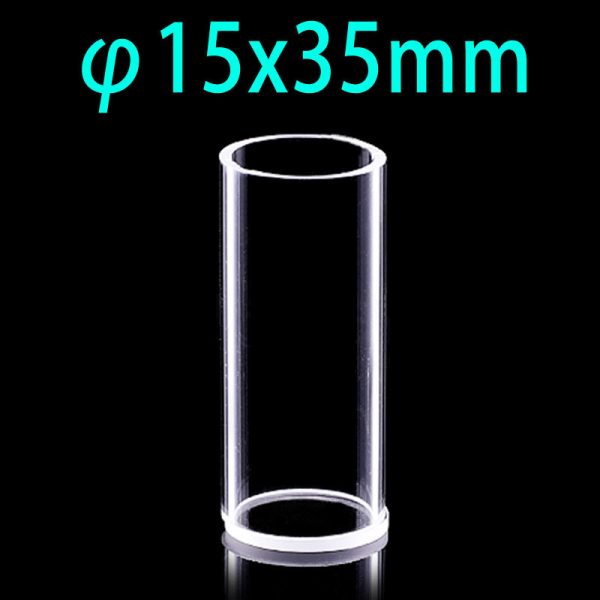

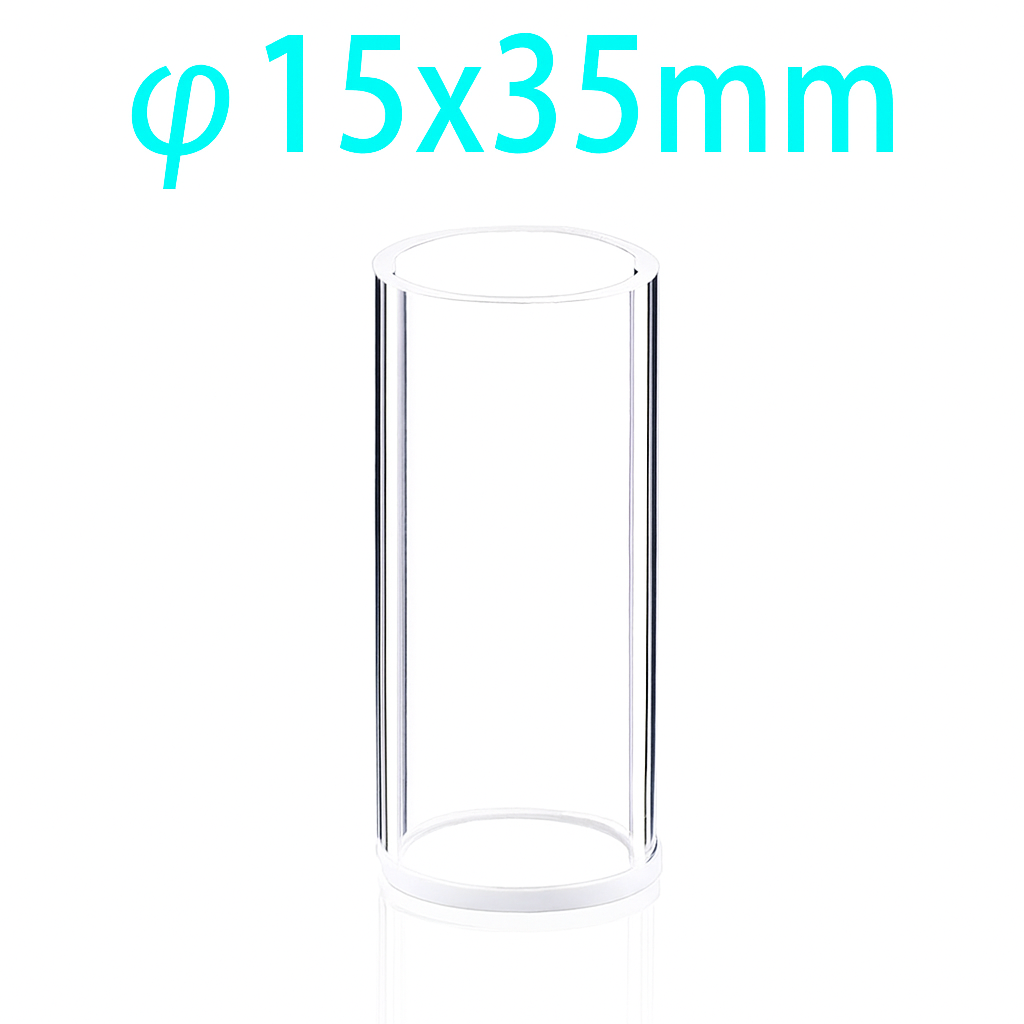

(VROF15) 4.5mL Cell for Reflection Measurement, 15x35mm, Wall Thickness 1mm, Fused
$44.00
This cylindrical cuvette is for reflection-based light scattering measurements, with a path length of 13 mm. Resistant to most chemicals. Use up to 600°C. The price is for 1 piece.
In Stock
Add to Wishlist
CompareAdd to Wishlist
- Type: Fused
Description
VROF15 Reflection Measurement Quartz Cell is a high-quality fused quartz cell designed for precision reflection and surface optical measurements. With a 15 × 35 mm clear aperture and a 1 mm wall thickness, this cell provides excellent optical transmission and structural accuracy, making it ideal for thin-film analysis, reflection spectroscopy, and surface metrology.
The fused fabrication method ensures clean optical interfaces without adhesives, resulting in superior performance in the UV/VIS range. Its rectangular geometry delivers a stable, reproducible reflective surface for both laboratory research and industrial measurement systems.
Key Advantages
- 15 × 35 mm clear aperture for stable and precise reflection measurements.
- 1 mm wall thickness provides lightweight design with high dimensional precision.
- Fused fabrication ensures high optical purity and eliminates contamination.
- Wide UV/VIS transmission range (190–2500 nm) supports demanding optical measurements.
- Suitable for coating analysis, thin-film evaluation, and precision surface optics.
Fused Fabrication Features
- Can be heated up to 600 °C (1112 °F) for thermal or environmental testing.
- Assembled with quartz powder — micro-gaps may stain over time, so long-term sample storage is not recommended.
- Excellent resistance to most acids and bases except HF.
- Not compatible with aggressive organic solvents such as toluene and acetone, which may damage the fused structure and reduce service life.
- No adhesives used — ensuring clean, inert optical surfaces with minimal background interference.
Typical Applications
- Reflection spectroscopy
- Thin-film and coating evaluation
- Optical surface metrology
- Industrial quality control and R&D
Technical Specifications
| Type | Reflection Measurement Cell | Fabrication Method | Fused* |
| Article No. | VROF15 | Wavelength Range | UV/VIS (190 – 2500 nm) |
| Clear Aperture | 15 × 35 mm | Wall Thickness | 1 mm |
| Volume | 4.5 mL | Material | Fused Quartz |
| Thermal Resistance | Up to 600 °C (1112 °F) | Chemical Resistance | Excellent (except HF and strong organics) |
Disclaimer: Fused quartz cells offer excellent optical performance, thermal resistance, and chemical durability. Avoid hydrofluoric acid (HF) and strong organic solvents such as toluene and acetone, which can damage the fused structure and shorten service life. For best performance, clean thoroughly after use and avoid storing staining samples long-term.
| Image | Part No. | Volume (ml) | Lightpath (mm) | Inner Width | Clear Walls | Footer (mm) | Height (mm) | Types | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|
 | VNE085 | - | 6.5 | 11.5 | 2 | - | 45 | Reflection Cell | |
 | VNE084 | - | 11 | 11 | 2 | 12 | 45 | Reflection Cell | |
 | VROF7 | 0.25 | 5 | 5 | All | 7 | 15 | Reflection Cell | |
 | VROM8 | 0.25 | 5 | 5 | All | 8 | 15 | Reflection Cell | |
 | VROF10 | 0.8 | 8 | 8 | All | 10 | 20 | Reflection Cell | |
 | VROF12 | 1.3 | 10 | 10 | All | 12 | 20 | Reflection Cell | |
 | VROF15 | 4.5 | 13 | 13 | All | 15 | 35 | Reflection Cell | |
 | VROF15-2 | 3 | 11 | 11 | All | 15 | 35 | Reflection Cell | |
 | VROF16 | 14.5 | 14 | 14 | All | 16 | 100 | Reflection Cell | |
 | VROF29 | 16 | 25 | 25 | All | 29 | 38 | Reflection Cell | |
 | VROF30 | 14 | 26 | 26 | All | 30 | 30 | Reflection Cell | |
 | VROF35 | 9.5 | 31 | 31 | All | 35 | 15 | Reflection Cell | |
 | VROF350 | 40 | 33 | 33 | All | 35 | 50 | Reflection Cell | |
 | VROF44 | 20 | 40 | 40 | All | 44 | 20 | Reflection Cell | |
 | VROF55 | 69 | 50 | 50 | All | 55 | 38 | Reflection Cell | |
 | VROF50 | 93 | 50 | 50 | All | 55 | 50 | Reflection Cell | |
 | VROF64 | 64 | - | - | All | 64 | 38 | Reflection Cell | |
 | VRM15P | 0.7 | 15 | 15 | All | 17 | 5 | Reflection Cell | |
 | VRM15 | 0.7 | 15 | 15 | All | 17 | 5 | Reflection Cell |
