(VASM95) 3.5mL Standard Spectrometer Cuvette with Inner Screw Cap, Molded, New, Lightpath 10mm

Weight	100 g
Brand	Qvarz
Resistant to Chemicals	Yes

SKU: VASM95

(VASM95) 3.5mL Standard Spectrometer Cuvette with Inner Screw Cap, Molded, New, Lightpath 10mm

(VASM95) 3.5mL Standard Spectrometer Cuvette with Inner Screw Cap, Molded, New, Lightpath 10mm - Image 2

$163.00

In Stock

This absorption cuvette is for anaerobic work. Acid, base, organic solvent resistant. Use -60°C – 1200°C. The price is for 1 piece.

In Stock

Type: Molded

SKU: VASM95 Categories: All Cuvettes & Cells, Cuvettes & Flow Cells, Molded Cuvettes, Products, Screw Cap Cuvettes, Spectrometer Cuvettes, Standard Cuvettes 3.5mL Tags: screw cap cuvette, sealable cuvette, spectrometer cuvette, standard cuvette

Worldwide Timed Dispatch Available

Free Shipping apply to all orders over $800
Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Fast dispatch. Receive deliveries in 2 - 3 weeks.

Description

VASM95 – 3.5 mL Standard Absorption Cuvette with Inner Screw Cap (Molded, 10 mm Lightpath, 2 Windows)

The VASM95 is a molded quartz absorption cuvette with a 10 mm optical path length and a 3.5 mL sample volume. It features an inner screw cap for improved sealing, making it more secure than a standard PTFE lid. This design minimizes evaporation and is suitable for anaerobic and oxygen-sensitive applications. With molded fabrication, it offers exceptional dimensional accuracy and chemical durability.

Key Features

10 mm optical path length: standard for most UV/VIS spectrophotometers.
2 clear optical windows: optimized for high transmission and accurate absorbance measurements.
Inner screw cap: provides tighter sealing compared to PTFE lids, reducing evaporation and oxygen ingress.
Molded fabrication: top precision with pathlength tolerance of ±0.01 mm, offering the highest optical quality.
Wavelength range: 190–2500 nm (UV/VIS).
Temperature resistance: −60 °C (−76 °F) to 1200 °C (2192 °F).
Chemical compatibility: resistant to most acids, bases, and strong organic solvents including toluene and acetone; not suitable for HF.
Packaging: foam and bubble wrap; drop-tested from 1 meter before shipment.

Typical Applications

UV/VIS absorption spectroscopy
Anaerobic and oxygen-sensitive measurements
Environmental and chemical analysis
Routine laboratory absorbance testing

Cuvette Specifications

Type	Inner Screw Sealable Cells	Optical Path Length	10 mm
Article No.	VASM95	Volume	3500 µL
Measuring Method	Absorption Cells	Transmission Matched	Optional
Number of Windows	2	Wavelength Range	UV/VIS (190–2500 nm)

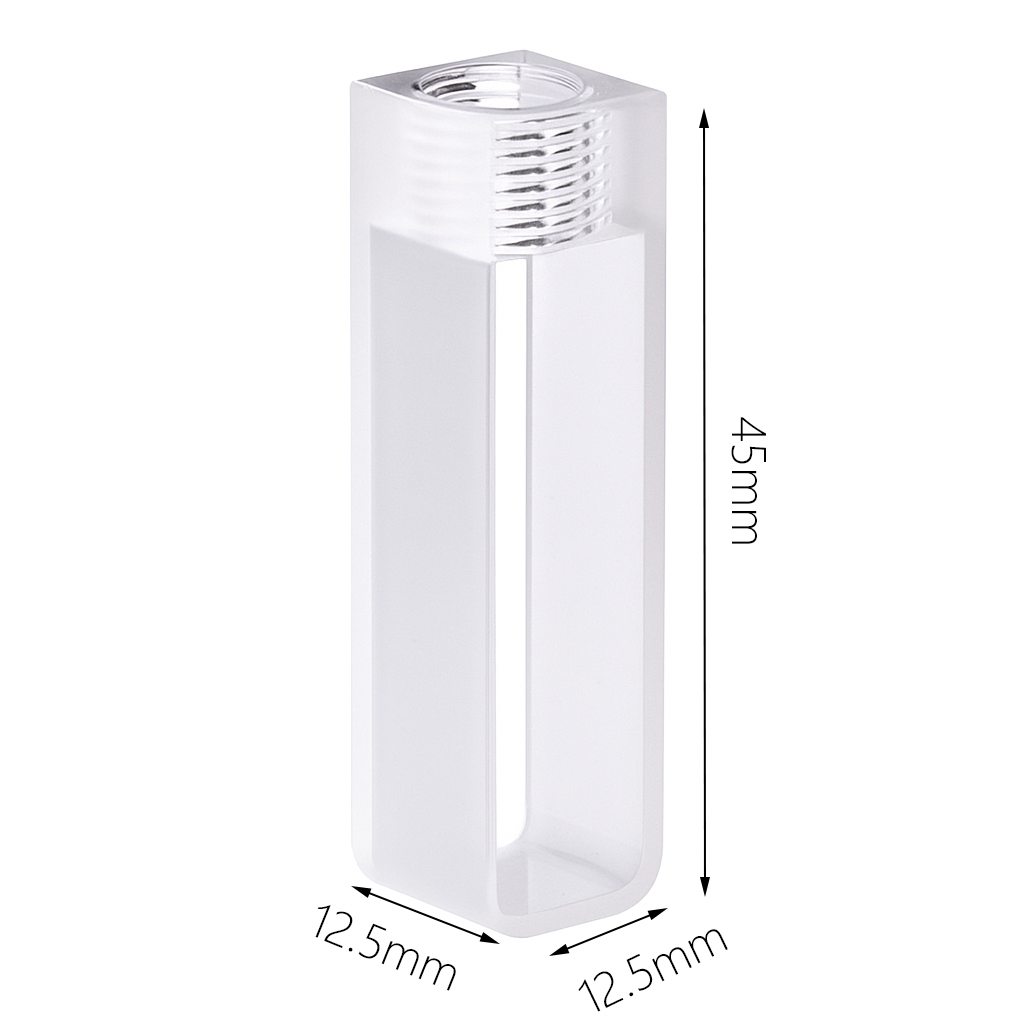

Outside Dimensions
Height	45 mm	Width	12.5 mm
Depth	12.5 mm
Inside Dimensions
Width (Inside)	10 mm	Depth (Inside)	10 mm
Center Height (Z)	8.5 – 20 mm	Fabrication Method	Molded*
Package	Cell, Cap & Septa

About Molded Fabrication

Delivers the highest dimensional and optical precision among cuvette manufacturing methods.
Pathlength tolerance of ±0.01 mm ensures excellent repeatability and minimal error in high-precision applications.
Excellent chemical resistance to most acids, bases, and aggressive organic solvents (e.g., toluene, acetone); not compatible with HF.
Superior thermal stability for demanding lab environments.

Note: VASM95 is a high-precision molded quartz cuvette designed for standard 10 mm pathlength absorption measurements with enhanced sealing. Ideal for anaerobic experiments, routine absorbance testing, and high-accuracy laboratory work.

Comparison of Fabrication Types

1	2	3	4
	*Molded	*Fused	*Bonded / Glued
UV vis ( 190- 2500 nm)	Yes	Yes	Yes
Transmission Matched	On Request	No	No
Transmission > 80%	Yes	Yes	Yes
Resistant to Acids and Bases (except hydrofluoric acid)	Yes	Yes	No
Resistant to Organic Solvents	Yes	Yes	No
Usable upto 600°C (1112°F)	Yes	Yes	Yes
Usable upto 1200°C (2192°F)	Yes	No	No
0 Variations Reading	On Request	No	No
Fabrication	Molded	Assembled with Quartz Powder	Assembled with Glue
Adhesives	No	No	Yes
Storage	Short Term Storage	Clean After Use	Clean After Use
Available Material	Fused Quartz Material
Note	Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm.

1
QVARZ Cuvettes Transmission Characteristics The following table is our cuvettes and cells made of quartz material suitable for wavelength from 190nm to 2500nm and depicts the percentage transmission for the material. IR or Glass material is not included.

Why QVARZ Cuvettes and Cells? QVARZ is world-renowned as the producer of premium quartz cuvettes. Over fifteen years of experience manufacturing quartz cuvettes ensures that every QVARZ cuvettes are manufactured to the most exacting standards for reproducible results.
Spectrophotometry cuvettes - Most spectrophotometry applications in the visible and UV ranges benefit from QVARZ spectrophotometry cuvettes. Our cuvettes made of fused quartz material deliver precise and reliable readings even at wavelengths as low as 190 nm. QVARZ cuvettes are compatible with most spectrophotometers and photometers with standard 0.2 - 100 mm path lengths. Fluorometry cuvettes - QVARZ brings two decades of experience molding high-quality spectrophotometry cuvettes to new four-sided clear cuvettes for fluorometry. Available in standard quartz material with ultra-low auto-fluorescence for the highest precision measurements. Protective packaging - QVARZ cuvettes are encased in dust-free, low scratching expanded polystyrene packaging. This ensures that premium cuvettes arrive in the laboratory ina the same pristine condition they were in at the factory, with optical quality windows and free of contaminants. Volumes for most purposes - Our cuvettes are available in a variety of ranges from macro to macro semi-micro sizes to respond to the needs of most scientific applications. We are also able to customize sample volume to deliver consistent, accurate findings. Perform consistently - QVARZ Cuvettes are constructed from high-quality fused quartz materials and are grouped by manufacturing mold cavities to ensure the lowest fluctuation in extinction coefficient. Customization - Custom cuvettes and cells are encouraged and available upon request; mechanical drawings with specifications and tolerances are prerequisites. Awesome pricing and flexibility on small quantities.
To the best of our knowledge, the technical information provided here is accurate. However, Qvarz.com assumes no liability for the accuracy of this information. The values provided here are typical at the time of manufacture and may vary over time and from batch to batch.
