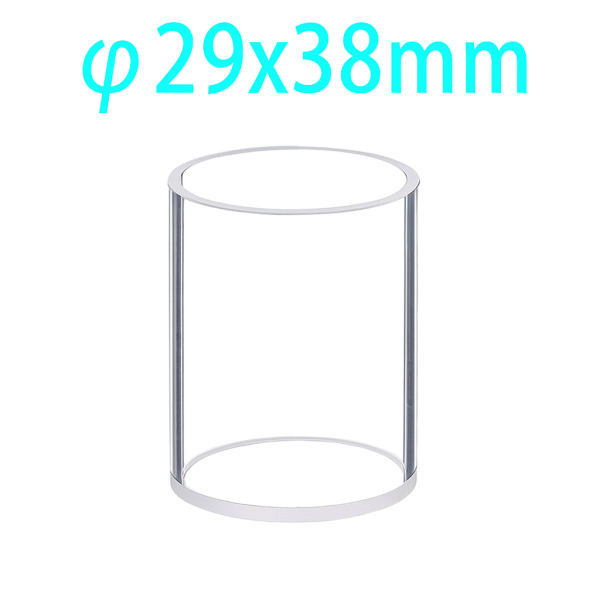

(VROF29) 16mL Cell for Reflection Measurement, 29x38mm, Wall Thickness 2mm, Fused
$54.00
This cylindrical cuvette is for reflection-based light scattering measurements, with a path length of 25 mm. Resistant to most chemicals. Use up to 600°C. The price is for 1 piece.
In Stock
Add to Wishlist
CompareAdd to Wishlist
- Type: Fused
Description
VROF29 Reflection Measurement Quartz Cell is a high-precision fused quartz cell designed for demanding reflection and surface optical measurements. With a 29 × 38 mm clear aperture and a 2 mm wall thickness, this cell provides excellent optical clarity and mechanical rigidity, making it suitable for both research laboratories and industrial metrology environments.
The use of fused fabrication eliminates adhesive contamination and ensures stable optical performance across the UV/VIS range. Its rectangular design provides a large and stable surface for reliable reflection measurements, thin-film analysis, and coating evaluation.
Key Advantages
- 29 × 38 mm clear aperture delivers stable and accurate reflection measurements.
- 2 mm wall thickness provides strength and dimensional stability.
- Fused fabrication ensures high optical transmission and clean surfaces.
- Wide UV/VIS range (190–2500 nm) suitable for precision analysis.
- Ideal for reflection spectroscopy, thin-film characterization, and material testing.
Fused Fabrication Features
- Can be heated up to 600 °C (1112 °F) for thermal or environmental testing.
- Assembled with quartz powder — micro-gaps may stain over time, so long-term sample storage is not recommended.
- Excellent resistance to most acids and bases except HF.
- Not compatible with strong organic solvents such as toluene and acetone, which can damage the fused structure and shorten lifespan.
- No adhesives used — ensuring clean, inert optical surfaces and low background interference.
Typical Applications
- Reflection spectroscopy and surface measurements
- Mirror coating and thin-film analysis
- Optical surface characterization
- Industrial and R&D metrology systems
Technical Specifications
| Type | Reflection Measurement Cell | Fabrication Method | Fused* |
| Article No. | VROF29 | Wavelength Range | UV/VIS (190 – 2500 nm) |
| Clear Aperture | 29 × 38 mm | Wall Thickness | 2 mm |
| Volume | 16 mL | Material | Fused Quartz |
| Thermal Resistance | Up to 600 °C (1112 °F) | Chemical Resistance | Excellent (except HF and strong organics) |
Disclaimer: Fused quartz cells offer excellent optical performance, high thermal resistance, and chemical durability. Avoid using hydrofluoric acid (HF) and aggressive organic solvents such as toluene and acetone, which can damage the fused structure and reduce lifespan. For best performance, keep the surface clean and avoid storing staining samples long-term.
| Image | Part No. | Volume (ml) | Lightpath (mm) | Inner Width | Clear Walls | Footer (mm) | Height (mm) | Types | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|
 | VNE085 | - | 6.5 | 11.5 | 2 | - | 45 | Reflection Cell | |
 | VNE084 | - | 11 | 11 | 2 | 12 | 45 | Reflection Cell | |
 | VROF7 | 0.25 | 5 | 5 | All | 7 | 15 | Reflection Cell | |
 | VROM8 | 0.25 | 5 | 5 | All | 8 | 15 | Reflection Cell | |
 | VROF10 | 0.8 | 8 | 8 | All | 10 | 20 | Reflection Cell | |
 | VROF12 | 1.3 | 10 | 10 | All | 12 | 20 | Reflection Cell | |
 | VROF15 | 4.5 | 13 | 13 | All | 15 | 35 | Reflection Cell | |
 | VROF15-2 | 3 | 11 | 11 | All | 15 | 35 | Reflection Cell | |
 | VROF16 | 14.5 | 14 | 14 | All | 16 | 100 | Reflection Cell | |
 | VROF29 | 16 | 25 | 25 | All | 29 | 38 | Reflection Cell | |
 | VROF30 | 14 | 26 | 26 | All | 30 | 30 | Reflection Cell | |
 | VROF35 | 9.5 | 31 | 31 | All | 35 | 15 | Reflection Cell | |
 | VROF350 | 40 | 33 | 33 | All | 35 | 50 | Reflection Cell | |
 | VROF44 | 20 | 40 | 40 | All | 44 | 20 | Reflection Cell | |
 | VROF55 | 69 | 50 | 50 | All | 55 | 38 | Reflection Cell | |
 | VROF50 | 93 | 50 | 50 | All | 55 | 50 | Reflection Cell | |
 | VROF64 | 64 | - | - | All | 64 | 38 | Reflection Cell | |
 | VRM15P | 0.7 | 15 | 15 | All | 17 | 5 | Reflection Cell | |
 | VRM15 | 0.7 | 15 | 15 | All | 17 | 5 | Reflection Cell |
