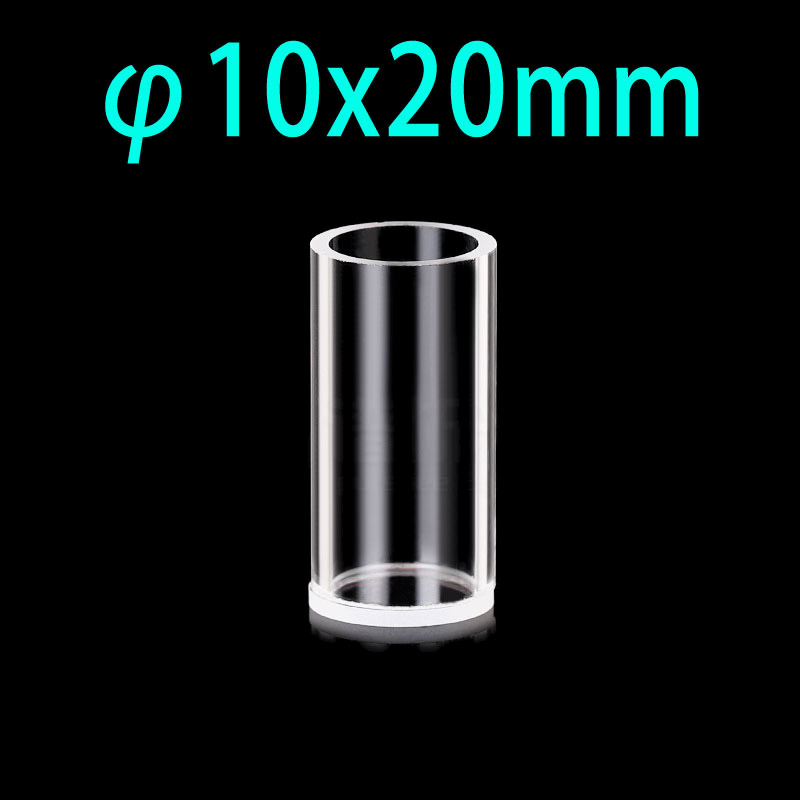

(VROF10) 0.8mL Cell for Reflection Measurement, 10x20mm, Wall Thickness 1mm, Fused
$44.00
This cylindrical cuvette is for reflection-based light scattering measurements, with a path length of 8 mm. Resistant to most chemicals. Use up to 600°C. The price is for 1 piece.
In Stock
Add to Wishlist
CompareAdd to Wishlist
- Type: Fused
Description
VROF10 Reflection Measurement Quartz Cell is a precision fused quartz optical component designed for high-accuracy reflection spectroscopy and surface metrology. Featuring a 10 × 20 mm clear aperture and a 1 mm wall thickness, this cell ensures dimensional stability and superior optical transmission, making it ideal for coating inspection, thin-film analysis, and high-sensitivity reflective measurements.
The fused fabrication process delivers clean, adhesive-free optical interfaces and stable geometry, ensuring high repeatability in demanding laboratory and industrial applications. Its compact rectangular structure provides a controlled reflective surface for accurate optical measurements across a broad UV/VIS range.
Key Advantages
- 10 × 20 mm clear aperture enables stable and precise reflection measurements.
- 1 mm wall thickness offers reliable dimensional accuracy and low optical distortion.
- Fused fabrication ensures superior optical clarity and long-term stability.
- Wide UV/VIS transmission range (190–2500 nm).
- Lightweight, durable design suitable for laboratory and production use.
Fused Fabrication Features
- Can be heated up to 600 °C (1112 °F) for thermal and environmental testing.
- Assembled with quartz powder — micro-gaps may stain over time, so long-term sample storage is not recommended.
- Excellent chemical resistance except to hydrofluoric acid (HF).
- Not compatible with strong organic solvents such as toluene and acetone, which can degrade the fused structure.
- No adhesives used — providing clean, inert, and stable optical surfaces.
Typical Applications
- Reflection spectroscopy
- Thin-film and coating evaluation
- Optical surface metrology
- R&D and quality control testing
Technical Specifications
| Type | Reflection Measurement Cell | Fabrication Method | Fused* |
| Article No. | VROF10 | Wavelength Range | UV/VIS (190 – 2500 nm) |
| Clear Aperture | 10 × 20 mm | Wall Thickness | 1 mm |
| Volume | 0.8 mL | Material | Fused Quartz |
| Thermal Resistance | Up to 600 °C (1112 °F) | Chemical Resistance | Excellent (except HF and strong organics) |
Disclaimer: Fused quartz cells offer superior optical performance, thermal resistance, and chemical durability. Avoid hydrofluoric acid (HF) and strong organic solvents such as toluene and acetone, which can damage the fused structure and reduce service life. Clean thoroughly after use and avoid storing staining samples long-term.
| Image | Part No. | Volume (ml) | Lightpath (mm) | Inner Width | Clear Walls | Footer (mm) | Height (mm) | Types | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|
 | VNE085 | - | 6.5 | 11.5 | 2 | - | 45 | Reflection Cell | |
 | VNE084 | - | 11 | 11 | 2 | 12 | 45 | Reflection Cell | |
 | VROF7 | 0.25 | 5 | 5 | All | 7 | 15 | Reflection Cell | |
 | VROM8 | 0.25 | 5 | 5 | All | 8 | 15 | Reflection Cell | |
 | VROF10 | 0.8 | 8 | 8 | All | 10 | 20 | Reflection Cell | |
 | VROF12 | 1.3 | 10 | 10 | All | 12 | 20 | Reflection Cell | |
 | VROF15 | 4.5 | 13 | 13 | All | 15 | 35 | Reflection Cell | |
 | VROF15-2 | 3 | 11 | 11 | All | 15 | 35 | Reflection Cell | |
 | VROF16 | 14.5 | 14 | 14 | All | 16 | 100 | Reflection Cell | |
 | VROF29 | 16 | 25 | 25 | All | 29 | 38 | Reflection Cell | |
 | VROF30 | 14 | 26 | 26 | All | 30 | 30 | Reflection Cell | |
 | VROF35 | 9.5 | 31 | 31 | All | 35 | 15 | Reflection Cell | |
 | VROF350 | 40 | 33 | 33 | All | 35 | 50 | Reflection Cell | |
 | VROF44 | 20 | 40 | 40 | All | 44 | 20 | Reflection Cell | |
 | VROF55 | 69 | 50 | 50 | All | 55 | 38 | Reflection Cell | |
 | VROF50 | 93 | 50 | 50 | All | 55 | 50 | Reflection Cell | |
 | VROF64 | 64 | - | - | All | 64 | 38 | Reflection Cell | |
 | VRM15P | 0.7 | 15 | 15 | All | 17 | 5 | Reflection Cell | |
 | VRM15 | 0.7 | 15 | 15 | All | 17 | 5 | Reflection Cell |
