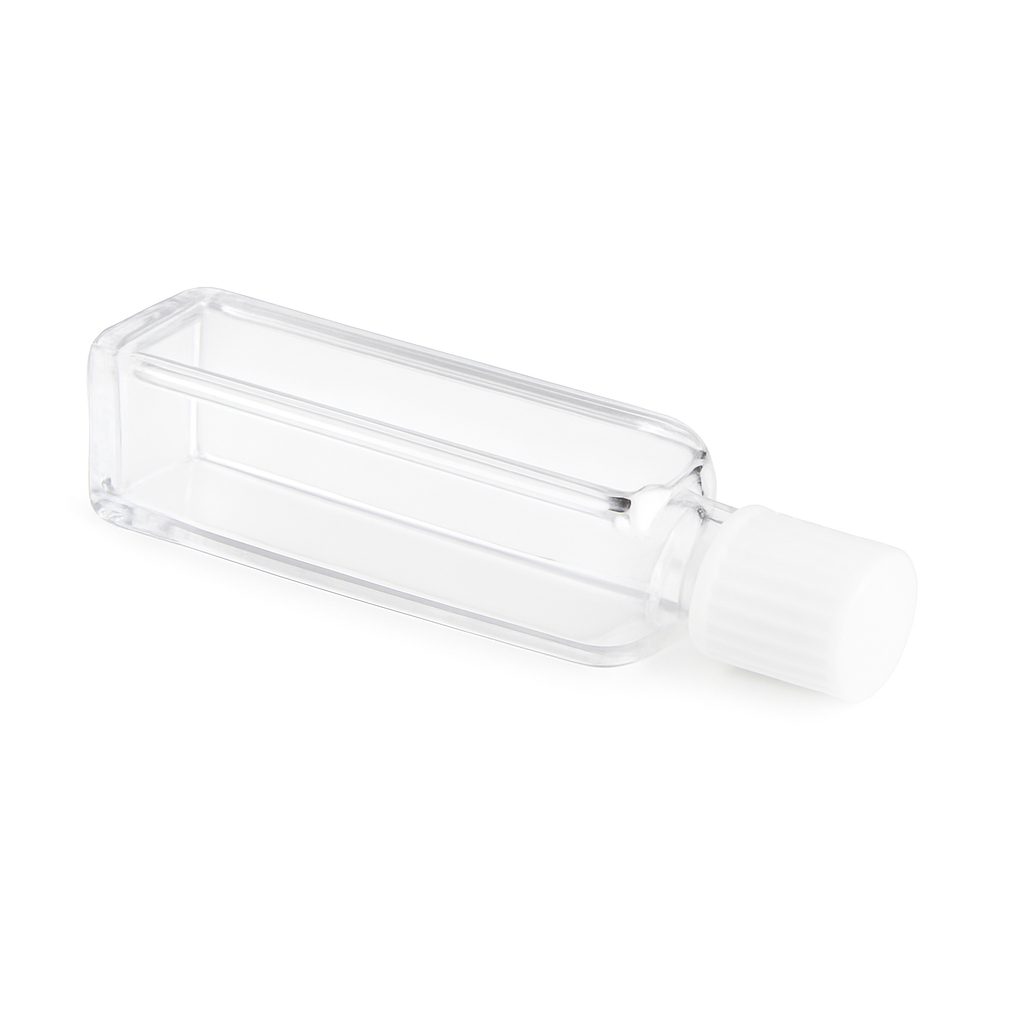

(VFSM1) 3mL Fluorescence Cuvette with Screw Cap, Short Height 48x10x10 mm

Weight	100 g
Brand	Qvarz
Resistant to Chemicals	Yes

SKU: VFSM1

15%Custom

(VFSM1) 3mL Fluorescence Cuvette with Screw Cap, Short Height 48x10x10 mm

(VFSM1) 3mL Fluorescence Cuvette with Screw Cap, Short Height 48x10x10 mm - Image 2

(VFSM1) 3mL Fluorescence Cuvette with Screw Cap, Short Height 48x10x10 mm - Image 3

(VFSM1) 3mL Fluorescence Cuvette with Screw Cap, Short Height 48x10x10 mm - Image 4

~~$335.00~~ Original price was: $335.00.$288.00Current price is: $288.00.

In Stock

This fluorescence cuvette is for anaerobic work, with a round bottom. A cap with a center hole (request) is available for sterile injections. Free extra septas if needed. Use -60°C – 1200°C. The price is for 1 piece.

In Stock

Type: Molded

SKU: VFSM1 Categories: All Cuvettes & Cells, Custom Cuvettes, Cuvettes & Flow Cells, Fluorometer Cuvettes, Molded Cuvettes, Products, Screw Cap Cuvettes, Standard Cuvettes 3.5mL Tags: fluorescence cuvette, screw cap cuvette, sealable cuvette

Worldwide Timed Dispatch Available

Free Shipping apply to all orders over $800
Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Fast dispatch. Receive deliveries in 2 - 3 weeks.

Description

VFSM1 – 3.0 mL Sealable Fluorescence Cuvette (Molded, 10 mm Lightpath, 4 Windows, Short Height)

The VFSM1 is a molded quartz fluorescence cuvette with a 10 mm optical path length and a 3.0 mL sample volume, designed with a screw cap and septa seal for excellent sealing and reduced headspace. Its short height design (48 mm including cap) offers easier handling in compact spectrometer systems while maintaining high optical performance. The Molded Fabrication ensures ultra-tight dimensional tolerance and chemical durability.

Key Features

10 mm optical path length: standard size compatible with most fluorescence spectrometers.
4 optical windows: optimized for fluorescence measurements with excitation and emission detection.
Short height (48 mm): ideal for instruments with limited space or lower sample volumes.
Screw cap & septa: enables excellent sealing for anaerobic and oxygen-sensitive applications.
Optional center-hole cap: available for sterile injections or sample additions without removing the cap.
Molded fabrication: highest quartz quality, ±0.01 mm tolerance, superb optical clarity.
Wavelength range: 190–2500 nm (UV/VIS).
Thermal resistance: -60 °C (−76 °F) to 1200 °C (2192 °F).
Chemical compatibility: resistant to acids, bases, and strong organic solvents.
Secure packaging: foam and bubble wrap; drop-tested from 1 meter before shipment.

Typical Applications

Fluorescence spectroscopy
Anaerobic and oxygen-sensitive measurements
Excitation–emission studies
Life sciences, environmental, and analytical research

Cuvette Specifications

Type	Screw Cap Sealable Cells	Optical Path Length	10 mm
Article No.	VFSM1	Volume	3000 µL
Measuring Method	Fluorescence Cells	Transmission Matched	Optional
Number of Windows	4	Wavelength Range	UV/VIS (190–2500 nm)

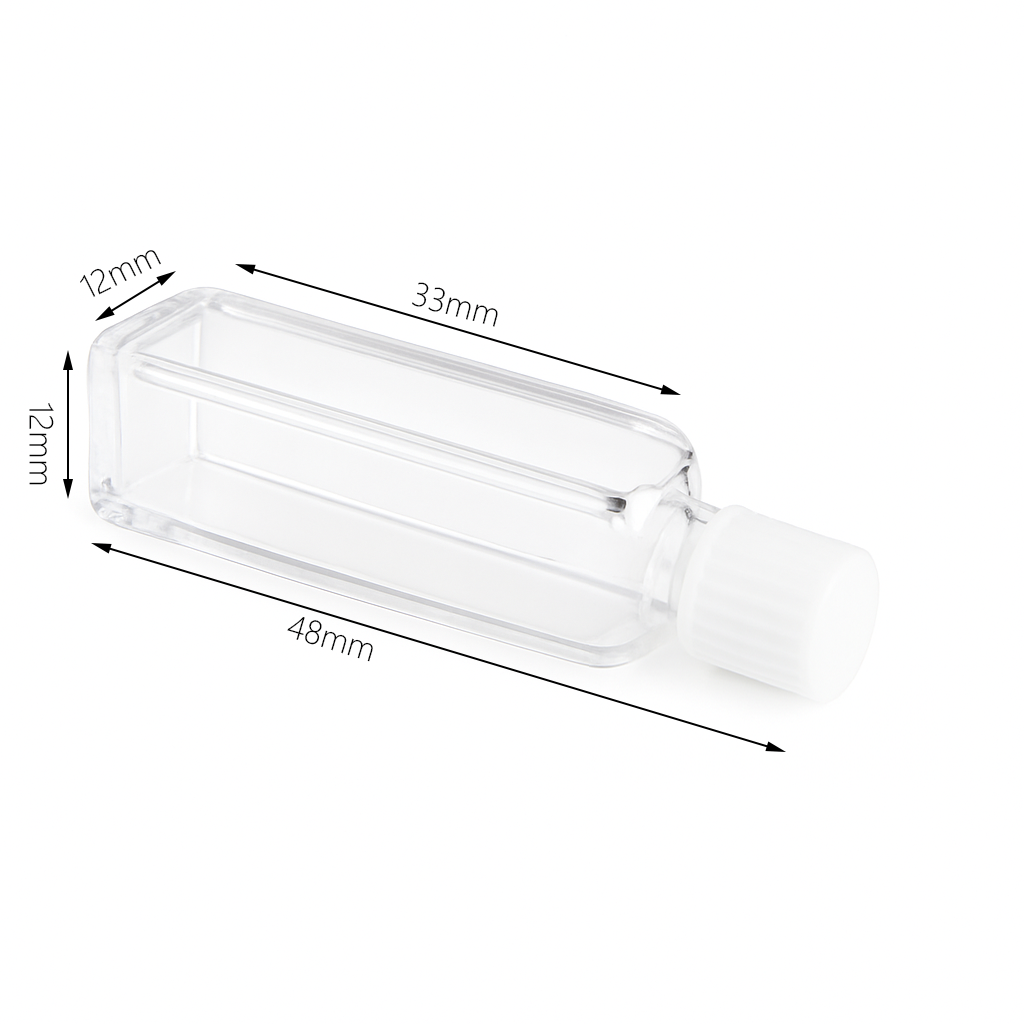

Outside Dimensions
Height	48 mm (Cap Included)	Width	12 mm
Depth	12 mm
Inside Dimensions
Width (Inside)	10 mm	Depth (Inside)	10 mm
Center Height (Z)	8.5 – 20 mm	Fabrication Method	Molded*
Package	Cell, Cap & Septa

About Molded Fabrication

Produced from a single piece of high-purity quartz with ±0.01 mm tolerance.
Delivers the highest optical precision among all cuvette fabrication methods.
Extremely durable under high temperature and strong chemical exposure.
Excellent sealing performance when combined with screw cap and septa.

Note: VFSM1 is a compact, high-performance cuvette designed for fluorescence measurements requiring strong sealing and reduced sample volume.

Comparison of Fabrication Types

1	2	3	4
	*Molded	*Fused	*Bonded / Glued
UV vis ( 190- 2500 nm)	Yes	Yes	Yes
Transmission Matched	On Request	No	No
Transmission > 80%	Yes	Yes	Yes
Resistant to Acids and Bases (except hydrofluoric acid)	Yes	Yes	No
Resistant to Organic Solvents	Yes	Yes	No
Usable upto 600°C (1112°F)	Yes	Yes	Yes
Usable upto 1200°C (2192°F)	Yes	No	No
0 Variations Reading	On Request	No	No
Fabrication	Molded	Assembled with Quartz Powder	Assembled with Glue
Adhesives	No	No	Yes
Storage	Short Term Storage	Clean After Use	Clean After Use
Available Material	Fused Quartz Material
Note	Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm.

1
QVARZ Cuvettes Transmission Characteristics The following table is our cuvettes and cells made of quartz material suitable for wavelength from 190nm to 2500nm and depicts the percentage transmission for the material. IR or Glass material is not included.

Why QVARZ Cuvettes and Cells? QVARZ is world-renowned as the producer of premium quartz cuvettes. Over fifteen years of experience manufacturing quartz cuvettes ensures that every QVARZ cuvettes are manufactured to the most exacting standards for reproducible results.
Spectrophotometry cuvettes - Most spectrophotometry applications in the visible and UV ranges benefit from QVARZ spectrophotometry cuvettes. Our cuvettes made of fused quartz material deliver precise and reliable readings even at wavelengths as low as 190 nm. QVARZ cuvettes are compatible with most spectrophotometers and photometers with standard 0.2 - 100 mm path lengths. Fluorometry cuvettes - QVARZ brings two decades of experience molding high-quality spectrophotometry cuvettes to new four-sided clear cuvettes for fluorometry. Available in standard quartz material with ultra-low auto-fluorescence for the highest precision measurements. Protective packaging - QVARZ cuvettes are encased in dust-free, low scratching expanded polystyrene packaging. This ensures that premium cuvettes arrive in the laboratory ina the same pristine condition they were in at the factory, with optical quality windows and free of contaminants. Volumes for most purposes - Our cuvettes are available in a variety of ranges from macro to macro semi-micro sizes to respond to the needs of most scientific applications. We are also able to customize sample volume to deliver consistent, accurate findings. Perform consistently - QVARZ Cuvettes are constructed from high-quality fused quartz materials and are grouped by manufacturing mold cavities to ensure the lowest fluctuation in extinction coefficient. Customization - Custom cuvettes and cells are encouraged and available upon request; mechanical drawings with specifications and tolerances are prerequisites. Awesome pricing and flexibility on small quantities.
To the best of our knowledge, the technical information provided here is accurate. However, Qvarz.com assumes no liability for the accuracy of this information. The values provided here are typical at the time of manufacture and may vary over time and from batch to batch.
