(VAOFI40) 14mL IR Cuvette with PTFE Lid, Fused, Round Base, Lightpath 40mm
$103.00
This IR cuvette is for wavelength 250 – 3500 nm, with a path length of 40 mm. Resistant to most chemicals. Use up to 600°C. The price is for 1 piece.
In Stock
Add to Wishlist
CompareAdd to Wishlist
- Type: Fused
Description

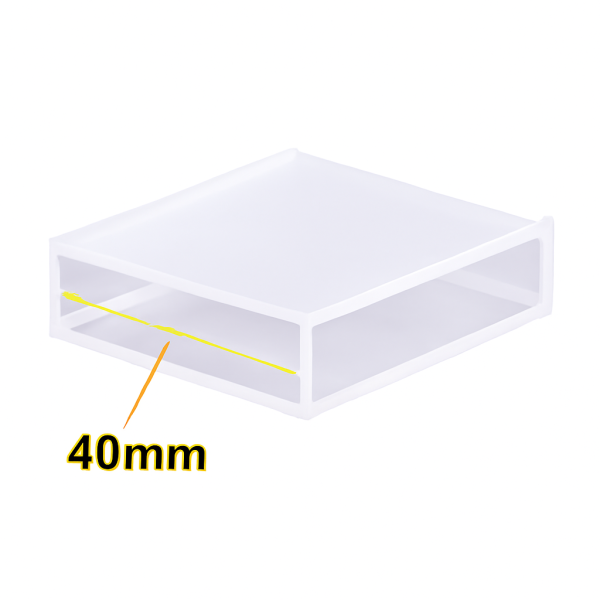

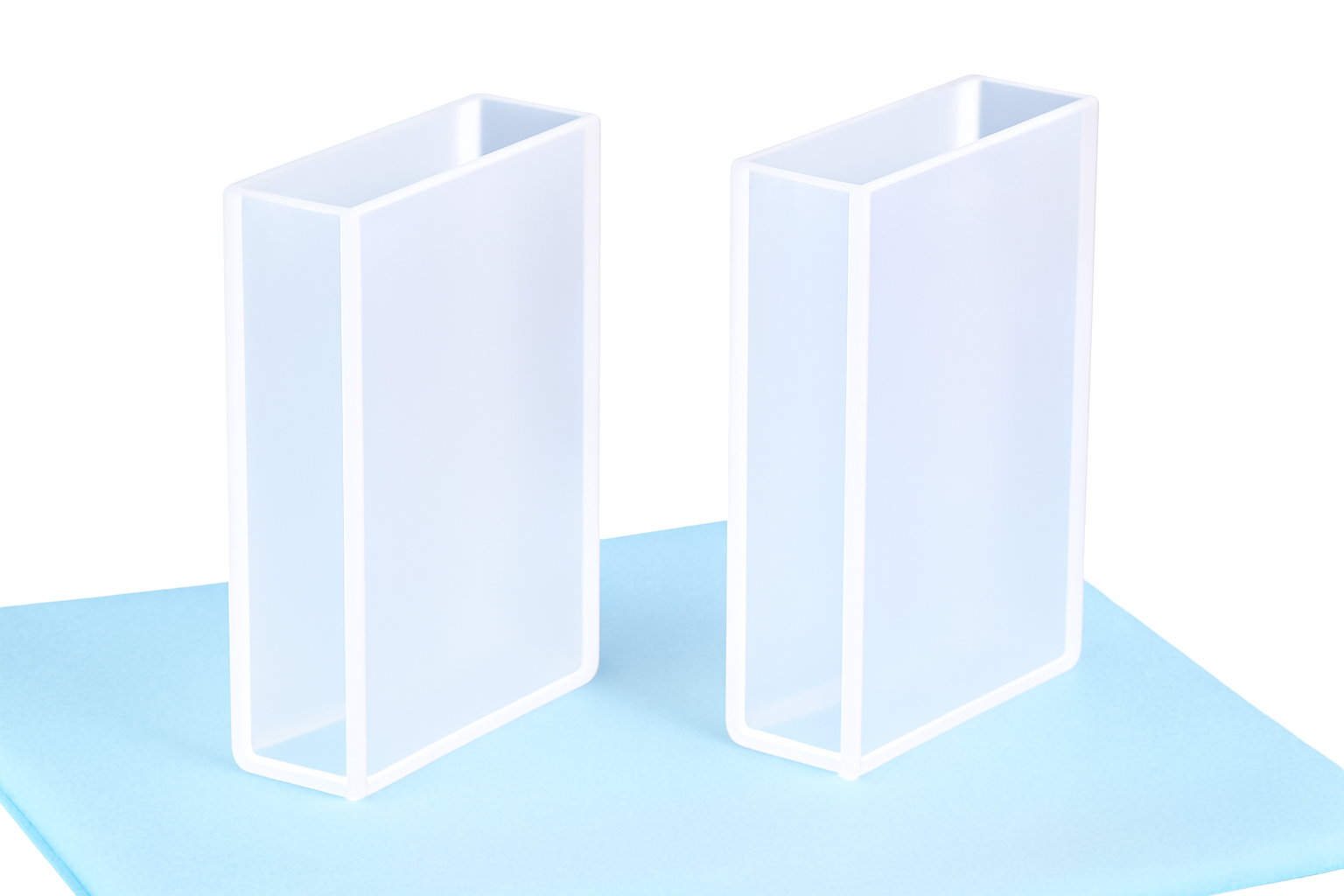

VAOFI40 Fused Quartz IR Cuvette is a 2-window cuvette with a 40 mm optical path length and a 14 ml internal volume.
This extra-long path cuvette is ideal for applications that require maximum detection sensitivity in IR and UV/VIS spectroscopy.
Manufactured using fused fabrication, it offers high thermal and chemical resistance. A round base ensures compatibility with most IR spectrometers, while the PTFE lid provides basic coverage during measurements.
Key Features
- 40 mm long optical path — greatly increases detection sensitivity, especially for low-concentration samples.
- 2-window configuration — optimized for transmission and absorbance spectroscopy with minimal signal loss.
- Fused fabrication — supports up to 600 °C and resists most acids, bases, and solvents.
- Wide spectral range — 250 – 3500 nm, compatible with a variety of analytical applications.
- PTFE lid — basic coverage to minimize sample evaporation and contamination during short-term use.
Typical Applications
- Infrared and UV/VIS absorbance spectroscopy.
- Trace analyte detection requiring high path length.
- Environmental, chemical, and industrial quantitative analysis.
- Extended path length experiments for enhanced absorbance signals.
Fused Fabrication Notes
- Resistant to temperatures up to 600 °C (1112 °F).
- Excellent chemical resistance except for HF, toluene, acetone, and other strong organic solvents that reduce service life.
- Powder seams may discolor over time; not recommended for long-term sample storage.
- PTFE lid provides basic protection but is not designed for oxygen isolation or volatile sample containment.
Cuvette Specifications
| Type | Infrared Quartz Cuvette | Optical Path Length | 40 mm |
| Article No. | VAOFI40 | Volume | 14 ml |
| Measuring Method | Absorption Cells | Base Type | Round |
| Number of Windows | 2 | Wavelength Range | 250 – 3500 nm |

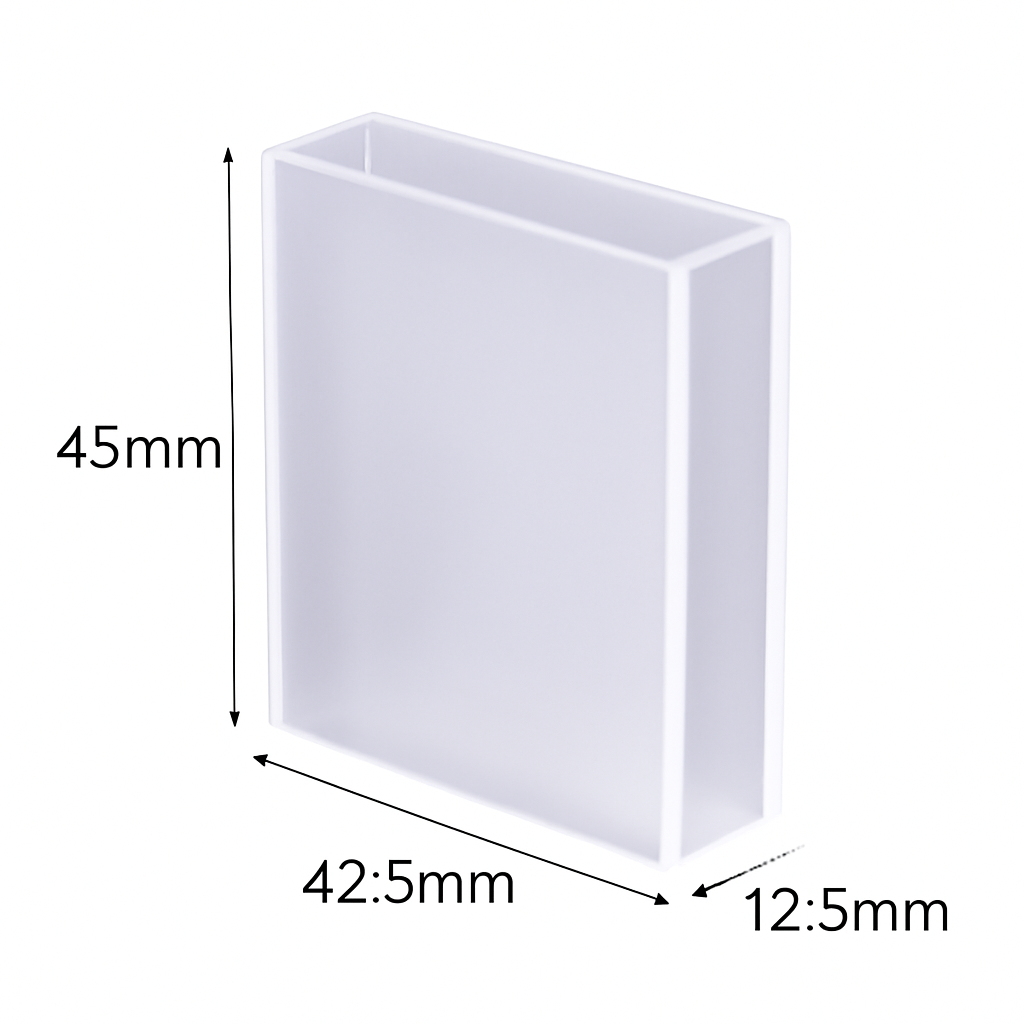

| Height | 45 mm | Width (Inside) | 10 mm |
| Width (Outside) | 12.5 mm | Depth (Inside) | 40 mm |
| Depth (Outside) | 42.5 mm | Center Height (Z) | 8.5 – 20 mm |
| Fabrication Method | Fused* | Package | Cell & Lid |
| Notes | 1. Temperature resistant up to 600 °C (1112 °F). 2. Acid, base, and most organic solvent resistant. 3. Avoid HF, toluene, acetone, or other aggressive solvents to extend service life. 4. Packed with foam and bubble wrap for safe transport and drop tested before shipment. |
||
Note: The 40 mm path length provides maximum absorbance sensitivity for trace-level detection. Fused fabrication ensures durability under thermal and chemical stress. The PTFE lid is for basic coverage only and is not suitable for oxygen- or volatile-sensitive applications.
Comparison of Fabrication Types
| 1 | 2 | 3 | 4 | ||
|---|---|---|---|---|---|
| *Molded | *Fused | *Bonded / Glued | |||
| UV vis ( 190- 2500 nm) | Yes | Yes | Yes | ||
| Transmission Matched | On Request | No | No | ||
| Transmission > 80% | Yes | Yes | Yes | ||
| Resistant to Acids and Bases (except hydrofluoric acid) | Yes | Yes | No | ||
| Resistant to Organic Solvents | Yes | Yes | No | ||
| Usable upto 600°C (1112°F) | Yes | Yes | Yes | ||
| Usable upto 1200°C (2192°F) | Yes | No | No | ||
| 0 Variations Reading | On Request | No | No | ||
| Fabrication | Molded | Assembled with Quartz Powder | Assembled with Glue | ||
| Adhesives | No | No | Yes | ||
| Storage | Short Term Storage | Clean After Use | Clean After Use | ||
| Available Material | Fused Quartz Material | ||||
| Note | Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm. | ||||
