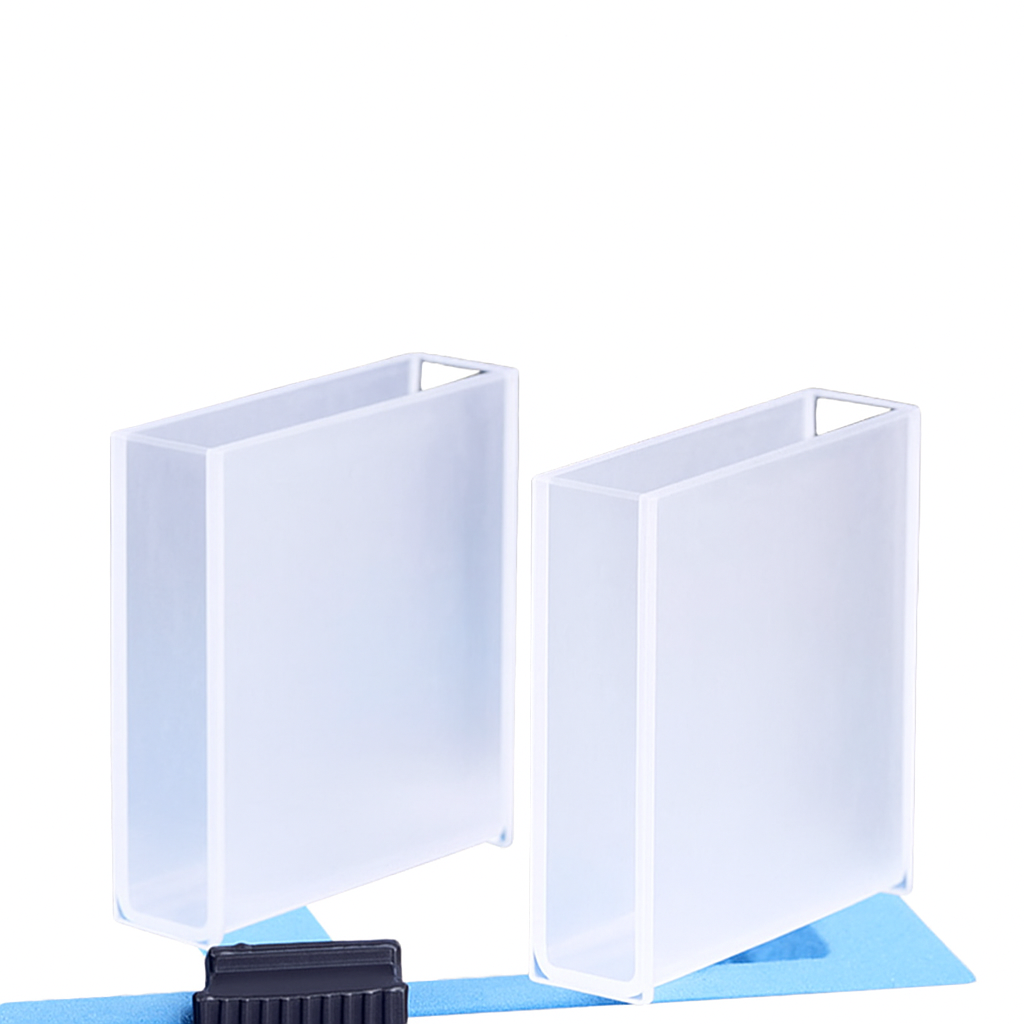

(VAOF40) 14mL Standard Absorption Cuvette with PTFE Lid, Fused, Lightpath 40mm

Weight	100 g
Brand	Qvarz
Resistant to Chemicals	Yes

SKU: VAOF40

(VAOF40) 14mL Standard Absorption Cuvette with PTFE Lid, Fused, Lightpath 40mm

(VAOF40) 14mL Standard Absorption Cuvette with PTFE Lid, Fused, Lightpath 40mm - Image 2

(VAOF40) 14mL Standard Absorption Cuvette with PTFE Lid, Fused, Lightpath 40mm - Image 3

(VAOF40) 14mL Standard Absorption Cuvette with PTFE Lid, Fused, Lightpath 40mm - Image 4

$41.00

In Stock

This long path length cuvette is for absorption applications, with a path length of 40 mm. Resistant to most chemicals. Use up to 600°C. The price is for 1 piece.

In Stock

Type: Fused

SKU: VAOF40 Categories: All Cuvettes & Cells, Cuvettes & Flow Cells, Fused Cuvettes, Long Path Length Cuvettes, Macro Cuvettes >3.5mL, Open Top Cuvettes, Products, Spectrometer Cuvettes Tags: macro cuvette, open top cuvette, spectrometer cuvette

Worldwide Timed Dispatch Available

Free Shipping apply to all orders over $800
Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Fast dispatch. Receive deliveries in 2 - 3 weeks.

Description

VAOF40 Fused Quartz Long Pathlength Cuvette is a 40 mm standard absorption cuvette equipped with a PTFE lid.
This cuvette provides extended pathlength for higher detection sensitivity in UV/VIS spectroscopy.

Key Features

40 mm optical pathlength — enhances absorbance signals, improving detection of trace or low-concentration samples.
PTFE lid — prevents sample evaporation and contamination during extended measurement runs.
Fused quartz fabrication — excellent UV transparency (190–2500 nm), high thermal resistance (up to 600 °C), and strong chemical durability (except HF and some organic solvents).
Round base design — ensures secure fit with standard spectrophotometer holders.
Reliable and stable for routine analytical and research use.

Typical Applications

Trace analysis and low-concentration measurements
Environmental and water quality monitoring
Pharmaceutical and biochemical R&D
General UV/VIS absorption spectroscopy

Fused Fabrication Notes

Excellent UV/VIS optical performance and heat resistance
Pathlength tolerance: ±0.06 – 0.08 mm
Not recommended for HF, toluene, acetone, or aggressive solvents

Cuvette Specifications

Type	40 mm Standard Quartz Cuvette	Optical Path Length	40 mm
Article No.	VAOF40	Volume	14 ml
Measuring Method	Absorption Cells	Base Type	Round
Number of Windows	2	Wavelength Range	UV/VIS (190 – 2500 nm)

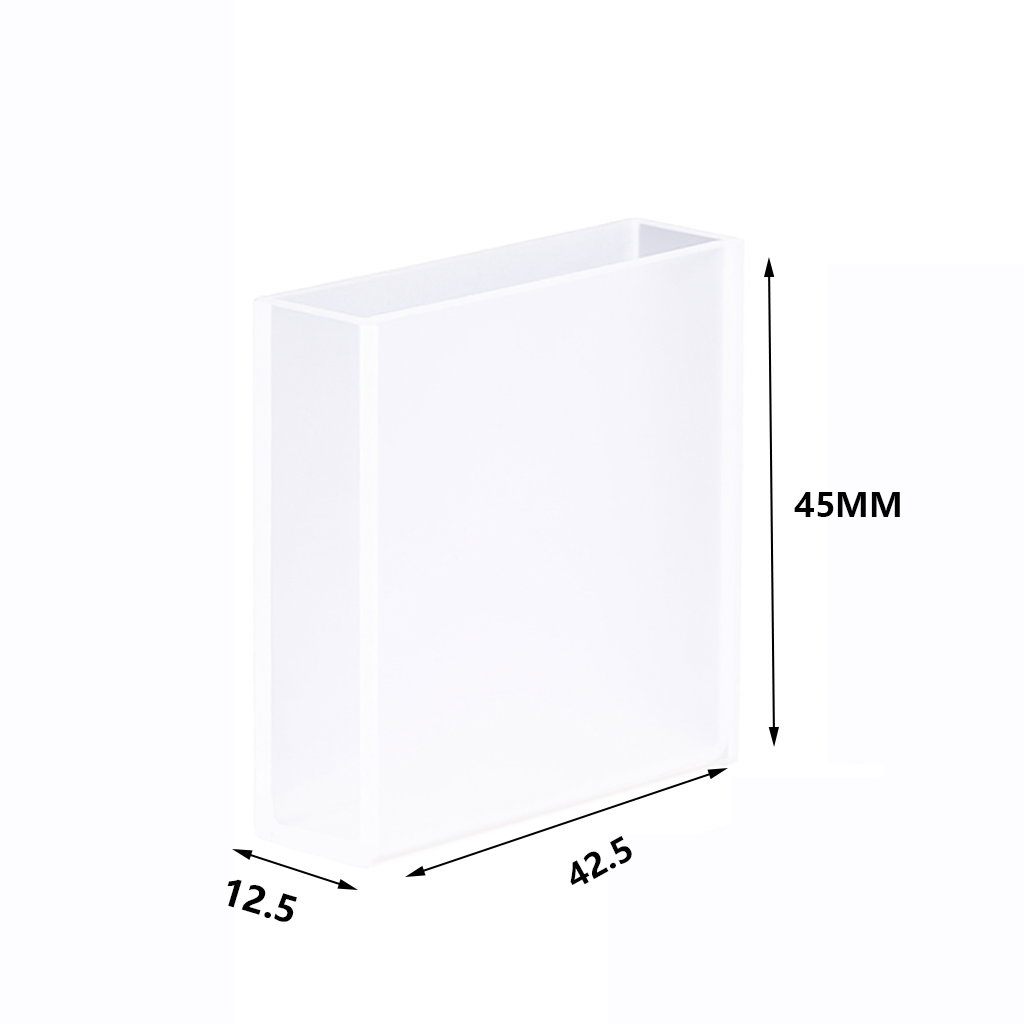

Height	45 mm	Width (Inside)	10 mm
Width (Outside)	12.5 mm	Depth (Inside)	40 mm
Depth (Outside)	42.5 mm	Center Height (Z)	8.5 – 20 mm
Fabrication Method	Fused*	Package	Cell & Lid

Note: VAOF40 is a fused quartz cuvette with a 40 mm pathlength and PTFE lid, offering excellent durability, UV transparency, and stability for high-sensitivity absorption measurements.

Comparison of Fabrication Types

1	2	3	4
	*Molded	*Fused	*Bonded / Glued
UV vis ( 190- 2500 nm)	Yes	Yes	Yes
Transmission Matched	On Request	No	No
Transmission > 80%	Yes	Yes	Yes
Resistant to Acids and Bases (except hydrofluoric acid)	Yes	Yes	No
Resistant to Organic Solvents	Yes	Yes	No
Usable upto 600°C (1112°F)	Yes	Yes	Yes
Usable upto 1200°C (2192°F)	Yes	No	No
0 Variations Reading	On Request	No	No
Fabrication	Molded	Assembled with Quartz Powder	Assembled with Glue
Adhesives	No	No	Yes
Storage	Short Term Storage	Clean After Use	Clean After Use
Available Material	Fused Quartz Material
Note	Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm.

1
QVARZ Cuvettes Transmission Characteristics The following table is our cuvettes and cells made of quartz material suitable for wavelength from 190nm to 2500nm and depicts the percentage transmission for the material. IR or Glass material is not included.

Why QVARZ Cuvettes and Cells? QVARZ is world-renowned as the producer of premium quartz cuvettes. Over fifteen years of experience manufacturing quartz cuvettes ensures that every QVARZ cuvettes are manufactured to the most exacting standards for reproducible results.
Spectrophotometry cuvettes - Most spectrophotometry applications in the visible and UV ranges benefit from QVARZ spectrophotometry cuvettes. Our cuvettes made of fused quartz material deliver precise and reliable readings even at wavelengths as low as 190 nm. QVARZ cuvettes are compatible with most spectrophotometers and photometers with standard 0.2 - 100 mm path lengths. Fluorometry cuvettes - QVARZ brings two decades of experience molding high-quality spectrophotometry cuvettes to new four-sided clear cuvettes for fluorometry. Available in standard quartz material with ultra-low auto-fluorescence for the highest precision measurements. Protective packaging - QVARZ cuvettes are encased in dust-free, low scratching expanded polystyrene packaging. This ensures that premium cuvettes arrive in the laboratory ina the same pristine condition they were in at the factory, with optical quality windows and free of contaminants. Volumes for most purposes - Our cuvettes are available in a variety of ranges from macro to macro semi-micro sizes to respond to the needs of most scientific applications. We are also able to customize sample volume to deliver consistent, accurate findings. Perform consistently - QVARZ Cuvettes are constructed from high-quality fused quartz materials and are grouped by manufacturing mold cavities to ensure the lowest fluctuation in extinction coefficient. Customization - Custom cuvettes and cells are encouraged and available upon request; mechanical drawings with specifications and tolerances are prerequisites. Awesome pricing and flexibility on small quantities.
To the best of our knowledge, the technical information provided here is accurate. However, Qvarz.com assumes no liability for the accuracy of this information. The values provided here are typical at the time of manufacture and may vary over time and from batch to batch.
