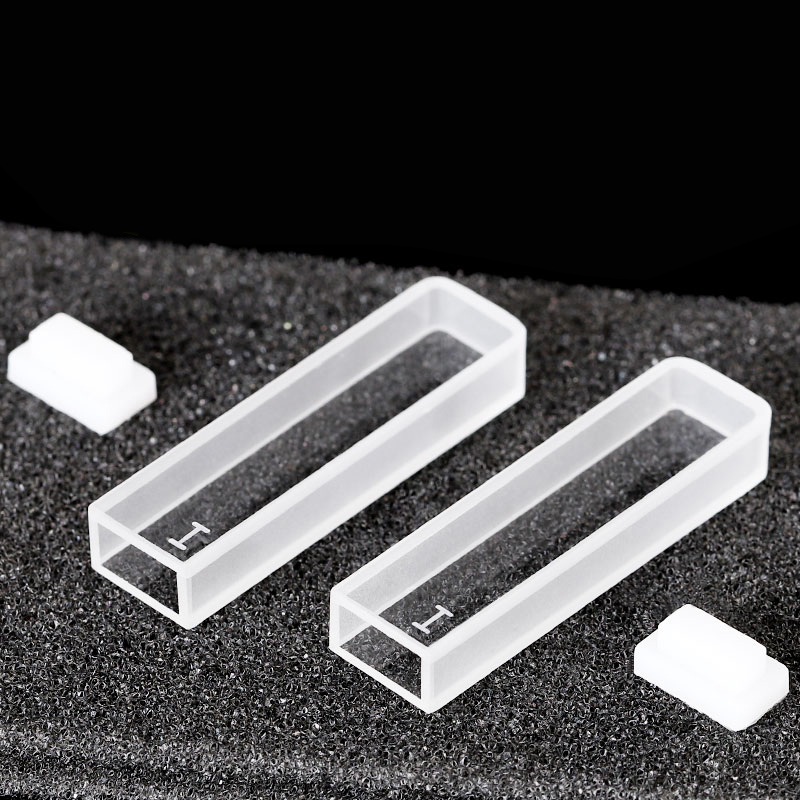

(VAOFI5) 1.75mL IR Cuvette with PTFE Lid, Fused, Round Base, Lightpath 5mm
$55.00
This IR cuvette is for wavelength 250 – 3500 nm, with a path length of 5 mm. Resistant to most chemicals. Use up to 600°C. The price is for 1 piece.
In Stock
Add to Wishlist
CompareAdd to Wishlist
- Type: Fused
Description
VAOFI5 Fused Quartz IR Cuvette is a 2-window IR cuvette designed for medium path length absorbance measurements. With a 5 mm optical path length and 1.75 ml volume, it offers excellent balance between sensitivity and sample volume requirements. The cuvette features a round base for wide instrument compatibility and a PTFE lid for basic sample protection during measurement.
Key Features
- 5 mm optical path — ideal for mid-range absorbance experiments, providing enhanced signal compared to shorter path cells.
- 2-window configuration — optimized for transmission IR and UV/VIS spectroscopy.
- Fused quartz body — exceptional IR transmission (250 – 3500 nm), acid/base and solvent resistance, and high temperature tolerance.
- PTFE lid — provides light sealing to reduce evaporation and contamination during testing.
- Heat resistant up to 600 °C — suitable for demanding laboratory conditions.
Typical Applications
- IR and NIR absorbance spectroscopy (250 – 3500 nm).
- General laboratory chemical and material analysis.
- Mid-range optical path applications where signal strength and volume efficiency are important.
- Solvent-resistant and high-temperature spectroscopy setups.
Fused Fabrication Notes
- Made from fused quartz powder, ensuring high thermal stability and optical clarity.
- Gaps may discolor over time; not intended for long-term sample storage.
- Not compatible with HF, toluene, acetone, or similar aggressive solvents.
- Each cell is securely packed and 1 m drop-tested before shipment.
Cuvette Specifications
| Type | Infrared Quartz Cuvette | Optical Path Length | 5 mm |
| Article No. | VAOFI5 | Volume | 1750 µL |
| Measuring Method | Absorption Cells | Base Type | Round |
| Number of Windows | 2 | Wavelength Range | 250 – 3500 nm |
| Height | 45 mm | Width (Inside) | 10 mm |
| Width (Outside) | 12.5 mm | Depth (Inside) | 5 mm |
| Depth (Outside) | 7.5 mm | Center Height (Z) | 8.5 – 20 mm |
| Fabrication Method | Fused* | Package | Cell & Lid |
| Notes | 1. Temperature-resistant up to 600 °C (1112 °F). 2. Resistant to acid, base, and most organic solvents. 3. Packed with foam and bubble wrap, drop-tested at 1 m before shipment. |
||
Note: The PTFE lid provides only basic sealing and is not designed for oxygen isolation or long-term volatile sample storage. Avoid HF, toluene, and acetone to maintain cell performance.
Comparison of Fabrication Types
| 1 | 2 | 3 | 4 | ||
|---|---|---|---|---|---|
| *Molded | *Fused | *Bonded / Glued | |||
| UV vis ( 190- 2500 nm) | Yes | Yes | Yes | ||
| Transmission Matched | On Request | No | No | ||
| Transmission > 80% | Yes | Yes | Yes | ||
| Resistant to Acids and Bases (except hydrofluoric acid) | Yes | Yes | No | ||
| Resistant to Organic Solvents | Yes | Yes | No | ||
| Usable upto 600°C (1112°F) | Yes | Yes | Yes | ||
| Usable upto 1200°C (2192°F) | Yes | No | No | ||
| 0 Variations Reading | On Request | No | No | ||
| Fabrication | Molded | Assembled with Quartz Powder | Assembled with Glue | ||
| Adhesives | No | No | Yes | ||
| Storage | Short Term Storage | Clean After Use | Clean After Use | ||
| Available Material | Fused Quartz Material | ||||
| Note | Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm. | ||||
