(VNE058) 10.5mL Fluorescence Cuvette with PTFE Lid, Molded, Lightpath 30mm, 5 Clear Walls
This wide clear wall cuvette is for fluorescence applications, with a path length of 10/30 mm. Resistant to chemicals. Use up to 1200°C. The price is for 1 piece.
- Type: Molded*
|Type||Long Path Length Cuvette||Optical Path Length||30 mm|
|Article No.||VNE058||Volume||10.5 ml|
|Measuring Method||Fluorescence Cells||Material||Quartz|
|Number of Windows||5||Wavelength Range||UV/VIS (190 - 2500 nm)|

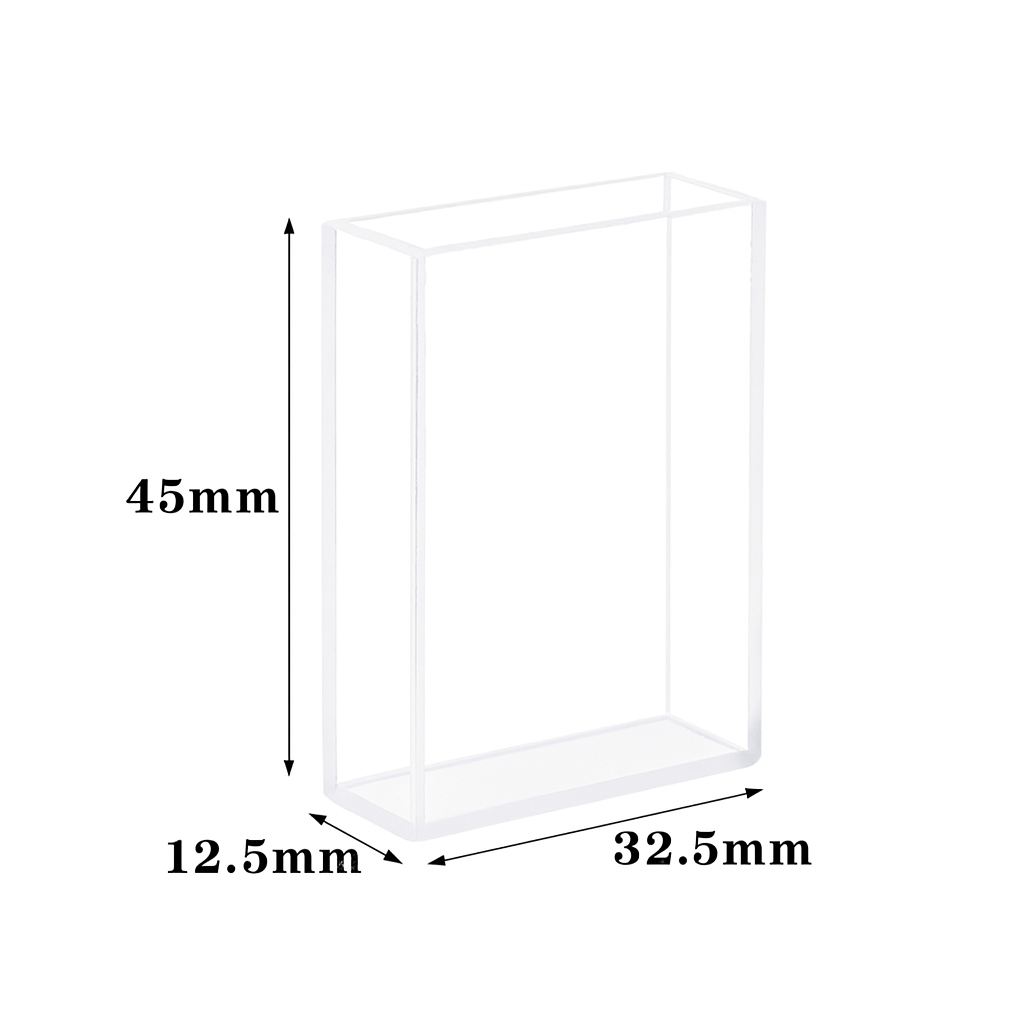

|Outside Dimensions||Inside Dimensions|
|Height||45 mm||Width||10 mm|
|Width||12.5 mm||Depth||30 mm|
|Depth||32.5 mm||Cover Material||PTFE|
|Fabrication Method||Molded*||Package||Cell & Cover|
Comparison of Fabrication Types
|UV vis ( 190- 2500 nm)||Yes||Yes||Yes|
|Transmission Matched||On Request||No||No|
|Transmission > 80%||Yes||Yes||Yes|
|Resistant to Acids and Bases (except hydrofluoric acid)||Yes||Yes||No|
|Resistant to Organic Solvents||Yes||Yes||No|
|Usable upto 600°C (1112°F)||Yes||Yes||Yes|
|Usable upto 1200°C (2192°F)||Yes||No||No|
|0 Variations Reading||On Request||No||No|
|Fabrication||Molded||Assembled with Quartz Powder||Assembled with Glue|
|Storage||Short Term Storage||Clean After Use||Clean After Use|
|Available Material||Fused Quartz Material|
|Note||Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm.|
QVARZ® Cuvettes Transmission Characteristics
Why QVARZ® Cuvettes and Cells?
QVARZ® is world-renowned as the producer of premium quartz cuvettes. Over fifteen years of experience manufacturing quartz cuvettes ensures that every QVARZ® cuvette is manufactured to the most exacting standards for reproducible results.
To the best of our knowledge, the technical information provided here is accurate. However, Qvarz.com assumes no liability for the accuracy of this information. The values provided here are typical at the time of manufacture and may vary over time and from batch to batch.
