(V5ML20N) 8 mL Large Cuvette, 5 Windows, No Cover, Molded, Lightpath 20mm, 22x24x24 mm

Weight	100 g
Brand	Qvarz
Resistant to Chemicals	Yes

SKU: V5ML20N

(V5ML20N) 8 mL Large Cuvette, 5 Windows, No Cover, Molded, Lightpath 20mm, 22x24x24 mm

(V5ML20N) 8 mL Large Cuvette, 5 Windows, No Cover, Molded, Lightpath 20mm, 22x24x24 mm - Image 2

$309.00

In Stock

This wide clear wall cuvette is for fluorescence applications, with a path length of 20mm. Resistant to chemicals. Use up to 1200°C. The price is for 1 piece.

In Stock

Type: Molded*

SKU: V5ML20N Categories: 5 Windows Cuvettes, All Cuvettes & Cells, Custom Cuvettes, Cuvettes & Flow Cells, Fluorometer Cuvettes, Macro Cuvettes >3.5mL, Molded Cuvettes, Open Top Cuvettes, Other Cuvettes, Products Tags: fluorescence cuvette, large cell, macro cuvette, open top cuvette

Worldwide Timed Dispatch Available

Free Shipping apply to all orders over $800
Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Fast dispatch. Receive deliveries in 2 - 3 weeks.

Description

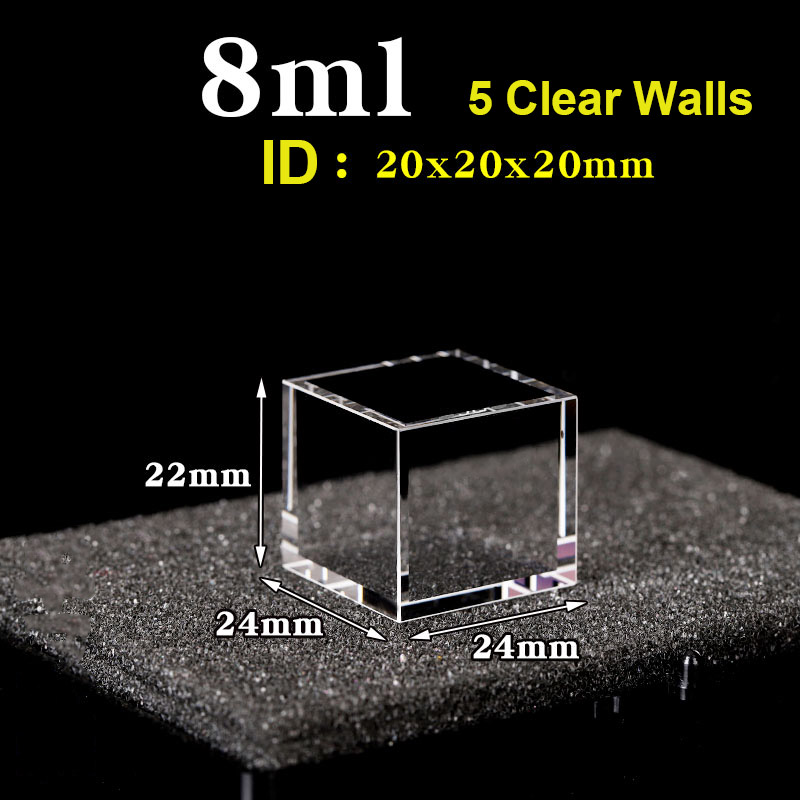

V5ML20N Large Quartz Cuvette is a 5-window molded quartz cuvette with a 20 mm optical path length and 8 ml volume.
This open-top design is ideal for general fluorescence and absorbance measurements where a cover is not required, making it convenient for fast sample handling and cleaning.

Key Features

20 mm optical path — increases absorbance signal intensity and enhances fluorescence detection.
5-window design — supports multiple measurement geometries, including standard absorbance and side fluorescence detection.
8 ml volume — suitable for moderate-volume applications and routine experiments.
Open-top format — easy sample addition, rinsing, and cleaning, perfect for quick measurement workflows.
Molded quartz fabrication — provides excellent optical clarity and dimensional precision.

Typical Applications

Fluorescence and absorbance spectroscopy in UV/VIS/NIR ranges.
Photochemical and kinetic studies where easy access to the sample is advantageous.
Environmental and chemical testing in R&D or academic labs.
Routine laboratory use with standard instrument holders.

Molded Fabrication Notes

High dimensional precision ensures stable measurement positioning and minimal signal deviation.
Open-top design does not protect against evaporation — best suited for rapid measurements or stable samples.
Excellent transmission from 190–2500 nm.
Not compatible with HF, toluene, acetone, or other strong organic solvents.

Cuvette Specifications

Type	Large Capacity Cuvette	Optical Path Length	20 mm
Article No.	V5ML20N	Volume	8 ml
Measuring Method	Fluorescence Cells	Clear Walls	22 × 24 mm
Number of Windows	5	Wavelength Range	UV/VIS (190 – 2500 nm)
Height	22 mm	Width (Inside)	20 mm
Width (Outside)	24 mm	Depth (Inside)	20 mm
Depth (Outside)	24 mm	Cover Material	None
Fabrication Method	Molded*	Package	Cell Only

Note: This open-top cuvette is suitable for general use and quick measurements.
For volatile or oxygen-sensitive samples, a version with a PTFE or quartz cover is recommended.

Comparison of Fabrication Types

1	2	3	4
	*Molded	*Fused	*Bonded / Glued
UV vis ( 190- 2500 nm)	Yes	Yes	Yes
Transmission Matched	On Request	No	No
Transmission > 80%	Yes	Yes	Yes
Resistant to Acids and Bases (except hydrofluoric acid)	Yes	Yes	No
Resistant to Organic Solvents	Yes	Yes	No
Usable upto 600°C (1112°F)	Yes	Yes	Yes
Usable upto 1200°C (2192°F)	Yes	No	No
0 Variations Reading	On Request	No	No
Fabrication	Molded	Assembled with Quartz Powder	Assembled with Glue
Adhesives	No	No	Yes
Storage	Short Term Storage	Clean After Use	Clean After Use
Available Material	Fused Quartz Material
Note	Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm.

1
QVARZ Cuvettes Transmission Characteristics The following table is our cuvettes and cells made of quartz material suitable for wavelength from 190nm to 2500nm and depicts the percentage transmission for the material. IR or Glass material is not included.

Why QVARZ Cuvettes and Cells? QVARZ is world-renowned as the producer of premium quartz cuvettes. Over fifteen years of experience manufacturing quartz cuvettes ensures that every QVARZ cuvettes are manufactured to the most exacting standards for reproducible results.
Spectrophotometry cuvettes - Most spectrophotometry applications in the visible and UV ranges benefit from QVARZ spectrophotometry cuvettes. Our cuvettes made of fused quartz material deliver precise and reliable readings even at wavelengths as low as 190 nm. QVARZ cuvettes are compatible with most spectrophotometers and photometers with standard 0.2 - 100 mm path lengths. Fluorometry cuvettes - QVARZ brings two decades of experience molding high-quality spectrophotometry cuvettes to new four-sided clear cuvettes for fluorometry. Available in standard quartz material with ultra-low auto-fluorescence for the highest precision measurements. Protective packaging - QVARZ cuvettes are encased in dust-free, low scratching expanded polystyrene packaging. This ensures that premium cuvettes arrive in the laboratory ina the same pristine condition they were in at the factory, with optical quality windows and free of contaminants. Volumes for most purposes - Our cuvettes are available in a variety of ranges from macro to macro semi-micro sizes to respond to the needs of most scientific applications. We are also able to customize sample volume to deliver consistent, accurate findings. Perform consistently - QVARZ Cuvettes are constructed from high-quality fused quartz materials and are grouped by manufacturing mold cavities to ensure the lowest fluctuation in extinction coefficient. Customization - Custom cuvettes and cells are encouraged and available upon request; mechanical drawings with specifications and tolerances are prerequisites. Awesome pricing and flexibility on small quantities.
To the best of our knowledge, the technical information provided here is accurate. However, Qvarz.com assumes no liability for the accuracy of this information. The values provided here are typical at the time of manufacture and may vary over time and from batch to batch.
