(V5ML20P) 8 mL Large Cuvette, 5 Windows, PTFE Cover, Molded, Lightpath 20mm, 22x24x24 mm

Weight	100 g
Brand	Qvarz
Resistant to Chemicals	Yes

SKU: V5ML20P

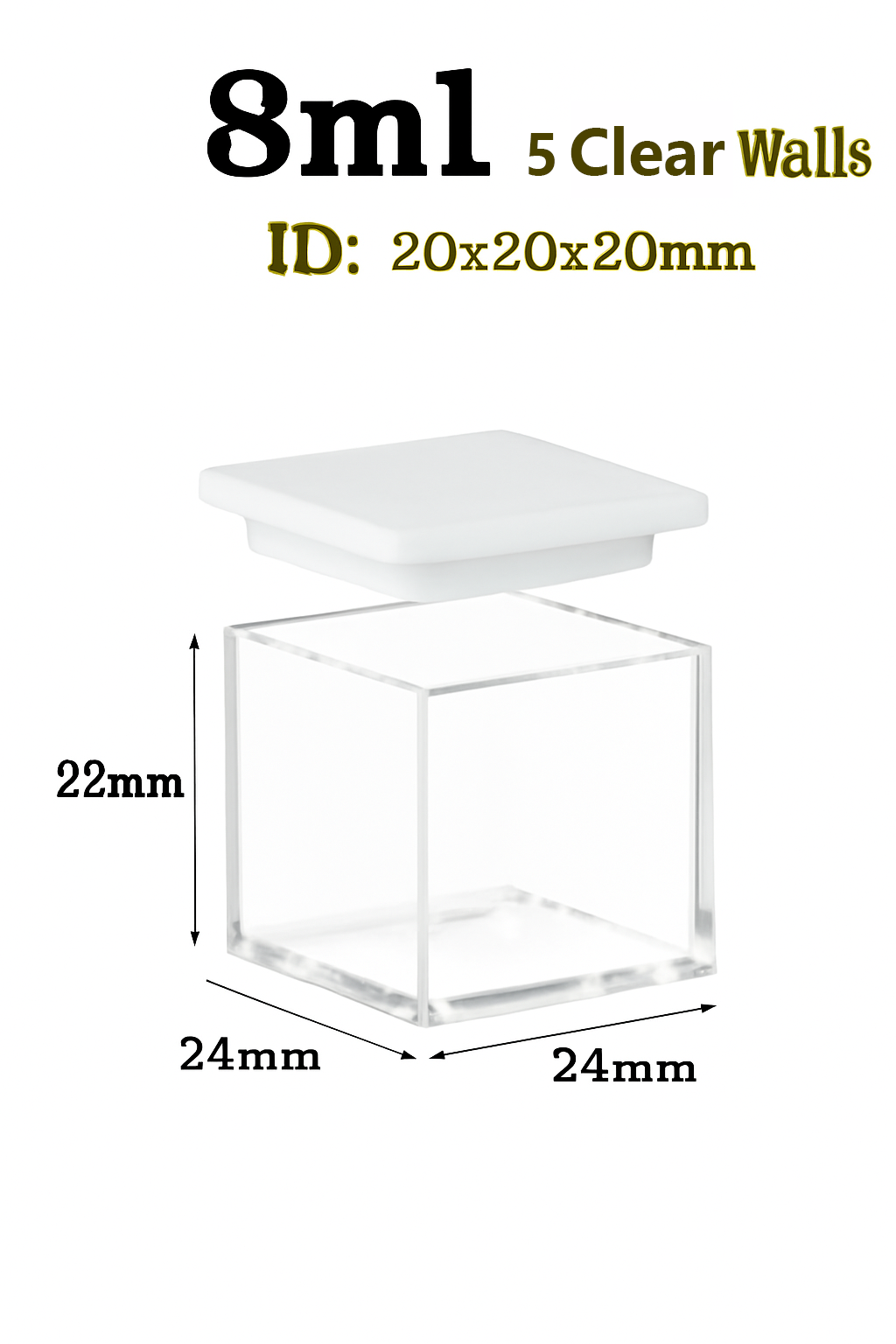

(V5ML20P) 8 mL Large Cuvette, 5 Windows, PTFE Cover, Molded, Lightpath 20mm, 22x24x24 mm

(V5ML20P) 8 mL Large Cuvette, 5 Windows, PTFE Cover, Molded, Lightpath 20mm, 22x24x24 mm - Image 2

$328.00

In Stock

This wide clear wall cuvette is for fluorescence applications, with a path length of 20mm. Resistant to chemicals. Use up to 1200°C. The price is for 1 piece.

In Stock

Type: Molded*

SKU: V5ML20P Categories: 5 Windows Cuvettes, All Cuvettes & Cells, Custom Cuvettes, Cuvettes & Flow Cells, Fluorometer Cuvettes, Macro Cuvettes >3.5mL, Molded Cuvettes, Open Top Cuvettes, Other Cuvettes, Products Tags: fluorescence cuvette, large cell, macro cuvette, open top cuvette

Worldwide Timed Dispatch Available

Free Shipping apply to all orders over $800
Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Fast dispatch. Receive deliveries in 2 - 3 weeks.

Description

V5ML20P Large Quartz Cuvette is a 5-window molded quartz cuvette with a 20 mm optical path length and 8 ml volume.
It features a PTFE cover, making it suitable for general fluorescence and absorbance experiments that benefit from basic evaporation control while keeping sample handling convenient.

Key Features

20 mm optical path — ideal for enhanced absorbance and fluorescence measurements with increased signal strength.
5-window design — enables multiple measurement geometries, including side fluorescence detection.
8 ml capacity — fits small to mid-volume analytical and photochemical experiments.
Molded quartz construction — offers excellent optical quality and dimensional precision.
PTFE cover — helps minimize evaporation and dust contamination without completely isolating from air.

Typical Applications

Fluorescence and absorbance spectroscopy in the UV/VIS/NIR region.
Photochemical and kinetic studies with moderate volume.
Environmental, chemical, and materials research requiring stable measurement geometry.
Routine laboratory measurements where good repeatability and optical clarity are required.

Molded Fabrication Notes

High dimensional precision and smooth optical surfaces minimize stray light and scattering.
PTFE lid is not oxygen-tight — for oxygen-sensitive samples, a fully sealed solution is recommended.
Excellent transmission across 190–2500 nm wavelength range.
Not suitable for highly aggressive solvents such as HF, toluene, or acetone.

Cuvette Specifications

Type	Large Capacity Cuvette	Optical Path Length	20 mm
Article No.	V5ML20P	Volume	8 ml
Measuring Method	Fluorescence Cells	Clear Walls	22 × 24 mm
Number of Windows	5	Wavelength Range	UV/VIS (190 – 2500 nm)
Height	22 mm	Width (Inside)	20 mm
Width (Outside)	24 mm	Depth (Inside)	20 mm
Depth (Outside)	24 mm	Cover Material	PTFE
Fabrication Method	Molded*	Package	Cell & Cover

Note: PTFE cover provides basic protection against evaporation and dust but is not gas-tight.
For applications requiring full sealing, consider alternative cover types.

Comparison of Fabrication Types

1	2	3	4
	*Molded	*Fused	*Bonded / Glued
UV vis ( 190- 2500 nm)	Yes	Yes	Yes
Transmission Matched	On Request	No	No
Transmission > 80%	Yes	Yes	Yes
Resistant to Acids and Bases (except hydrofluoric acid)	Yes	Yes	No
Resistant to Organic Solvents	Yes	Yes	No
Usable upto 600°C (1112°F)	Yes	Yes	Yes
Usable upto 1200°C (2192°F)	Yes	No	No
0 Variations Reading	On Request	No	No
Fabrication	Molded	Assembled with Quartz Powder	Assembled with Glue
Adhesives	No	No	Yes
Storage	Short Term Storage	Clean After Use	Clean After Use
Available Material	Fused Quartz Material
Note	Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm.

1
QVARZ Cuvettes Transmission Characteristics The following table is our cuvettes and cells made of quartz material suitable for wavelength from 190nm to 2500nm and depicts the percentage transmission for the material. IR or Glass material is not included.

Why QVARZ Cuvettes and Cells? QVARZ is world-renowned as the producer of premium quartz cuvettes. Over fifteen years of experience manufacturing quartz cuvettes ensures that every QVARZ cuvettes are manufactured to the most exacting standards for reproducible results.
Spectrophotometry cuvettes - Most spectrophotometry applications in the visible and UV ranges benefit from QVARZ spectrophotometry cuvettes. Our cuvettes made of fused quartz material deliver precise and reliable readings even at wavelengths as low as 190 nm. QVARZ cuvettes are compatible with most spectrophotometers and photometers with standard 0.2 - 100 mm path lengths. Fluorometry cuvettes - QVARZ brings two decades of experience molding high-quality spectrophotometry cuvettes to new four-sided clear cuvettes for fluorometry. Available in standard quartz material with ultra-low auto-fluorescence for the highest precision measurements. Protective packaging - QVARZ cuvettes are encased in dust-free, low scratching expanded polystyrene packaging. This ensures that premium cuvettes arrive in the laboratory ina the same pristine condition they were in at the factory, with optical quality windows and free of contaminants. Volumes for most purposes - Our cuvettes are available in a variety of ranges from macro to macro semi-micro sizes to respond to the needs of most scientific applications. We are also able to customize sample volume to deliver consistent, accurate findings. Perform consistently - QVARZ Cuvettes are constructed from high-quality fused quartz materials and are grouped by manufacturing mold cavities to ensure the lowest fluctuation in extinction coefficient. Customization - Custom cuvettes and cells are encouraged and available upon request; mechanical drawings with specifications and tolerances are prerequisites. Awesome pricing and flexibility on small quantities.
To the best of our knowledge, the technical information provided here is accurate. However, Qvarz.com assumes no liability for the accuracy of this information. The values provided here are typical at the time of manufacture and may vary over time and from batch to batch.
