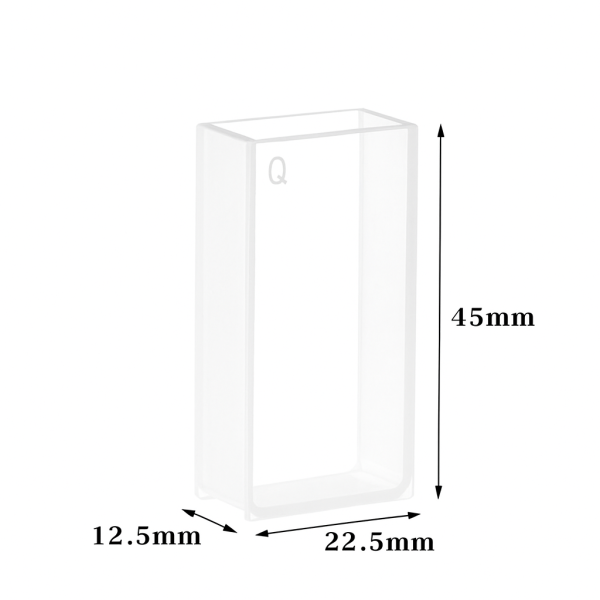

(VAOF20B) 7mL Macro Window Clear Cuvette, Fused, Lightpath 10mm, 45×22.5×12.5 mm
$99.00
This large clear wall cuvette is for absorption applications, with a path length of 10 mm. Resistant to most chemicals. Use up to 600°C. The price is for 1 piece.
In Stock
Add to Wishlist
CompareAdd to Wishlist
- Type: Fused
Description
VAOF20B Fused Quartz Macro Cuvette is a 7 ml capacity large cuvette designed for UV/VIS absorbance measurements with a 10 mm optical path length.
Its clear two-window design ensures high light transmission and compatibility with standard spectrophotometers, making it a reliable choice for routine laboratory use.
Key Features

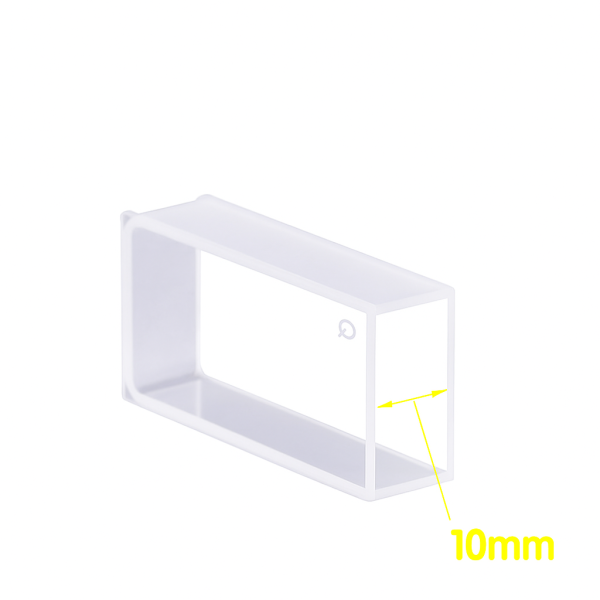

- 10 mm path length — standard for most UV/VIS spectrophotometers, ensuring excellent compatibility and reliable measurement results.
- 7 ml volume — ideal for medium sample capacity with good signal stability and reproducibility.
- Fused quartz construction — provides outstanding UV transparency (190–2500 nm), high temperature resistance up to 600 °C, and chemical stability (except HF and certain strong organics).
- 2 clear optical windows — designed for accurate transmission and absorbance testing.
- Manufactured with tight dimensional tolerances for precise optical alignment.
Typical Applications
- Routine UV/VIS absorbance assays
- Biological and chemical analysis
- Environmental testing and water quality monitoring
- R&D and quality control laboratories
Fused Fabrication Notes
- Not suitable for HF and strong organic solvents (e.g., toluene, acetone).
- Powder seams may discolor over time without affecting optical accuracy.
- Dimensional tolerance: typically ±0.06–0.08 mm.
Cuvette Specifications
| Type | Macro Quartz Cuvette | Optical Path Length | 10 mm |
| Article No. | VAOF20B | Volume | 7 ml |
| Measuring Method | Absorption Cells | Clear Walls | 45 × 22.5 mm |
| Number of Windows | 2 | Wavelength Range | UV/VIS (190 – 2500 nm) |
| Height | 45 mm | Width (Inside) | 20 mm |
| Width (Outside) | 22.5 mm | Depth (Inside) | 10 mm |
| Depth (Outside) | 12.5 mm | Center Height (Z) | 8.5 – 20 mm |
| Fabrication Method | Fused* | Package | Cell Only |
Note: VAOF20B is a standard fused quartz cuvette with a 10 mm pathlength and medium volume, suitable for a wide range of UV/VIS spectroscopy applications including environmental, chemical, and biological analysis.
Comparison of Fabrication Types
| 1 | 2 | 3 | 4 | ||
|---|---|---|---|---|---|
| *Molded | *Fused | *Bonded / Glued | |||
| UV vis ( 190- 2500 nm) | Yes | Yes | Yes | ||
| Transmission Matched | On Request | No | No | ||
| Transmission > 80% | Yes | Yes | Yes | ||
| Resistant to Acids and Bases (except hydrofluoric acid) | Yes | Yes | No | ||
| Resistant to Organic Solvents | Yes | Yes | No | ||
| Usable upto 600°C (1112°F) | Yes | Yes | Yes | ||
| Usable upto 1200°C (2192°F) | Yes | No | No | ||
| 0 Variations Reading | On Request | No | No | ||
| Fabrication | Molded | Assembled with Quartz Powder | Assembled with Glue | ||
| Adhesives | No | No | Yes | ||
| Storage | Short Term Storage | Clean After Use | Clean After Use | ||
| Available Material | Fused Quartz Material | ||||
| Note | Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm. | ||||
