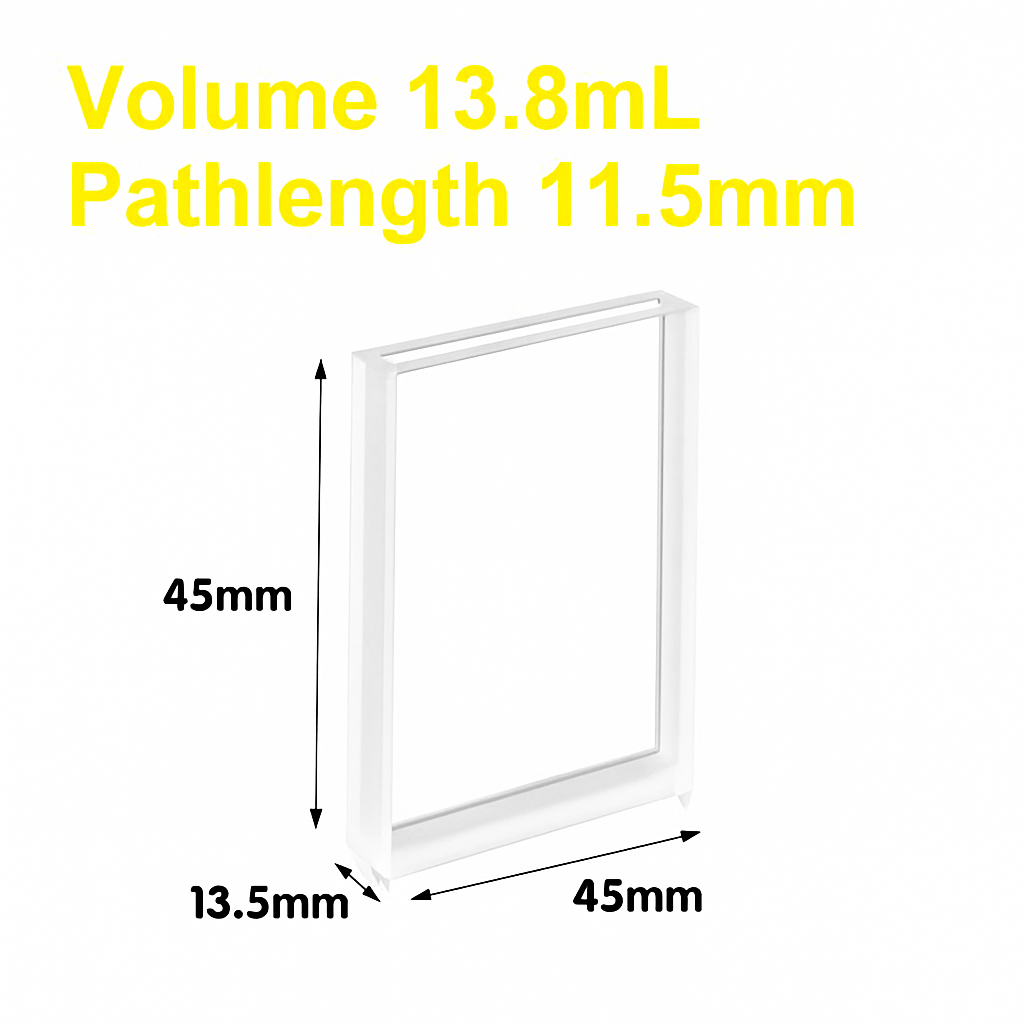

(VAOF138) 13.8ml Absorption Cuvette, Fused, Lightpath 11.5mm, 45x30x13.5 mm, 2 Clear Windows

Weight	100 g
Brand	Qvarz
Resistant to Chemicals	Yes

SKU: VAOF138

(VAOF138) 13.8ml Absorption Cuvette, Fused, Lightpath 11.5mm, 45x30x13.5 mm, 2 Clear Windows

(VAOF138) 13.8ml Absorption Cuvette, Fused, Lightpath 11.5mm, 45x30x13.5 mm, 2 Clear Windows - Image 2

$77.00

In Stock

This wide clear wall cuvette is for absorption applications, with a path length of 11.5 mm. Resistant to most chemicals. Use up to 600°C. The price is for 1 piece.

In Stock

Type: Fused

SKU: VAOF138 Categories: All Cuvettes & Cells, Custom Cuvettes, Cuvettes & Flow Cells, Fused Cuvettes, Macro Cuvettes >3.5mL, Open Top Cuvettes, Other Cuvettes, Products, Spectrometer Cuvettes, Wide Clear Window Cuvettes Tags: large cell, macro cuvette, open top cuvette, spectrometer cuvette, wide clear window cuvette

Worldwide Timed Dispatch Available

Free Shipping apply to all orders over $800
Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Fast dispatch. Receive deliveries in 2 - 3 weeks.

Description

VAOF138 Fused Quartz Absorption Cuvette is a 2-window quartz cuvette with a 13.8 ml volume, designed as a customized size product for specific experimental and OEM applications.
Made from high-purity fused quartz, this cuvette offers excellent optical clarity, chemical resistance, and thermal stability, making it suitable for demanding laboratory environments.

Unlike standard catalog cuvettes, this model is precision-fabricated to custom dimensions, allowing researchers and equipment manufacturers to achieve exact compatibility with unique instrument holders, optical setups, or flow systems.

This cuvette is ideal for:

Custom instrument integration and OEM use
Specialized analytical applications in R&D
Experimental setups requiring non-standard cuvette geometry
Laboratory users needing exact dimension control for optical alignment

Key Features

Customized dimensions — precisely fabricated for specialized instrument compatibility.
2-window design — ideal for standard transmission and absorbance measurements.
Fused fabrication — ensures excellent thermal resistance (up to 600 °C) and chemical durability.
High-purity quartz — superior optical clarity for UV/VIS and NIR applications.
Wavelength range — 190–2500 nm, suitable for most analytical instruments.

Typical Applications

OEM and custom system integration
Custom experimental optical setups
Material science and spectroscopy R&D
Precision absorbance and transmission measurements

Fused Fabrication Notes

Fused quartz provides excellent stability, high temperature resistance, and optical quality.
Not suitable for hydrofluoric acid (HF) or strong organic solvents such as toluene and acetone.
Powder seams may discolor over time but do not affect performance.
Typical dimensional tolerance: ±0.06–0.08 mm.

Cuvette Specifications

Type	Absorption Quartz Cuvette	Volume	13.8 ml
Article No.	VAOF138	Clear Walls	45 × 30 mm
Measuring Method	Absorption Cells	Wavelength Range	UV/VIS (190 – 2500 nm)
Number of Windows	2	Center Height (Z)	8.5 – 20 mm
Height	45 mm	Width (Inside)	28 mm
Width (Outside)	30 mm	Depth (Outside)	13.5 mm
Fabrication Method	Fused*	Package	Cell Only

Note: VAOF138 is a customized fused quartz cuvette designed for OEM and research applications that require non-standard dimensions.
It ensures excellent optical performance and stability for precise absorbance and transmission measurements.

Comparison of Fabrication Types

1	2	3	4
	*Molded	*Fused	*Bonded / Glued
UV vis ( 190- 2500 nm)	Yes	Yes	Yes
Transmission Matched	On Request	No	No
Transmission > 80%	Yes	Yes	Yes
Resistant to Acids and Bases (except hydrofluoric acid)	Yes	Yes	No
Resistant to Organic Solvents	Yes	Yes	No
Usable upto 600°C (1112°F)	Yes	Yes	Yes
Usable upto 1200°C (2192°F)	Yes	No	No
0 Variations Reading	On Request	No	No
Fabrication	Molded	Assembled with Quartz Powder	Assembled with Glue
Adhesives	No	No	Yes
Storage	Short Term Storage	Clean After Use	Clean After Use
Available Material	Fused Quartz Material
Note	Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm.

1
QVARZ Cuvettes Transmission Characteristics The following table is our cuvettes and cells made of quartz material suitable for wavelength from 190nm to 2500nm and depicts the percentage transmission for the material. IR or Glass material is not included.

Why QVARZ Cuvettes and Cells? QVARZ is world-renowned as the producer of premium quartz cuvettes. Over fifteen years of experience manufacturing quartz cuvettes ensures that every QVARZ cuvettes are manufactured to the most exacting standards for reproducible results.
Spectrophotometry cuvettes - Most spectrophotometry applications in the visible and UV ranges benefit from QVARZ spectrophotometry cuvettes. Our cuvettes made of fused quartz material deliver precise and reliable readings even at wavelengths as low as 190 nm. QVARZ cuvettes are compatible with most spectrophotometers and photometers with standard 0.2 - 100 mm path lengths. Fluorometry cuvettes - QVARZ brings two decades of experience molding high-quality spectrophotometry cuvettes to new four-sided clear cuvettes for fluorometry. Available in standard quartz material with ultra-low auto-fluorescence for the highest precision measurements. Protective packaging - QVARZ cuvettes are encased in dust-free, low scratching expanded polystyrene packaging. This ensures that premium cuvettes arrive in the laboratory ina the same pristine condition they were in at the factory, with optical quality windows and free of contaminants. Volumes for most purposes - Our cuvettes are available in a variety of ranges from macro to macro semi-micro sizes to respond to the needs of most scientific applications. We are also able to customize sample volume to deliver consistent, accurate findings. Perform consistently - QVARZ Cuvettes are constructed from high-quality fused quartz materials and are grouped by manufacturing mold cavities to ensure the lowest fluctuation in extinction coefficient. Customization - Custom cuvettes and cells are encouraged and available upon request; mechanical drawings with specifications and tolerances are prerequisites. Awesome pricing and flexibility on small quantities.
To the best of our knowledge, the technical information provided here is accurate. However, Qvarz.com assumes no liability for the accuracy of this information. The values provided here are typical at the time of manufacture and may vary over time and from batch to batch.
