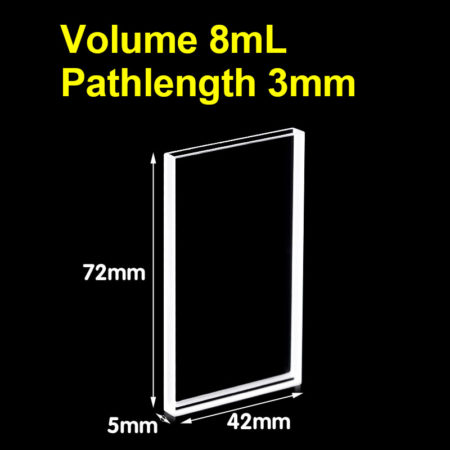

(VAOB8) 8ml Absorption Cuvette, Fused, Lightpath 3mm, 72x42x5 mm, 2 Clear Windows
$196.00
This wide clear wall cuvette is for absorption applications, with a path length of 3 mm. Resistant to most chemicals. Use up to 600°C. The price is for 1 piece.
In Stock
Add to Wishlist
CompareAdd to Wishlist
- Type: Fused
Description
VAOB8 Fused Quartz Absorption Cuvette is a custom-dimension cuvette with an 8 ml volume and a 3 mm optical path length. It features a non-standard wide and tall geometry (72 × 42 mm), making it suitable for specialized laboratory setups and OEM instrument integration where conventional cuvette sizes are not ideal.
This model demonstrates our capability to produce customized quartz cuvettes tailored to match specific beam geometries, sample chamber sizes, or detection configurations. Its fused quartz construction provides high transmission, superior chemical resistance, and long service life for demanding analytical applications.
Key Features
- Custom outside dimensions (72 × 42 mm) — ideal for special instruments or OEM integration.
- 3 mm optical path — suitable for medium to high concentration samples.
- 8 ml capacity — supports larger sample handling compared to standard micro cuvettes.
- Fused quartz construction — excellent UV transparency, thermal stability, and solvent resistance.
- Broad wavelength range: 190–2500 nm — compatible with UV/VIS/NIR applications.
Typical Applications
- Customized spectroscopy system integration
- OEM instrument design and R&D
- Environmental and process analysis
- Biochemical and pharmaceutical testing
- Advanced analytical experiments requiring special geometry
Fused Fabrication Notes
- Fused quartz ensures high optical performance and thermal stability up to 600 °C.
- Not suitable for hydrofluoric acid (HF) or strong organic solvents like toluene and acetone.
- Powder seams may discolor over time but do not affect optical performance.
- Typical dimensional tolerance: ±0.06–0.08 mm.
Cuvette Specifications
| Type | Absorption Quartz Cuvette | Optical Path Length | 3 mm |
| Article No. | VAOB8 | Volume | 8 ml |
| Measuring Method | Absorption Cells | Clear Walls | 72 × 42 mm |
| Number of Windows | 2 | Wavelength Range | UV/VIS (190 – 2500 nm) |
| Height | 72 mm | Width (Inside) | 40 mm |
| Width (Outside) | 42 mm | Depth (Inside) | 3 mm |
| Depth (Outside) | 5 mm | Center Height (Z) | 8.5 – 20 mm |
| Fabrication Method | Fused* | Package | Cell Only |
Note: VAOB8 is a custom-size fused quartz cuvette designed for non-standard optical systems. Its wide and tall format is especially useful in OEM integration, advanced spectroscopy setups, and analytical workflows requiring unique sample dimensions.
Comparison of Fabrication Types
| 1 | 2 | 3 | 4 | ||
|---|---|---|---|---|---|
| *Molded | *Fused | *Bonded / Glued | |||
| UV vis ( 190- 2500 nm) | Yes | Yes | Yes | ||
| Transmission Matched | On Request | No | No | ||
| Transmission > 80% | Yes | Yes | Yes | ||
| Resistant to Acids and Bases (except hydrofluoric acid) | Yes | Yes | No | ||
| Resistant to Organic Solvents | Yes | Yes | No | ||
| Usable upto 600°C (1112°F) | Yes | Yes | Yes | ||
| Usable upto 1200°C (2192°F) | Yes | No | No | ||
| 0 Variations Reading | On Request | No | No | ||
| Fabrication | Molded | Assembled with Quartz Powder | Assembled with Glue | ||
| Adhesives | No | No | Yes | ||
| Storage | Short Term Storage | Clean After Use | Clean After Use | ||
| Available Material | Fused Quartz Material | ||||
| Note | Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm. | ||||
