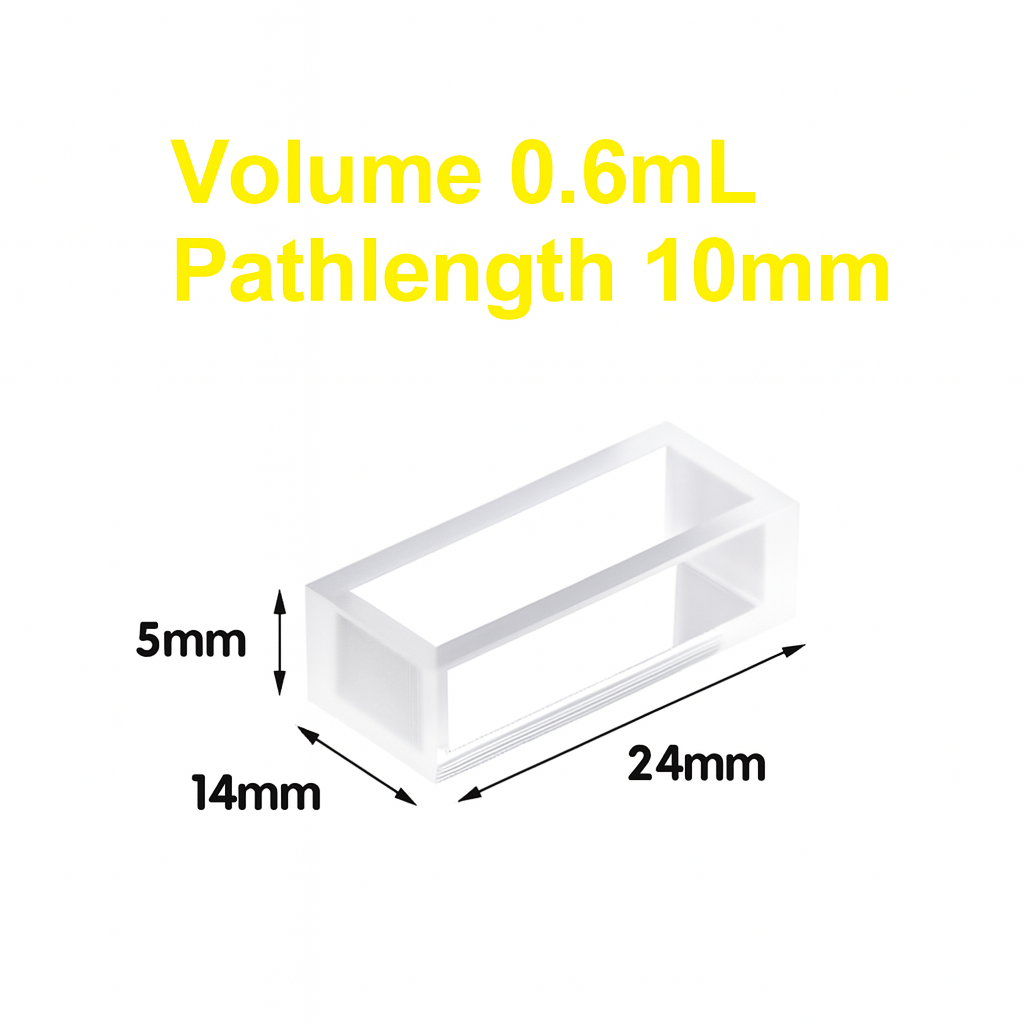

(VAOF06) 0.6ml Cuvette, Fused, Lightpath 10mm, Large Opening, 5x24x14 mm, 2 Clear Windows
$41.00
This wide clear wall cuvette is for absorption applications, with a path length of 10 mm and large opening. Resistant to most chemicals. Use up to 600°C. The price is for 1 piece.
In Stock
Add to Wishlist
CompareAdd to Wishlist
- Type: Fused
Description
VAOF06 Fused Quartz Micro Cuvette is a 0.6 ml capacity custom-dimension cuvette designed for absorption spectroscopy with a 10 mm optical path length. Its low-profile geometry (5 × 24 mm) and wide inner width (20 mm) make it ideal for applications that require large opening designs and small sample volumes.
This model reflects our ability to manufacture non-standard fused quartz cuvettes, offering both precision and compatibility with compact and OEM analytical instruments.
Key Features
- 10 mm optical path — standard for quantitative absorption measurements.
- 0.6 ml capacity — suitable for low-volume sample analysis.
- Custom large opening design — makes pipetting and cleaning easier.
- Fused quartz construction — ensures excellent UV transparency, thermal stability, and chemical resistance.
- Broad wavelength range: 190–2500 nm — compatible with UV/VIS/NIR analytical instruments.
Typical Applications
- Low-volume absorption spectroscopy
- OEM and custom optical system integration
- Biochemical and clinical analysis
- Environmental and water quality testing
- R&D and trace analysis
Fused Fabrication Notes
- Fused quartz provides outstanding optical transmission and temperature stability up to 600 °C.
- Not suitable for hydrofluoric acid (HF) or strong organic solvents such as toluene and acetone.
- Powder seams may discolor over time but do not affect optical accuracy.
- Typical dimensional tolerance: ±0.06–0.08 mm.
Cuvette Specifications
| Type | Micro Quartz Cuvette | Optical Path Length | 10 mm |
| Article No. | VAOF06 | Volume | 0.6 ml |
| Measuring Method | Absorption Cells | Clear Walls | 5 × 24 mm |
| Number of Windows | 2 | Wavelength Range | UV/VIS (190 – 2500 nm) |
| Height | 5 mm | Width (Inside) | 20 mm |
| Width (Outside) | 24 mm | Depth (Inside) | 10 mm |
| Depth (Outside) | 14 mm | Center Height (Z) | 8.5 – 20 mm |
| Fabrication Method | Fused* | Package | Cell Only |
Note: VAOF06 is a fused quartz micro cuvette with a custom large opening design, ideal for low-volume sample handling in precision absorption spectroscopy and OEM instrument setups.
Comparison of Fabrication Types
| 1 | 2 | 3 | 4 | ||
|---|---|---|---|---|---|
| *Molded | *Fused | *Bonded / Glued | |||
| UV vis ( 190- 2500 nm) | Yes | Yes | Yes | ||
| Transmission Matched | On Request | No | No | ||
| Transmission > 80% | Yes | Yes | Yes | ||
| Resistant to Acids and Bases (except hydrofluoric acid) | Yes | Yes | No | ||
| Resistant to Organic Solvents | Yes | Yes | No | ||
| Usable upto 600°C (1112°F) | Yes | Yes | Yes | ||
| Usable upto 1200°C (2192°F) | Yes | No | No | ||
| 0 Variations Reading | On Request | No | No | ||
| Fabrication | Molded | Assembled with Quartz Powder | Assembled with Glue | ||
| Adhesives | No | No | Yes | ||
| Storage | Short Term Storage | Clean After Use | Clean After Use | ||
| Available Material | Fused Quartz Material | ||||
| Note | Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm. | ||||
