(VNE087) 28mL Long Pathlength Absorption Quartz Cuvette, Bonded, Lightpath 80mm, Quartz
$82.00
This long path length cuvette is for absorption applications, with a path length of 80 mm. Resistant to most chemicals. Use up to 600°C. The price is for 1 piece.
In Stock
Add to Wishlist
Add to Wishlist
- Type: Bonded*
Description
80 mm Standard Absorption Cuvette Specifications
1 | 2 | 3 | 4 | |||
---|---|---|---|---|---|---|
Type | 80 mm Long Lightpath Cuvette | Optical Path Length | 80 mm | |||
Article No. | VNE087 | Volume | 28 ml | |||
Measuring Method | Absorption Cells | Base Type | Round | |||
Number of Windows | 2 | Wavelength Range | UV/VIS (190 - 2500 nm) | |||

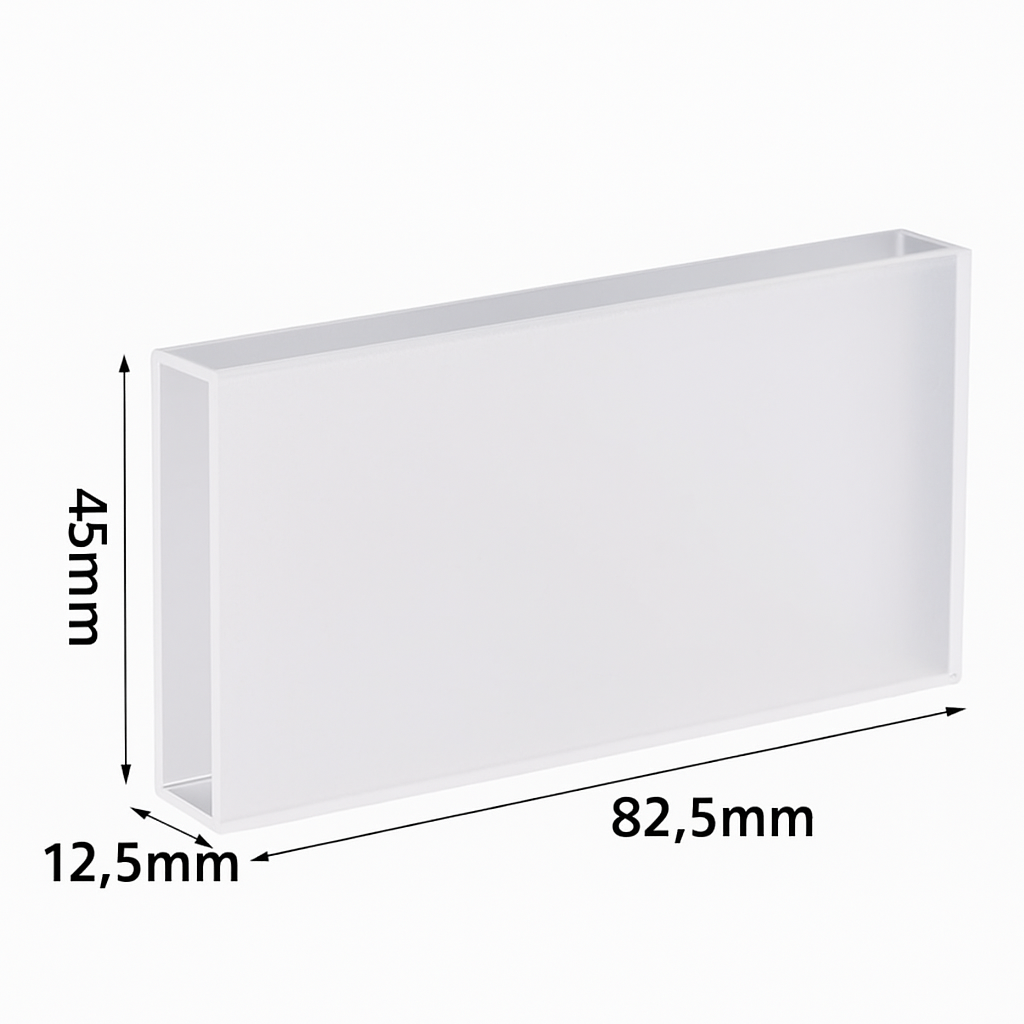

Outside Dimensions | Inside Dimensions | |||||
Height | 45 mm | Width | 10 mm | |||
Width | 12.5 mm | Depth | 80 mm | |||
Depth | 82.5 mm | Center Height (Z) | 8.5 - 20 mm | |||
Fabrication Method | Bonded* | Package | Cell & Lid |
Comparison of Fabrication Types
1 | 2 | 3 | 4 | ||
---|---|---|---|---|---|
*Molded | *Fused | *Bonded / Glued | |||
UV vis ( 190- 2500 nm) | Yes | Yes | Yes | ||
Transmission Matched | On Request | No | No | ||
Transmission > 80% | Yes | Yes | Yes | ||
Resistant to Acids and Bases (except hydrofluoric acid) | Yes | Yes | No | ||
Resistant to Organic Solvents | Yes | Yes | No | ||
Usable upto 600°C (1112°F) | Yes | Yes | Yes | ||
Usable upto 1200°C (2192°F) | Yes | No | No | ||
0 Variations Reading | On Request | No | No | ||
Fabrication | Molded | Assembled with Quartz Powder | Assembled with Glue | ||
Adhesives | No | No | Yes | ||
Storage | Short Term Storage | Clean After Use | Clean After Use | ||
Available Material | Fused Quartz Material | ||||
Note | Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm. |
