(VNE036) 35/70uL Flow Cell, 1/2mm Narrow Channel, 2 Windows, Lightpath 1/2mm, Molded
$712.00
This flow-through cuvette is for absorption applications, with a path length of 1 mm. Resistant to most chemicals. Use up to 1200°C. The price is for 1 piece.
Add to Wishlist
CompareAdd to Wishlist
- Type: Molded
Description

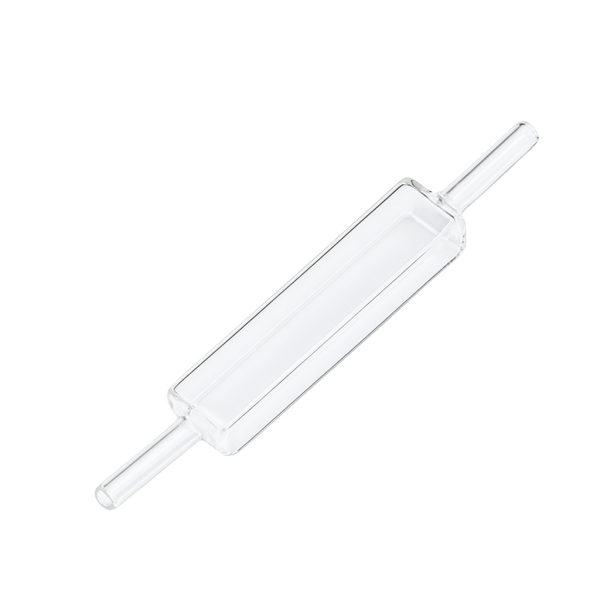

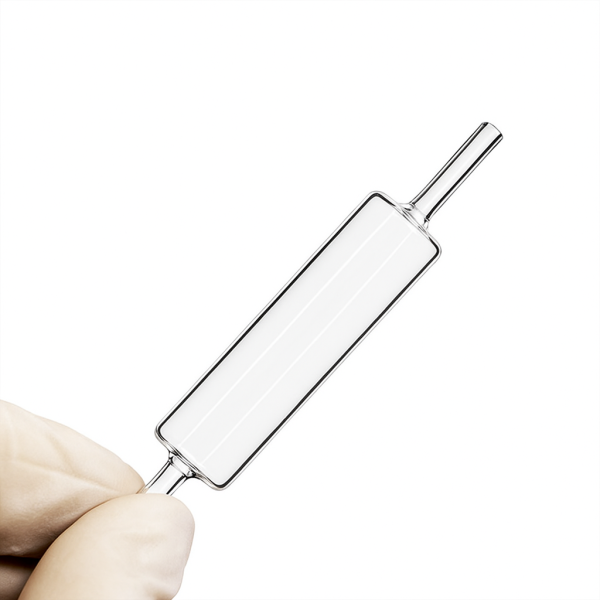

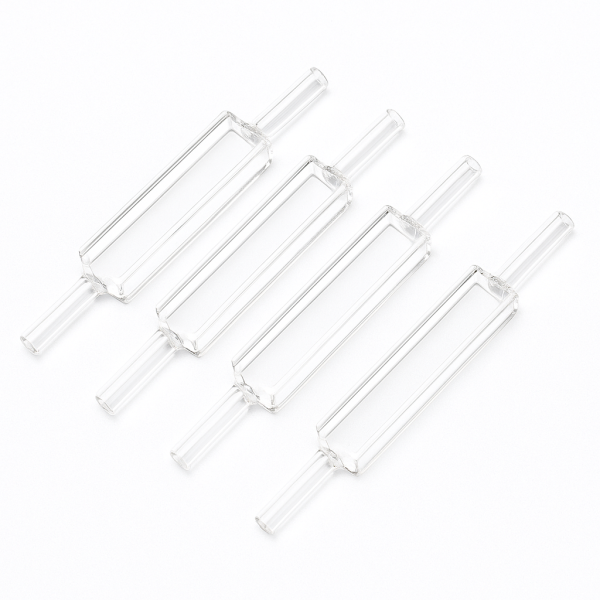

VNE036 – 1 mm Quartz Flow Cell (Narrow Channel, 2 Windows)
The VNE036 flow cell is designed for micro-volume UV/Vis absorption measurements with a 1 mm optical path length and narrow channel width.
It features quartz connectors (OD 4 mm / ID 2 mm) for stable fluid transfer and minimal sample loss.
Made with molded fabrication, this cell offers high optical precision and chemical resistance, making it ideal for in-line or continuous-flow applications.
Key Features
- 🔬 1 mm optical path length for precise absorbance measurements.
- 💧 Narrow channel with 35–70 μL volume, ideal for micro-flow systems.
- 🪶 Quartz connector (OD 4 mm, ID 2 mm) for stable sample delivery.
- ⚡ Compatible with UV/Vis wavelength range (190–2500 nm).
- 🧼 Molded construction ensures stable tolerance and durability.
Flow Cell Specifications
| Type | Flow Cell | Optical Path Length | 1 mm |
| Article No. | VNE036 | Volume | 35/70 μL |
| Measuring Method | Absorption Cells | Connector | Quartz, OD 4 mm ID 2 mm |
| Number of Windows | 2 | Wavelength Range | UV/VIS (190 – 2500 nm) |
| Outside Dimensions | |||
| Length | 45 mm | Width | 12.5 mm |
| Depth | 3.5 mm | ||
| Inside Dimensions | |||
| Length | 43 mm | Width | 1/2 mm |
| Depth | 1 mm | Total Length | 81 mm |
| Fabrication Method | Molded* | ||
Applications
- UV/Vis flow-through absorbance measurements
- Chromatography monitoring
- Micro-volume chemical and biochemical analysis
- In-line process monitoring
Note: Molded fabrication provides high dimensional accuracy and stable optical performance, suitable for continuous-flow analytical systems.
Comparison of Fabrication Types
| 1 | 2 | 3 | 4 | ||
|---|---|---|---|---|---|
| *Molded | *Fused | *Bonded / Glued | |||
| UV vis ( 190- 2500 nm) | Yes | Yes | Yes | ||
| Transmission Matched | On Request | No | No | ||
| Transmission > 80% | Yes | Yes | Yes | ||
| Resistant to Acids and Bases (except hydrofluoric acid) | Yes | Yes | No | ||
| Resistant to Organic Solvents | Yes | Yes | No | ||
| Usable upto 600°C (1112°F) | Yes | Yes | Yes | ||
| Usable upto 1200°C (2192°F) | Yes | No | No | ||
| 0 Variations Reading | On Request | No | No | ||
| Fabrication | Molded | Assembled with Quartz Powder | Assembled with Glue | ||
| Adhesives | No | No | Yes | ||
| Storage | Short Term Storage | Clean After Use | Clean After Use | ||
| Available Material | Fused Quartz Material | ||||
| Note | Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm. | ||||
