(VLMB15) 1.5mL Flow Through Cell, Bubble Free, Lightpath 10mm, 4 Windows, Molded
$547.00
This flow-through cuvette is for fluorescence applications, with a path length of 10 mm. Bubble Free. Resistant to most chemicals. Use up to 1200°C. The price is for 1 piece.
In Stock
Add to Wishlist
CompareAdd to Wishlist
- Type: Molded
Description
VLMB15 Bubble Free Flow Cell is a high-performance quartz flow cell specifically engineered for fluorescence applications where stable signal, continuous flow, and minimal bubble interference are essential. With a 10 mm optical path length and a 1500 μL sample volume, it is ideally suited for medium-volume flow analysis in spectroscopy, biotechnology, and analytical research.
This model uses molded fabrication, providing outstanding optical clarity, smooth inner surfaces, and dimensional precision. Its bubble-free design effectively eliminates trapped air, improving signal stability and repeatability for high-sensitivity measurements.
Molded Fabrication Features
- Superior optical transmission and highly precise surface finish.
- No adhesives are used — ensuring clean, inert, and stable flow channels over long-term use.
- Excellent chemical resistance — tolerates almost all acids, bases, and organic solvents that do not react with quartz, including toluene and acetone (HF is the only major exception).
- Thermal stability up to 1200 °C for short-term and 600 °C for continuous use.
- Overcomes typical limitations of fused cuvettes, such as seam staining and reduced solvent compatibility.
- Best suited for clean, stable, high-sensitivity analytical environments.
Typical Applications
- Fluorescence spectroscopy with continuous flow
- Liquid chromatography detector flow cells
- Biological and chemical assay systems requiring stable optical signals
- High-precision optical measurements in research and OEM instruments
Key Features
- 10 mm optical path length with 1.5 mL volume capacity
- 4 clear optical windows for fluorescence excitation and detection
- Quartz tubing (OD 5 mm / ID 3 mm) for secure and stable fluid connections
- Bubble-free structure ensures stable and reproducible signal
- UV/VIS compatible (190 – 2500 nm)
Technical Specifications
| Type | Bubble Free Flow Cell | Optical Path Length | 10 mm |
| Article No. | VLMB15 | Volume | 1500 μL |
| Measuring Method | Fluorescence Cells | Connector | Quartz, OD 5 mm ID 3 mm |
| Number of Windows | 4 | Wavelength Range | UV/VIS (190 – 2500 nm) |

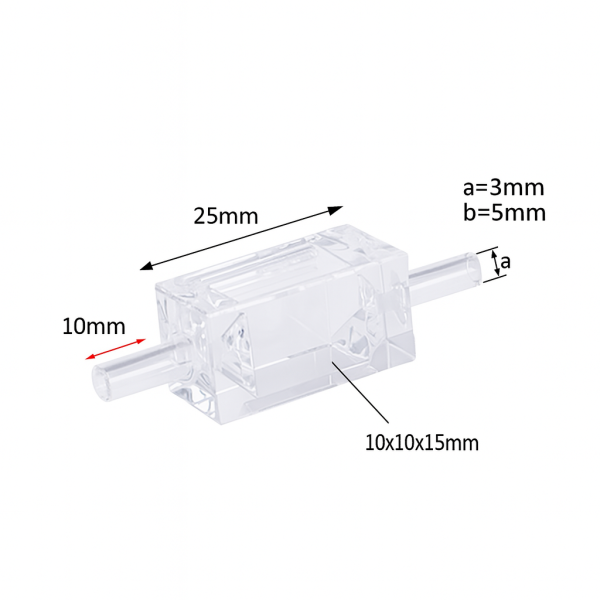

| Outside Dimensions | Length: 25 (45) mm Width: 12.5 mm Depth: 12.5 mm |
Inside Dimensions | Length: 15 mm Width: 10 mm Depth: 10 mm |
| Fabrication Method | Molded* | Package | Cell Only |
Note: Molded fabrication delivers superior surface finish, outstanding optical performance, and unmatched chemical resistance. Its robust structure resists most aggressive solvents except HF and overcomes key weaknesses of fused cuvettes, making it an excellent choice for high-stability fluorescence and absorbance measurements.
Comparison of Fabrication Types
| 1 | 2 | 3 | 4 | ||
|---|---|---|---|---|---|
| *Molded | *Fused | *Bonded / Glued | |||
| UV vis ( 190- 2500 nm) | Yes | Yes | Yes | ||
| Transmission Matched | On Request | No | No | ||
| Transmission > 80% | Yes | Yes | Yes | ||
| Resistant to Acids and Bases (except hydrofluoric acid) | Yes | Yes | No | ||
| Resistant to Organic Solvents | Yes | Yes | No | ||
| Usable upto 600°C (1112°F) | Yes | Yes | Yes | ||
| Usable upto 1200°C (2192°F) | Yes | No | No | ||
| 0 Variations Reading | On Request | No | No | ||
| Fabrication | Molded | Assembled with Quartz Powder | Assembled with Glue | ||
| Adhesives | No | No | Yes | ||
| Storage | Short Term Storage | Clean After Use | Clean After Use | ||
| Available Material | Fused Quartz Material | ||||
| Note | Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm. | ||||
