(VLM24) 0.7mL Flow Cell, Tube OD 4mm, Height 78mm, 4 Windows, Lightpath 2mm, Molded

Weight	100 g
Brand	Qvarz
Resistant to Chemicals	Yes

SKU: VLM24

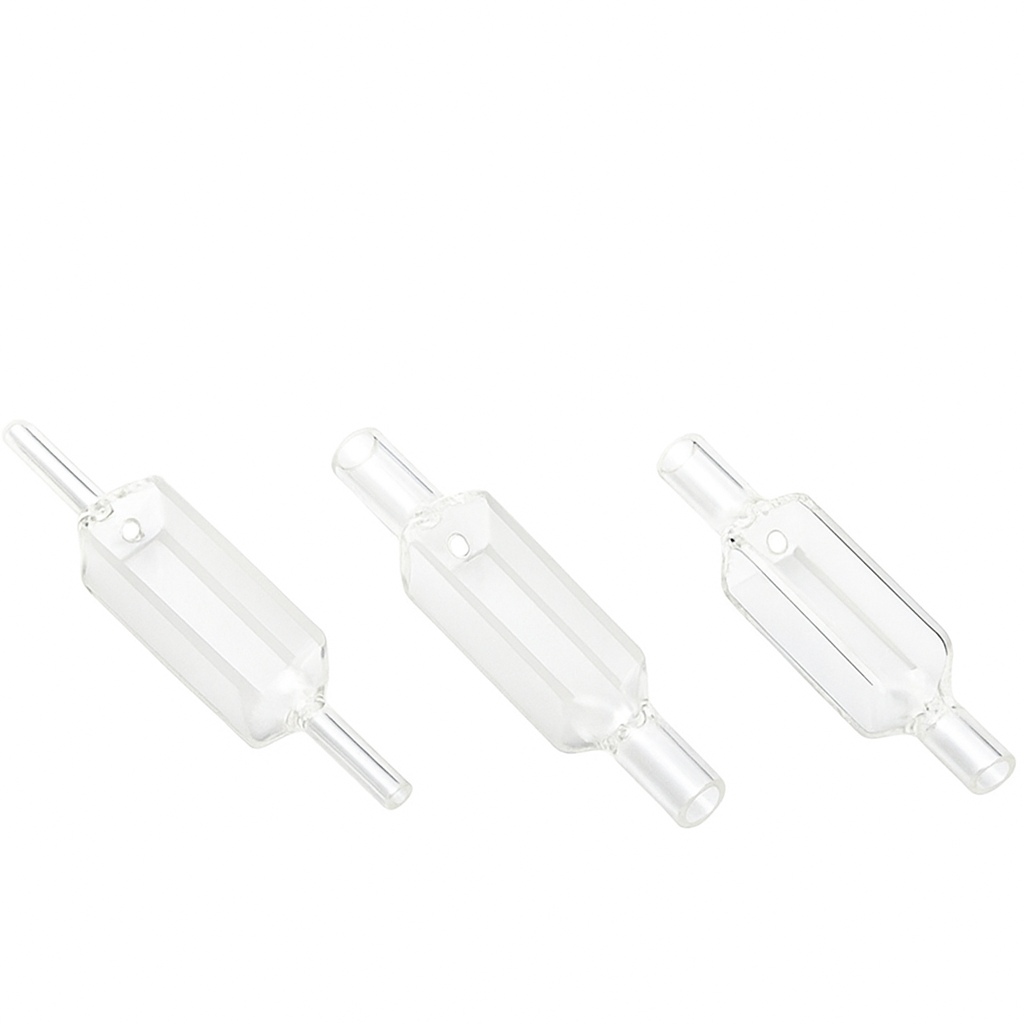

(VLM24) 0.7mL Flow Cell, Tube OD 4mm, Height 78mm, 4 Windows, Lightpath 2mm, Molded

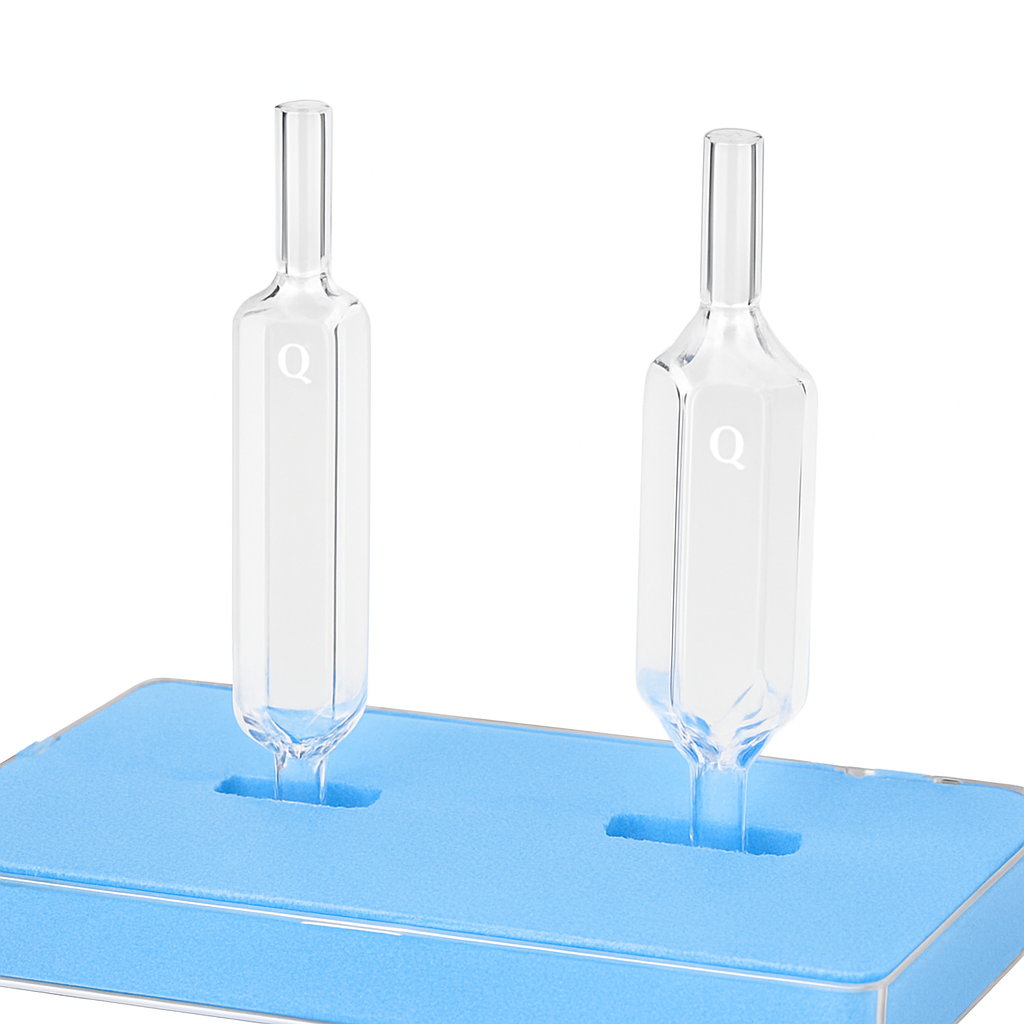

(VLM24) 0.7mL Flow Cell, Tube OD 4mm, Height 78mm, 4 Windows, Lightpath 2mm, Molded - Image 2

(VLM24) 0.7mL Flow Cell, Tube OD 4mm, Height 78mm, 4 Windows, Lightpath 2mm, Molded - Image 3

(VLM24) 0.7mL Flow Cell, Tube OD 4mm, Height 78mm, 4 Windows, Lightpath 2mm, Molded - Image 4

$293.00

In Stock

This flow-through cuvette is for fluroescence applications, with a path length of 2 mm. Resistant to most chemicals. Use up to 1200°C. The price is for 1 piece.

In Stock

Type: Molded

SKU: VLM24 Categories: All Cuvettes & Cells, Bubble Free Flow Through Cuvettes, Custom Cuvettes, Cuvettes & Flow Cells, Flow Through Cells, Fluorometer Cuvettes, Micro Cuvettes <3.5mL, Molded Cuvettes, Products Tags: custom cuvette, flow cell, flow through cell, fluorescence cuvette

Worldwide Timed Dispatch Available

Free Shipping apply to all orders over $800
Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Fast dispatch. Receive deliveries in 2 - 3 weeks.

Description

VLM24 Flow Through Cell is a high-precision quartz cuvette designed for fluorescence spectroscopy applications that require short path lengths and high measurement stability. It features a 2 mm optical path length and a 700 μL internal volume, making it ideal for high-concentration samples or limited sample volumes in sensitive fluorescence and absorbance measurements.

This cell is manufactured using molded fabrication, offering excellent optical clarity, minimal path length tolerance (±0.01 mm), and superior chemical resistance. With 4 clear windows and quartz tubing connectors (OD 4 mm / ID 2 mm), it enables precise side detection while maintaining easy integration into flow systems.

Molded Fabrication Features

High UV/VIS transmittance from 190 to 2500 nm.
Ultra-tight path length tolerance of ±0.01 mm for stable optical performance.
No adhesives — clean, inert flow channel design.
Excellent resistance to acids, bases, and most solvents (except HF).
Thermal tolerance up to 1200 °C short-term and 600 °C long-term.

Typical Applications

Fluorescence spectroscopy with side detection
Chromatography and flow injection analysis
Life science and bioassay systems
Inline and process monitoring
OEM analytical instruments

Key Features

2 mm optical path length for high-concentration samples
700 μL sample volume
4 optical windows for excitation and emission detection
Quartz tubing connector (OD 4 mm / ID 2 mm)
Molded fabrication for superior optical and mechanical precision

Technical Specifications

Type	Flow Cell	Optical Path Length	2 mm
Article No.	VLM24	Volume	700 μL
Measuring Method	Fluorescence Cells	Connector	Quartz, OD 4 mm ID 2 mm
Number of Windows	4	Wavelength Range	UV/VIS (190 – 2500 nm)
Outside Dimensions	Length: 45 mm Width: 12.5 mm Depth: 4.5 mm	Inside Dimensions	Length: 43 mm Width: 10 mm Depth: 2 mm Total Length: 78 mm
Fabrication Method	Molded*

Note: Molded fabrication provides excellent optical quality, durability, and chemical resistance, making this flow cell ideal for demanding fluorescence and absorbance applications with precise side detection.

Comparison of Fabrication Types

1	2	3	4
	*Molded	*Fused	*Bonded / Glued
UV vis ( 190- 2500 nm)	Yes	Yes	Yes
Transmission Matched	On Request	No	No
Transmission > 80%	Yes	Yes	Yes
Resistant to Acids and Bases (except hydrofluoric acid)	Yes	Yes	No
Resistant to Organic Solvents	Yes	Yes	No
Usable upto 600°C (1112°F)	Yes	Yes	Yes
Usable upto 1200°C (2192°F)	Yes	No	No
0 Variations Reading	On Request	No	No
Fabrication	Molded	Assembled with Quartz Powder	Assembled with Glue
Adhesives	No	No	Yes
Storage	Short Term Storage	Clean After Use	Clean After Use
Available Material	Fused Quartz Material
Note	Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm.

1
QVARZ Cuvettes Transmission Characteristics The following table is our cuvettes and cells made of quartz material suitable for wavelength from 190nm to 2500nm and depicts the percentage transmission for the material. IR or Glass material is not included.

Why QVARZ Cuvettes and Cells? QVARZ is world-renowned as the producer of premium quartz cuvettes. Over fifteen years of experience manufacturing quartz cuvettes ensures that every QVARZ cuvettes are manufactured to the most exacting standards for reproducible results.
Spectrophotometry cuvettes - Most spectrophotometry applications in the visible and UV ranges benefit from QVARZ spectrophotometry cuvettes. Our cuvettes made of fused quartz material deliver precise and reliable readings even at wavelengths as low as 190 nm. QVARZ cuvettes are compatible with most spectrophotometers and photometers with standard 0.2 - 100 mm path lengths. Fluorometry cuvettes - QVARZ brings two decades of experience molding high-quality spectrophotometry cuvettes to new four-sided clear cuvettes for fluorometry. Available in standard quartz material with ultra-low auto-fluorescence for the highest precision measurements. Protective packaging - QVARZ cuvettes are encased in dust-free, low scratching expanded polystyrene packaging. This ensures that premium cuvettes arrive in the laboratory ina the same pristine condition they were in at the factory, with optical quality windows and free of contaminants. Volumes for most purposes - Our cuvettes are available in a variety of ranges from macro to macro semi-micro sizes to respond to the needs of most scientific applications. We are also able to customize sample volume to deliver consistent, accurate findings. Perform consistently - QVARZ Cuvettes are constructed from high-quality fused quartz materials and are grouped by manufacturing mold cavities to ensure the lowest fluctuation in extinction coefficient. Customization - Custom cuvettes and cells are encouraged and available upon request; mechanical drawings with specifications and tolerances are prerequisites. Awesome pricing and flexibility on small quantities.
To the best of our knowledge, the technical information provided here is accurate. However, Qvarz.com assumes no liability for the accuracy of this information. The values provided here are typical at the time of manufacture and may vary over time and from batch to batch.
