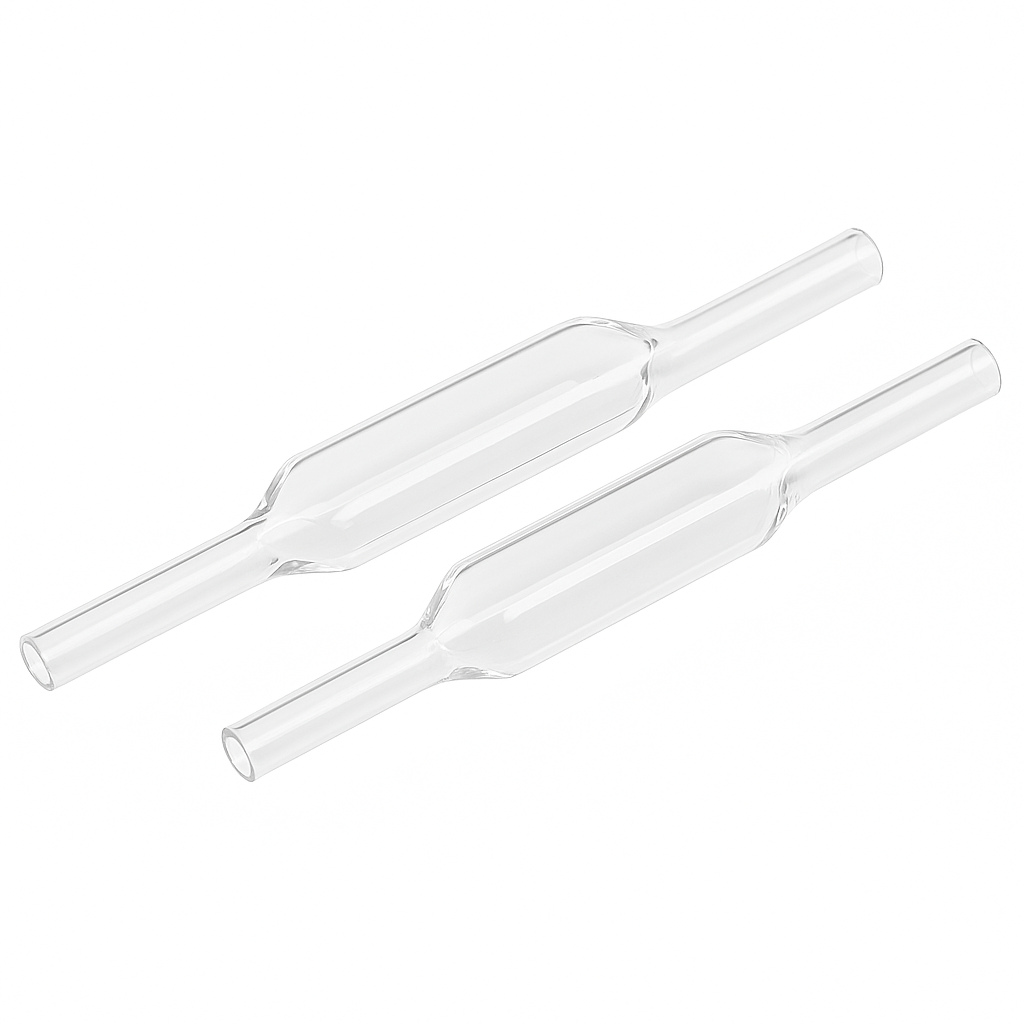

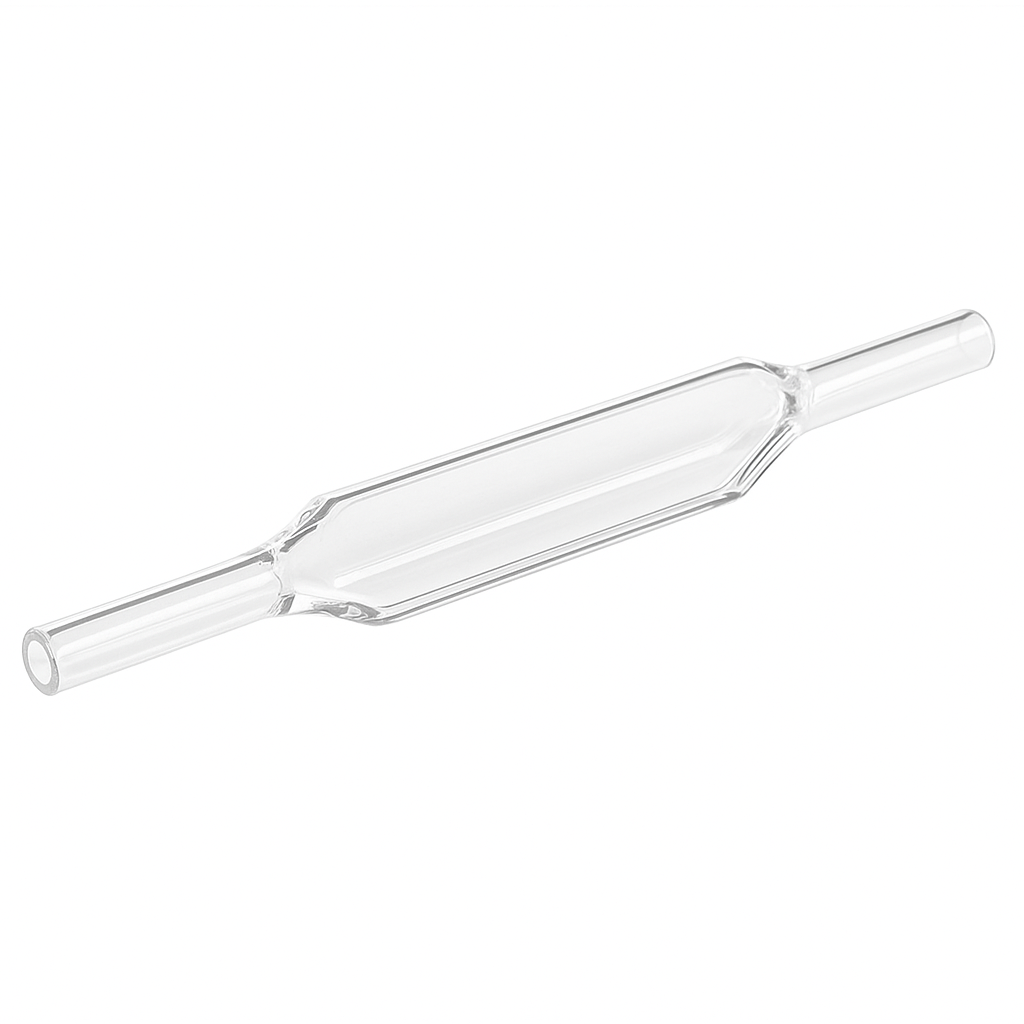

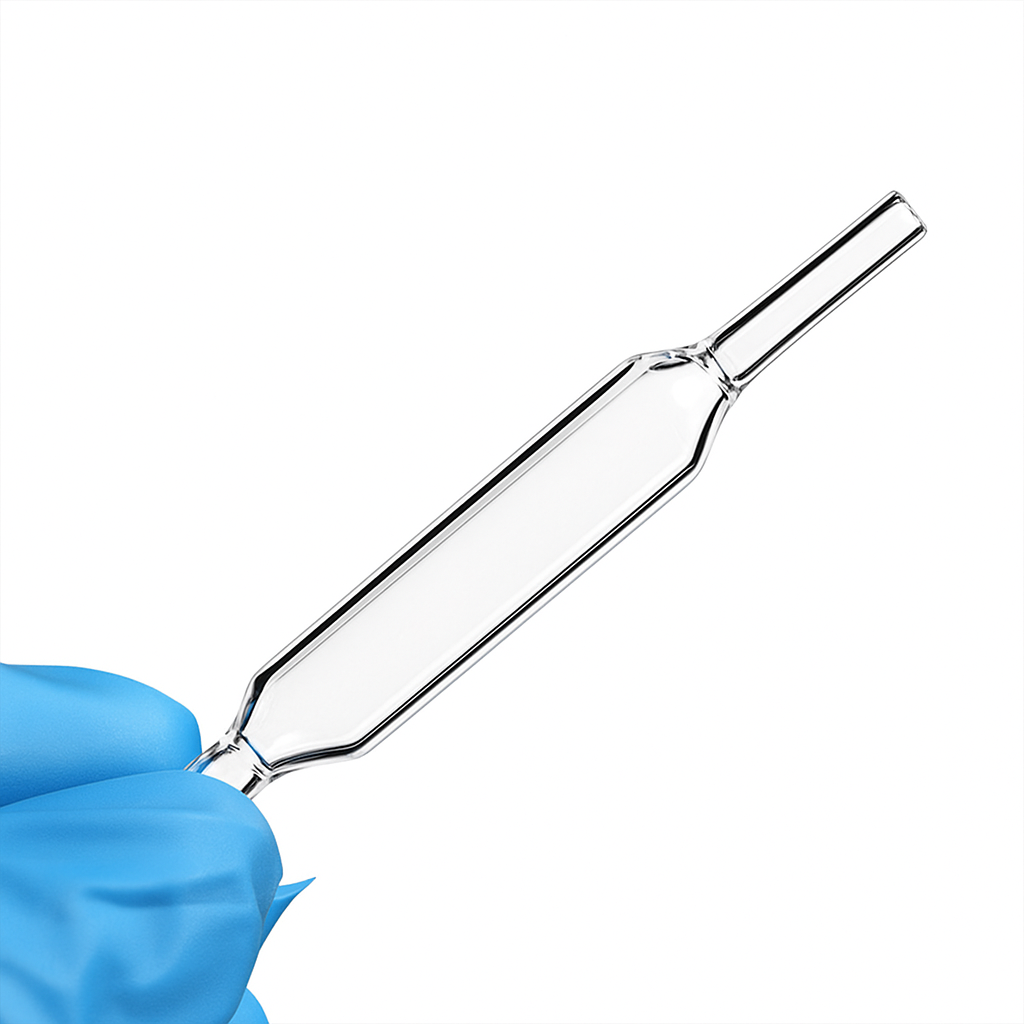

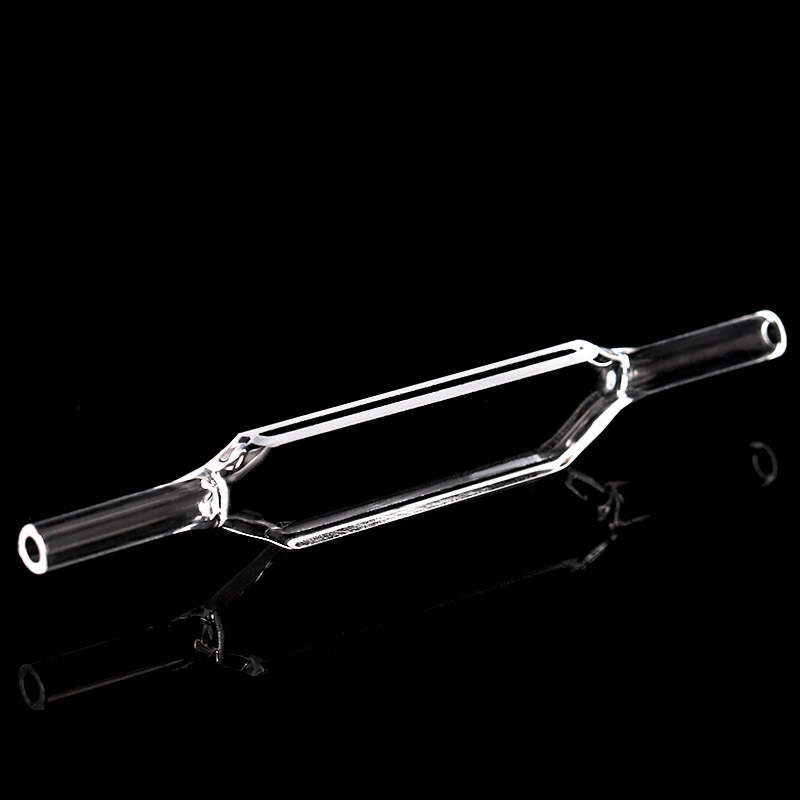

(VNE033) 0.35mL Flow Cell, Tube OD 4mm, 2 Windows, Lightpath 1mm, Molded, Tube Length Customizable
$205.00
This flow-through cuvette is for absorption applications, with a path length of 1 mm. Resistant to most chemicals. Use up to 1200°C. The price is for 1 piece.
In Stock
Add to Wishlist
Add to Wishlist
- Type: Molded
Description
Flow Cell Specifications
1 | 2 | 3 | 4 | |||
---|---|---|---|---|---|---|
Type | Flow Cell | Optical Path Length | 1 mm | |||
Article No. | VNE033 | Volume | 350 μL | |||
Measuring Method | Absorption Cells | Connector | Quartz, OD 4mm ID 2mm | |||
Number of Windows | 2 | Wavelength Range | UV/VIS (190 - 2500 nm) | |||
Outside Dimensions | Inside Dimensions | |||||
Length | 35 mm | Length | 35 mm | |||
Fabrication Method | Molded* | Connector | Custromizable in Length |
Comparison of Fabrication Types
1 | 2 | 3 | 4 | ||
---|---|---|---|---|---|
*Molded | *Fused | *Bonded / Glued | |||
UV vis ( 190- 2500 nm) | Yes | Yes | Yes | ||
Transmission Matched | On Request | No | No | ||
Transmission > 80% | Yes | Yes | Yes | ||
Resistant to Acids and Bases (except hydrofluoric acid) | Yes | Yes | No | ||
Resistant to Organic Solvents | Yes | Yes | No | ||
Usable upto 600°C (1112°F) | Yes | Yes | Yes | ||
Usable upto 1200°C (2192°F) | Yes | No | No | ||
0 Variations Reading | On Request | No | No | ||
Fabrication | Molded | Assembled with Quartz Powder | Assembled with Glue | ||
Adhesives | No | No | Yes | ||
Storage | Short Term Storage | Clean After Use | Clean After Use | ||
Available Material | Fused Quartz Material | ||||
Note | Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm. |
