(VFPFS2) 0.7mL Semi-Micro Cuvette, Stopper, Fused, Width 2mm, 4 Windows

Weight	120 g
Brand	Qvarz
Resistant to Chemicals	Yes

SKU: VFPFS2

(VFPFS2) 0.7mL Semi-Micro Cuvette, Stopper, Fused, Width 2mm, 4 Windows

(VFPFS2) 0.7mL Semi-Micro Cuvette, Stopper, Fused, Width 2mm, 4 Windows - Image 2

(VFPFS2) 0.7mL Semi-Micro Cuvette, Stopper, Fused, Width 2mm, 4 Windows - Image 3

(VFPFS2) 0.7mL Semi-Micro Cuvette, Stopper, Fused, Width 2mm, 4 Windows - Image 4

~~$310.00~~ Original price was: $310.00.$282.00Current price is: $282.00.

In Stock

This semi-micro airtight cuvette is for fluorescence applications, with a path length of 10 mm. Resistant to most chemicals. Use up to 600°C. The price is for 1 piece.

In Stock

Type: Fused

SKU: VFPFS2 Categories: Semi Micro Cuvettes, All Cuvettes & Cells, Cuvettes & Flow Cells, Fluorometer Cuvettes, Fused Cuvettes, Micro Cuvettes <3.5mL, Narrow Width Cuvettes, Products, Stopper Cuvettes Tags: fluorescence cuvette, narrow width cuvette, stopper cuvette

Worldwide Timed Dispatch Available

Free Shipping apply to all orders over $800
Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Fast dispatch. Receive deliveries in 2 - 3 weeks.

Description

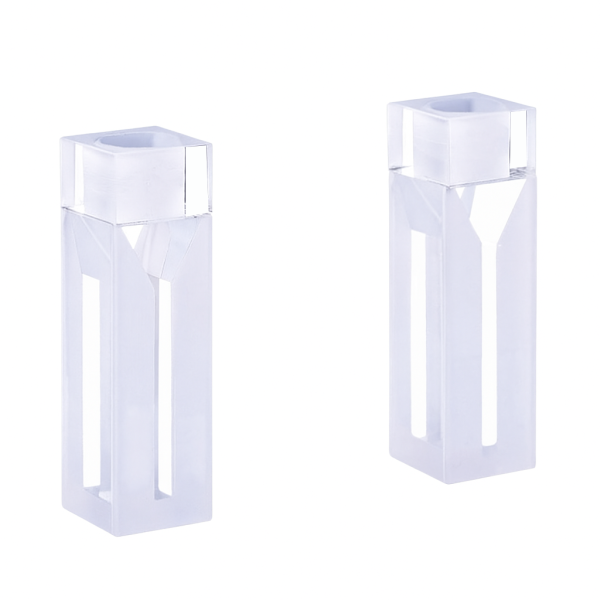

VFPFS2 – 0.7 mL Semi-Micro Quartz Cuvette (Fused, 2 mm Width, 4 Windows, with Stopper)

The VFPFS2 is a high-quality semi-micro quartz cuvette designed for fluorescence spectroscopy.
With a narrow 2 mm internal width and 4 optical windows, it allows precise optical measurements with moderate sample volumes. The cuvette comes with a PTFE stopper, providing secure sealing for sensitive experiments while preventing evaporation or contamination.

Key Features

Sample volume: 0.7 mL — suitable for semi-micro fluorescence assays.
2 mm internal width: balances low sample use with good optical path control.
4 optical windows: enables excitation and emission at 90° for fluorescence applications.
PTFE stopper: ensures reliable sealing and minimizes sample loss.
Fused fabrication: assembled with quartz powder, resistant to temperatures up to 600 °C (1112 °F).
Path length tolerance: ±0.06 – 0.08 mm.
Wavelength range: UV/VIS (190 – 2500 nm).

Typical Applications

Fluorescence spectroscopy and emission studies
Biochemical and molecular assays
Environmental analysis and trace detection
Pharmaceutical and material science research

Cuvette Specifications

Type	Semi Micro Cuvette	Optical Path Length	10 mm
Article No.	VFPFS2	Volume	0.7 mL
Measuring Method	Fluorescence Cells	Base Type	Flat
Number of Windows	4	Wavelength Range	UV/VIS (190 – 2500 nm)

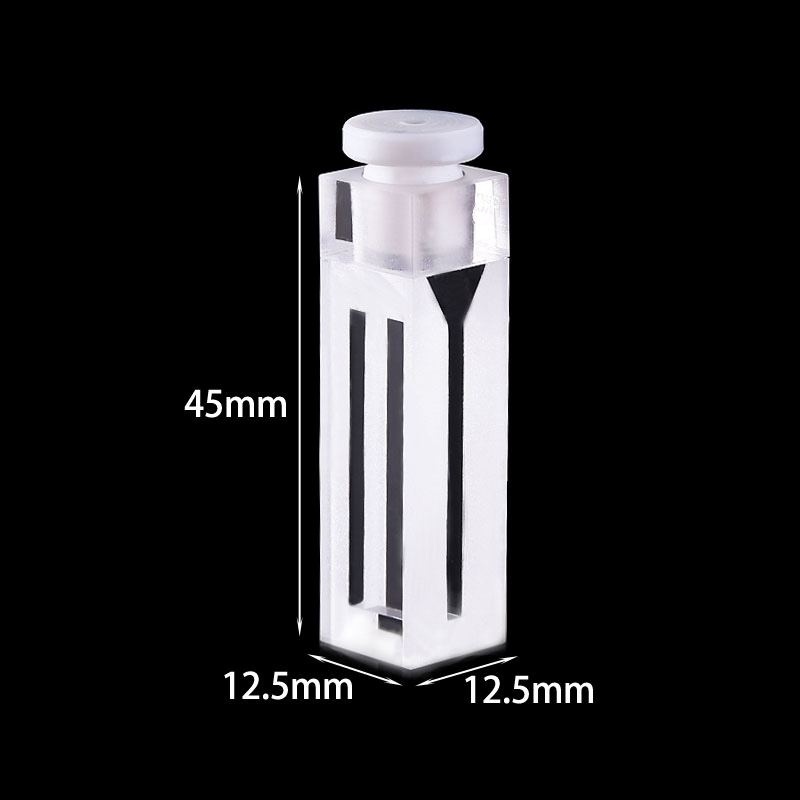

Outside Dimensions
Height	45 mm	Width	12.5 mm
Depth	12.5 mm
Inside Dimensions
Width	2 mm	Depth (Inside)	10 mm
Center Height (Z)	8.5 – 20 mm	Fabrication Method	Fused*
Package	Cell & PTFE Stopper

About Fused Fabrication

Fused quartz cuvettes are manufactured by sintering quartz powder at high temperatures, providing:

Thermal resistance up to 600 °C (1112 °F).
Excellent optical clarity and UV transparency.
Stable path length tolerance (±0.06 – 0.08 mm).

Usage Notes

Fused seams may stain or discolor after repeated use.
Not suitable for long-term sample storage.
Do not use with: hydrofluoric acid (HF), toluene, acetone, or other aggressive organic solvents, which can shorten the cuvette’s lifespan.

Note: For experiments involving aggressive solvents or extended storage, molded quartz cuvettes offer better durability and chemical resistance.

Comparison of Fabrication Types

1	2	3	4
	*Molded	*Fused	*Bonded / Glued
UV vis ( 190- 2500 nm)	Yes	Yes	Yes
Transmission Matched	On Request	No	No
Transmission > 80%	Yes	Yes	Yes
Resistant to Acids and Bases (except hydrofluoric acid)	Yes	Yes	No
Resistant to Organic Solvents	Yes	Yes	No
Usable upto 600°C (1112°F)	Yes	Yes	Yes
Usable upto 1200°C (2192°F)	Yes	No	No
0 Variations Reading	On Request	No	No
Fabrication	Molded	Assembled with Quartz Powder	Assembled with Glue
Adhesives	No	No	Yes
Storage	Short Term Storage	Clean After Use	Clean After Use
Available Material	Fused Quartz Material
Note	Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm.

1
QVARZ Cuvettes Transmission Characteristics The following table is our cuvettes and cells made of quartz material suitable for wavelength from 190nm to 2500nm and depicts the percentage transmission for the material. IR or Glass material is not included.

Why QVARZ Cuvettes and Cells? QVARZ is world-renowned as the producer of premium quartz cuvettes. Over fifteen years of experience manufacturing quartz cuvettes ensures that every QVARZ cuvettes are manufactured to the most exacting standards for reproducible results.
Spectrophotometry cuvettes - Most spectrophotometry applications in the visible and UV ranges benefit from QVARZ spectrophotometry cuvettes. Our cuvettes made of fused quartz material deliver precise and reliable readings even at wavelengths as low as 190 nm. QVARZ cuvettes are compatible with most spectrophotometers and photometers with standard 0.2 - 100 mm path lengths. Fluorometry cuvettes - QVARZ brings two decades of experience molding high-quality spectrophotometry cuvettes to new four-sided clear cuvettes for fluorometry. Available in standard quartz material with ultra-low auto-fluorescence for the highest precision measurements. Protective packaging - QVARZ cuvettes are encased in dust-free, low scratching expanded polystyrene packaging. This ensures that premium cuvettes arrive in the laboratory ina the same pristine condition they were in at the factory, with optical quality windows and free of contaminants. Volumes for most purposes - Our cuvettes are available in a variety of ranges from macro to macro semi-micro sizes to respond to the needs of most scientific applications. We are also able to customize sample volume to deliver consistent, accurate findings. Perform consistently - QVARZ Cuvettes are constructed from high-quality fused quartz materials and are grouped by manufacturing mold cavities to ensure the lowest fluctuation in extinction coefficient. Customization - Custom cuvettes and cells are encouraged and available upon request; mechanical drawings with specifications and tolerances are prerequisites. Awesome pricing and flexibility on small quantities.
To the best of our knowledge, the technical information provided here is accurate. However, Qvarz.com assumes no liability for the accuracy of this information. The values provided here are typical at the time of manufacture and may vary over time and from batch to batch.
