(VFOF27) 2.5mL Short Height Cuvette, 27×12.5×12.5 mm, 4 Windows, Fused, Lightpath 10mm

Weight	60 g
Brand	Qvarz
Resistant to Chemicals	Yes

SKU: VFOF27

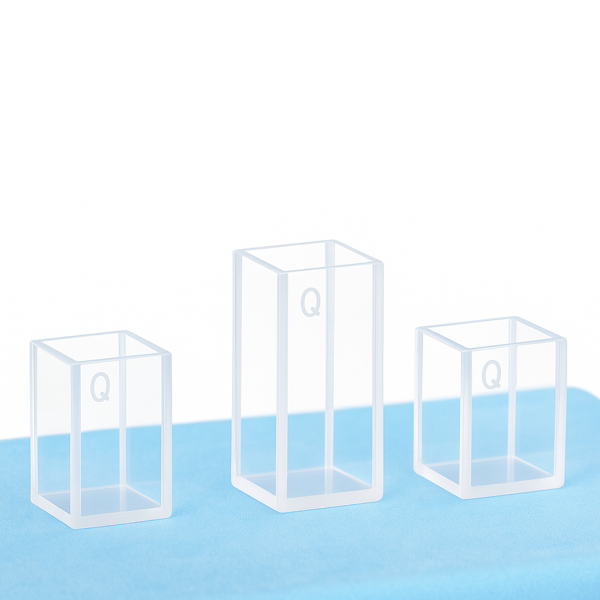

(VFOF27) 2.5mL Short Height Cuvette, 27x12.5x12.5 mm, 4 Windows, Fused, Lightpath 10mm

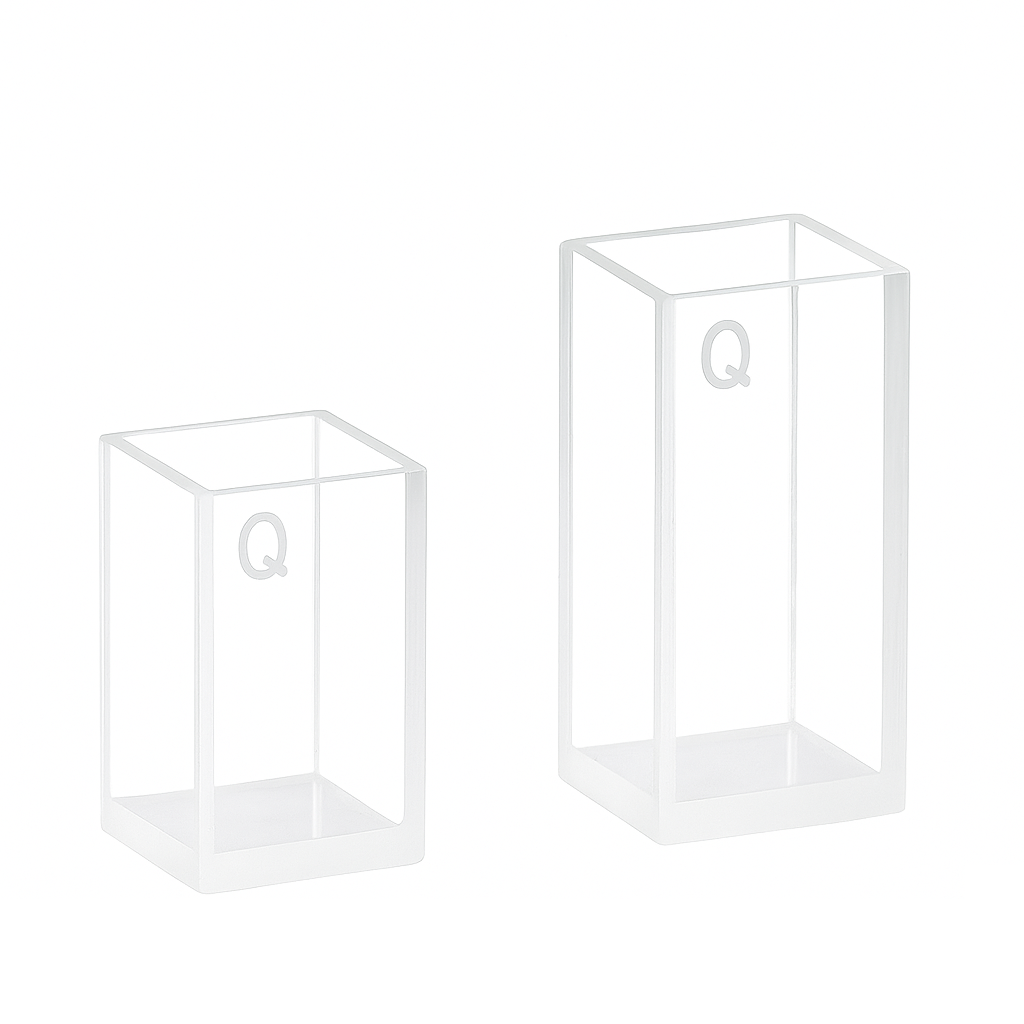

(VFOF27) 2.5mL Short Height Cuvette, 27x12.5x12.5 mm, 4 Windows, Fused, Lightpath 10mm - Image 2

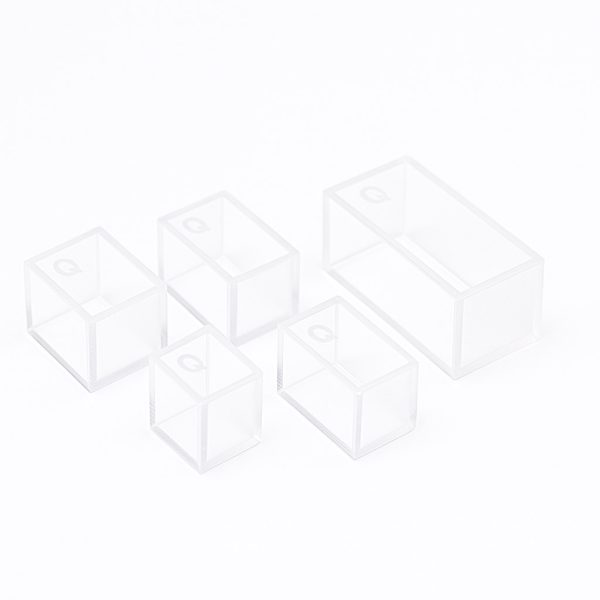

(VFOF27) 2.5mL Short Height Cuvette, 27x12.5x12.5 mm, 4 Windows, Fused, Lightpath 10mm - Image 3

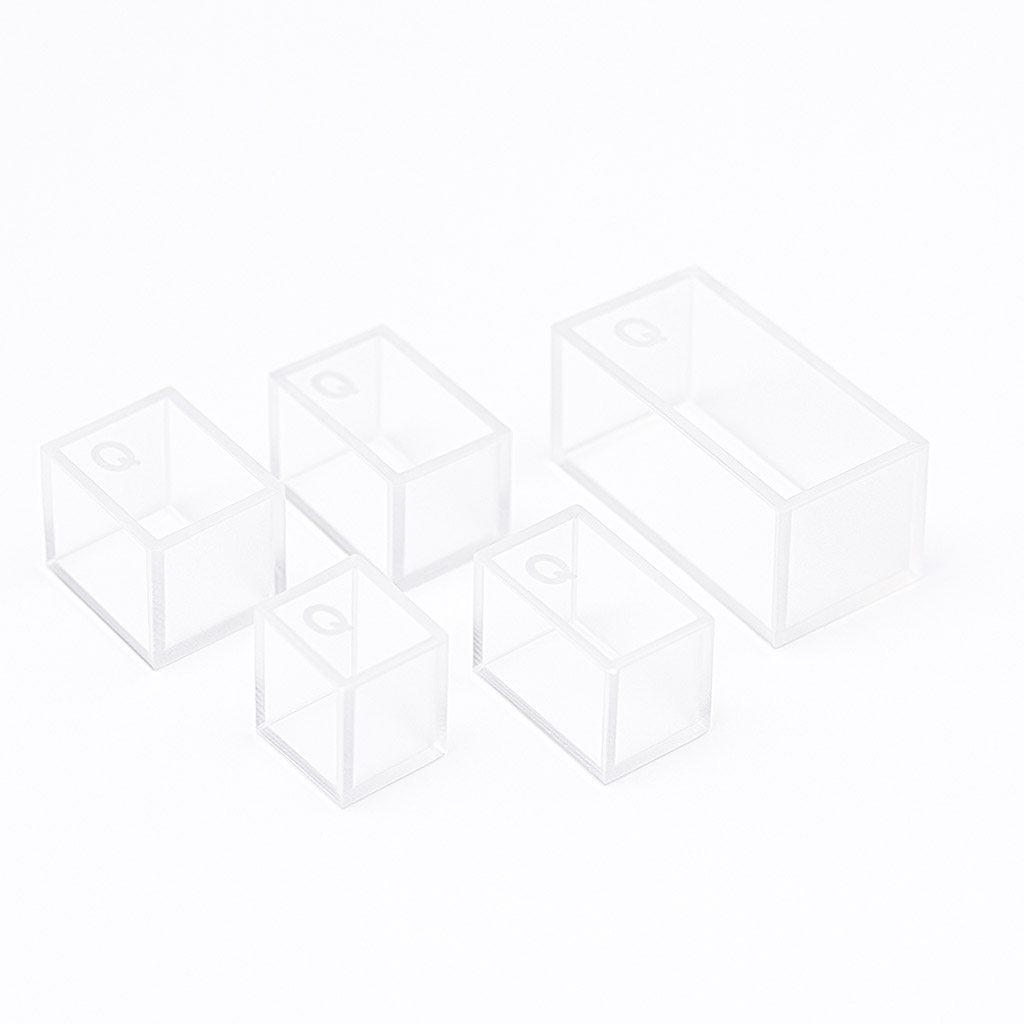

(VFOF27) 2.5mL Short Height Cuvette, 27x12.5x12.5 mm, 4 Windows, Fused, Lightpath 10mm - Image 4

$70.00

In Stock

This customized cuvette is for fluorescence applications, with a path length of 10 mm. Resistant to most chemicals. Use upto 600°C. The price is for 1 piece.

In Stock

Type: Fused

SKU: VFOF27 Categories: All Cuvettes & Cells, Custom Cuvettes, Cuvettes & Flow Cells, Fluorometer Cuvettes, Fused Cuvettes, Micro Cuvettes <3.5mL, Open Top Cuvettes, Products Tags: 10mm pathlength cuvette, custom cuvette, fluorescence cuvette, open top cuvette

Worldwide Timed Dispatch Available

Free Shipping apply to all orders over $800
Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Fast dispatch. Receive deliveries in 2 - 3 weeks.

Description

VFOF27 – 2.5 mL Customized Fluorescence Cuvette (Fused, 10 mm Lightpath, 4 Windows)

The VFOF27 is a fused quartz fluorescence cuvette with a standard 10 mm optical path length and a 2.5 mL sample volume.
Manufactured using Fused Fabrication (assembled with quartz powder), it provides excellent optical clarity, high temperature resistance, and chemical stability, making it ideal for demanding fluorescence and UV/VIS spectroscopy applications.

Key Features

Standard height (27 mm): suitable for medium sample volumes.
10 mm lightpath: compatible with most fluorescence and UV/VIS spectrometers.
4 clear windows: optimized for excitation and emission measurements.
Fused fabrication: stable structure with excellent optical performance.
Heat resistance: up to 600 °C (1112 °F).
Chemical resistance: resistant to most acids, bases, and solvents, but not compatible with HF, toluene, acetone, or strong organic solvents.
Pathlength tolerance: ±0.06 – 0.08 mm.
Protective packaging: foam and bubble wrap; drop-tested to 1 m before shipment.

Typical Applications

Fluorescence spectroscopy
UV/VIS absorbance measurements
Biochemical and environmental assays
Pharmaceutical and materials research

Cuvette Specifications

Type	Custom Cuvette	Optical Path Length	10 mm
Article No.	VFOF27	Volume	2500 µL
Measuring Method	Fluorescence Cells	Base Type	Flat
Number of Windows	4	Wavelength Range	UV/VIS (190–2500 nm)
Outside Dimensions
Height	27 mm	Width	12.5 mm
Depth	12.5 mm
Inside Dimensions
Width (Inside)	10 mm	Depth (Inside)	10 mm
Center Height (Z)	8.5 – 20 mm	Fabrication Method	Fused*
Package	Cell Only

About Fused Fabrication

Made from quartz powder fused at high temperature.
Withstands temperatures up to 600 °C (1112 °F).
Not compatible with HF, toluene, acetone, or strong organic solvents.
Seam areas may absorb stains; not suitable for long-term storage.
Typical pathlength tolerance: ±0.06 – 0.08 mm.

Note: This cuvette is ideal for fluorescence and UV/VIS measurements where high stability, precision, and chemical resistance are required. Avoid aggressive solvents and prolonged sample storage to ensure long service life.

Comparison of Fabrication Types

1	2	3	4
	*Molded	*Fused	*Bonded / Glued
UV vis ( 190- 2500 nm)	Yes	Yes	Yes
Transmission Matched	On Request	No	No
Transmission > 80%	Yes	Yes	Yes
Resistant to Acids and Bases (except hydrofluoric acid)	Yes	Yes	No
Resistant to Organic Solvents	Yes	Yes	No
Usable upto 600°C (1112°F)	Yes	Yes	Yes
Usable upto 1200°C (2192°F)	Yes	No	No
0 Variations Reading	On Request	No	No
Fabrication	Molded	Assembled with Quartz Powder	Assembled with Glue
Adhesives	No	No	Yes
Storage	Short Term Storage	Clean After Use	Clean After Use
Available Material	Fused Quartz Material
Note	Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm.

1
QVARZ Cuvettes Transmission Characteristics The following table is our cuvettes and cells made of quartz material suitable for wavelength from 190nm to 2500nm and depicts the percentage transmission for the material. IR or Glass material is not included.

Why QVARZ Cuvettes and Cells? QVARZ is world-renowned as the producer of premium quartz cuvettes. Over fifteen years of experience manufacturing quartz cuvettes ensures that every QVARZ cuvettes are manufactured to the most exacting standards for reproducible results.
Spectrophotometry cuvettes - Most spectrophotometry applications in the visible and UV ranges benefit from QVARZ spectrophotometry cuvettes. Our cuvettes made of fused quartz material deliver precise and reliable readings even at wavelengths as low as 190 nm. QVARZ cuvettes are compatible with most spectrophotometers and photometers with standard 0.2 - 100 mm path lengths. Fluorometry cuvettes - QVARZ brings two decades of experience molding high-quality spectrophotometry cuvettes to new four-sided clear cuvettes for fluorometry. Available in standard quartz material with ultra-low auto-fluorescence for the highest precision measurements. Protective packaging - QVARZ cuvettes are encased in dust-free, low scratching expanded polystyrene packaging. This ensures that premium cuvettes arrive in the laboratory ina the same pristine condition they were in at the factory, with optical quality windows and free of contaminants. Volumes for most purposes - Our cuvettes are available in a variety of ranges from macro to macro semi-micro sizes to respond to the needs of most scientific applications. We are also able to customize sample volume to deliver consistent, accurate findings. Perform consistently - QVARZ Cuvettes are constructed from high-quality fused quartz materials and are grouped by manufacturing mold cavities to ensure the lowest fluctuation in extinction coefficient. Customization - Custom cuvettes and cells are encouraged and available upon request; mechanical drawings with specifications and tolerances are prerequisites. Awesome pricing and flexibility on small quantities.
To the best of our knowledge, the technical information provided here is accurate. However, Qvarz.com assumes no liability for the accuracy of this information. The values provided here are typical at the time of manufacture and may vary over time and from batch to batch.
