(VAOF56) 1.5mL Short Height Cuvette, 20×12.5×12.5mm, 2 Windows, Fused, Lightpath 10mm

Weight	100 g
Brand	Qvarz
Resistant to Chemicals	Yes

SKU: VAOF56

6%Custom

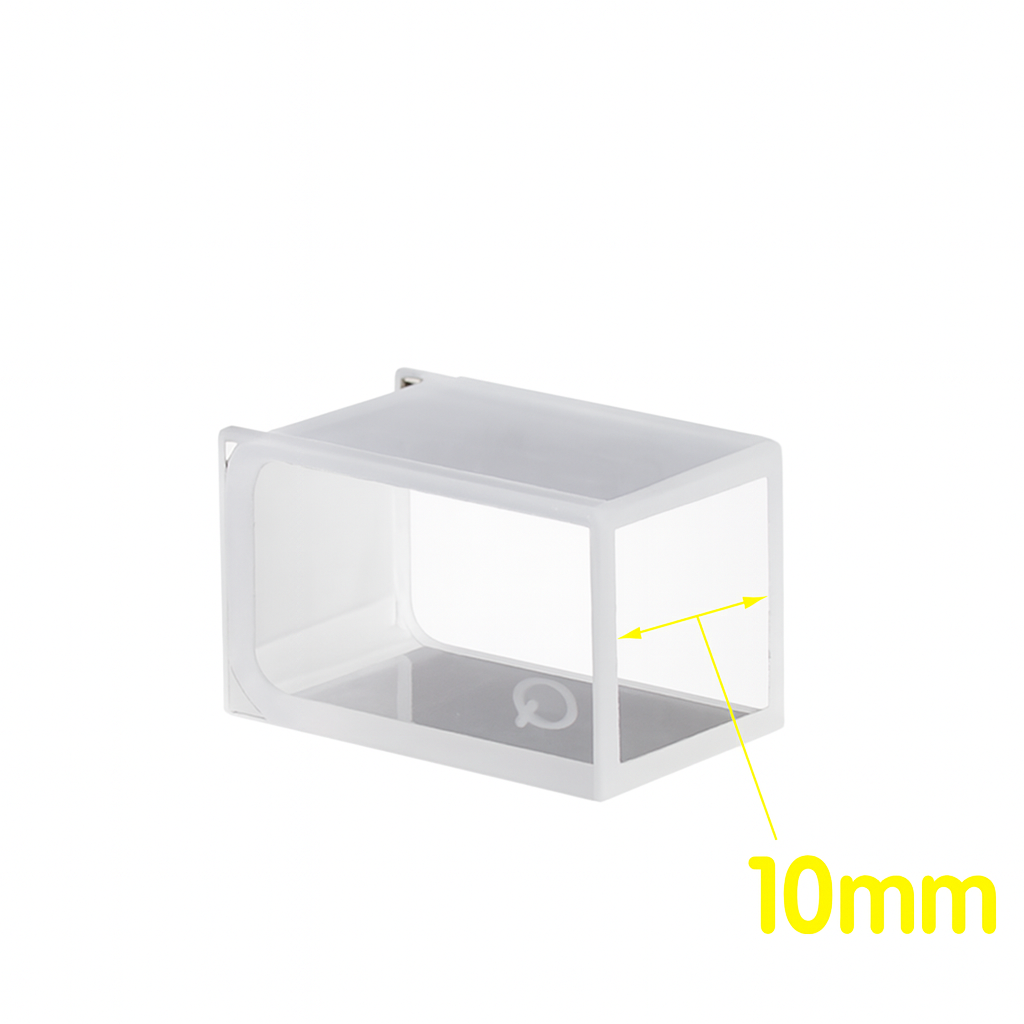

(VAOF56) 1.5mL Short Height Cuvette, 20x12.5x12.5mm, 2 Windows, Fused, Lightpath 10mm

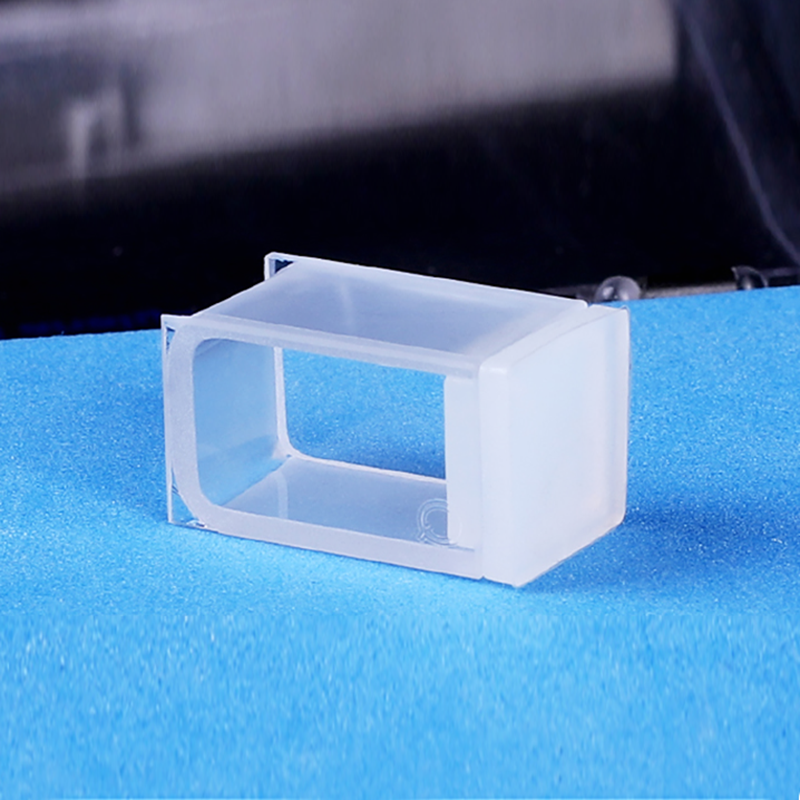

(VAOF56) 1.5mL Short Height Cuvette, 20x12.5x12.5mm, 2 Windows, Fused, Lightpath 10mm - Image 2

(VAOF56) 1.5mL Short Height Cuvette, 20x12.5x12.5mm, 2 Windows, Fused, Lightpath 10mm - Image 3

(VAOF56) 1.5mL Short Height Cuvette, 20x12.5x12.5mm, 2 Windows, Fused, Lightpath 10mm - Image 4

~~$35.00~~ Original price was: $35.00.$33.00Current price is: $33.00.

In Stock

This customized spectrophotometer cuvette is for absorption applications, with a path length of 10 mm. Resistant to most chemicals. Use upto 600°C. The price is for 1 piece.

In Stock

Type: Fused

SKU: VAOF56 Categories: All Cuvettes & Cells, Custom Cuvettes, Cuvettes & Flow Cells, Fused Cuvettes, Micro Cuvettes <3.5mL, Open Top Cuvettes, Products, Spectrometer Cuvettes Tags: 10mm pathlength cuvette, custom cuvette, open top cuvette, spectrometer cuvette

Worldwide Timed Dispatch Available

Free Shipping apply to all orders over $800
Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Fast dispatch. Receive deliveries in 2 - 3 weeks.

Description

VAOF56 – 1.5 mL Customized Short Height Quartz Absorption Cuvette (Fused, 10 mm Lightpath, 2 Windows)

The VAOF56 is a short-height fused quartz absorption cuvette with a standard 10 mm optical path length and 1.5 mL volume.
It is manufactured using Fused Fabrication (assembled with quartz powder), which provides excellent temperature and chemical resistance.
The 20 mm height makes it ideal for low sample levels or compact optical setups.

Key Features

Short height (20 mm): perfect for compact instruments and low sample volume measurements.
10 mm optical path length: compatible with standard UV/VIS spectrophotometers.
Fused Fabrication: high temperature resistance and stable optical performance.
Wavelength range: UV/VIS (190–2500 nm).
Heat resistance: up to 600 °C (1112 °F).
Chemical resistance: resistant to acids, bases, and many organic solvents — NOT suitable for HF, toluene, acetone, and other strong organic solvents.
Pathlength tolerance: ±0.06 – 0.08 mm (typical for fused and bonded cuvettes).
Protective packaging: foam and bubble wrap; passed 1 m drop test.

Typical Applications

UV/VIS absorbance measurements
High-temperature experiments
Chemical and solvent resistance testing
Pharmaceutical, biochemical, and R&D laboratories

Cuvette Specifications

Type	Custom Height Cuvette	Optical Path Length	10 mm
Article No.	VAOF56	Volume	1500 µL
Measuring Method	Absorption Cells	Base Type	Round
Number of Windows	2	Wavelength Range	UV/VIS (190–2500 nm)
Outside Dimensions
Height	20 mm	Width	12.5 mm
Depth	12.5 mm
Inside Dimensions
Width (Inside)	10 mm	Depth (Inside)	10 mm
Center Height (Z)	8.5 – 15 mm	Fabrication Method	Fused*
Package	Cell Only

About Fused Fabrication

Made from quartz powder fused at high temperature.
Excellent thermal resistance up to 600 °C (1112 °F).
Not compatible with HF, toluene, acetone, or other strong organic solvents.
May stain at assembly seams; not suitable for long-term storage of samples.
Shorter service life under harsh solvent conditions.
Pathlength tolerance: ±0.06 – 0.08 mm.

Resistance & Packaging Notes

Resistant to heat up to 600 °C (1112 °F).
Chemically resistant to most acids and bases (except HF and strong organics).
Packed with foam and bubble wrap — passed 1 m drop test before shipment.

Note: Fused fabrication cuvettes are ideal for high-temperature and general chemical resistance applications. However, their service life may be reduced when exposed to strong organic solvents, and long-term sample storage is not recommended.

Comparison of Fabrication Types

1	2	3	4
	*Molded	*Fused	*Bonded / Glued
UV vis ( 190- 2500 nm)	Yes	Yes	Yes
Transmission Matched	On Request	No	No
Transmission > 80%	Yes	Yes	Yes
Resistant to Acids and Bases (except hydrofluoric acid)	Yes	Yes	No
Resistant to Organic Solvents	Yes	Yes	No
Usable upto 600°C (1112°F)	Yes	Yes	Yes
Usable upto 1200°C (2192°F)	Yes	No	No
0 Variations Reading	On Request	No	No
Fabrication	Molded	Assembled with Quartz Powder	Assembled with Glue
Adhesives	No	No	Yes
Storage	Short Term Storage	Clean After Use	Clean After Use
Available Material	Fused Quartz Material
Note	Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm.

1
QVARZ Cuvettes Transmission Characteristics The following table is our cuvettes and cells made of quartz material suitable for wavelength from 190nm to 2500nm and depicts the percentage transmission for the material. IR or Glass material is not included.

Why QVARZ Cuvettes and Cells? QVARZ is world-renowned as the producer of premium quartz cuvettes. Over fifteen years of experience manufacturing quartz cuvettes ensures that every QVARZ cuvettes are manufactured to the most exacting standards for reproducible results.
Spectrophotometry cuvettes - Most spectrophotometry applications in the visible and UV ranges benefit from QVARZ spectrophotometry cuvettes. Our cuvettes made of fused quartz material deliver precise and reliable readings even at wavelengths as low as 190 nm. QVARZ cuvettes are compatible with most spectrophotometers and photometers with standard 0.2 - 100 mm path lengths. Fluorometry cuvettes - QVARZ brings two decades of experience molding high-quality spectrophotometry cuvettes to new four-sided clear cuvettes for fluorometry. Available in standard quartz material with ultra-low auto-fluorescence for the highest precision measurements. Protective packaging - QVARZ cuvettes are encased in dust-free, low scratching expanded polystyrene packaging. This ensures that premium cuvettes arrive in the laboratory ina the same pristine condition they were in at the factory, with optical quality windows and free of contaminants. Volumes for most purposes - Our cuvettes are available in a variety of ranges from macro to macro semi-micro sizes to respond to the needs of most scientific applications. We are also able to customize sample volume to deliver consistent, accurate findings. Perform consistently - QVARZ Cuvettes are constructed from high-quality fused quartz materials and are grouped by manufacturing mold cavities to ensure the lowest fluctuation in extinction coefficient. Customization - Custom cuvettes and cells are encouraged and available upon request; mechanical drawings with specifications and tolerances are prerequisites. Awesome pricing and flexibility on small quantities.
To the best of our knowledge, the technical information provided here is accurate. However, Qvarz.com assumes no liability for the accuracy of this information. The values provided here are typical at the time of manufacture and may vary over time and from batch to batch.
