(VAOF30B) 10.5mL Macro Window Clear Cuvette, Fused, Lightpath 30mm, 45×32.5×12.5 mm

Weight	100 g
Brand	Qvarz
Resistant to Chemicals	Yes

SKU: VAOF30B

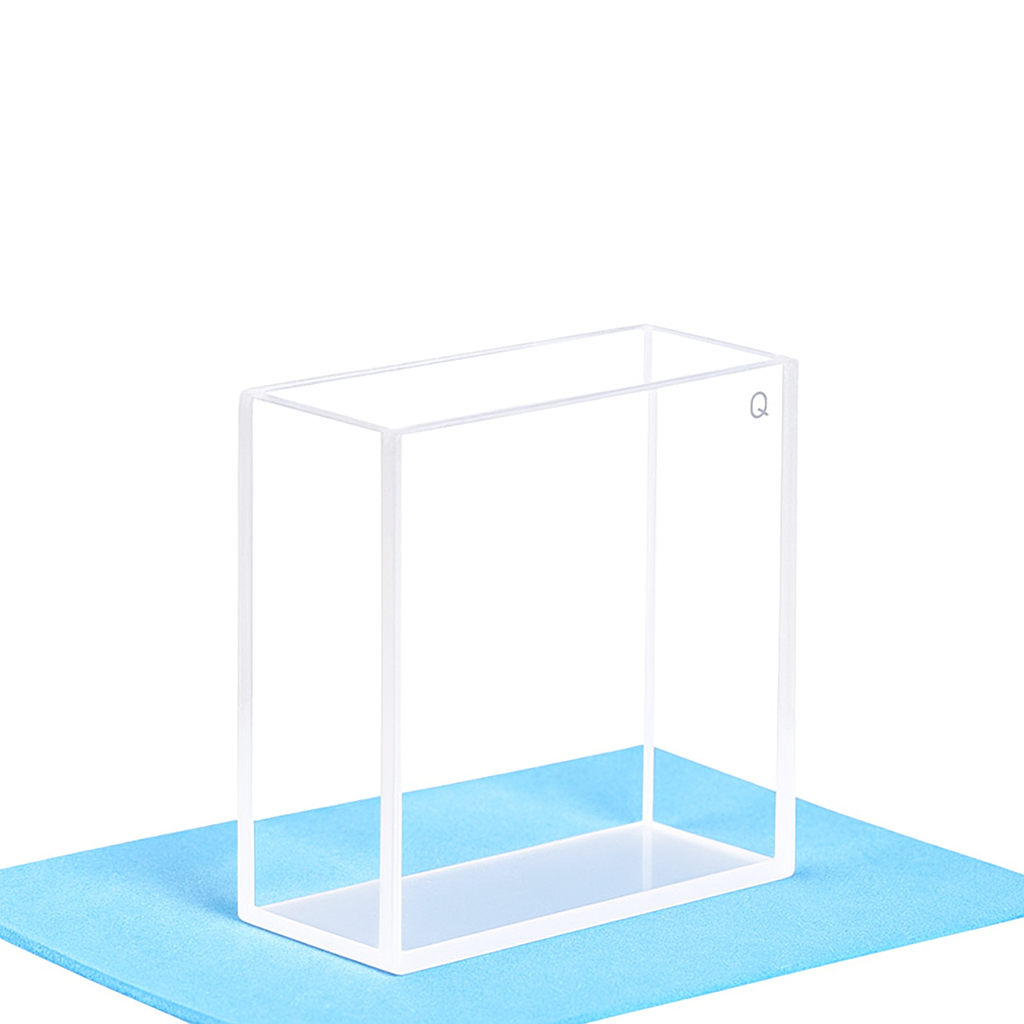

(VAOF30B) 10.5mL Macro Window Clear Cuvette, Fused, Lightpath 30mm, 45x32.5x12.5 mm

(VAOF30B) 10.5mL Macro Window Clear Cuvette, Fused, Lightpath 30mm, 45x32.5x12.5 mm - Image 2

(VAOF30B) 10.5mL Macro Window Clear Cuvette, Fused, Lightpath 30mm, 45x32.5x12.5 mm - Image 3

(VAOF30B) 10.5mL Macro Window Clear Cuvette, Fused, Lightpath 30mm, 45x32.5x12.5 mm - Image 4

$114.00

In Stock

This large clear wall cuvette is for absorption applications, with a path length of 30 mm. Resistant to most chemicals. Use up to 600°C. The price is for 1 piece.

In Stock

Type: Fused

SKU: VAOF30B Categories: All Cuvettes & Cells, Cuvettes & Flow Cells, Fused Cuvettes, Macro Cuvettes >3.5mL, Open Top Cuvettes, Other Cuvettes, Products, Spectrometer Cuvettes, Wide Clear Window Cuvettes Tags: large cell, macro cuvette, open top cuvette, spectrometer cuvette, wide clear window cuvette

Worldwide Timed Dispatch Available

Free Shipping apply to all orders over $800
Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Fast dispatch. Receive deliveries in 2 - 3 weeks.

Description

VAOF30B Fused Quartz Macro Cuvette is a 10.5 ml capacity large cuvette designed for UV/VIS absorbance measurements with a 10 mm optical path length. Its clear-wall design offers excellent optical transmission, stability, and compatibility with most standard spectrophotometers.

This model is particularly suitable for labs requiring medium-volume sample handling with consistent optical performance.

Key Features

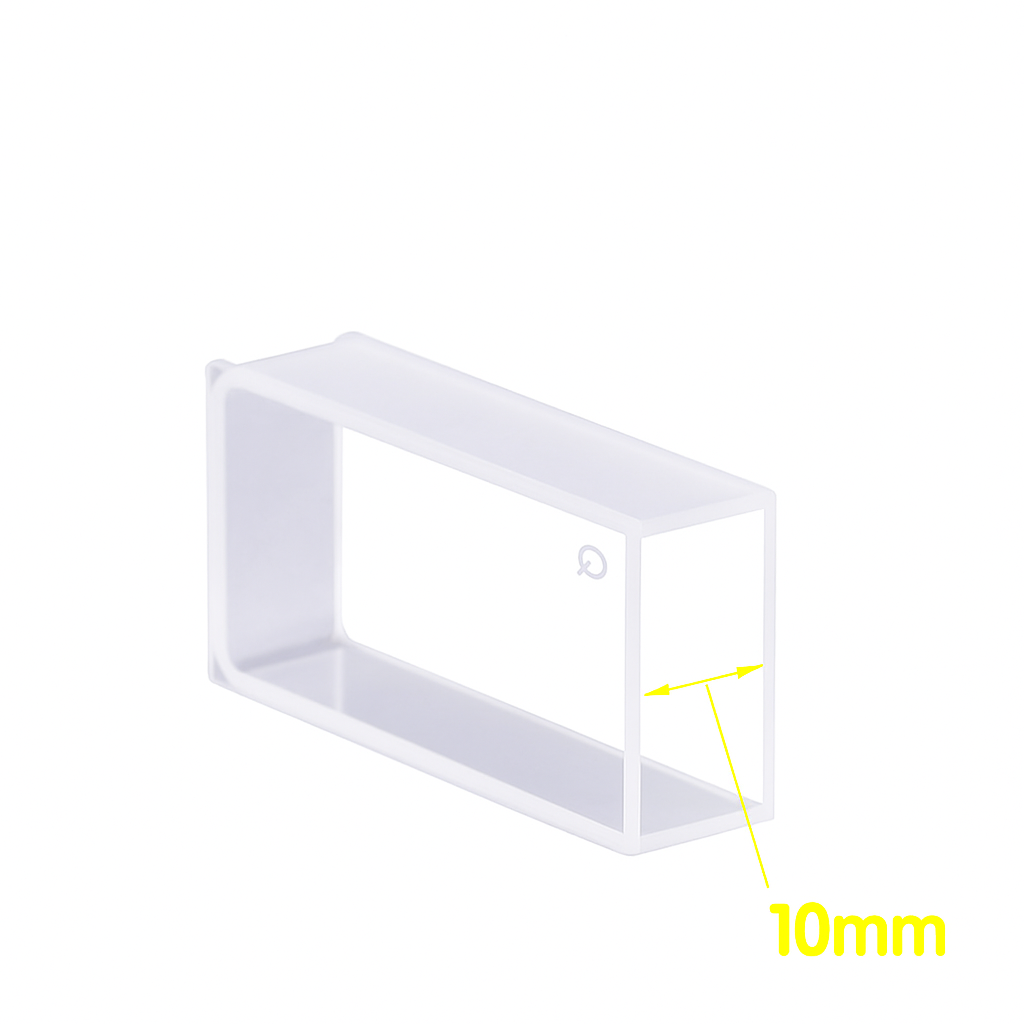

10 mm path length — standard optical path for most UV/VIS instruments.
10.5 ml volume — suitable for medium sample volumes with good measurement stability.
2 clear windows — ideal for standard transmission and absorbance testing.
Fused quartz construction — provides high UV transparency (190–2500 nm), chemical durability, and thermal stability up to 600 °C.
Precision fabrication ensures tight dimensional tolerance and reproducible results.

Typical Applications

Standard UV/VIS absorbance measurements
Biological and chemical analysis
Environmental testing
Routine laboratory QC and R&D work

Fused Fabrication Notes

Not suitable for HF and strong organic solvents such as toluene and acetone.
Powder seams may discolor over time but will not affect measurement accuracy.
Typical dimensional tolerance: ±0.06–0.08 mm.

Cuvette Specifications

Type	Macro Quartz Cuvette	Optical Path Length	10 mm
Article No.	VAOF30B	Volume	10.5 ml
Measuring Method	Absorption Cells	Clear Walls	45 × 32.5 mm
Number of Windows	2	Wavelength Range	UV/VIS (190 – 2500 nm)
Height	45 mm	Width (Inside)	30 mm
Width (Outside)	32.5 mm	Depth (Inside)	10 mm
Depth (Outside)	12.5 mm	Center Height (Z)	8.5 – 20 mm
Fabrication Method	Fused*	Package	Cell Only

Note: VAOF30B is a fused quartz macro cuvette with a 10 mm pathlength, suitable for standard UV/VIS spectrophotometry. Its medium volume and stable optical properties make it a versatile choice for laboratories and OEM instrument integration.

Comparison of Fabrication Types

1	2	3	4
	*Molded	*Fused	*Bonded / Glued
UV vis ( 190- 2500 nm)	Yes	Yes	Yes
Transmission Matched	On Request	No	No
Transmission > 80%	Yes	Yes	Yes
Resistant to Acids and Bases (except hydrofluoric acid)	Yes	Yes	No
Resistant to Organic Solvents	Yes	Yes	No
Usable upto 600°C (1112°F)	Yes	Yes	Yes
Usable upto 1200°C (2192°F)	Yes	No	No
0 Variations Reading	On Request	No	No
Fabrication	Molded	Assembled with Quartz Powder	Assembled with Glue
Adhesives	No	No	Yes
Storage	Short Term Storage	Clean After Use	Clean After Use
Available Material	Fused Quartz Material
Note	Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm.

1
QVARZ Cuvettes Transmission Characteristics The following table is our cuvettes and cells made of quartz material suitable for wavelength from 190nm to 2500nm and depicts the percentage transmission for the material. IR or Glass material is not included.

Why QVARZ Cuvettes and Cells? QVARZ is world-renowned as the producer of premium quartz cuvettes. Over fifteen years of experience manufacturing quartz cuvettes ensures that every QVARZ cuvettes are manufactured to the most exacting standards for reproducible results.
Spectrophotometry cuvettes - Most spectrophotometry applications in the visible and UV ranges benefit from QVARZ spectrophotometry cuvettes. Our cuvettes made of fused quartz material deliver precise and reliable readings even at wavelengths as low as 190 nm. QVARZ cuvettes are compatible with most spectrophotometers and photometers with standard 0.2 - 100 mm path lengths. Fluorometry cuvettes - QVARZ brings two decades of experience molding high-quality spectrophotometry cuvettes to new four-sided clear cuvettes for fluorometry. Available in standard quartz material with ultra-low auto-fluorescence for the highest precision measurements. Protective packaging - QVARZ cuvettes are encased in dust-free, low scratching expanded polystyrene packaging. This ensures that premium cuvettes arrive in the laboratory ina the same pristine condition they were in at the factory, with optical quality windows and free of contaminants. Volumes for most purposes - Our cuvettes are available in a variety of ranges from macro to macro semi-micro sizes to respond to the needs of most scientific applications. We are also able to customize sample volume to deliver consistent, accurate findings. Perform consistently - QVARZ Cuvettes are constructed from high-quality fused quartz materials and are grouped by manufacturing mold cavities to ensure the lowest fluctuation in extinction coefficient. Customization - Custom cuvettes and cells are encouraged and available upon request; mechanical drawings with specifications and tolerances are prerequisites. Awesome pricing and flexibility on small quantities.
To the best of our knowledge, the technical information provided here is accurate. However, Qvarz.com assumes no liability for the accuracy of this information. The values provided here are typical at the time of manufacture and may vary over time and from batch to batch.
