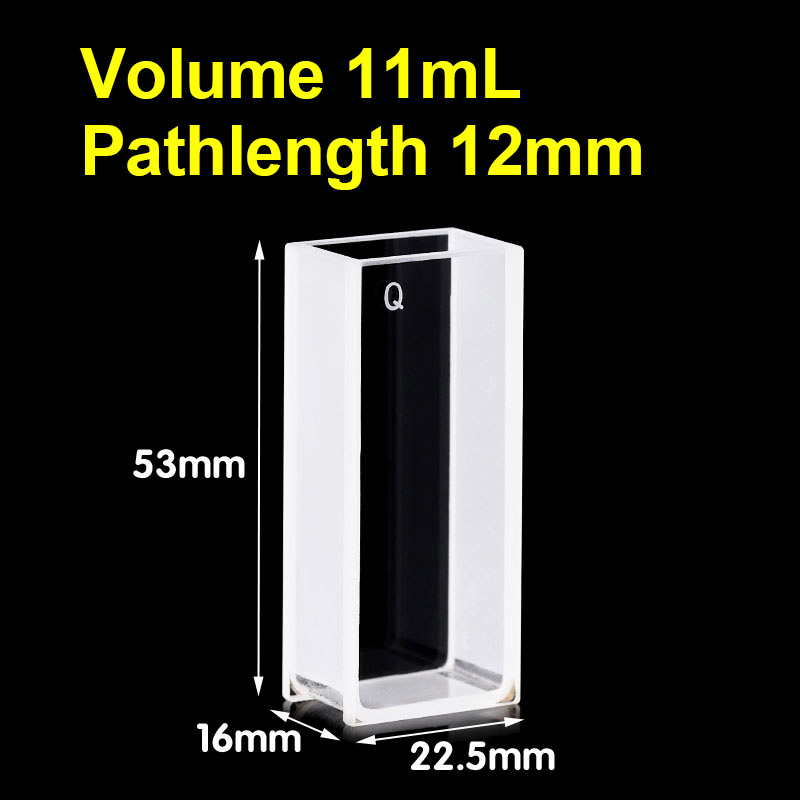

(VAOF11) 11ml Absorption Cuvette, Fused, Lightpath 12mm, 53×22.5×16 mm, 2 Clear Windows
$155.00
This wide clear wall cuvette is for absorption applications, with a path length of 12 mm. Resistant to most chemicals. Use up to 600°C. The price is for 1 piece.
In Stock
Add to Wishlist
CompareAdd to Wishlist
- Type: Fused
Description
VAOF11 Fused Quartz Absorption Cuvette is a 2-window cuvette with a 12 mm optical path length and an 11 ml volume. It features a wide clear wall design, ideal for UV/VIS absorbance measurements that require stable optical transmission and strong chemical resistance. Fused fabrication ensures excellent thermal durability and resistance to most acids and bases, making it suitable for demanding laboratory applications.
Key Features
- 12 mm optical path length — provides good sensitivity for UV/VIS absorbance measurements.
- 2-window design — optimized for standard straight-beam absorbance spectroscopy.
- Fused fabrication — high thermal resistance up to 600 °C, stable in most acidic and basic conditions.
- Wide wall geometry — ensures stable light transmission with low background interference.
- Broad wavelength range — 190 – 2500 nm, suitable for UV/VIS and NIR applications.
Typical Applications
- UV/VIS absorbance and transmission studies.
- Protein and nucleic acid quantification at 260/280 nm.
- Environmental analysis for nitrates and phosphates.
- Kinetic studies and routine lab assays.
- Quality control in chemical and pharmaceutical labs.
Fused Fabrication Notes
- Fused fabrication provides excellent resistance to most acids and bases.
- Not suitable for hydrofluoric acid (HF) or strong organic solvents such as toluene and acetone.
- Powder seams may discolor over time but do not affect optical performance.
- Path length tolerance typically ±0.06 – 0.08 mm.
Cuvette Specifications
| Type | Absorption Quartz Cuvette | Optical Path Length | 12 mm |
| Article No. | VAOF11 | Volume | 11 ml |
| Measuring Method | Absorption Cells | Clear Walls | 53 × 22.5 mm |
| Number of Windows | 2 | Wavelength Range | UV/VIS (190 – 2500 nm) |
| Height | 53 mm | Width (Inside) | 18.5 mm |
| Width (Outside) | 22.5 mm | Depth (Inside) | 12 mm |
| Depth (Outside) | 16 mm | Center Height (Z) | 8.5 – 20 mm |
| Fabrication Method | Fused* | Package | Cell Only |
Note: Fused fabrication provides high chemical and thermal resistance but is not suitable for HF or strong organic solvents. Powder seams may stain over time.
This 2-window design is ideal for UV/VIS absorbance applications requiring stable and accurate optical performance.
Comparison of Fabrication Types
| 1 | 2 | 3 | 4 | ||
|---|---|---|---|---|---|
| *Molded | *Fused | *Bonded / Glued | |||
| UV vis ( 190- 2500 nm) | Yes | Yes | Yes | ||
| Transmission Matched | On Request | No | No | ||
| Transmission > 80% | Yes | Yes | Yes | ||
| Resistant to Acids and Bases (except hydrofluoric acid) | Yes | Yes | No | ||
| Resistant to Organic Solvents | Yes | Yes | No | ||
| Usable upto 600°C (1112°F) | Yes | Yes | Yes | ||
| Usable upto 1200°C (2192°F) | Yes | No | No | ||
| 0 Variations Reading | On Request | No | No | ||
| Fabrication | Molded | Assembled with Quartz Powder | Assembled with Glue | ||
| Adhesives | No | No | Yes | ||
| Storage | Short Term Storage | Clean After Use | Clean After Use | ||
| Available Material | Fused Quartz Material | ||||
| Note | Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm. | ||||
