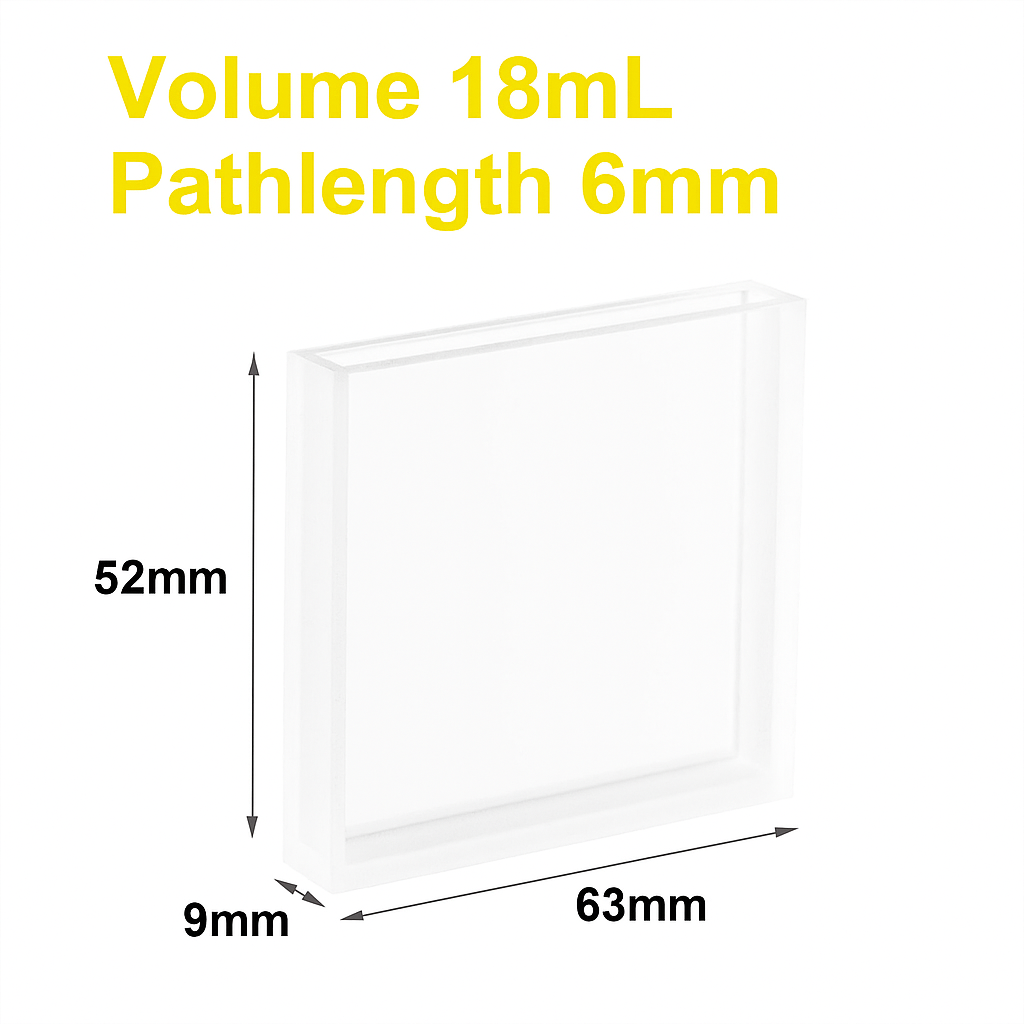

(VAOF180) 18ml Absorption Cuvette, Fused, Lightpath 6mm, 52x63x9 mm, 2 Clear Windows

Weight	100 g
Brand	Qvarz
Resistant to Chemicals	Yes

SKU: VAOF180

(VAOF180) 18ml Absorption Cuvette, Fused, Lightpath 6mm, 52x63x9 mm, 2 Clear Windows

(VAOF180) 18ml Absorption Cuvette, Fused, Lightpath 6mm, 52x63x9 mm, 2 Clear Windows - Image 2

$170.00

In Stock

This wide clear wall cuvette is for absorption applications, with a path length of 6 mm. Resistant to most chemicals. Use up to 600°C. The price is for 1 piece.

In Stock

Type: Fused

SKU: VAOF180 Categories: All Cuvettes & Cells, Custom Cuvettes, Cuvettes & Flow Cells, Fused Cuvettes, Macro Cuvettes >3.5mL, Open Top Cuvettes, Other Cuvettes, Products, Spectrometer Cuvettes, Wide Clear Window Cuvettes Tags: large cell, macro cuvette, open top cuvette, spectrometer cuvette, wide clear window cuvette

Worldwide Timed Dispatch Available

Free Shipping apply to all orders over $800
Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Fast dispatch. Receive deliveries in 2 - 3 weeks.

Description

VAOF180 Fused Quartz Absorption Cuvette is a 2-window quartz cuvette with a 6 mm optical path length and a 18 ml volume.
It is designed for standard UV/VIS absorbance measurements, especially for large sample volumes and routine laboratory use. The short optical path makes it particularly suitable for medium to high concentration samples where signal saturation must be avoided.

Why Short Path Length Matters
Short path cuvettes help prevent over-absorption when working with concentrated samples. A shorter optical distance reduces absorbance intensity, allowing accurate measurements without the need for excessive dilution. This ensures greater flexibility and precision in both research and routine analysis.

This cuvette is ideal for:

Medium to high concentration absorbance measurements
UV/VIS transmission and optical density testing
Routine lab analysis in chemistry, environmental monitoring, and industrial R&D
Applications requiring larger sample volumes with short path lengths

Key Features

6 mm optical path — reduces absorbance for concentrated samples, avoiding signal saturation.
Large sample capacity (18 ml) — ideal for preparative and routine assays.
Fused fabrication — excellent thermal resistance up to 600 °C and high chemical durability.
Wide wavelength range — 190–2500 nm, compatible with most UV/VIS instruments.
2-window design — optimized for transmission and absorbance measurements.

Typical Applications

Absorbance measurements of medium/high concentration solutions
UV/VIS spectroscopy in environmental and chemical labs
Quality control and process monitoring in industry
Biochemical and pharmaceutical analysis

Fused Fabrication Notes

Fused quartz provides superior optical clarity, high heat resistance, and chemical stability.
Not suitable for hydrofluoric acid (HF) or strong organic solvents such as toluene and acetone.
Powder seams may discolor over time but do not affect measurement performance.
Typical path length tolerance: ±0.06–0.08 mm.

Cuvette Specifications

Type	Absorption Quartz Cuvette	Optical Path Length	6 mm
Article No.	VAOF180	Volume	18 ml
Measuring Method	Absorption Cells	Clear Walls	52 × 63 mm
Number of Windows	2	Wavelength Range	UV/VIS (190 – 2500 nm)
Height	52 mm	Width (Inside)	60 mm
Width (Outside)	63 mm	Depth (Inside)	6 mm
Depth (Outside)	9 mm	Center Height (Z)	8.5 – 20 mm
Fabrication Method	Fused*	Package	Cell Only

Note: VAOF180 is a short-path fused quartz cuvette designed for accurate absorbance measurement of concentrated samples. Its large capacity and optical clarity make it a practical choice for routine UV/VIS spectroscopy and industrial lab applications.

Comparison of Fabrication Types

1	2	3	4
	*Molded	*Fused	*Bonded / Glued
UV vis ( 190- 2500 nm)	Yes	Yes	Yes
Transmission Matched	On Request	No	No
Transmission > 80%	Yes	Yes	Yes
Resistant to Acids and Bases (except hydrofluoric acid)	Yes	Yes	No
Resistant to Organic Solvents	Yes	Yes	No
Usable upto 600°C (1112°F)	Yes	Yes	Yes
Usable upto 1200°C (2192°F)	Yes	No	No
0 Variations Reading	On Request	No	No
Fabrication	Molded	Assembled with Quartz Powder	Assembled with Glue
Adhesives	No	No	Yes
Storage	Short Term Storage	Clean After Use	Clean After Use
Available Material	Fused Quartz Material
Note	Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm.

1
QVARZ Cuvettes Transmission Characteristics The following table is our cuvettes and cells made of quartz material suitable for wavelength from 190nm to 2500nm and depicts the percentage transmission for the material. IR or Glass material is not included.

Why QVARZ Cuvettes and Cells? QVARZ is world-renowned as the producer of premium quartz cuvettes. Over fifteen years of experience manufacturing quartz cuvettes ensures that every QVARZ cuvettes are manufactured to the most exacting standards for reproducible results.
Spectrophotometry cuvettes - Most spectrophotometry applications in the visible and UV ranges benefit from QVARZ spectrophotometry cuvettes. Our cuvettes made of fused quartz material deliver precise and reliable readings even at wavelengths as low as 190 nm. QVARZ cuvettes are compatible with most spectrophotometers and photometers with standard 0.2 - 100 mm path lengths. Fluorometry cuvettes - QVARZ brings two decades of experience molding high-quality spectrophotometry cuvettes to new four-sided clear cuvettes for fluorometry. Available in standard quartz material with ultra-low auto-fluorescence for the highest precision measurements. Protective packaging - QVARZ cuvettes are encased in dust-free, low scratching expanded polystyrene packaging. This ensures that premium cuvettes arrive in the laboratory ina the same pristine condition they were in at the factory, with optical quality windows and free of contaminants. Volumes for most purposes - Our cuvettes are available in a variety of ranges from macro to macro semi-micro sizes to respond to the needs of most scientific applications. We are also able to customize sample volume to deliver consistent, accurate findings. Perform consistently - QVARZ Cuvettes are constructed from high-quality fused quartz materials and are grouped by manufacturing mold cavities to ensure the lowest fluctuation in extinction coefficient. Customization - Custom cuvettes and cells are encouraged and available upon request; mechanical drawings with specifications and tolerances are prerequisites. Awesome pricing and flexibility on small quantities.
To the best of our knowledge, the technical information provided here is accurate. However, Qvarz.com assumes no liability for the accuracy of this information. The values provided here are typical at the time of manufacture and may vary over time and from batch to batch.
