(VAOB10C) 100uL Sub Micro Absorption Cuvette, Customized, Semi Black, Bonded, Height 25mm

Weight	80 g
Brand	Qvarz
Resistant to Chemicals	No
Z dimensions	Custom

SKU: VAOB10C

(VAOB10C) 100uL Sub Micro Absorption Cuvette, Customized, Semi Black, Bonded, Height 25mm

(VAOB10C) 100uL Sub Micro Absorption Cuvette, Customized, Semi Black, Bonded, Height 25mm - Image 2

(VAOB10C) 100uL Sub Micro Absorption Cuvette, Customized, Semi Black, Bonded, Height 25mm - Image 3

$71.00

In Stock

This customized sub-micro cuvette is for absorption applications, with a path length of 10 mm. For Aqueous Samples Only. Use up to 100°C. The price is for 1 piece.

In Stock

Type: Bonded, For Aqueous Samples Only

SKU: VAOB10C Categories: All Cuvettes & Cells, Bonded Cuvettes, Custom Cuvettes, Cuvettes & Flow Cells, Micro Cuvettes <3.5mL, Narrow Width Cuvettes, Open Top Cuvettes, Products, Spectrometer Cuvettes, Sub-Micro Cuvettes Tags: custom cuvette, open top cuvette, spectrometer cuvette, sub micro cuvette

Worldwide Timed Dispatch Available

Free Shipping apply to all orders over $800
Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Fast dispatch. Receive deliveries in 2 - 3 weeks.

Description

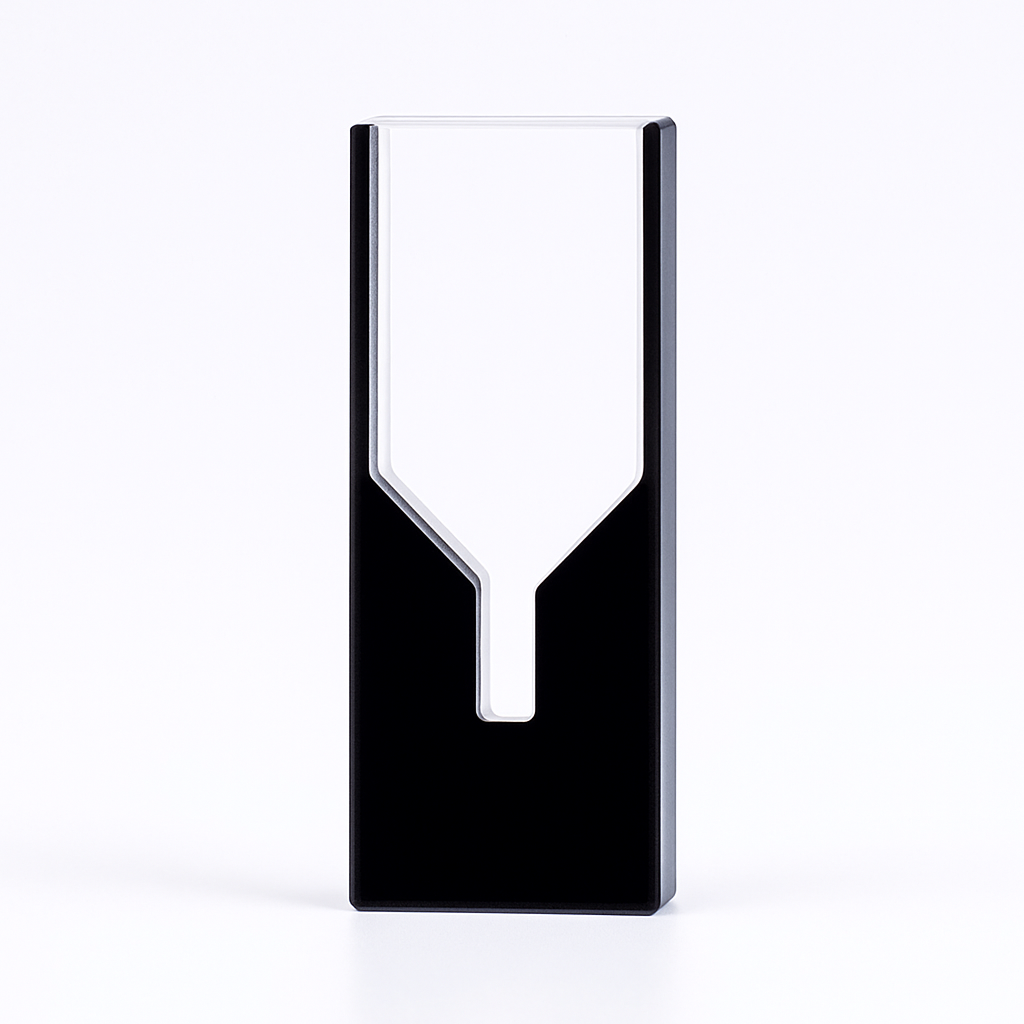

VAOB10C – 100 μL Sub-Micro Quartz Cuvette (Bonded, Semi Black, 25 mm Custom Height, 2 Windows)

The VAOB10C is a custom sub-micro quartz cuvette engineered for absorption spectroscopy using extremely small sample volumes.
This model features a shortened total height of 25 mm—ideal for specialized or compact instrument setups—while maintaining a standard 10 mm optical path length and 2 × 5 mm aperture.
The semi-black wall design minimizes stray light from the base, ensuring stable and reproducible measurement results.

Key Features

Low sample volume: 100 μL, suitable for high-value or limited aqueous samples.
Custom short height: 25 mm total height for compact setups and special holders.
Semi-black wall design: effectively reduces bottom reflection while maintaining clear visibility.
Bonded fabrication: fast customization and lower cost for aqueous applications.
10 mm optical path: compatible with standard UV/VIS spectrophotometers.
2-window design: optimized for absorbance and transmission measurements.
Wavelength range: UV/VIS (190 – 2500 nm).

Typical Applications

Low-volume aqueous sample absorbance measurement
Biochemical, pharmaceutical, and environmental testing
Compact instrument systems requiring short-height cuvettes
Custom or OEM optical setups

Cuvette Specifications

Type	Custom Sub Micro Cuvette	Optical Path Length	10 mm
Article No.	VAOB10C	Volume	100 μL
Measuring Method	Absorption Cells	Wall Type	Semi Black, Short Height
Number of Windows	2	Wavelength Range	UV/VIS (190 – 2500 nm)

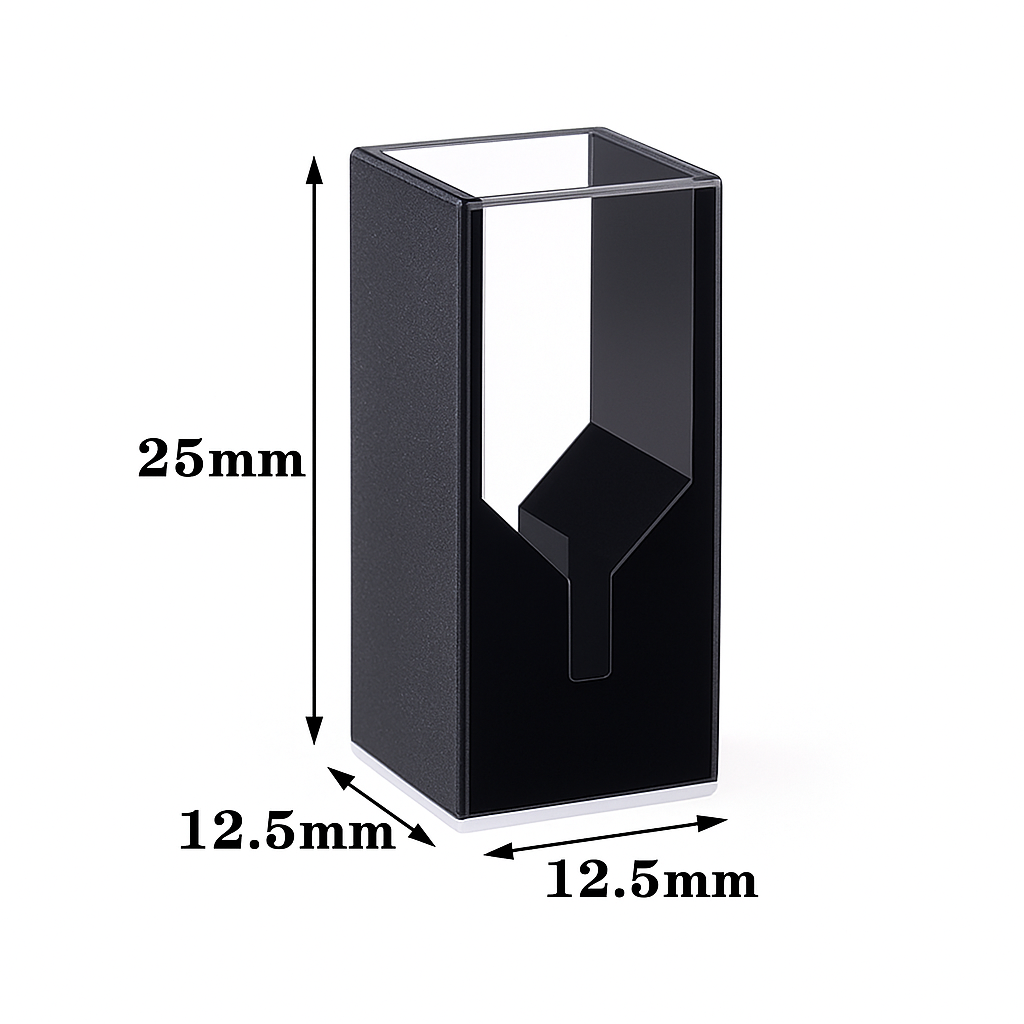

Outside Dimensions
Height	25 mm	Width	12.5 mm
Depth	12.5 mm
Inside Dimensions
Aperture Window	2 × 5 mm	Depth (Inside)	10 mm
Center Height (Z)	Custom	Fabrication Method	Bonded*
Package	Cell Only

About Bonded Fabrication

Bonded quartz cuvettes are manufactured using precision bonding technology, offering:

Best suited for aqueous samples only (not recommended for aggressive organic solvents).
Fast turnaround and cost-effective customization.
Good optical clarity and stable path length tolerance (±0.06 – 0.08 mm).

Note: For aggressive solvents or long-term storage, molded cuvettes offer superior durability and chemical resistance.

Comparison of Fabrication Types

1	2	3	4
	*Molded	*Fused	*Bonded / Glued
UV vis ( 190- 2500 nm)	Yes	Yes	Yes
Transmission Matched	On Request	No	No
Transmission > 80%	Yes	Yes	Yes
Resistant to Acids and Bases (except hydrofluoric acid)	Yes	Yes	No
Resistant to Organic Solvents	Yes	Yes	No
Usable upto 600°C (1112°F)	Yes	Yes	Yes
Usable upto 1200°C (2192°F)	Yes	No	No
0 Variations Reading	On Request	No	No
Fabrication	Molded	Assembled with Quartz Powder	Assembled with Glue
Adhesives	No	No	Yes
Storage	Short Term Storage	Clean After Use	Clean After Use
Available Material	Fused Quartz Material
Note	Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm.

1
QVARZ Cuvettes Transmission Characteristics The following table is our cuvettes and cells made of quartz material suitable for wavelength from 190nm to 2500nm and depicts the percentage transmission for the material. IR or Glass material is not included.

Why QVARZ Cuvettes and Cells? QVARZ is world-renowned as the producer of premium quartz cuvettes. Over fifteen years of experience manufacturing quartz cuvettes ensures that every QVARZ cuvettes are manufactured to the most exacting standards for reproducible results.
Spectrophotometry cuvettes - Most spectrophotometry applications in the visible and UV ranges benefit from QVARZ spectrophotometry cuvettes. Our cuvettes made of fused quartz material deliver precise and reliable readings even at wavelengths as low as 190 nm. QVARZ cuvettes are compatible with most spectrophotometers and photometers with standard 0.2 - 100 mm path lengths. Fluorometry cuvettes - QVARZ brings two decades of experience molding high-quality spectrophotometry cuvettes to new four-sided clear cuvettes for fluorometry. Available in standard quartz material with ultra-low auto-fluorescence for the highest precision measurements. Protective packaging - QVARZ cuvettes are encased in dust-free, low scratching expanded polystyrene packaging. This ensures that premium cuvettes arrive in the laboratory ina the same pristine condition they were in at the factory, with optical quality windows and free of contaminants. Volumes for most purposes - Our cuvettes are available in a variety of ranges from macro to macro semi-micro sizes to respond to the needs of most scientific applications. We are also able to customize sample volume to deliver consistent, accurate findings. Perform consistently - QVARZ Cuvettes are constructed from high-quality fused quartz materials and are grouped by manufacturing mold cavities to ensure the lowest fluctuation in extinction coefficient. Customization - Custom cuvettes and cells are encouraged and available upon request; mechanical drawings with specifications and tolerances are prerequisites. Awesome pricing and flexibility on small quantities.
To the best of our knowledge, the technical information provided here is accurate. However, Qvarz.com assumes no liability for the accuracy of this information. The values provided here are typical at the time of manufacture and may vary over time and from batch to batch.
