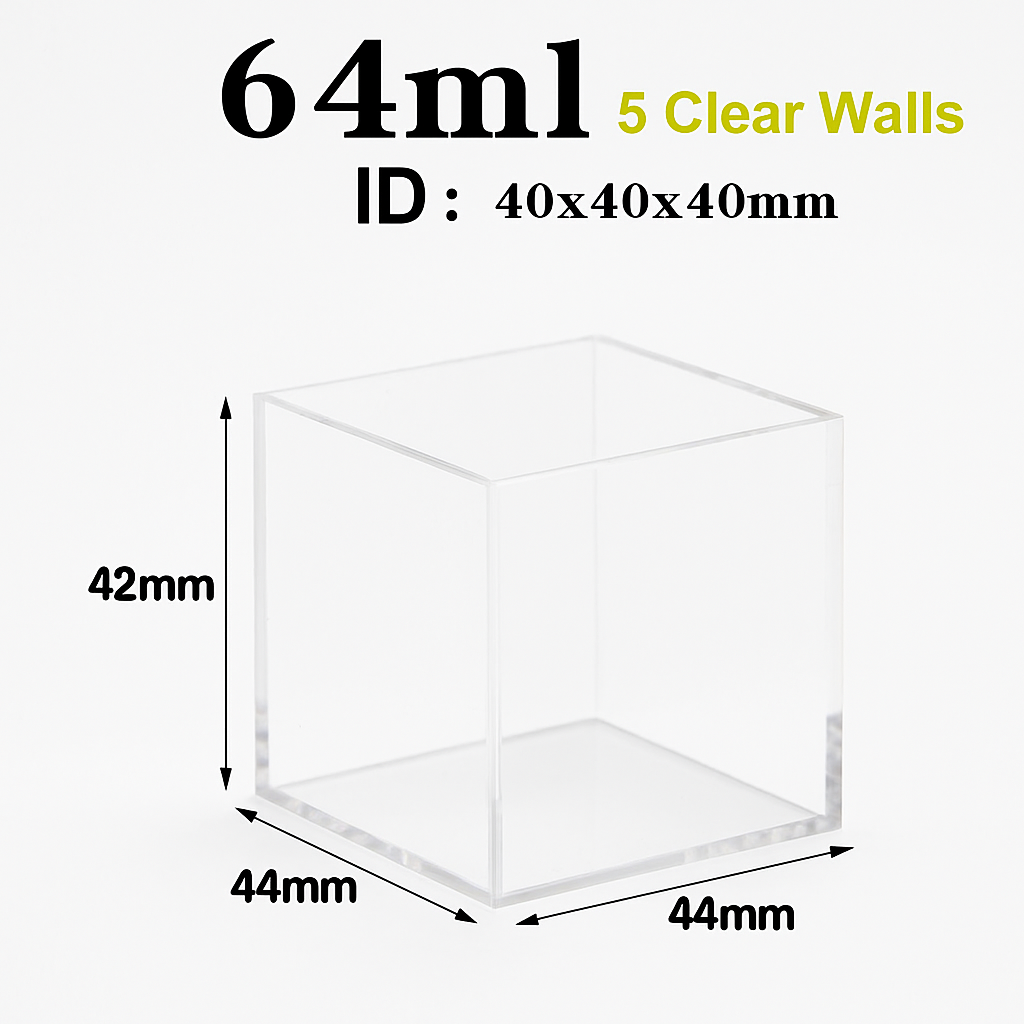

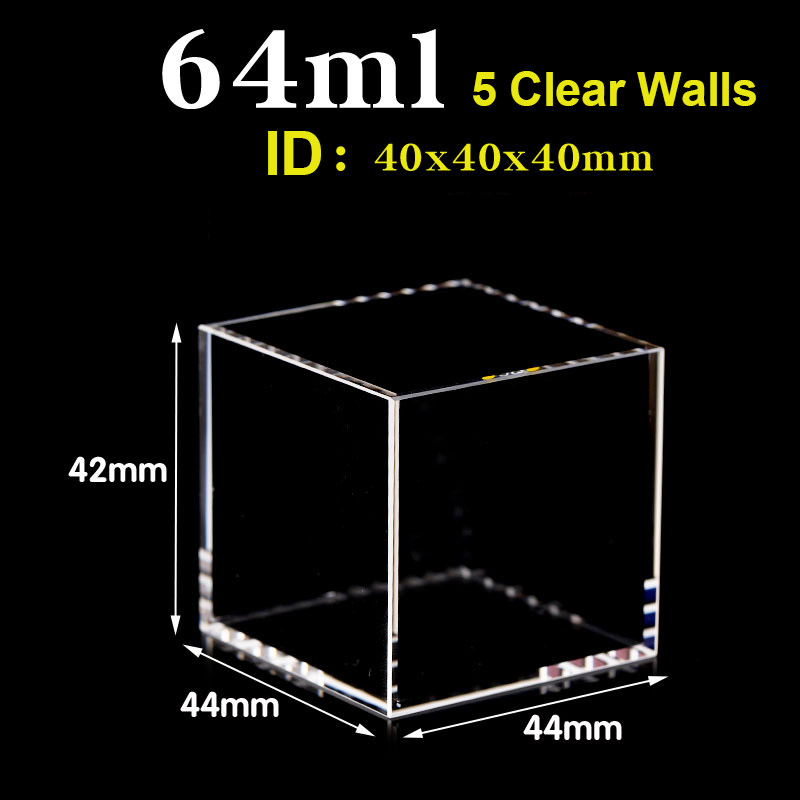

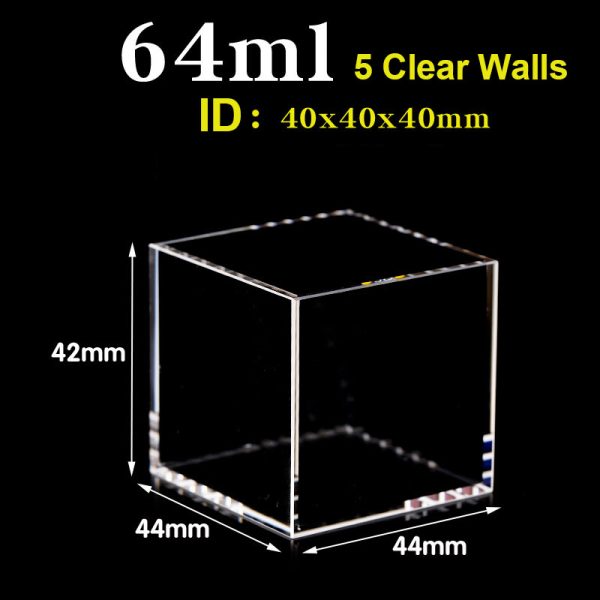

(V5ML40N) 64 mL Large Cuvette, 5 Windows, No Cover, Molded, Lightpath 40mm, 42x44x44 mm

Weight	300 g
Brand	Qvarz
Resistant to Chemicals	Yes

SKU: V5ML40N

(V5ML40N) 64 mL Large Cuvette, 5 Windows, No Cover, Molded, Lightpath 40mm, 42x44x44 mm

(V5ML40N) 64 mL Large Cuvette, 5 Windows, No Cover, Molded, Lightpath 40mm, 42x44x44 mm - Image 2

$324.00

In Stock

This wide clear wall cuvette is for fluorescence applications, with a path length of 40mm. Resistant to chemicals. Use up to 1200°C. The price is for 1 piece.

In Stock

Type: Molded*

SKU: V5ML40N Categories: 5 Windows Cuvettes, All Cuvettes & Cells, Custom Cuvettes, Cuvettes & Flow Cells, Fluorometer Cuvettes, Macro Cuvettes >3.5mL, Molded Cuvettes, Open Top Cuvettes, Other Cuvettes, Products Tags: fluorescence cuvette, large cell, macro cuvette, open top cuvette

Worldwide Timed Dispatch Available

Free Shipping apply to all orders over $800
Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Fast dispatch. Receive deliveries in 2 - 3 weeks.

Description

V5ML40N Large Molded Quartz Cuvette is a high-volume, precision-engineered 5-window cuvette designed for fluorescence and absorbance measurements that require extended optical paths and excellent signal sensitivity.
It features a 40 mm optical path length and 64 ml internal volume, making it suitable for bulk measurements and trace detection.

Key Features

40 mm optical path — provides enhanced sensitivity, ideal for low-concentration or high-precision measurements.
5 optical windows — support multiple detection geometries, making it suitable for fluorescence and absorbance experiments.
64 ml capacity — accommodates large sample volumes, suitable for photochemical and kinetic studies.
Molded fabrication — ensures excellent dimensional precision, strong durability, and optical quality.
Broad UV/VIS transmission range (190–2500 nm) suitable for various spectroscopy applications.

Typical Applications

Fluorescence and absorbance spectroscopy requiring long optical paths.
Photochemical and kinetic reaction studies with large sample volumes.
Environmental testing and trace analysis.
Method development in research and production laboratories.

Molded Fabrication Notes

Molded quartz cuvettes are produced with tight tolerances for consistent optical alignment.
Resistant to most laboratory acids and solvents except HF.
Can be used with strong organic solvents such as toluene and acetone without degradation.
Designed for long service life and stable optical performance.

Cuvette Specifications

Type	Large Capacity Cuvette	Optical Path Length	40 mm
Article No.	V5ML40N	Volume	64 ml
Measuring Method	Fluorescence Cells	Clear Walls	42 × 44 mm, 44 × 44 mm
Number of Windows	5	Wavelength Range	UV/VIS (190 – 2500 nm)
Height	42 mm	Width (Inside)	40 mm
Width (Outside)	44 mm	Depth (Inside)	40 mm
Depth (Outside)	44 mm	Cover Material	None
Fabrication Method	Molded*	Package	Cell Only

Note: V5ML40N offers extended pathlength and large volume for high-sensitivity applications.
If evaporation control or sealing is required, compatible PTFE or silicone lids can be added separately.

Comparison of Fabrication Types

1	2	3	4
	*Molded	*Fused	*Bonded / Glued
UV vis ( 190- 2500 nm)	Yes	Yes	Yes
Transmission Matched	On Request	No	No
Transmission > 80%	Yes	Yes	Yes
Resistant to Acids and Bases (except hydrofluoric acid)	Yes	Yes	No
Resistant to Organic Solvents	Yes	Yes	No
Usable upto 600°C (1112°F)	Yes	Yes	Yes
Usable upto 1200°C (2192°F)	Yes	No	No
0 Variations Reading	On Request	No	No
Fabrication	Molded	Assembled with Quartz Powder	Assembled with Glue
Adhesives	No	No	Yes
Storage	Short Term Storage	Clean After Use	Clean After Use
Available Material	Fused Quartz Material
Note	Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm.

1
QVARZ Cuvettes Transmission Characteristics The following table is our cuvettes and cells made of quartz material suitable for wavelength from 190nm to 2500nm and depicts the percentage transmission for the material. IR or Glass material is not included.

Why QVARZ Cuvettes and Cells? QVARZ is world-renowned as the producer of premium quartz cuvettes. Over fifteen years of experience manufacturing quartz cuvettes ensures that every QVARZ cuvettes are manufactured to the most exacting standards for reproducible results.
Spectrophotometry cuvettes - Most spectrophotometry applications in the visible and UV ranges benefit from QVARZ spectrophotometry cuvettes. Our cuvettes made of fused quartz material deliver precise and reliable readings even at wavelengths as low as 190 nm. QVARZ cuvettes are compatible with most spectrophotometers and photometers with standard 0.2 - 100 mm path lengths. Fluorometry cuvettes - QVARZ brings two decades of experience molding high-quality spectrophotometry cuvettes to new four-sided clear cuvettes for fluorometry. Available in standard quartz material with ultra-low auto-fluorescence for the highest precision measurements. Protective packaging - QVARZ cuvettes are encased in dust-free, low scratching expanded polystyrene packaging. This ensures that premium cuvettes arrive in the laboratory ina the same pristine condition they were in at the factory, with optical quality windows and free of contaminants. Volumes for most purposes - Our cuvettes are available in a variety of ranges from macro to macro semi-micro sizes to respond to the needs of most scientific applications. We are also able to customize sample volume to deliver consistent, accurate findings. Perform consistently - QVARZ Cuvettes are constructed from high-quality fused quartz materials and are grouped by manufacturing mold cavities to ensure the lowest fluctuation in extinction coefficient. Customization - Custom cuvettes and cells are encouraged and available upon request; mechanical drawings with specifications and tolerances are prerequisites. Awesome pricing and flexibility on small quantities.
To the best of our knowledge, the technical information provided here is accurate. However, Qvarz.com assumes no liability for the accuracy of this information. The values provided here are typical at the time of manufacture and may vary over time and from batch to batch.
