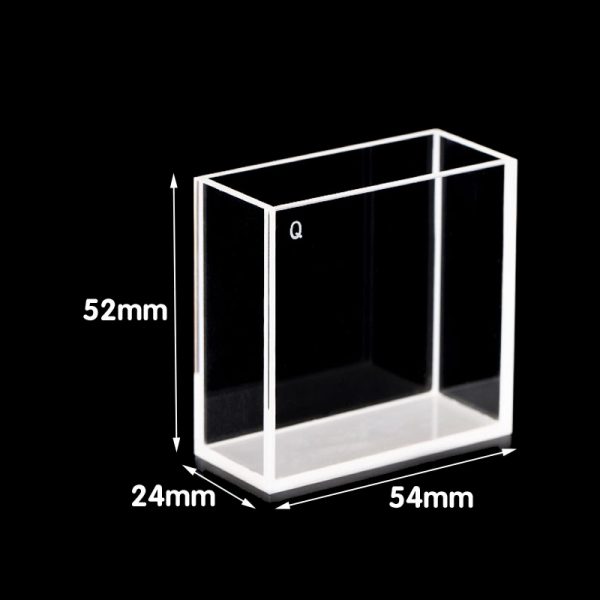

(VFOF25) 50mL Large Cuvette, Fused, Lightpath 20mm or 50mm, 4 Windows, 52x54x24 mm

Weight	100 g
Brand	Qvarz
Resistant to Chemicals	No

SKU: VFOF25

(VFOF25) 50mL Large Cuvette, Fused, Lightpath 20mm or 50mm, 4 Windows, 52x54x24 mm

(VFOF25) 50mL Large Cuvette, Fused, Lightpath 20mm or 50mm, 4 Windows, 52x54x24 mm - Image 2

$274.00

In Stock

This customized cuvette is for fluorescence applications, with dual-path length of 20 and 50 mm. Resistant to most chemicals. Use up to 600°C. The price is for 1 piece.

In Stock

Type: Fused

SKU: VFOF25 Categories: All Cuvettes & Cells, Custom Cuvettes, Cuvettes & Flow Cells, Fluorometer Cuvettes, Fused Cuvettes, Macro Cuvettes >3.5mL, Open Top Cuvettes, Other Cuvettes, Products Tags: fluorescence cuvette, large cell, open top cuvette

Worldwide Timed Dispatch Available

Free Shipping apply to all orders over $800
Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Fast dispatch. Receive deliveries in 2 - 3 weeks.

Description

VFOF25 Fused Quartz Large Fluorescence Cuvette is a 50 ml capacity customized 4-window cuvette with dual optical path lengths of 20 mm or 50 mm. The large internal dimensions and wide clear walls are specifically designed for advanced fluorescence and absorbance experiments that require both high sensitivity and flexible optical setups.

This model is ideal for laboratories conducting precision spectroscopy on large-volume samples, as well as for specialized research and industrial applications.

Key Features

Dual optical path lengths (20 mm & 50 mm) — offers flexibility for different sensitivity and signal requirements.
50 ml capacity — suitable for large sample volumes and high signal stability.
4-window design — allows side detection and excitation, ideal for fluorescence spectroscopy.
Fused quartz construction — ensures excellent UV transparency, thermal stability, and resistance to most laboratory solvents.
Broad wavelength range: 190–2500 nm — compatible with UV/VIS/NIR instruments.

Typical Applications

High-sensitivity fluorescence spectroscopy
Absorbance and transmission studies with large sample volumes
Advanced photoluminescence and side-excitation detection
Environmental, biochemical, and industrial analysis
Custom OEM and specialized research systems

Fused Fabrication Notes

Fused quartz provides high optical transmission and dimensional stability up to 600 °C.
Not suitable for HF or aggressive organic solvents such as toluene or acetone.
Powder seams may discolor over time but do not affect measurement accuracy.
Dimensional tolerance: ±0.06–0.08 mm.

Cuvette Specifications

Type	Large Quartz Fluorescence Cuvette	Optical Path Length	20 mm or 50 mm
Article No.	VFOF25	Volume	50 ml
Measuring Method	Fluorescence Cells	Clear Walls	4 Windows Clear
Number of Windows	4	Wavelength Range	UV/VIS (190 – 2500 nm)
Height	52 mm	Width (Inside)	50 mm
Width (Outside)	54 mm	Depth (Inside)	20 mm
Depth (Outside)	24 mm	Center Height (Z)	8.5 – 20 mm
Fabrication Method	Fused*	Package	Cell Only

Note: VFOF25 is a customized 4-window fused quartz cuvette designed for advanced fluorescence and absorbance applications that demand high optical clarity, flexible path lengths, and large sample handling capacity.

Comparison of Fabrication Types

1	2	3	4
	*Molded	*Fused	*Bonded / Glued
UV vis ( 190- 2500 nm)	Yes	Yes	Yes
Transmission Matched	On Request	No	No
Transmission > 80%	Yes	Yes	Yes
Resistant to Acids and Bases (except hydrofluoric acid)	Yes	Yes	No
Resistant to Organic Solvents	Yes	Yes	No
Usable upto 600°C (1112°F)	Yes	Yes	Yes
Usable upto 1200°C (2192°F)	Yes	No	No
0 Variations Reading	On Request	No	No
Fabrication	Molded	Assembled with Quartz Powder	Assembled with Glue
Adhesives	No	No	Yes
Storage	Short Term Storage	Clean After Use	Clean After Use
Available Material	Fused Quartz Material
Note	Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm.

1
QVARZ Cuvettes Transmission Characteristics The following table is our cuvettes and cells made of quartz material suitable for wavelength from 190nm to 2500nm and depicts the percentage transmission for the material. IR or Glass material is not included.

Why QVARZ Cuvettes and Cells? QVARZ is world-renowned as the producer of premium quartz cuvettes. Over fifteen years of experience manufacturing quartz cuvettes ensures that every QVARZ cuvettes are manufactured to the most exacting standards for reproducible results.
Spectrophotometry cuvettes - Most spectrophotometry applications in the visible and UV ranges benefit from QVARZ spectrophotometry cuvettes. Our cuvettes made of fused quartz material deliver precise and reliable readings even at wavelengths as low as 190 nm. QVARZ cuvettes are compatible with most spectrophotometers and photometers with standard 0.2 - 100 mm path lengths. Fluorometry cuvettes - QVARZ brings two decades of experience molding high-quality spectrophotometry cuvettes to new four-sided clear cuvettes for fluorometry. Available in standard quartz material with ultra-low auto-fluorescence for the highest precision measurements. Protective packaging - QVARZ cuvettes are encased in dust-free, low scratching expanded polystyrene packaging. This ensures that premium cuvettes arrive in the laboratory ina the same pristine condition they were in at the factory, with optical quality windows and free of contaminants. Volumes for most purposes - Our cuvettes are available in a variety of ranges from macro to macro semi-micro sizes to respond to the needs of most scientific applications. We are also able to customize sample volume to deliver consistent, accurate findings. Perform consistently - QVARZ Cuvettes are constructed from high-quality fused quartz materials and are grouped by manufacturing mold cavities to ensure the lowest fluctuation in extinction coefficient. Customization - Custom cuvettes and cells are encouraged and available upon request; mechanical drawings with specifications and tolerances are prerequisites. Awesome pricing and flexibility on small quantities.
To the best of our knowledge, the technical information provided here is accurate. However, Qvarz.com assumes no liability for the accuracy of this information. The values provided here are typical at the time of manufacture and may vary over time and from batch to batch.
