(VP030) Disposable Semi-Micro Fluorescence Cuvettes, Polystyrene (PS) Plastic, 1.5mL, Lightpath 10mm, 340 – 750 nm, Visible Range
$7.00 – $55.00
The disposable cuvette is for absorption and fluorescence applications under Visible wavelength range of 340-750 nm.
Add to Wishlist
CompareAdd to Wishlist
Description

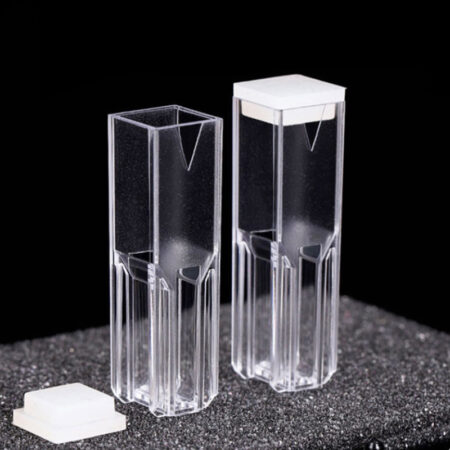

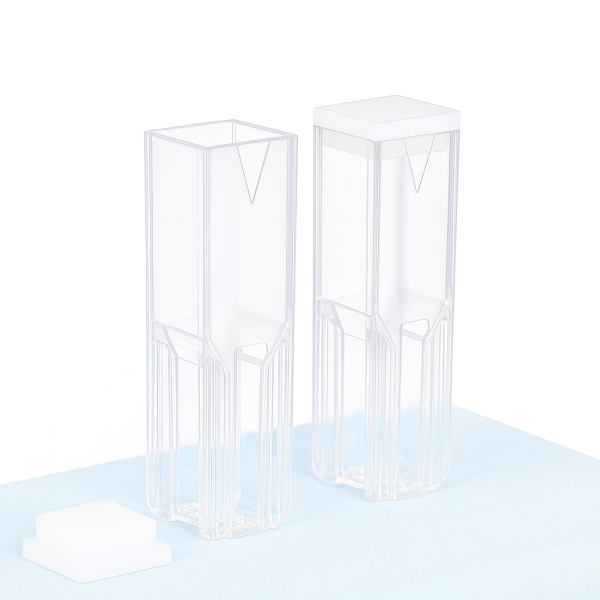

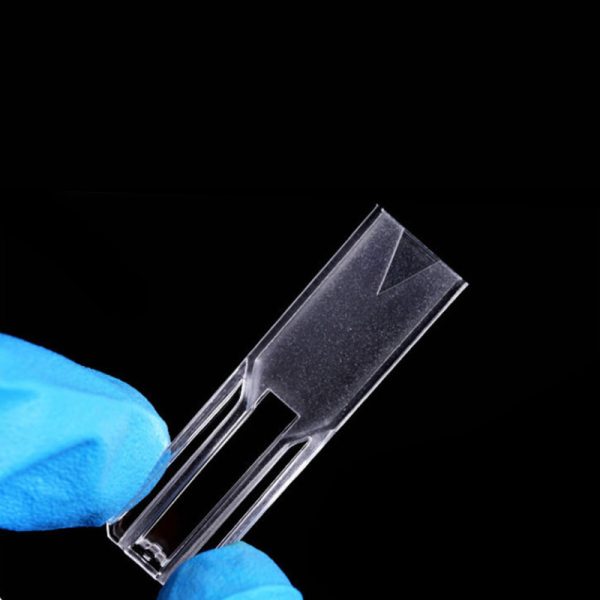

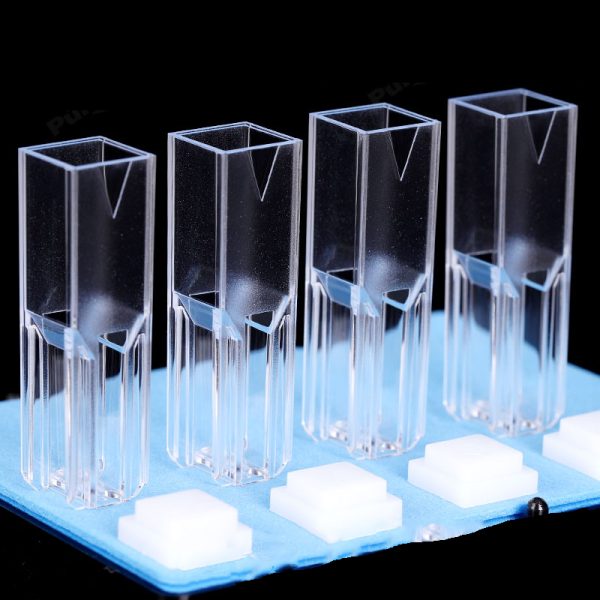

VP030 – 1.5 mL Disposable Semi-Micro Fluorescence Cuvette (Polystyrene, 10 mm Lightpath, 4 Windows, Visible 340–750 nm)
The VP030 is a disposable semi-micro fluorescence cuvette made from optical-grade polystyrene, designed for visible-range fluorescence and absorbance measurements (340–750 nm). With a 10 mm optical path length and 4 optically clear windows, it is well-suited for applications requiring 90° fluorescence detection.
Featuring a narrow internal width of 5 mm, the VP030 requires only 1.5 mL of sample, making it ideal for experiments with limited or precious sample volumes. The disposable design eliminates cleaning steps and prevents cross-contamination between measurements.
Key Features

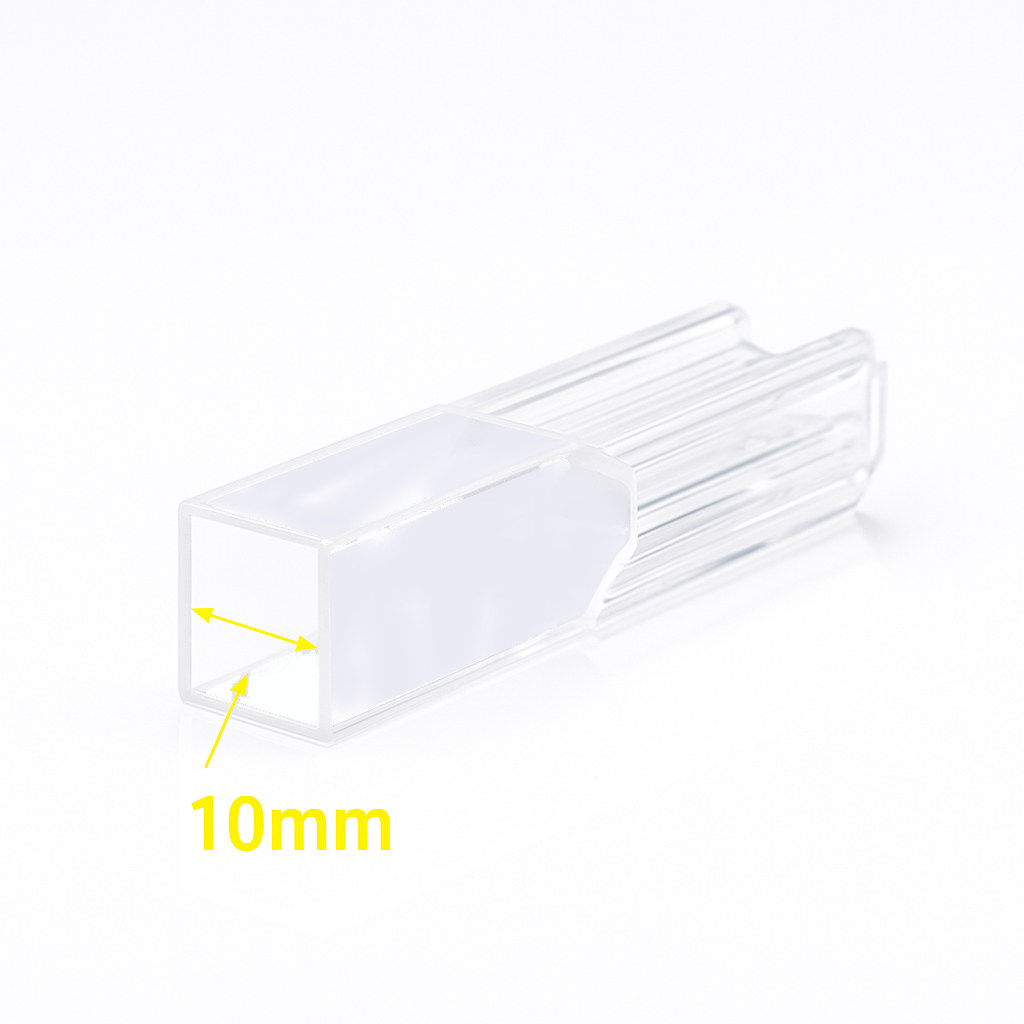

- 10 mm optical path length: compatible with most visible-range spectrophotometers and fluorometers.
- 4 optical windows: supports both standard and 90° fluorescence detection.
- Semi-micro design: requires only 1.5 mL of sample, ideal for low-volume assays.
- Material: made of polystyrene (PS) with good optical clarity in the 340–750 nm range.
- Cost-effective: disposable format eliminates cleaning and avoids sample carryover.
- Packaging: supplied with lids (not all sets include packaging accessories).
Typical Applications
- Fluorescence and absorbance measurements in the visible range
- Biological and biochemical assays
- High-throughput screening and teaching labs
- Low-volume enzyme kinetics and routine testing
- Applications requiring 90° detection geometry
Cuvette Specifications
| Type | Disposable Cuvette | Optical Path Length | 10 mm |
| Article No. | VP030 | Volume | 1500 µL |
| Measuring Method | Fluorescence Cells | Material | Polystyrene |
| Number of Windows | 4 | Wavelength Range | Visible (340–750 nm) |

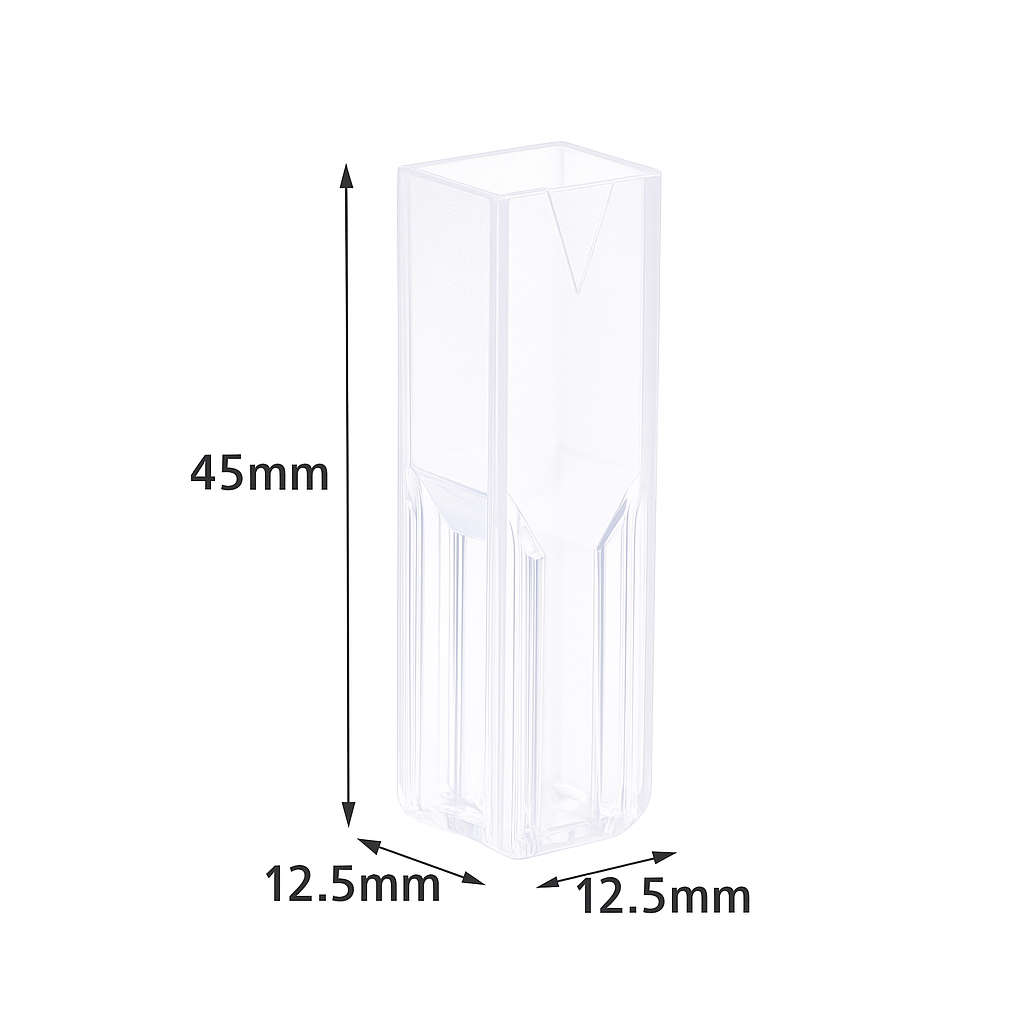

| Outside Dimensions | |||
| Height | 45 mm | Width | 12.5 mm |
| Depth | 12.5 mm | ||
| Inside Dimensions | |||
| Width (Inside) | 5 mm | Depth (Inside) | 10 mm |
| Fabrication Method | Plastic Molded | Package | Cells & Lids (Not All Package Included) |
About Semi-Micro Fluorescence Cuvettes
- 4 clear windows allow flexible fluorescence measurement angles.
- Low sample volume helps conserve precious samples.
- Made from PS with good visible-light transmission; not for UV below 340 nm.
- Not recommended for strong acids, bases, or organic solvents.
- Disposable format saves time and ensures contamination-free measurements.
Note: VP030 is designed for routine visible fluorescence applications with low sample volumes. For UV or strong solvent compatibility, quartz cuvettes are recommended.
Cuvette Specifications
| 1 | 2 | 3 | 4 | |||
|---|---|---|---|---|---|---|
| Type | Disposable Cuvette | Optical Path Length | 10 mm | |||
| Article No. | VP030 | Volume | 1500 µl | |||
| Measuring Method | Fluorescence Cells | Material | Polystyrene | |||
| Number of Windows | 4 | Wavelength Range | Visible (340 - 750 nm) | |||
| Outside Dimensions | Inside Dimensions | |||||
| Height | 45 mm | Width | 5 mm | |||
| Width | 12.5 mm | Depth | 10 mm | |||
| Depth | 12.5 mm | Center Height (Z) | - | |||
| Fabrication Method | Plastic Molded | Package | Cells & Lids (Not All Package Included) | |||
Additional information
| Weight | 200 g |
|---|
