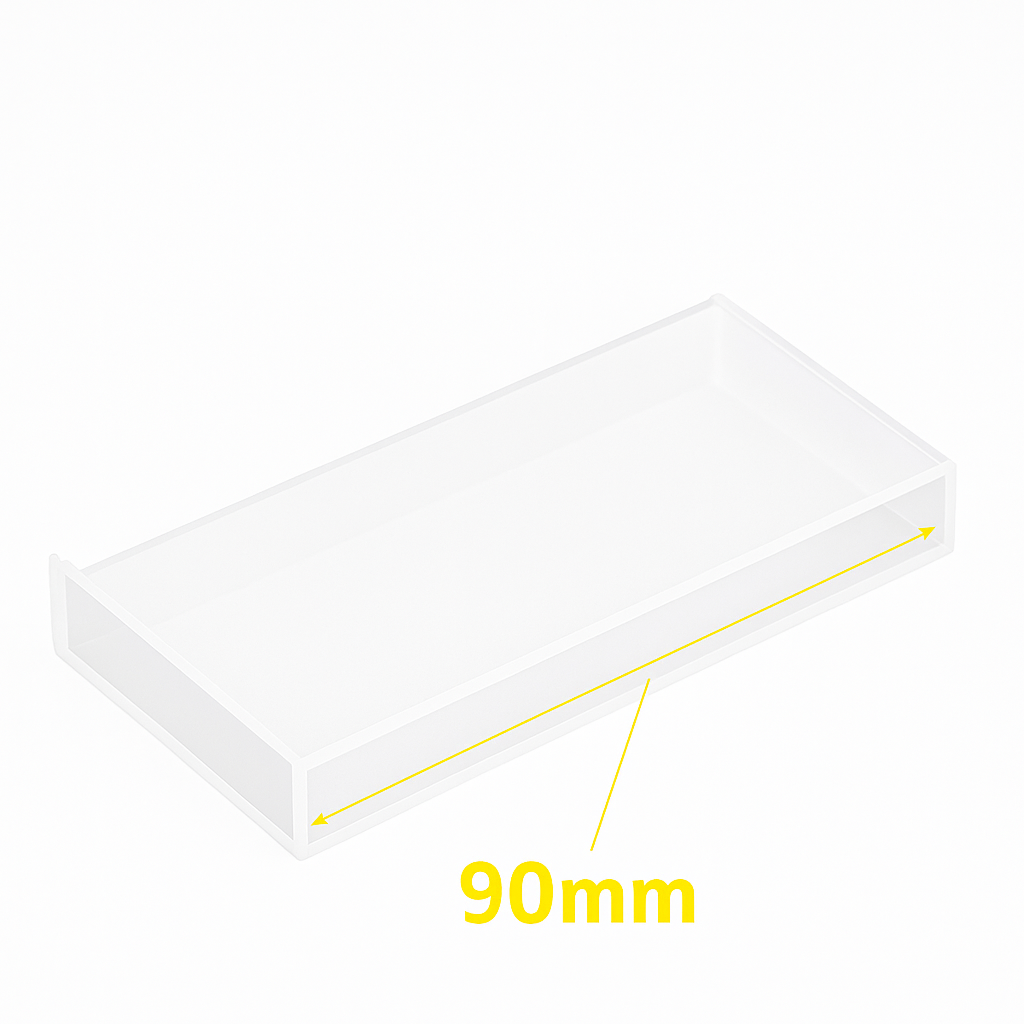

(VNE090) 31.5mL Long Pathlength Absorption Quartz Cuvette, Bonded, Lightpath 90mm, Quartz
$92.00
This long path length cuvette is for absorption applications, with a path length of 90 mm. Resistant to most chemicals. Use up to 600°C. The price is for 1 piece.
In Stock
Add to Wishlist
CompareAdd to Wishlist
- Type: Bonded*
Description
VNE090 – 31.5 mL Quartz Absorption Cuvette, 90 mm Lightpath, 2 Windows, Bonded Fabrication
The VNE090 is a long-path quartz cuvette designed for absorbance measurements in the UV/VIS range (190–2500 nm).
With a 90 mm optical path length and 2 clear optical windows, it enables high sensitivity detection of low-concentration analytes by significantly increasing the light–sample interaction distance.
Constructed using bonded fabrication, this cuvette offers fast customization and cost-effective production, making it an excellent choice for routine analytical work involving aqueous samples. It includes a PTFE lid to minimize evaporation and contamination during measurements.
Chemical Compatibility
Bonded quartz cuvettes are best suited for aqueous and mild chemical environments.
- ✔ Compatible: water, buffer solutions, mild acids and bases.
- ⚠ Limited compatibility with weak organic solvents and alcohols (short-term exposure only).
- ❌ Not compatible with aggressive organic solvents (e.g., toluene, acetone, chloroform, MEK) or HF.
Key Features
- 90 mm optical path length: enhances sensitivity for trace-level measurements.
- Bonded fabrication: cost-effective, fast lead time, ideal for aqueous use.
- 2 clear windows: optimized for standard absorbance detection.
- 31.5 mL capacity: suitable for larger volume sample measurements.
- UV/VIS quartz material: excellent transmission from 190 to 2500 nm.
Typical Applications
- Trace analysis of low-concentration solutions
- Environmental and water quality testing
- Absorbance spectroscopy
- Routine laboratory analysis
Cuvette Specifications
| Type | 90 mm Long Lightpath Cuvette | Wavelength Range | UV/VIS (190–2500 nm) |
| Article No. | VNE090 | Fabrication Method | Bonded* |
| Optical Path Length | 90 mm | Volume | 31.5 mL |
| Number of Windows | 2 | Base Type | Round |
| Outside Dimensions | |||
| Height | 45 mm | Width | 12.5 mm |
| Depth | 92.5 mm | ||
| Inside Dimensions | |||
| Width | 10 mm | Depth | 90 mm |
| Center Height (Z) | 8.5 – 20 mm | ||
| Material | Quartz | Package | Cell & Lid |
Notes on Use
- Bonded quartz cuvettes are ideal for aqueous and mild chemical environments.
- Rinse immediately after use to prevent contamination and staining.
- Not suitable for aggressive organic solvents or HF.
Comparison of Fabrication Types
| 1 | 2 | 3 | 4 | ||
|---|---|---|---|---|---|
| *Molded | *Fused | *Bonded / Glued | |||
| UV vis ( 190- 2500 nm) | Yes | Yes | Yes | ||
| Transmission Matched | On Request | No | No | ||
| Transmission > 80% | Yes | Yes | Yes | ||
| Resistant to Acids and Bases (except hydrofluoric acid) | Yes | Yes | No | ||
| Resistant to Organic Solvents | Yes | Yes | No | ||
| Usable upto 600°C (1112°F) | Yes | Yes | Yes | ||
| Usable upto 1200°C (2192°F) | Yes | No | No | ||
| 0 Variations Reading | On Request | No | No | ||
| Fabrication | Molded | Assembled with Quartz Powder | Assembled with Glue | ||
| Adhesives | No | No | Yes | ||
| Storage | Short Term Storage | Clean After Use | Clean After Use | ||
| Available Material | Fused Quartz Material | ||||
| Note | Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm. | ||||
