(VNE034) 70uL Flow Cuvette with 2 Screw Connectors, Pathlength 10mm, 2 Windows, Z dim 15mm
$303.00
This flow-through cuvette is for absorption applications, with a path length of 10 mm. For aqueous samples only. Use up to 100°C. The price is for 1 piece.
In Stock
Add to Wishlist
CompareAdd to Wishlist
- Type: Bonded, For aqueous samples only!
Description

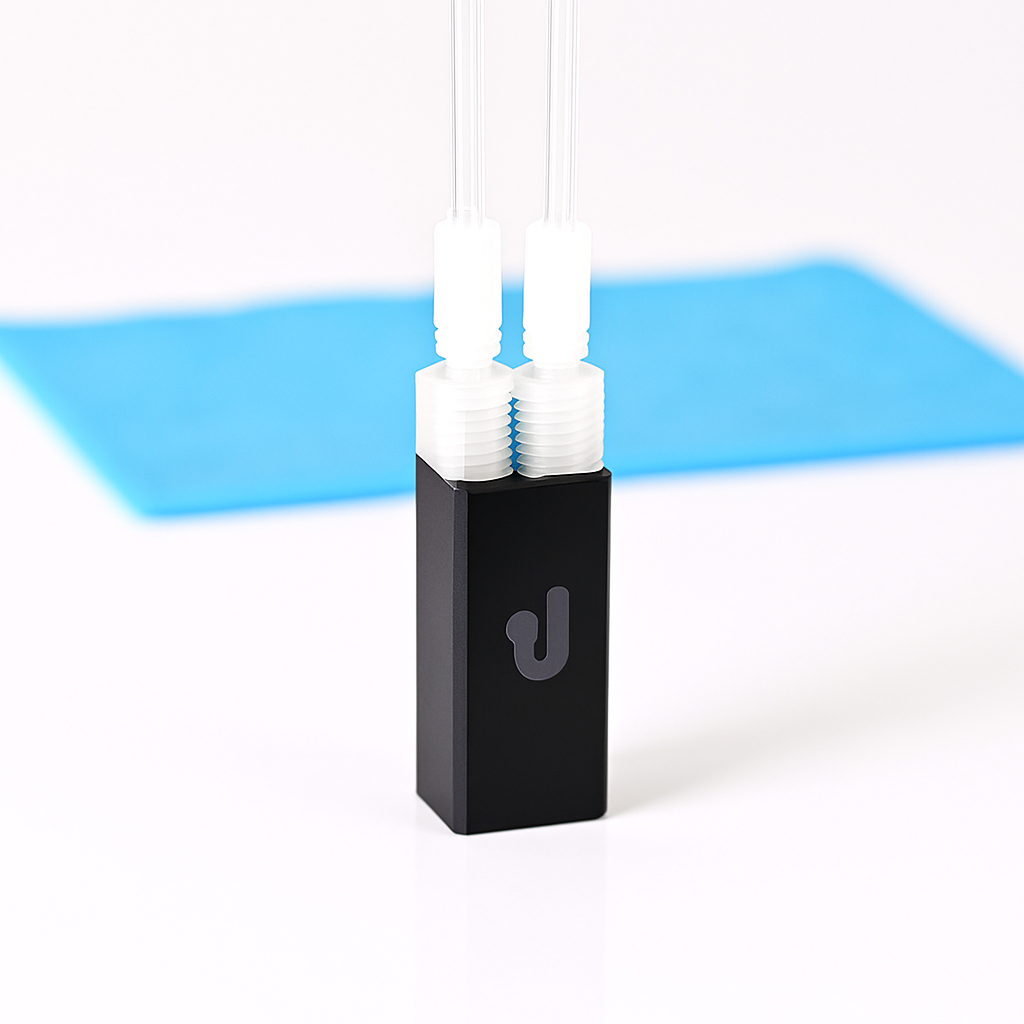

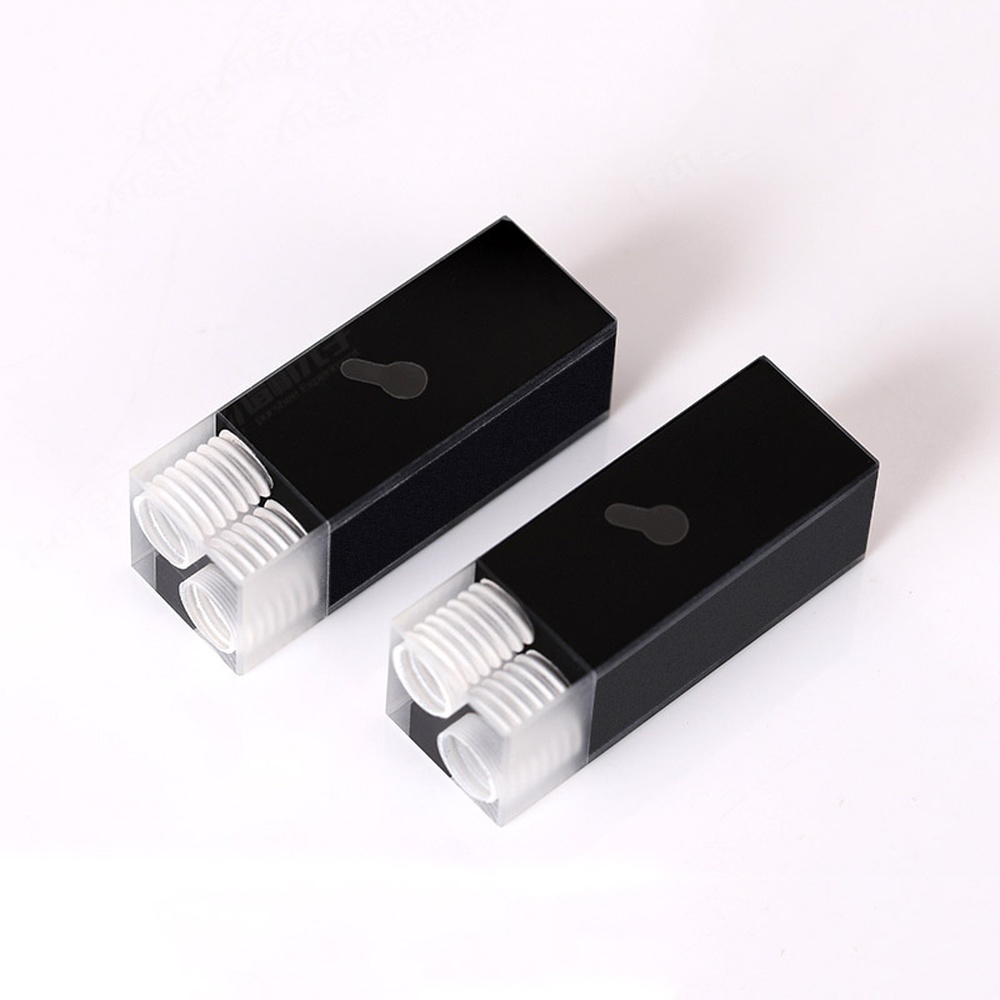

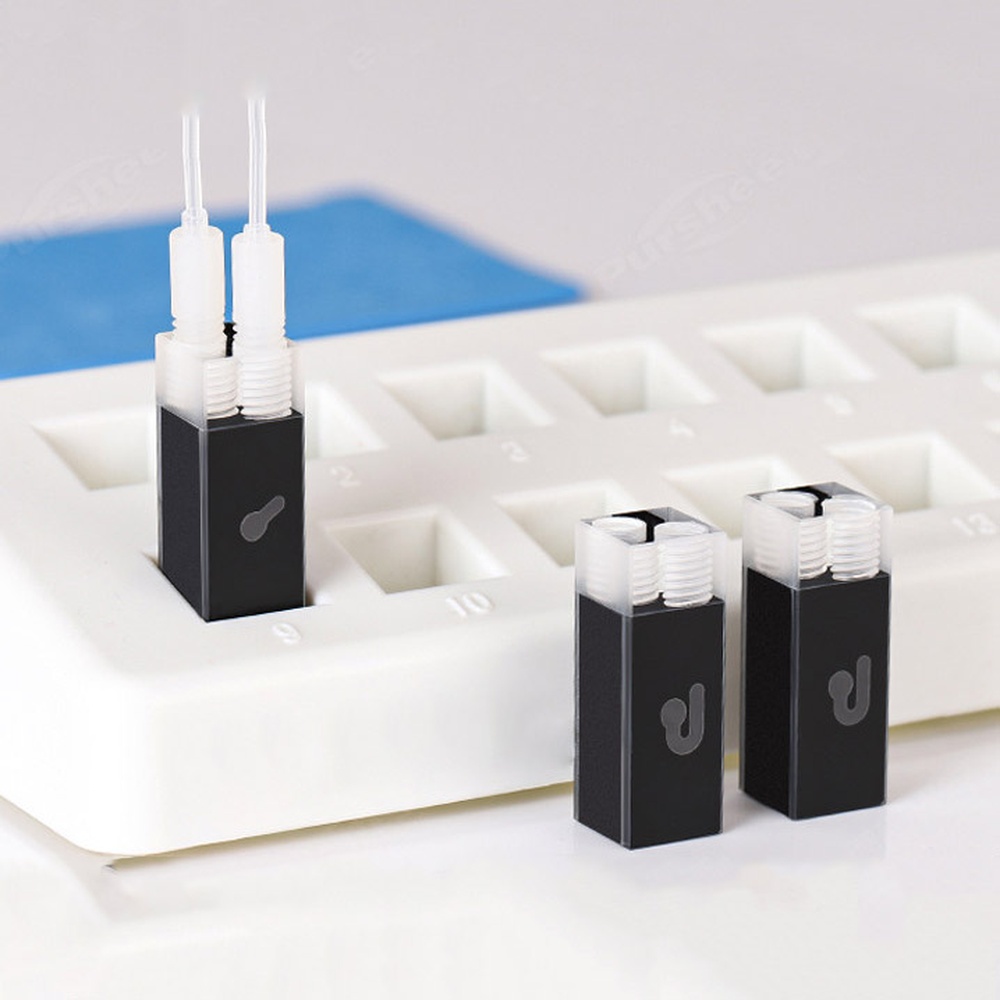

VNE034 – 10 mm Quartz Flow Through Cuvette (2 Windows, Screw Connectors)
The VNE034 flow through cuvette is designed for precise absorption measurements in continuous-flow applications.
It features a 10 mm optical path length with a 3 mm aperture, and a total volume of 70 μL.
Equipped with screw connectors, this cuvette ensures easy, secure connection to tubing for stable and leak-free fluid handling.
Made using the Bonded fabrication method, it provides excellent optical clarity and durability, making it ideal for UV/Vis applications.
Key Features
- 🔬 10 mm optical path length for standard UV/Vis absorbance measurements.
- 💧 3 mm aperture with 70 μL volume, ideal for small-volume flow systems.
- 🔗 Screw connectors for stable, leak-proof connections.
- 🌈 UV/Vis wavelength range: 190 – 2500 nm.
- 🧼 Bonded fabrication ensures excellent transmission and durability.
Flow Cell Specifications
| Type | Flow Through Cuvette | Optical Path Length | 10 mm |
| Article No. | VNE034 | Volume | 70 μL |
| Measuring Method | Absorption Cells | Connector | Screw Connectors |
| Number of Windows | 2 | Wavelength Range | UV/VIS (190 – 2500 nm) |

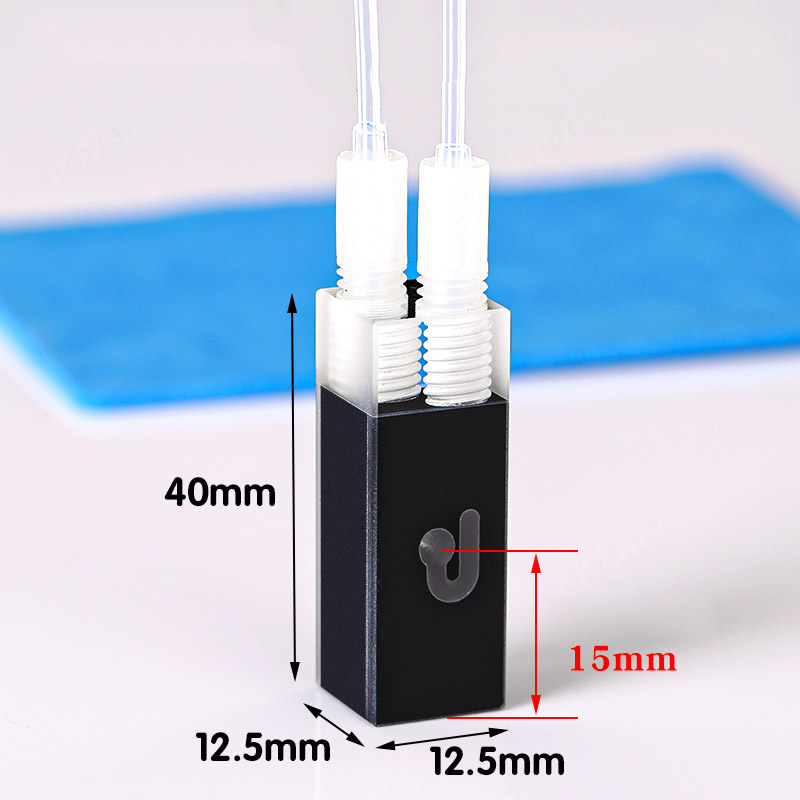

| Outside Dimensions | |||
| Height | 40 mm | Width | 12.5 mm |
| Depth | 12.5 mm | ||
| Inside Dimensions | |||
| Aperture | 3 mm | Depth | 10 mm |

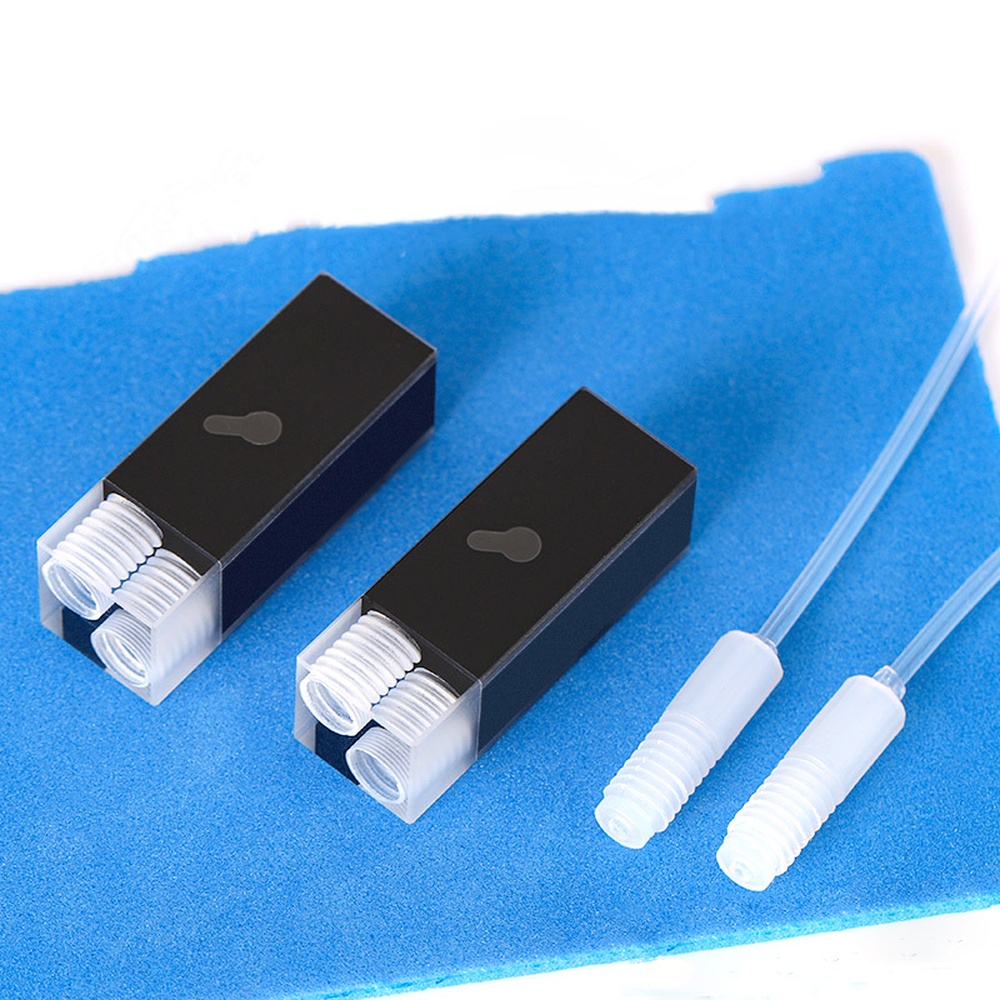

| Center Height (Z) | 15 mm | Package | Cell, Connectors & Tubing |
| Fabrication Method | Bonded* | ||
Applications
- UV/Vis absorbance flow measurements
- Chromatography and reaction monitoring
- Continuous-flow biochemical and chemical assays
- In-line detection systems
Note: Bonded fabrication provides cost-effective construction and fast customization, suitable for aqueous samples and routine analytical use.
Comparison of Fabrication Types
| 1 | 2 | 3 | 4 | ||
|---|---|---|---|---|---|
| *Molded | *Fused | *Bonded / Glued | |||
| UV vis ( 190- 2500 nm) | Yes | Yes | Yes | ||
| Transmission Matched | On Request | No | No | ||
| Transmission > 80% | Yes | Yes | Yes | ||
| Resistant to Acids and Bases (except hydrofluoric acid) | Yes | Yes | No | ||
| Resistant to Organic Solvents | Yes | Yes | No | ||
| Usable upto 600°C (1112°F) | Yes | Yes | Yes | ||
| Usable upto 1200°C (2192°F) | Yes | No | No | ||
| 0 Variations Reading | On Request | No | No | ||
| Fabrication | Molded | Assembled with Quartz Powder | Assembled with Glue | ||
| Adhesives | No | No | Yes | ||
| Storage | Short Term Storage | Clean After Use | Clean After Use | ||
| Available Material | Fused Quartz Material | ||||
| Note | Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm. | ||||
