(VALB323) 32uL Cuvette with 2 Screw Connectors, Lightpath10mm, 2 Windows, Z dim 15mm
$263.00
This flow through cuvette is for absorption applications, with a path length of 10 mm. For aqueous samples only. Use up to 100°C. The price is for 1 piece.
In Stock
Add to Wishlist
CompareAdd to Wishlist
- Type: Bonded, For aqueous samples only!
Description

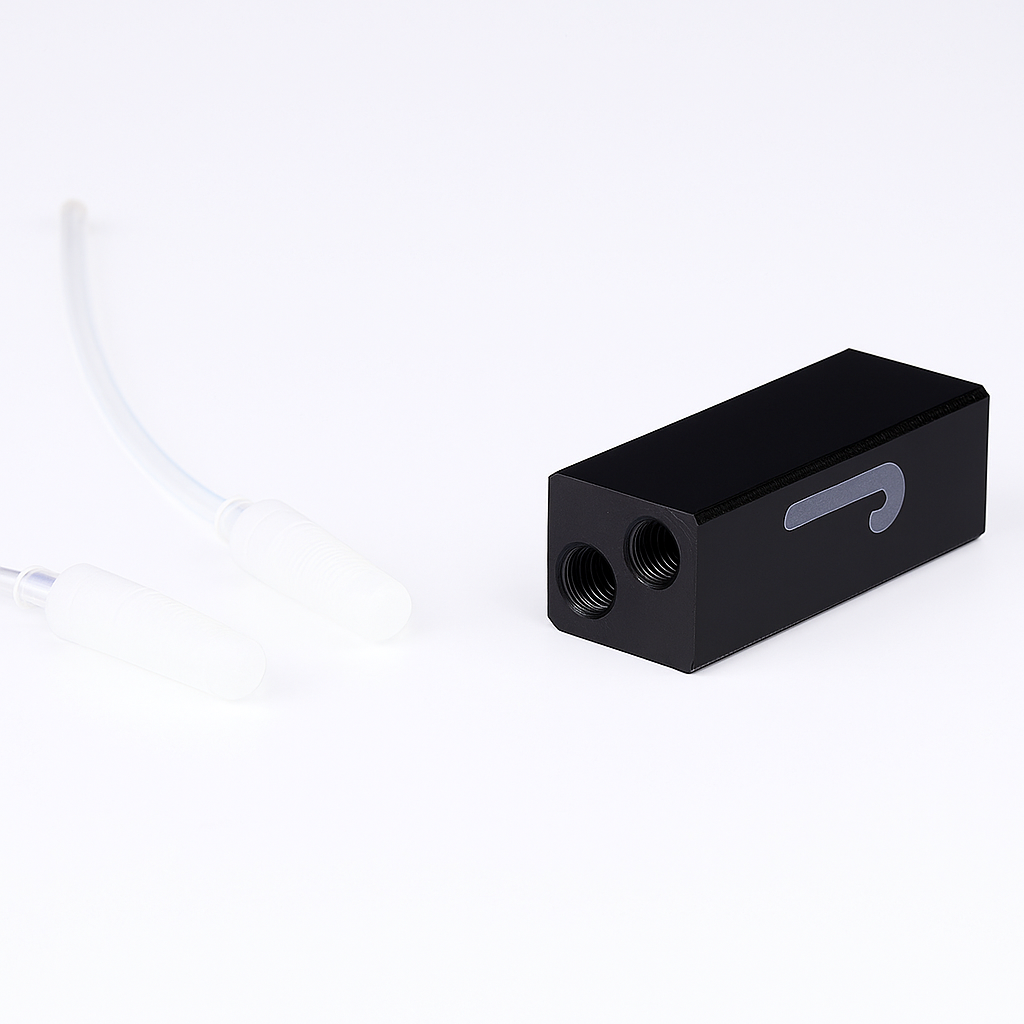

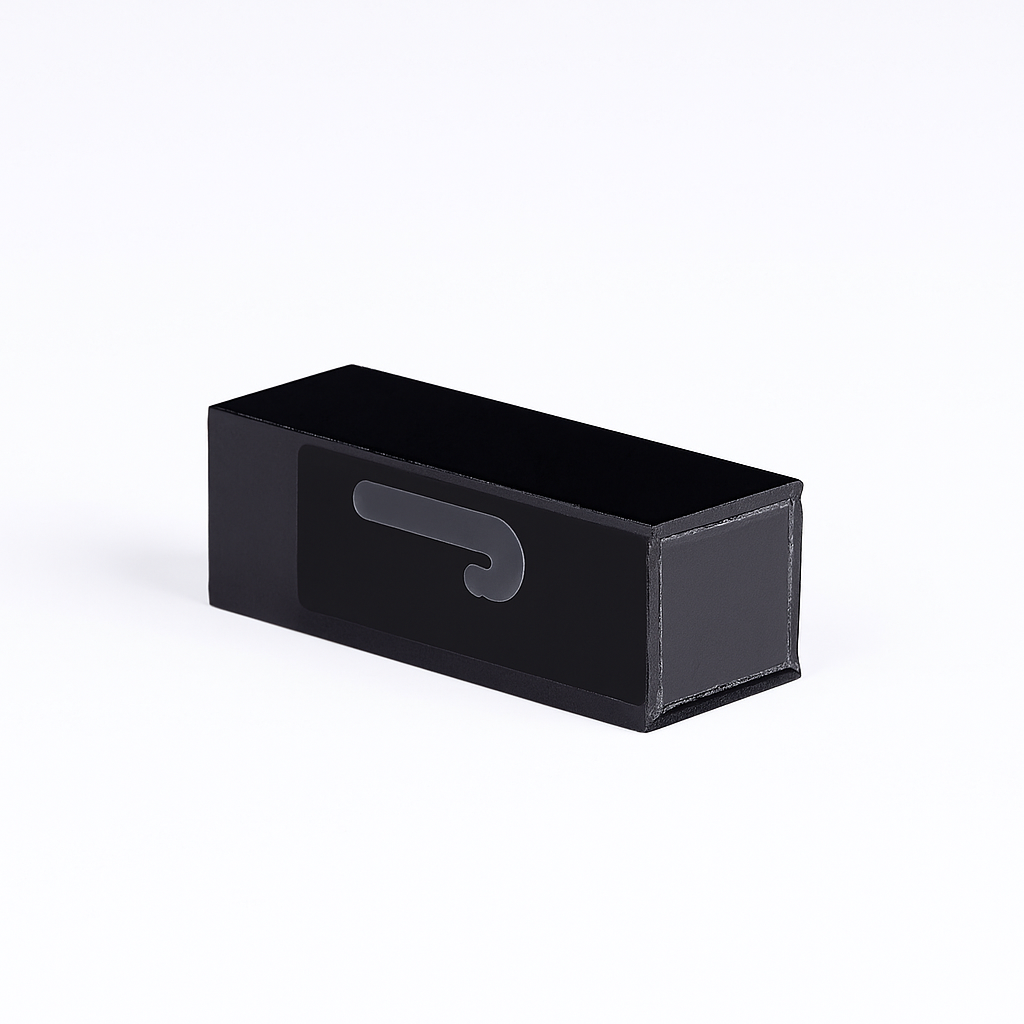

VALB323 Black-Walled Flow Through Cuvette is a precision quartz cuvette designed for micro-volume absorbance measurements where light control and signal stability are critical. With a 10 mm optical path length and a 32 μL sample volume, this cuvette provides high sensitivity while minimizing sample consumption. The black-walled design suppresses stray light and reflection, enhancing the signal-to-noise ratio, which is especially valuable for low-concentration samples. Screw-type connectors offer a secure and reliable fluid connection for stable continuous flow measurements.
Key Advantages
- Black-walled structure reduces background noise and improves signal quality.
- Micro-volume design minimizes sample use (only 32 μL).
- Continuous flow configuration ensures stable readings and supports inline measurements.
- High transmission and precision across the UV/VIS range (190–2500 nm).
- Screw connectors provide stable and easy integration with fluidic systems.
Fabrication Method Features – Bonded*
- Path length tolerance: ±0.06–0.08 mm.
- Cost-effective and clean fabrication process.
- Recommended for aqueous samples only; not suitable for organic solvents.
- Provides reliable optical performance for routine use.
Typical Applications
- Micro-volume absorbance spectroscopy
- Flow injection analysis and kinetic measurements
- Life science assays with limited sample volumes
- OEM and inline fluidic detection systems
Technical Specifications
| Type | Flow Through Cuvette | Optical Path Length | 10 mm |
| Article No. | VALB323 | Volume | 32 μL |
| Measuring Method | Absorption Cells | Connector | Screw Connectors |
| Number of Windows | 2 | Wavelength Range | UV/VIS (190 – 2500 nm) |
| Outside Dimensions | Height: 35 mm Width: 12.5 mm Depth: 12.5 mm |
Inside Dimensions | Aperture: Ø 2 mm Depth: 10 mm Center Height: 15 mm (Optional 8.5 or 20 mm) |
| Fabrication Method | Bonded* | Package | Cell, Connectors & Tubing |
Disclaimer: Bonded fabrication cuvettes are suitable for aqueous samples and not recommended for strong organic solvents. The black-walled structure improves measurement stability and S/N ratio in micro-volume absorbance applications. Handle with care to maintain optical performance.
Comparison of Fabrication Types
| 1 | 2 | 3 | 4 | ||
|---|---|---|---|---|---|
| *Molded | *Fused | *Bonded / Glued | |||
| UV vis ( 190- 2500 nm) | Yes | Yes | Yes | ||
| Transmission Matched | On Request | No | No | ||
| Transmission > 80% | Yes | Yes | Yes | ||
| Resistant to Acids and Bases (except hydrofluoric acid) | Yes | Yes | No | ||
| Resistant to Organic Solvents | Yes | Yes | No | ||
| Usable upto 600°C (1112°F) | Yes | Yes | Yes | ||
| Usable upto 1200°C (2192°F) | Yes | No | No | ||
| 0 Variations Reading | On Request | No | No | ||
| Fabrication | Molded | Assembled with Quartz Powder | Assembled with Glue | ||
| Adhesives | No | No | Yes | ||
| Storage | Short Term Storage | Clean After Use | Clean After Use | ||
| Available Material | Fused Quartz Material | ||||
| Note | Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm. | ||||
