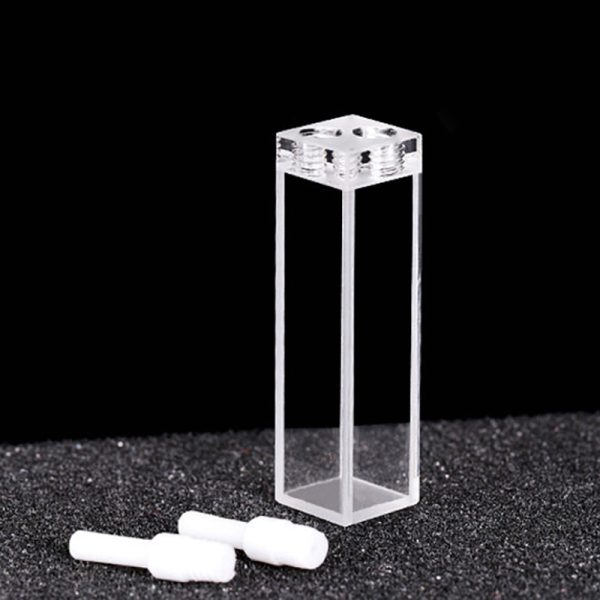

(VLMPT) 3.5mL Flow Cell, Screw PTFE Connectors, 4 Windows, Lightpath 10mm, Molded
$232.00
This flow-through cuvette is for fluorescence applications, with a path length of 10 mm. Resistant to most chemicals. Use up to 1200°C. The price is for 1 piece.
In Stock
Add to Wishlist
CompareAdd to Wishlist
- Type: Molded
Description
VLMPT Flow Cell is a precision quartz flow cell designed for fluorescence spectroscopy and other high-sensitivity optical measurements. With a 10 mm optical path length and 3.5 mL internal volume, it is ideal for medium-to-large sample flow applications that demand stable optical performance and excellent chemical resistance.
This model uses molded fabrication, delivering exceptional surface quality, high optical clarity, and superior tolerance control (±0.01 mm). The integrated PTFE connectors ensure secure and chemically inert fluid handling, making the cell suitable for both analytical laboratories and OEM system integration.
Molded Fabrication Features
- Excellent optical transmission (190–2500 nm) with high surface precision.
- No adhesives — clean, inert flow channels for reliable measurements.
- Resistant to acids, bases, and most solvents (except HF and aggressive organics like toluene or acetone).
- High temperature resistance: up to 1200 °C short-term and 600 °C long-term.
- Path length tolerance of ±0.01 mm, offering higher precision than fused or bonded cells.
Typical Applications
- Fluorescence spectroscopy with continuous flow
- Liquid chromatography detectors
- Biological and environmental monitoring
- High-precision optical instrumentation
Key Features
- 10 mm optical path length
- 3.5 mL internal volume
- 4 clear windows for excitation and detection
- PTFE connectors for excellent chemical resistance
- Superior dimensional stability and optical precision
Technical Specifications
| Type | Flow Cell | Optical Path Length | 10 mm |
| Article No. | VLMPT | Volume | 3500 μL |
| Measuring Method | Fluorescence Cells | Connector | PTFE |
| Number of Windows | 4 | Wavelength Range | UV/VIS (190 – 2500 nm) |
| Outside Dimensions | Length: 45 mm Width: 12.5 mm Depth: 12.5 mm |
Inside Dimensions | Length: 37 mm Width: 10 mm Depth: 10 mm |
| Fabrication Method | Molded* | Package | Cell Only & PTFE Connectors |
Note: Molded fabrication ensures superior surface finish, high precision, and outstanding chemical compatibility. It overcomes the staining and solvent limitations found in fused cells, providing the most stable and reliable performance for demanding fluorescence and absorbance applications.
Comparison of Fabrication Types
| 1 | 2 | 3 | 4 | ||
|---|---|---|---|---|---|
| *Molded | *Fused | *Bonded / Glued | |||
| UV vis ( 190- 2500 nm) | Yes | Yes | Yes | ||
| Transmission Matched | On Request | No | No | ||
| Transmission > 80% | Yes | Yes | Yes | ||
| Resistant to Acids and Bases (except hydrofluoric acid) | Yes | Yes | No | ||
| Resistant to Organic Solvents | Yes | Yes | No | ||
| Usable upto 600°C (1112°F) | Yes | Yes | Yes | ||
| Usable upto 1200°C (2192°F) | Yes | No | No | ||
| 0 Variations Reading | On Request | No | No | ||
| Fabrication | Molded | Assembled with Quartz Powder | Assembled with Glue | ||
| Adhesives | No | No | Yes | ||
| Storage | Short Term Storage | Clean After Use | Clean After Use | ||
| Available Material | Fused Quartz Material | ||||
| Note | Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm. | ||||
