(VFSM05) 1.75mL Cell w/ Quartz Tube and Screw Cap, Tube 7mm, Height 90mm, 4 Windows, Lightpath 5mm

Weight	200 g
Brand	Qvarz
Resistant to Chemicals	Yes

SKU: VFSM05

7%Custom

(VFSM05) 1.75mL Cell w/ Quartz Tube and Screw Cap, Tube 7mm, Height 90mm, 4 Windows, Lightpath 5mm

(VFSM05) 1.75mL Cell w/ Quartz Tube and Screw Cap, Tube 7mm, Height 90mm, 4 Windows, Lightpath 5mm - Image 2

(VFSM05) 1.75mL Cell w/ Quartz Tube and Screw Cap, Tube 7mm, Height 90mm, 4 Windows, Lightpath 5mm - Image 3

~~$619.00~~ Original price was: $619.00.$576.00Current price is: $576.00.

In Stock

This long tube cuvette is for fluorescence applications, with a path length of 5 mm. Resistant to chemicals. Use up to 1200°C. The price is for 1 piece.

In Stock

Type: Molded

SKU: VFSM05 Categories: All Cuvettes & Cells, Custom Cuvettes, Cuvettes & Flow Cells, Fluorometer Cuvettes, Long Mouth Cuvettes, Micro Cuvettes <3.5mL, Molded Cuvettes, Other Cuvettes, Products, Screw Cap Cuvettes Tags: cuvette with tube, fluorescence cuvette, screw cap cuvette

Worldwide Timed Dispatch Available

Free Shipping apply to all orders over $800
Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Fast dispatch. Receive deliveries in 2 - 3 weeks.

Description

VFSM05 Quartz Cuvette with Tube is a precision-molded quartz cuvette designed for high-sensitivity fluorescence and absorbance measurements. It features a 5 mm optical path length, 4 clear windows, and a screw cap with a long spout tube, providing excellent sealing performance and convenient fluid handling for continuous or manual sampling.

The molded fabrication process ensures ultra-smooth inner surfaces and high dimensional accuracy (±0.01 mm), enabling stable and repeatable measurements. Compared with bonded and fused fabrication, molded cuvettes offer superior surface quality, excellent chemical resistance (except HF), and high temperature tolerance — making them ideal for demanding research and industrial applications.

Key Advantages

5 mm optical path length — optimized for fluorescence and absorbance applications.
Screw cap with long spout — easy sample injection and excellent sealing to prevent evaporation or contamination.
4 clear optical windows — support for side or axial detection configurations.
Molded fabrication — high precision, smooth surfaces, and stable geometry.
Excellent UV/VIS transmission range (190–2500 nm).

Molded Fabrication Features

High path length accuracy (±0.01 mm).
Excellent resistance to acids, bases, and most organic solvents (except HF).
Thermal stability: up to 1200 °C (short-term) / 600 °C (long-term).
Clean, smooth optical surfaces minimize background and signal noise.
Extended service life compared with bonded and fused types.

Typical Applications

Fluorescence spectroscopy
Absorbance and kinetic assays
Flow or static sampling systems
Biotechnology, pharmaceutical, and chemical analysis

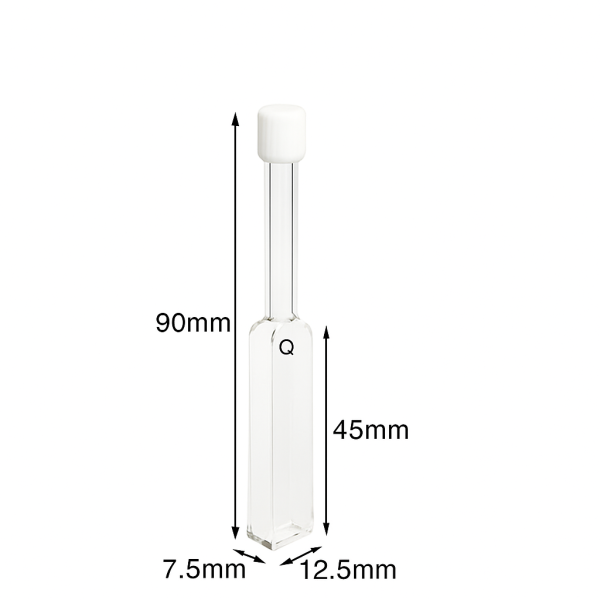

Cuvette Specifications

Type	Cuvette with Tube	Optical Path Length	5 mm
Article No.	VFSM05	Volume	1.75 ml
Measuring Method	Fluorescence Cells	Tube	OD 7 mm, ID 5 mm
Number of Windows	4	Wavelength Range	UV/VIS (190 – 2500 nm)
Outside Height	90 mm	Inside Width	10 mm
Outside Width	12.5 mm	Inside Depth	5 mm
Outside Depth	7.5 mm	Overall Height	90 mm
Fabrication Method	Molded*	Package	Cell & Screw Cap

Note: Molded quartz cuvettes provide superior dimensional precision and chemical compatibility. Avoid hydrofluoric acid (HF), which reacts with quartz. Clean thoroughly after each use to maintain optical performance.

Comparison of Fabrication Types

1	2	3	4
	*Molded	*Fused	*Bonded / Glued
UV vis ( 190- 2500 nm)	Yes	Yes	Yes
Transmission Matched	On Request	No	No
Transmission > 80%	Yes	Yes	Yes
Resistant to Acids and Bases (except hydrofluoric acid)	Yes	Yes	No
Resistant to Organic Solvents	Yes	Yes	No
Usable upto 600°C (1112°F)	Yes	Yes	Yes
Usable upto 1200°C (2192°F)	Yes	No	No
0 Variations Reading	On Request	No	No
Fabrication	Molded	Assembled with Quartz Powder	Assembled with Glue
Adhesives	No	No	Yes
Storage	Short Term Storage	Clean After Use	Clean After Use
Available Material	Fused Quartz Material
Note	Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm.

1
QVARZ Cuvettes Transmission Characteristics The following table is our cuvettes and cells made of quartz material suitable for wavelength from 190nm to 2500nm and depicts the percentage transmission for the material. IR or Glass material is not included.

Why QVARZ Cuvettes and Cells? QVARZ is world-renowned as the producer of premium quartz cuvettes. Over fifteen years of experience manufacturing quartz cuvettes ensures that every QVARZ cuvettes are manufactured to the most exacting standards for reproducible results.
Spectrophotometry cuvettes - Most spectrophotometry applications in the visible and UV ranges benefit from QVARZ spectrophotometry cuvettes. Our cuvettes made of fused quartz material deliver precise and reliable readings even at wavelengths as low as 190 nm. QVARZ cuvettes are compatible with most spectrophotometers and photometers with standard 0.2 - 100 mm path lengths. Fluorometry cuvettes - QVARZ brings two decades of experience molding high-quality spectrophotometry cuvettes to new four-sided clear cuvettes for fluorometry. Available in standard quartz material with ultra-low auto-fluorescence for the highest precision measurements. Protective packaging - QVARZ cuvettes are encased in dust-free, low scratching expanded polystyrene packaging. This ensures that premium cuvettes arrive in the laboratory ina the same pristine condition they were in at the factory, with optical quality windows and free of contaminants. Volumes for most purposes - Our cuvettes are available in a variety of ranges from macro to macro semi-micro sizes to respond to the needs of most scientific applications. We are also able to customize sample volume to deliver consistent, accurate findings. Perform consistently - QVARZ Cuvettes are constructed from high-quality fused quartz materials and are grouped by manufacturing mold cavities to ensure the lowest fluctuation in extinction coefficient. Customization - Custom cuvettes and cells are encouraged and available upon request; mechanical drawings with specifications and tolerances are prerequisites. Awesome pricing and flexibility on small quantities.
