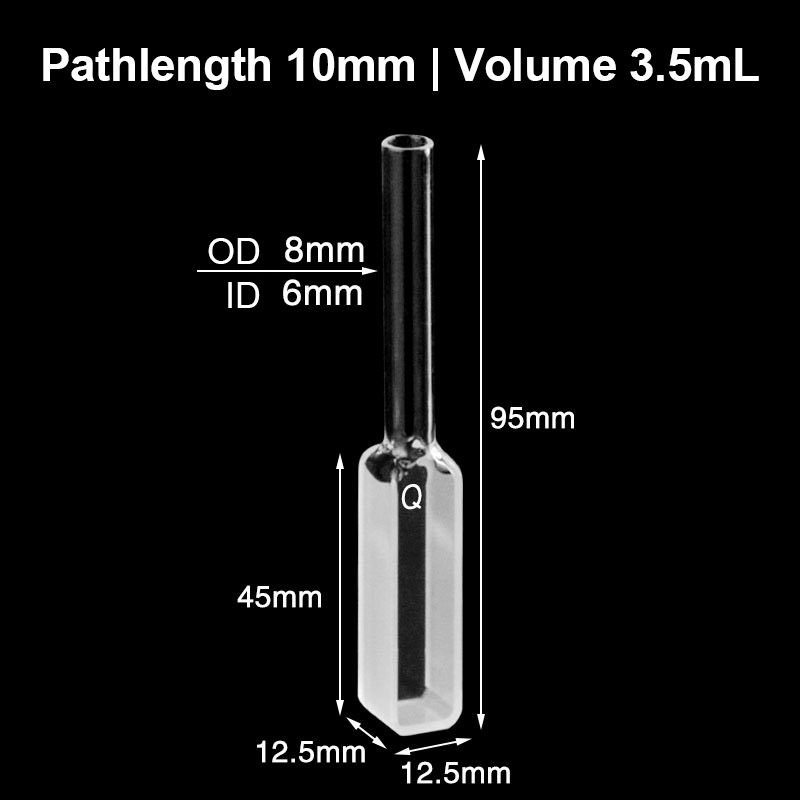

(VAOMT01) 3.5mL Cell w/ Quartz Tube, Tube OD 8mm, Height 95mm, 2 Windows, Lightpath 10mm, Molded

Weight	200 g
Brand	Qvarz
Resistant to Chemicals	Yes

SKU: VAOMT01

(VAOMT01) 3.5mL Cell w/ Quartz Tube, Tube OD 8mm, Height 95mm, 2 Windows, Lightpath 10mm, Molded

(VAOMT01) 3.5mL Cell w/ Quartz Tube, Tube OD 8mm, Height 95mm, 2 Windows, Lightpath 10mm, Molded - Image 2

$257.00

In Stock

This long tube cuvette is for absorption applications, with a path length of 10mm. Resistant to chemicals. Use up to 1200°C. The price is for 1 piece.

In Stock

Type: Molded

SKU: VAOMT01 Categories: All Cuvettes & Cells, Custom Cuvettes, Cuvettes & Flow Cells, Long Mouth Cuvettes, Molded Cuvettes, Open Top Cuvettes, Other Cuvettes, Products, Spectrometer Cuvettes, Standard Cuvettes 3.5mL Tags: cuvette with tube, long, open top cuvette, spectrometer cuvette

Worldwide Timed Dispatch Available

Free Shipping apply to all orders over $800
Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Fast dispatch. Receive deliveries in 2 - 3 weeks.

Description

VAOMT01 Quartz Cuvette with Tube is a high-quality molded quartz cuvette designed for UV/Vis absorption measurements where precision, chemical resistance, and durability are essential. This cuvette features two optical windows, a 10 mm optical path length, and a 3.5 ml chamber volume, making it ideal for analytical and kinetic studies.

The extended quartz inlet/outlet tube (OD 8 mm, ID 6 mm) allows easy sample transfer or sealing, and is compatible with standard lab tubing. It can be used in both manual and automated workflows, including benchtop sampling systems.

Key Advantages

✔ Molded fabrication — highest optical quality and exceptional dimensional accuracy (±0.01 mm).
✔ High chemical resistance — suitable for most solvents including toluene, acetone, and strong organics (except HF and quartz-reactive chemicals).
✔ Durable quartz construction — excellent UV transmittance and long service life.
✔ Integrated quartz tube — allows easy connection for sample introduction or closed-loop circulation.
✔ Optimized for UV/VIS measurements (190–2500 nm).

Typical Applications

UV/Vis absorption spectroscopy
Reaction kinetics and concentration monitoring
Automated or manual sampling systems
Photometric assays and environmental testing

Molded Fabrication Characteristics

Highest cuvette quality with superior optical precision and durability.
Compatible with most chemicals including toluene, acetone, and strong organic solvents, except HF and quartz-reactive substances.
Excellent dimensional accuracy (±0.01 mm optical path tolerance) ensures reproducible results.
Ideal for long-term, high-frequency laboratory use.

Cuvette Specifications

Type	Cuvette with Tube	Optical Path Length	10 mm
Article No.	VAOMT01	Volume	3.5 ml
Measuring Method	Absorption Cells	Tube	OD 8 mm, ID 6 mm, Customizable Quartz to Glass
Number of Windows	2	Wavelength Range	UV/VIS (190 – 2500 nm)
Height	45 mm	Width	10 mm
Width	12.5 mm	Depth	10 mm
Depth	12.5 mm	Overall Height	95 mm
Fabrication Method	Molded*	Package	Cell Only

Note: Molded quartz cuvettes offer the highest level of chemical and optical performance. Avoid HF or other quartz-reactive chemicals to ensure a long service life.

Comparison of Fabrication Types

1	2	3	4
	*Molded	*Fused	*Bonded / Glued
UV vis ( 190- 2500 nm)	Yes	Yes	Yes
Transmission Matched	On Request	No	No
Transmission > 80%	Yes	Yes	Yes
Resistant to Acids and Bases (except hydrofluoric acid)	Yes	Yes	No
Resistant to Organic Solvents	Yes	Yes	No
Usable upto 600°C (1112°F)	Yes	Yes	Yes
Usable upto 1200°C (2192°F)	Yes	No	No
0 Variations Reading	On Request	No	No
Fabrication	Molded	Assembled with Quartz Powder	Assembled with Glue
Adhesives	No	No	Yes
Storage	Short Term Storage	Clean After Use	Clean After Use
Available Material	Fused Quartz Material
Note	Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm.

1
QVARZ Cuvettes Transmission Characteristics The following table is our cuvettes and cells made of quartz material suitable for wavelength from 190nm to 2500nm and depicts the percentage transmission for the material. IR or Glass material is not included.

Why QVARZ Cuvettes and Cells? QVARZ is world-renowned as the producer of premium quartz cuvettes. Over fifteen years of experience manufacturing quartz cuvettes ensures that every QVARZ cuvettes are manufactured to the most exacting standards for reproducible results.
Spectrophotometry cuvettes - Most spectrophotometry applications in the visible and UV ranges benefit from QVARZ spectrophotometry cuvettes. Our cuvettes made of fused quartz material deliver precise and reliable readings even at wavelengths as low as 190 nm. QVARZ cuvettes are compatible with most spectrophotometers and photometers with standard 0.2 - 100 mm path lengths. Fluorometry cuvettes - QVARZ brings two decades of experience molding high-quality spectrophotometry cuvettes to new four-sided clear cuvettes for fluorometry. Available in standard quartz material with ultra-low auto-fluorescence for the highest precision measurements. Protective packaging - QVARZ cuvettes are encased in dust-free, low scratching expanded polystyrene packaging. This ensures that premium cuvettes arrive in the laboratory ina the same pristine condition they were in at the factory, with optical quality windows and free of contaminants. Volumes for most purposes - Our cuvettes are available in a variety of ranges from macro to macro semi-micro sizes to respond to the needs of most scientific applications. We are also able to customize sample volume to deliver consistent, accurate findings. Perform consistently - QVARZ Cuvettes are constructed from high-quality fused quartz materials and are grouped by manufacturing mold cavities to ensure the lowest fluctuation in extinction coefficient. Customization - Custom cuvettes and cells are encouraged and available upon request; mechanical drawings with specifications and tolerances are prerequisites. Awesome pricing and flexibility on small quantities.
To the best of our knowledge, the technical information provided here is accurate. However, Qvarz.com assumes no liability for the accuracy of this information. The values provided here are typical at the time of manufacture and may vary over time and from batch to batch.
