(VFOMR) 3.5mL Fluorescence Cuvette with PTFE Lid, 5 Clear Walls, Molded, Lightpath 10mm

Weight	100 g
Brand	Qvarz
Resistant to Chemicals	Yes

SKU: VFOMR

14%Hot

(VFOMR) 3.5mL Fluorescence Cuvette with PTFE Lid, 5 Clear Walls, Molded, Lightpath 10mm

(VFOMR) 3.5mL Fluorescence Cuvette with PTFE Lid, 5 Clear Walls, Molded, Lightpath 10mm - Image 2

(VFOMR) 3.5mL Fluorescence Cuvette with PTFE Lid, 5 Clear Walls, Molded, Lightpath 10mm - Image 3

(VFOMR) 3.5mL Fluorescence Cuvette with PTFE Lid, 5 Clear Walls, Molded, Lightpath 10mm - Image 4

~~$191.00~~ Original price was: $191.00.$166.00Current price is: $166.00.

In Stock

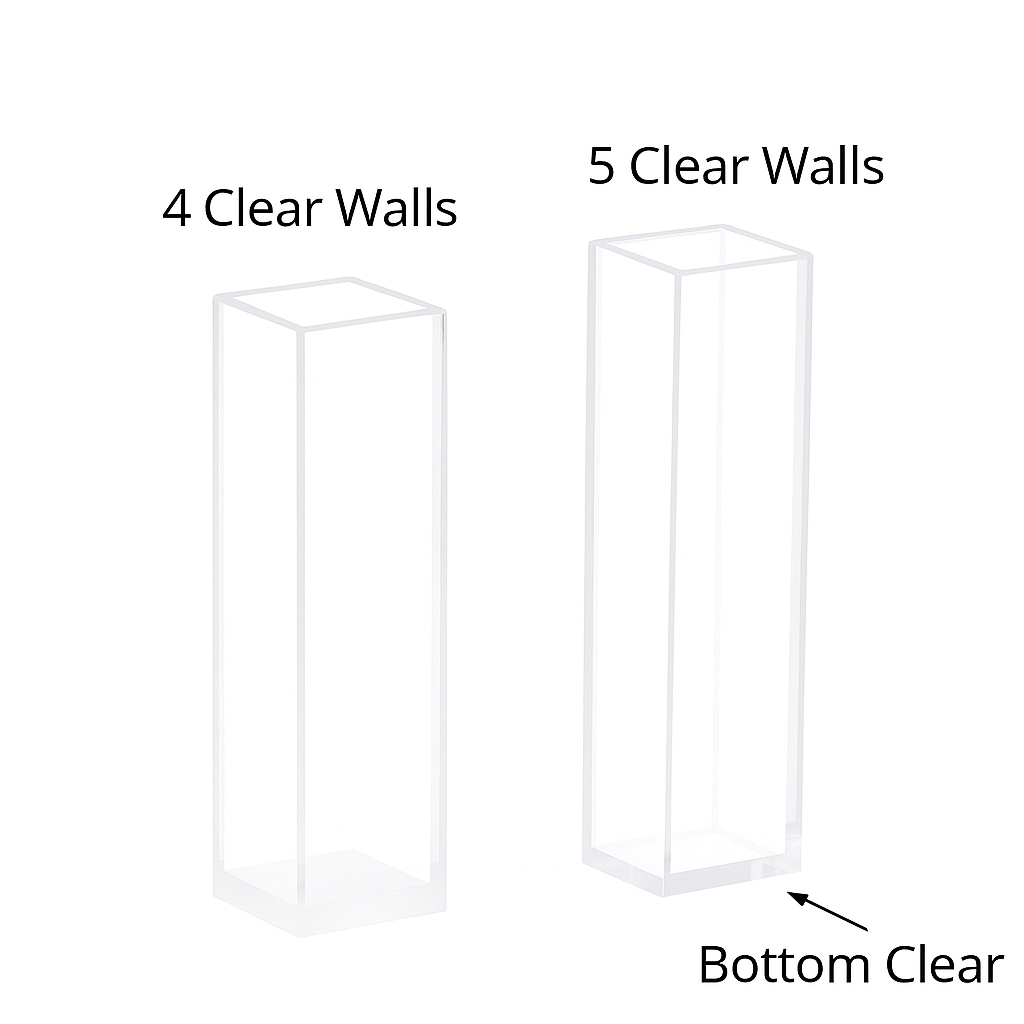

This 5 clear window cuvette is for fluorescence work, with a path length of 10 mm. Resistant to chemicals. Use upto 1200°C. The price is for 1 piece.

In Stock

Type: Molded

SKU: VFOMR Categories: 5 Windows Cuvettes, All Cuvettes & Cells, Cuvettes & Flow Cells, Fluorometer Cuvettes, Molded Cuvettes, Open Top Cuvettes, Products, Standard Cuvettes 3.5mL Tags: 10mm path length cuvette, fluorescence cuvette, open top cuvette

Worldwide Timed Dispatch Available

Free Shipping apply to all orders over $1800
Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Fast dispatch. Receive deliveries in 1 - 2 weeks.

Description

1

10 mm Standard Fluorescence Cuvette Specifications

1	2	3	4
Type	10mm Standard Cuvette	Optical Path Length	10 mm
Article No.	VFOMR	Volume	3500 µl
Measuring Method	Fluorescence Cells	Transmission Matched	No
Number of Windows	5 (Bottom Clear)	Wavelength Range	UV/VIS (190 - 2500 nm)

Outside Dimensions		Inside Dimensions
Height	45 mm	Width	10 mm
Width	12.5 mm	Depth	10 mm
Depth	12.5 mm	Center Height (Z)	8.5 - 20 mm
Fabrication Method	Molded*	Package	Cell & Lid

Notes	1. Cuvette is temperature resistant (Low down to -60°C/-76°F and High up to 1200°C/2192°F); 2. Acid, base, organic solvent resistant; 3. Packed with foam and bubble wraps for safe transportation and passed 1-meter drop test before shipment

1

Comparison of Fabrication Types

1	2	3	4
	*Molded	*Fused	*Bonded / Glued
UV vis ( 190- 2500 nm)	Yes	Yes	Yes
Transmission Matched	On Request	No	No
Transmission > 80%	Yes	Yes	Yes
Resistant to Acids and Bases (except hydrofluoric acid)	Yes	Yes	No
Resistant to Organic Solvents	Yes	Yes	No
Usable upto 600°C (1112°F)	Yes	Yes	Yes
Usable upto 1200°C (2192°F)	Yes	No	No
0 Variations Reading	On Request	No	No
Fabrication	Molded	Assembled with Quartz Powder	Assembled with Glue
Adhesives	No	No	Yes
Storage	Short Term Storage	Clean After Use	Clean After Use
Available Material	Fused Quartz Material
Note	Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm.

1
QVARZ^® Cuvettes Transmission Characteristics The following table is our cuvettes and cells made of quartz material suitable for wavelength from 190nm to 2500nm and depicts the percentage transmission for the material. IR or Glass material is not included.

Why QVARZ^® Cuvettes and Cells? QVARZ^® is world-renowned as the producer of premium quartz cuvettes. Over fifteen years of experience manufacturing quartz cuvettes ensures that every QVARZ^® cuvette is manufactured to the most exacting standards for reproducible results.
Spectrophotometry cuvettes - Most spectrophotometry applications in the visible and UV ranges benefit from QVARZ^® spectrophotometry cuvettes. Our cuvettes made of fused qvartz material deliver precise and reliable readings even at wavelengths as low as 190 nm. QVARZ^® cuvettes are compatible with most spectrophotometers and photometers with standard 0.2 - 100 mm path lengths. Fluorimetry cuvettes - QVARZ^® brings two decades of experience molding high-quality spectrophotometry cuvettes to new four-sided clear cuvettes for fluorimetry. Available in standard quartz material with ultra-low auto-fluorescence for the highest precision measurements. Protective packaging - QVARZ^® cuvettes are encased in dust-free, low scratching expanded polystyrene packaging. This ensures that premium cuvettes arrive in the laboratory ina the same pristine condition they were in at the factory, with optical quality windows and free of contaminants. Volumes for most purposes - Our cuvettes are available in a variety of ranges from macro to macro semi-micro sizes to respond to the needs of most scientific applications. We are also able to customize sample volume to deliver consistent, accurate findings. Perform consistently - QVARZ^® Cuvettes are constructed from high-quality fused quartz materials and are grouped by manufacturing mold cavities to ensure the lowest fluctuation in extinction coefficient. Customization - Custom cuvettes and cells are encouraged and available upon request; mechanical drawings with specifications and tolerances are prerequisites. Awesome pricing and flexibility on small quantities.
To the best of our knowledge, the technical information provided here is accurate. However, Qvarz.com assumes no liability for the accuracy of this information. The values provided here are typical at the time of manufacture and may vary over time and from batch to batch.
