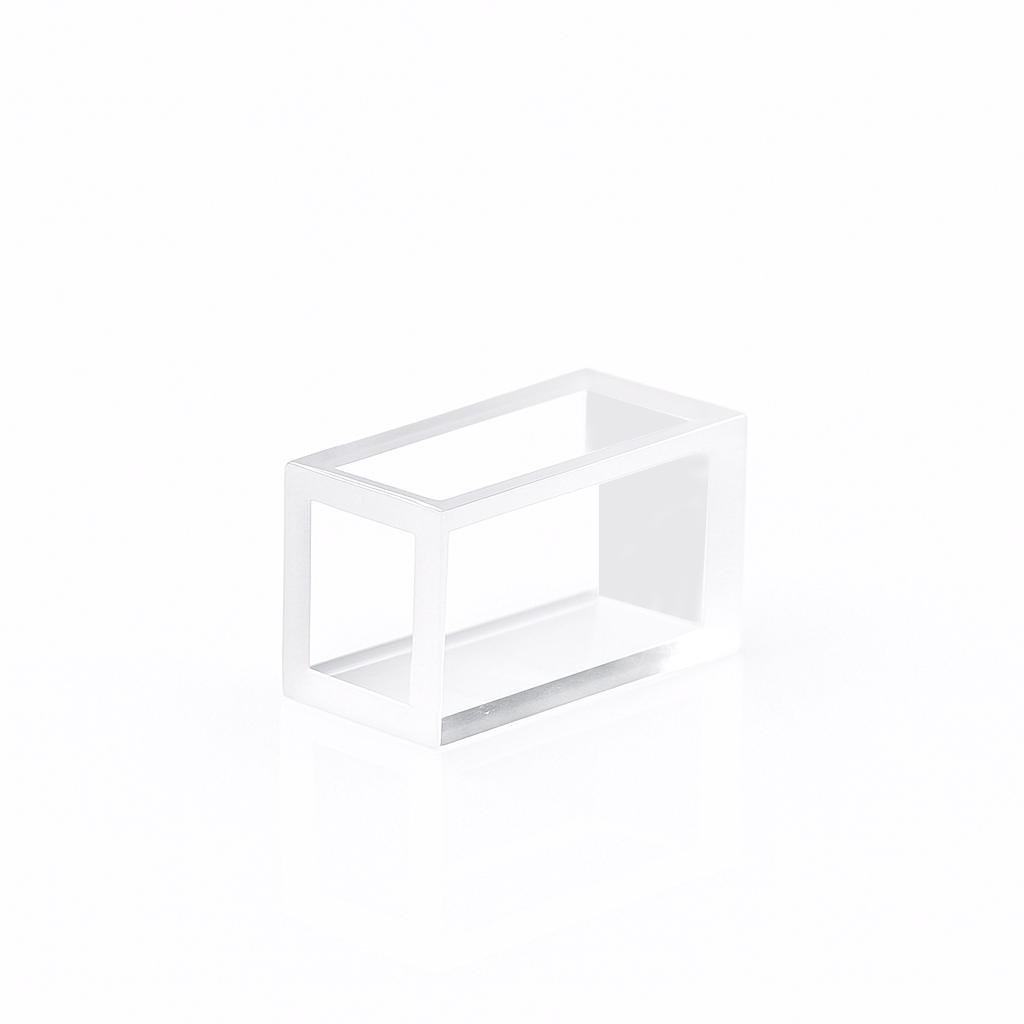

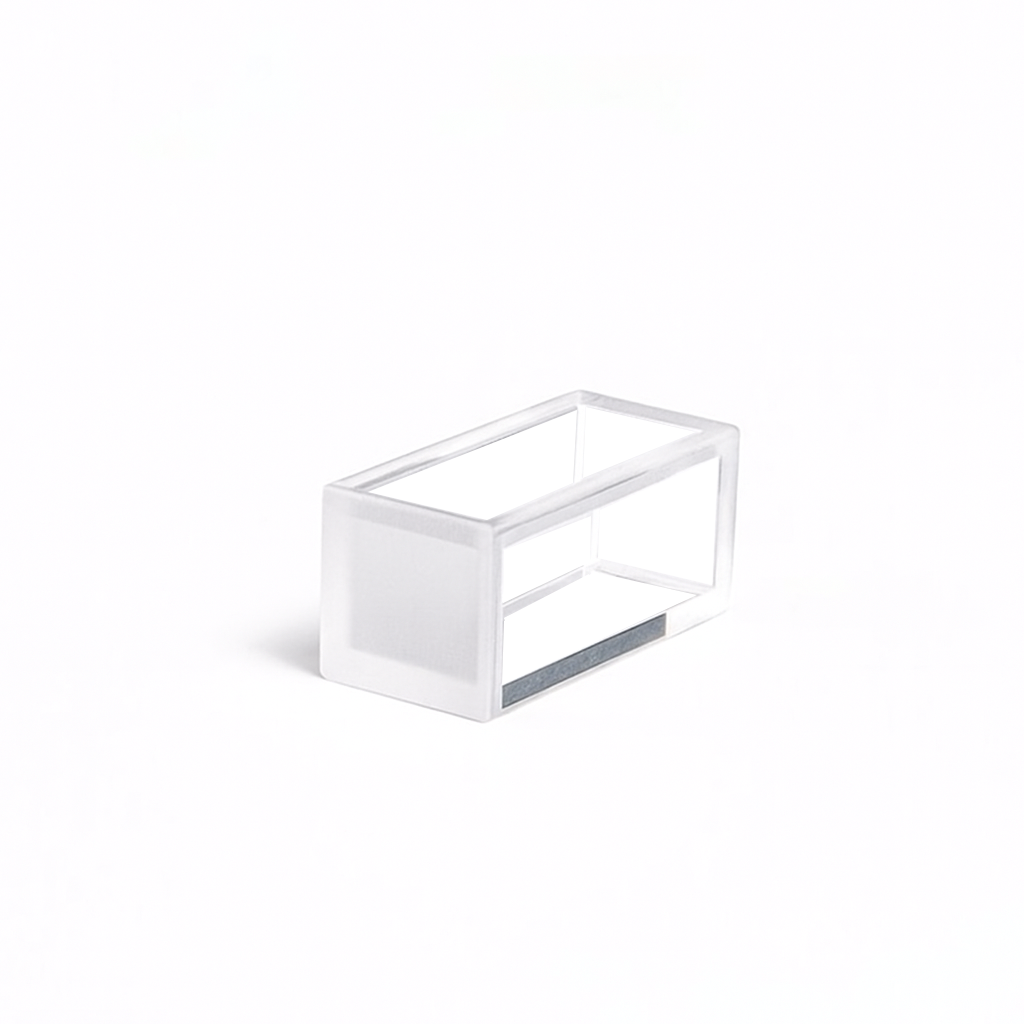

(VFOM103) 110uL Customized Cuvette, 10x6x6 mm, 4 Windows, Molded, Lightpath 3.5/4mm

Weight	60 g
Brand	Qvarz
Resistant to Chemicals	Yes

SKU: VFOM103

16%Custom

(VFOM103) 110uL Customized Cuvette, 10x6x6 mm, 4 Windows, Molded, Lightpath 3.5/4mm

(VFOM103) 110uL Customized Cuvette, 10x6x6 mm, 4 Windows, Molded, Lightpath 3.5/4mm - Image 2

(VFOM103) 110uL Customized Cuvette, 10x6x6 mm, 4 Windows, Molded, Lightpath 3.5/4mm - Image 3

(VFOM103) 110uL Customized Cuvette, 10x6x6 mm, 4 Windows, Molded, Lightpath 3.5/4mm - Image 4

~~$175.00~~ Original price was: $175.00.$148.00Current price is: $148.00.

In Stock

This customized cuvette is for fluorescence applications, with dual path lengths of 3.5/4 mm. Resistant to chemicals. Use up to 1200°C. The price is for 1 piece.

In Stock

Type: Molded

SKU: VFOM103 Categories: All Cuvettes & Cells, Custom Cuvettes, Cuvettes & Flow Cells, Fluorometer Cuvettes, Micro Cuvettes <3.5mL, Molded Cuvettes, Open Top Cuvettes, Other Cuvettes, Products Tags: custom cuvette, fluorescence cuvette, open top cuvette

Worldwide Timed Dispatch Available

Free Shipping apply to all orders over $800
Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Fast dispatch. Receive deliveries in 2 - 3 weeks.

Description

VFOM103 – 110 µL Customized Ultra Micro Quartz Cuvette (Molded, 3.5/4 mm Lightpath, 4 Windows)

The VFOM103 is a precision-engineered custom ultra micro quartz cuvette designed for fluorescence and UV/VIS absorption spectroscopy. With an optical path length of 3.5 / 4 mm and a sample volume of only 110 µL, this cuvette is ideal for applications that require ultra-low sample volumes and high detection sensitivity. Its four-window design enables both excitation and emission detection, making it an excellent choice for high-performance fluorescence measurements.

Key Features

Ultra-low volume: 110 µL — perfect for precious or limited samples.
3.5 / 4 mm optical path length: suitable for high-concentration and sensitive detection assays.
Four optical windows: allows multi-angle fluorescence detection.
Molded fabrication: ensures exceptional optical quality and path length tolerance of ±0.01 mm.
Wavelength range: UV/VIS (190–2500 nm).
Compact outer dimensions: 10 × 6 × 6 mm, ideal for miniaturized sample holders and instruments.

Typical Applications

Fluorescence spectroscopy (excitation and emission)
High-sensitivity UV/VIS absorption measurements
Protein and DNA quantification with micro-volume samples
Biochemical and pharmaceutical research

Cuvette Specifications

Type	Custom Cuvette	Optical Path Length	3.5 / 4 mm
Article No.	VFOM103	Volume	110 µL
Measuring Method	Fluorescence Cells	Base Type	Flat
Number of Windows	4	Wavelength Range	UV/VIS (190–2500 nm)
Outside Dimensions
Height	10 mm	Width	6 mm
Depth	6 mm
Inside Dimensions
Width (Inside)	3.5 mm	Depth (Inside)	4 mm
Center Height (Z)	–	Fabrication Method	Molded*
Package	Cell Only

About Molded Fabrication

Molded quartz cuvettes offer the highest optical precision, with path length tolerance of ±0.01 mm.
Excellent chemical resistance, suitable for most solvents (except HF).
Designed for demanding analytical applications with stable and repeatable results.

About Four-Window Design

Allows simultaneous excitation and emission detection.
Enables flexible measurement configurations for fluorescence applications.
Compatible with most standard and micro-volume fluorometers.

Usage Notes

Best for ultra-low volume fluorescence and absorbance measurements.
Ideal for precious biological or pharmaceutical samples.
Handle carefully to maintain optical surface quality.

Note: Molded quartz cuvettes provide exceptional dimensional accuracy and optical clarity, making them the top choice for micro-volume fluorescence and UV/VIS spectroscopy.

Comparison of Fabrication Types

1	2	3	4
	*Molded	*Fused	*Bonded / Glued
UV vis ( 190- 2500 nm)	Yes	Yes	Yes
Transmission Matched	On Request	No	No
Transmission > 80%	Yes	Yes	Yes
Resistant to Acids and Bases (except hydrofluoric acid)	Yes	Yes	No
Resistant to Organic Solvents	Yes	Yes	No
Usable upto 600°C (1112°F)	Yes	Yes	Yes
Usable upto 1200°C (2192°F)	Yes	No	No
0 Variations Reading	On Request	No	No
Fabrication	Molded	Assembled with Quartz Powder	Assembled with Glue
Adhesives	No	No	Yes
Storage	Short Term Storage	Clean After Use	Clean After Use
Available Material	Fused Quartz Material
Note	Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm.

1
QVARZ Cuvettes Transmission Characteristics The following table is our cuvettes and cells made of quartz material suitable for wavelength from 190nm to 2500nm and depicts the percentage transmission for the material. IR or Glass material is not included.

Why QVARZ Cuvettes and Cells? QVARZ is world-renowned as the producer of premium quartz cuvettes. Over fifteen years of experience manufacturing quartz cuvettes ensures that every QVARZ cuvettes are manufactured to the most exacting standards for reproducible results.
Spectrophotometry cuvettes - Most spectrophotometry applications in the visible and UV ranges benefit from QVARZ spectrophotometry cuvettes. Our cuvettes made of fused quartz material deliver precise and reliable readings even at wavelengths as low as 190 nm. QVARZ cuvettes are compatible with most spectrophotometers and photometers with standard 0.2 - 100 mm path lengths. Fluorometry cuvettes - QVARZ brings two decades of experience molding high-quality spectrophotometry cuvettes to new four-sided clear cuvettes for fluorometry. Available in standard quartz material with ultra-low auto-fluorescence for the highest precision measurements. Protective packaging - QVARZ cuvettes are encased in dust-free, low scratching expanded polystyrene packaging. This ensures that premium cuvettes arrive in the laboratory ina the same pristine condition they were in at the factory, with optical quality windows and free of contaminants. Volumes for most purposes - Our cuvettes are available in a variety of ranges from macro to macro semi-micro sizes to respond to the needs of most scientific applications. We are also able to customize sample volume to deliver consistent, accurate findings. Perform consistently - QVARZ Cuvettes are constructed from high-quality fused quartz materials and are grouped by manufacturing mold cavities to ensure the lowest fluctuation in extinction coefficient. Customization - Custom cuvettes and cells are encouraged and available upon request; mechanical drawings with specifications and tolerances are prerequisites. Awesome pricing and flexibility on small quantities.
To the best of our knowledge, the technical information provided here is accurate. However, Qvarz.com assumes no liability for the accuracy of this information. The values provided here are typical at the time of manufacture and may vary over time and from batch to batch.
