(VFOB100) New 100uL Sub Micro Fluorescence Cuvette, Black, Bonded, 4 Windows

Weight	80 g
Brand	Qvarz
Resistant to Chemicals	No
Z dimension	15 mm

SKU: VFOB100

(VFOB100) New 100uL Sub Micro Fluorescence Cuvette, Black, Bonded, 4 Windows

(VFOB100) New 100uL Sub Micro Fluorescence Cuvette, Black, Bonded, 4 Windows - Image 2

(VFOB100) New 100uL Sub Micro Fluorescence Cuvette, Black, Bonded, 4 Windows - Image 3

(VFOB100) New 100uL Sub Micro Fluorescence Cuvette, Black, Bonded, 4 Windows - Image 4

$153.00

In Stock

This sub-micro cuvette is for fluorescence applications, with a path length of 10 mm. For Aqueous Samples Only. Use up to 100°C. The price is for 1 piece.

In Stock

Type: Bonded, For Aqueous Samples Only

SKU: VFOB100 Categories: All Cuvettes & Cells, Bonded Cuvettes, Cuvettes & Flow Cells, Fluorometer Cuvettes, Micro Cuvettes <3.5mL, Narrow Width Cuvettes, Open Top Cuvettes, Products, Sub-Micro Cuvettes Tags: fluorescence cuvette, open top cuvette, sub micro cuvette

Worldwide Timed Dispatch Available

Free Shipping apply to all orders over $800
Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Fast dispatch. Receive deliveries in 2 - 3 weeks.

Description

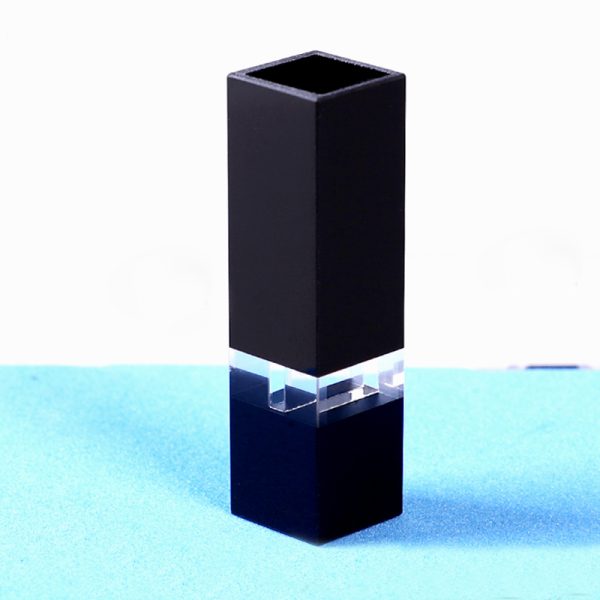

VFOB100 Sub Micro Fluorescence Cuvette (4-Windows, All Black)

The VFOB100 is a sub-micro volume quartz fluorescence cuvette engineered for high-sensitivity fluorescence and absorbance applications with minimal sample volumes. With a 10 mm optical pathlength and only 100 µL volume, this cuvette is ideal for micro- and trace-level fluorescence measurements.
The 4-window design enables both excitation and emission collection at 90°, and the all-black wall structure minimizes stray light for maximum signal-to-noise performance.

Key Features

100 µL working volume — excellent for micro assays and trace analysis.
10 mm optical pathlength — compatible with most standard fluorometers and spectrophotometers.
4-window design — supports both excitation and emission detection for fluorescence measurements.
All-black walls — effectively block stray light, improving fluorescence sensitivity and reducing background noise.
Bonded fabrication — cost-effective and customizable; best suited for aqueous or mild buffer solutions.
PTFE lid included — helps minimize evaporation during long or sensitive measurements.

Typical Applications

Fluorescence and absorbance spectroscopy
Low concentration biomolecule detection
Enzyme kinetics and cell-free assays
Trace analysis in life science and environmental testing

Bonded Fabrication Notes

Best suited for aqueous and mild buffer solutions.
Not recommended for HF, strong acids/bases, or strong organic solvents.
Advantages: low cost, fast turnaround, easy customization.
Optical path tolerance: ±0.06 – 0.08 mm.
For high solvent resistance or harsh conditions, consider fused or molded cuvettes.

Cuvette Specifications

Type	Sub Micro Quartz Fluorescence Cuvette	Optical Path Length	10 mm
Article No.	VFOB100	Volume	100 µL
Measuring Method	Fluorescence Cells	Wall Type	All Black
Number of Windows	4	Wavelength Range	UV/VIS (190 – 2500 nm)
Height (Outside)	45 mm	Aperture Window (Inside)	2 × 5 mm
Width (Outside)	12.5 mm	Depth (Inside)	10 mm
Depth (Outside)	12.5 mm	Center Height (Z)	15 mm
Fabrication Method	Bonded*	Package	Cell & PTFE Lid

Note: VFOB100 is designed specifically for micro-volume fluorescence detection, offering high sensitivity and low background.
For aggressive solvents or long-term durability, fused or molded cuvettes are recommended.

Comparison of Fabrication Types

1	2	3	4
	*Molded	*Fused	*Bonded / Glued
UV vis ( 190- 2500 nm)	Yes	Yes	Yes
Transmission Matched	On Request	No	No
Transmission > 80%	Yes	Yes	Yes
Resistant to Acids and Bases (except hydrofluoric acid)	Yes	Yes	No
Resistant to Organic Solvents	Yes	Yes	No
Usable upto 600°C (1112°F)	Yes	Yes	Yes
Usable upto 1200°C (2192°F)	Yes	No	No
0 Variations Reading	On Request	No	No
Fabrication	Molded	Assembled with Quartz Powder	Assembled with Glue
Adhesives	No	No	Yes
Storage	Short Term Storage	Clean After Use	Clean After Use
Available Material	Fused Quartz Material
Note	Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm.

1
QVARZ Cuvettes Transmission Characteristics The following table is our cuvettes and cells made of quartz material suitable for wavelength from 190nm to 2500nm and depicts the percentage transmission for the material. IR or Glass material is not included.

Why QVARZ Cuvettes and Cells? QVARZ is world-renowned as the producer of premium quartz cuvettes. Over fifteen years of experience manufacturing quartz cuvettes ensures that every QVARZ cuvettes are manufactured to the most exacting standards for reproducible results.
Spectrophotometry cuvettes - Most spectrophotometry applications in the visible and UV ranges benefit from QVARZ spectrophotometry cuvettes. Our cuvettes made of fused quartz material deliver precise and reliable readings even at wavelengths as low as 190 nm. QVARZ cuvettes are compatible with most spectrophotometers and photometers with standard 0.2 - 100 mm path lengths. Fluorometry cuvettes - QVARZ brings two decades of experience molding high-quality spectrophotometry cuvettes to new four-sided clear cuvettes for fluorometry. Available in standard quartz material with ultra-low auto-fluorescence for the highest precision measurements. Protective packaging - QVARZ cuvettes are encased in dust-free, low scratching expanded polystyrene packaging. This ensures that premium cuvettes arrive in the laboratory ina the same pristine condition they were in at the factory, with optical quality windows and free of contaminants. Volumes for most purposes - Our cuvettes are available in a variety of ranges from macro to macro semi-micro sizes to respond to the needs of most scientific applications. We are also able to customize sample volume to deliver consistent, accurate findings. Perform consistently - QVARZ Cuvettes are constructed from high-quality fused quartz materials and are grouped by manufacturing mold cavities to ensure the lowest fluctuation in extinction coefficient. Customization - Custom cuvettes and cells are encouraged and available upon request; mechanical drawings with specifications and tolerances are prerequisites. Awesome pricing and flexibility on small quantities.
To the best of our knowledge, the technical information provided here is accurate. However, Qvarz.com assumes no liability for the accuracy of this information. The values provided here are typical at the time of manufacture and may vary over time and from batch to batch.
