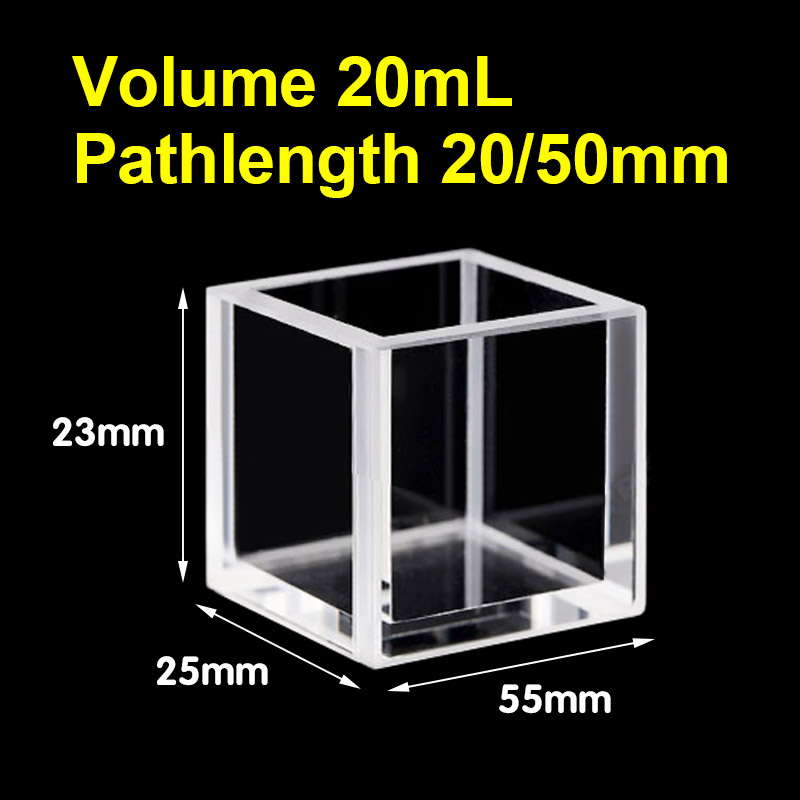

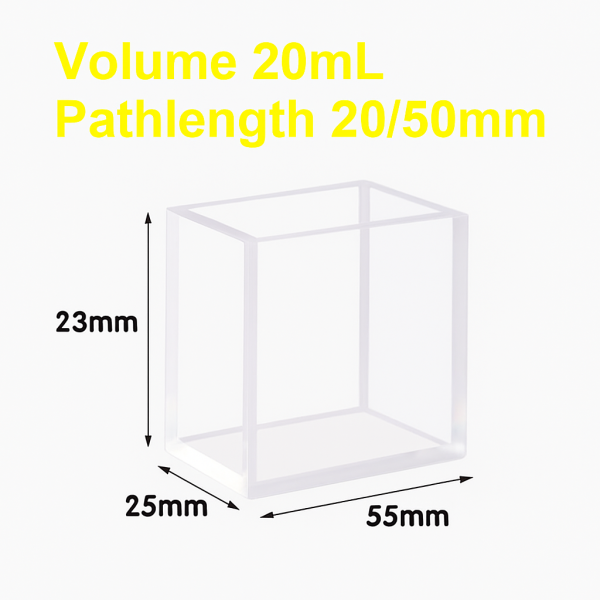

(VAOF200) 20ml Fluorescence Cuvette, Fused, Dual Lightpath 20/ 50mm, 23x55x25 mm, 4 Clear Windows
$274.00
This wide clear wall cuvette is for fluorescence applications, with dual-path lengths of 20mm or 50mm. Resistant to most chemicals. Use up to 600°C. The price is for 1 piece.
In Stock
Add to Wishlist
CompareAdd to Wishlist
- Type: Fused
Description
VAOF200 Fused Quartz Dual Lightpath Fluorescence Cuvette is a 4-window cuvette with a 20 mm and 50 mm dual optical path length and a 20 ml volume. This cuvette is designed for high-sensitivity fluorescence and absorbance measurements, especially when working with low-concentration or trace samples. The long path length configuration provides enhanced signal strength and extended detection capability, while the fused quartz construction ensures excellent thermal and chemical resistance.
Why Long Path Length Matters
Long path cuvettes extend the optical distance, directly amplifying weak absorbance or fluorescence signals based on the Beer–Lambert Law.
This significantly improves detection sensitivity, especially in trace-level analysis, by increasing signal-to-noise ratio and extending the measurable range.
It’s particularly advantageous for fluorescence detection, where low analyte concentrations often produce weak emission signals.
This design is ideal for:
- Trace-level detection in fluorescence and UV/VIS spectroscopy.
- Low-concentration biological or chemical assays.
- Signal amplification for weak fluorophores or low-emission samples.
- Environmental analysis and advanced R&D applications.
Key Features
- Dual optical path (20 mm / 50 mm) — provides measurement flexibility for different sensitivity needs.
- 4-window design — optimized for side detection in fluorescence experiments.
- Fused fabrication — offers excellent resistance to high temperature (up to 600 °C) and strong chemical durability.
- Long-path configuration — ideal for trace detection, enhancing signal strength and extending the linear range of measurement.
- Broad wavelength range — 190 – 2500 nm, suitable for UV/VIS and fluorescence spectroscopy.
Typical Applications
- Fluorescence spectroscopy with side excitation and emission detection.
- UV/VIS absorbance and transmission spectroscopy.
- Trace contaminant detection in environmental water samples.
- Pharmaceutical, biological, and material science research.
- High-sensitivity experiments requiring flexible path lengths.
Fused Fabrication Notes
- Fused fabrication ensures superior optical clarity, chemical resistance, and heat stability.
- Not suitable for hydrofluoric acid (HF) or strong organic solvents such as toluene and acetone.
- Powder seams may discolor over time but do not affect measurement performance.
- Typical path length tolerance is ±0.06 – 0.08 mm.
Cuvette Specifications
| Type | Fluorescence Quartz Cuvette | Optical Path Length | 20 mm / 50 mm |
| Article No. | VAOF200 | Volume | 20 ml |
| Measuring Method | Fluorescence Cells | Clear Walls | 23 × 55 mm, 23 × 25 mm |
| Number of Windows | 4 | Wavelength Range | UV/VIS (190 – 2500 nm) |
| Height | 23 mm | Width (Inside) | 50 mm |
| Width (Outside) | 55 mm | Depth (Inside) | 20 mm |
| Depth (Outside) | 25 mm | Center Height (Z) | 8.5 – 20 mm |
| Fabrication Method | Fused* | Package | Cell Only |
Note: Long-path fluorescence cuvettes like VAOF200 are engineered for applications requiring high sensitivity and flexible detection paths.
Fused quartz provides excellent thermal and chemical resistance. Not suitable for HF or strong organic solvents. The dual-path design (20 mm & 50 mm) offers versatility for different experimental requirements, from standard fluorescence to trace-level detection.
Comparison of Fabrication Types
| 1 | 2 | 3 | 4 | ||
|---|---|---|---|---|---|
| *Molded | *Fused | *Bonded / Glued | |||
| UV vis ( 190- 2500 nm) | Yes | Yes | Yes | ||
| Transmission Matched | On Request | No | No | ||
| Transmission > 80% | Yes | Yes | Yes | ||
| Resistant to Acids and Bases (except hydrofluoric acid) | Yes | Yes | No | ||
| Resistant to Organic Solvents | Yes | Yes | No | ||
| Usable upto 600°C (1112°F) | Yes | Yes | Yes | ||
| Usable upto 1200°C (2192°F) | Yes | No | No | ||
| 0 Variations Reading | On Request | No | No | ||
| Fabrication | Molded | Assembled with Quartz Powder | Assembled with Glue | ||
| Adhesives | No | No | Yes | ||
| Storage | Short Term Storage | Clean After Use | Clean After Use | ||
| Available Material | Fused Quartz Material | ||||
| Note | Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm. | ||||
