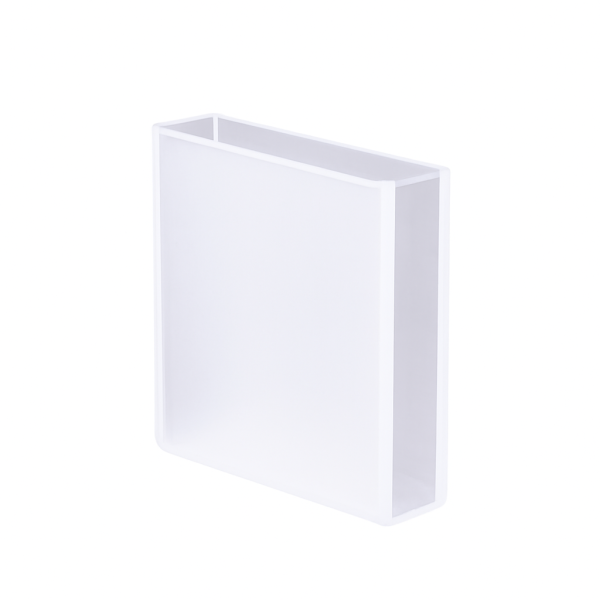

(VG037) 14mL Absorption Cuvette with Lid, Glass Material, Fused, Lightpath 40mm, 350 – 2000nm, 2 Clear Walls
$11.00
This glass absorption cuvette is for spectrophotometry applications, with a path length of 40 mm. Resistant to most chemicals. The price is for 1 piece.
In Stock
Add to Wishlist
CompareAdd to Wishlist
- Type: Fused
Description
VG037 – 14 mL Glass Absorption Cuvette (Fused, 40 mm Path Length, 2 Windows, With Lid)
The VG037 is a high-clarity optical glass cuvette specifically designed for absorption spectroscopy in the visible and near-infrared range.
With a 40 mm optical path length, it offers enhanced sensitivity compared to standard 10 mm cuvettes, making it suitable for low-concentration or trace analysis.
The fused glass fabrication ensures stable optical alignment, chemical resistance, and long-term durability.
Key Features
- Sample volume: 14 mL — suitable for medium-volume analytical work.
- 40 mm optical path length: ideal for improved sensitivity and better signal detection for weak absorbance.
- 2 optical windows: precision polished to reduce scattering and maximize transmission.
- Optical glass material: clear from 350–2000 nm for VIS/NIR applications.
- Fused fabrication: offers superior stability, durability, and ease of cleaning.
- Wavelength range: VIS (350 – 2000 nm).
Typical Applications
- Low-concentration and trace analysis
- Colorimetric and chemical absorbance testing
- Environmental and water quality monitoring
- Laboratory QA/QC and R&D spectroscopy
Cuvette Specifications
| Type | 40 mm Glass Cuvette | Optical Path Length | 40 mm |
| Article No. | VG037 | Volume | 14,000 µL |
| Measuring Method | Absorption Cells | Material | Optical Glass |
| Number of Windows | 2 | Wavelength Range | VIS (350 – 2000 nm) |

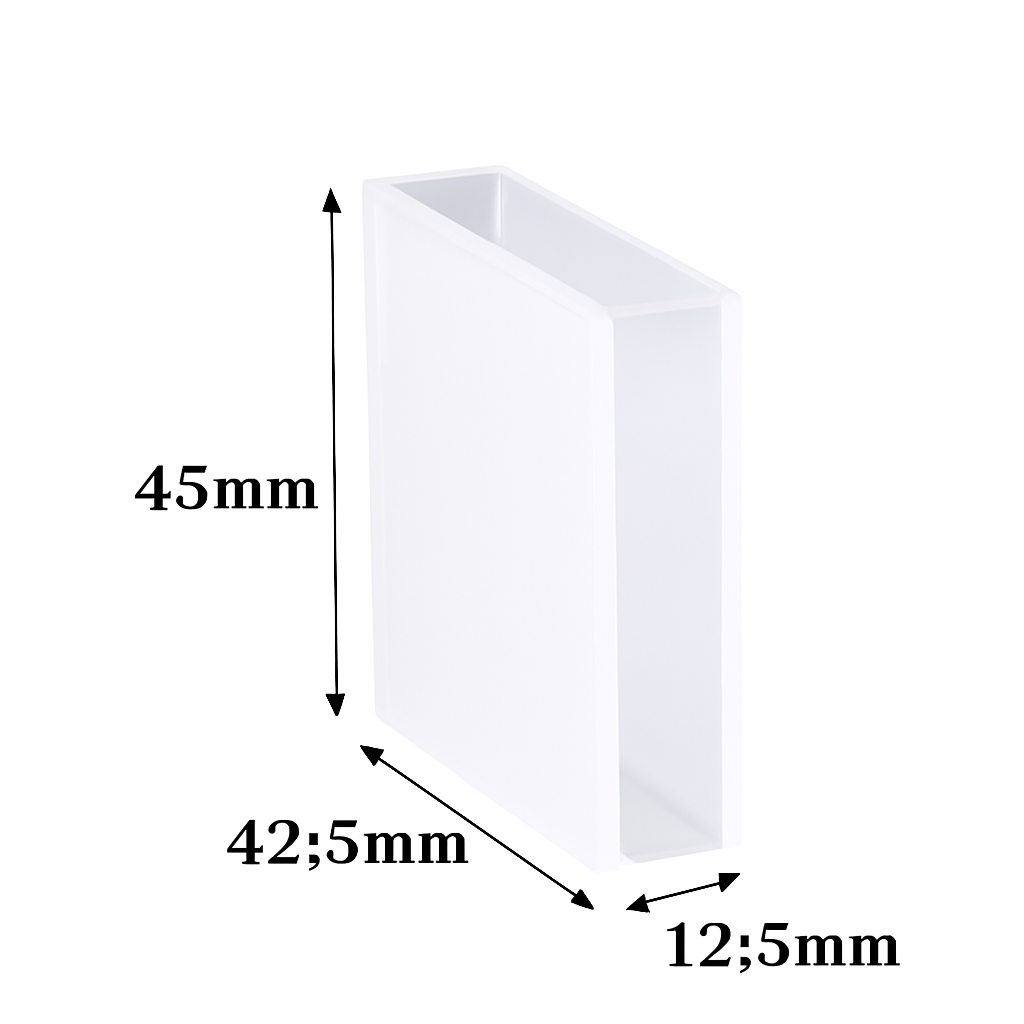

| Outside Dimensions | |||
| Height | 45 mm | Width | 12.5 mm |
| Depth | 42.5 mm | ||
| Inside Dimensions | |||
| Width | 10 mm | Depth (Inside) | 40 mm |
| Center Height (Z) | 8.5 – 20 mm | Fabrication Method | Fused* |
| Package | Cell & Lid | ||
About Long-Path Glass Cuvettes
Glass cuvettes with extended path lengths are particularly advantageous for detecting low-level absorbance:
- Excellent VIS/NIR transmission (350–2000 nm)
- Enhanced sensitivity compared to standard 10 mm cuvettes
- Cost-effective and robust for routine laboratory use
- Not suitable for UV applications below 350 nm
Usage Notes
- Ideal for low-concentration samples and colorimetric assays.
- Compatible with spectrophotometers supporting 40 mm path length cells.
- Not recommended for aggressive chemical solvents.
Note: For UV spectroscopy or harsh chemical environments, quartz cuvettes are recommended. Glass cuvettes provide excellent performance for VIS/NIR measurements at a lower cost.
Cuvette Specifications
| 1 | 2 | 3 | 4 | |||
|---|---|---|---|---|---|---|
| Type | 40mm Glass Cuvette | Optical Path Length | 40 mm | |||
| Article No. | VG037 | Volume | 14000 µl | |||
| Measuring Method | Absorption Cells | Material | Optical Glass | |||
| Number of Windows | 2 | Wavelength Range | VIS (350 - 2000 nm) | |||
| Outside Dimensions | Inside Dimensions | |||||
| Height | 45 mm | Width | 10 mm | |||
| Width | 12.5 mm | Depth | 40 mm | |||
| Depth | 42.5 mm | Center Height (Z) | 8.5 - 20 mm | |||
| Fabrication Method | Fused* | Package | Cell & Lid | |||
Comparison of Fabrication Types
| 1 | 2 | 3 | 4 | ||
|---|---|---|---|---|---|
| *Molded | *Fused | *Bonded | |||
| Visible ( 350 - 2000 nm) | Yes | Yes | Yes | ||
| Transmission Matched | On Request | No | No | ||
| Transmission > 80% | Yes | Yes | Yes | ||
| Resistant to Acids and Bases (except hydrofluoric acid) | Yes | Yes | No | ||
| Resistant to Organic Solvents | Yes | Yes | No | ||
| Usable upto 600°C (1112°F) | Yes | Yes | Yes | ||
| Usable upto 1200°C (2192°F) | Yes | No | No | ||
| 0 Variations Reading | On Request | No | No | ||
| Fabrication | Molded | Assembled with Glass Powder | Assembled with Glue | ||
| Adhesives | No | No | Yes | ||
| Storage | Short Term Storage | Clean After Use | Clean After Use | ||
| Available Material | Optical Glass Material | ||||
| Note | Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each glass cuvette and cell has excellent transmission from 350nm to 2000nm under visible light range. | ||||
