(VFSMC3) 0.6mL Cuvette, Customized Short 45mm, Screw Cap, Molded, Width 3mm, 4 Windows
6%New
$494.00 Original price was: $494.00.$468.00Current price is: $468.00.
This semi micro screw cap cuvette is for fluorescence applications, with a path length of 10 mm. Resistant to chemicals. Use up to 1200°C. The price is for 1 piece.
In Stock
Add to Wishlist
CompareAdd to Wishlist
- Type: Molded
Description

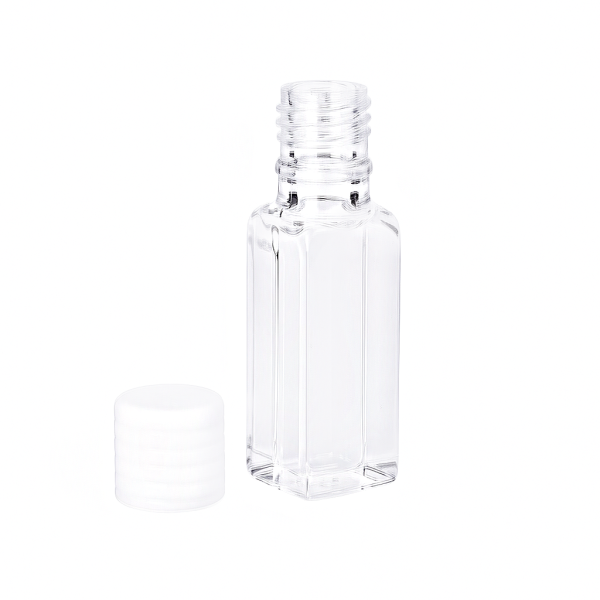

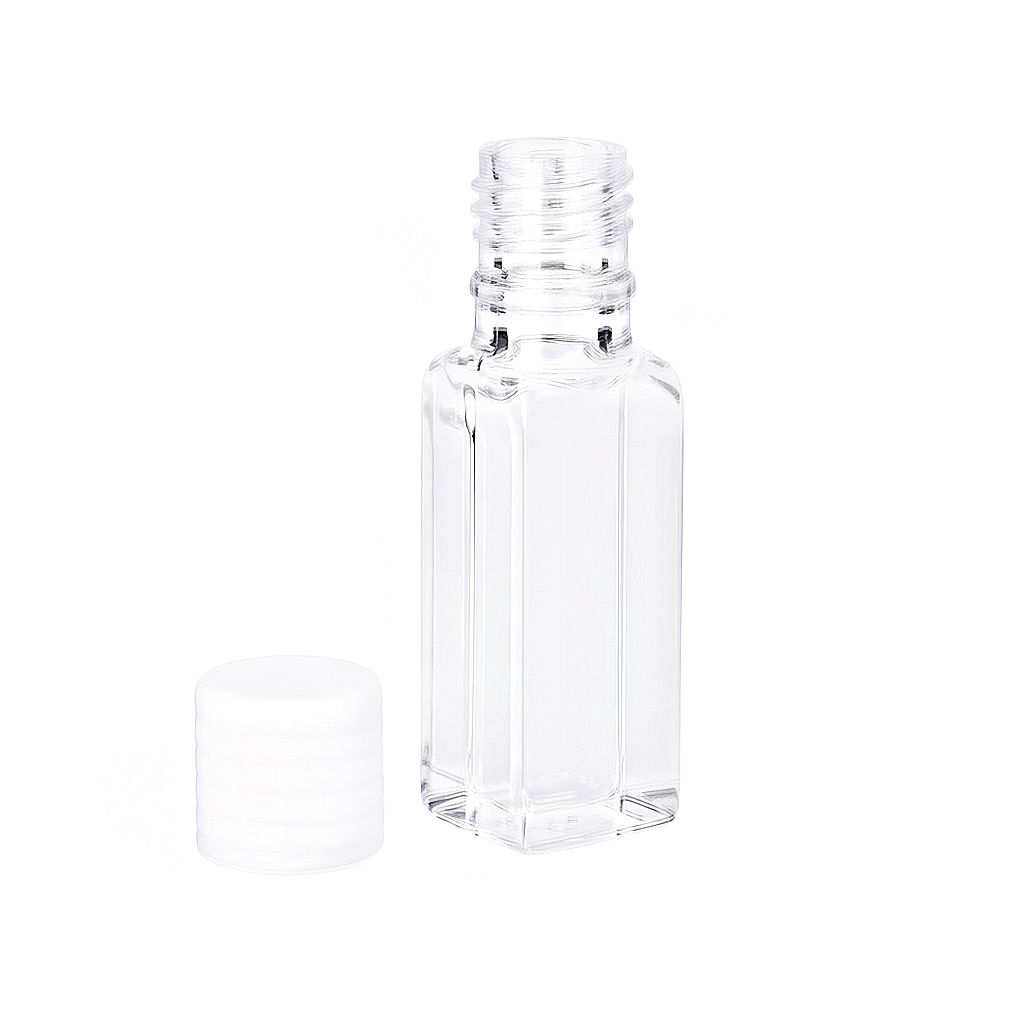

VFSMC3 – Short Height Semi-Micro Fluorescence Cuvette (Molded, 3 mm Width, 4 Windows, Screw Cap)
The VFSMC3 cuvette is a custom short-height molded quartz cuvette designed for fluorescence and absorbance spectroscopy with a reduced overall height of 45 mm (including cap), compared to the standard 55 mm.
This compact design is ideal for instruments or setups with limited vertical space, while retaining the same 10 mm optical path and excellent optical performance.
With a 3 mm internal width and 600 μL total volume, it allows sensitive measurements with lower sample consumption.
Key Features
- Shorter total height (45 mm): ideal for compact instruments or custom optical setups with height constraints.
- Molded fabrication – highest cuvette quality: excellent optical clarity, surface finish, and dimensional precision.
- Ultra-tight path length tolerance: ±0.01 mm, ensuring stable and repeatable measurements.
- Chemical resistance: compatible with strong acids, strong bases, toluene, acetone, and most strong organic solvents (except HF).
- 3 mm width: optimized for medium to high sensitivity fluorescence measurements with lower sample usage.
- 4 optical windows: suitable for right-angle fluorescence detection.
- Screw cap: minimizes sample loss and prevents contamination.
- UV/VIS wavelength range: 190–2500 nm.
Typical Applications
- Fluorescence spectroscopy (right-angle detection)
- UV/VIS absorbance measurements with lower sample volume
- Instrument setups with limited vertical clearance
- Pharmaceutical, biochemical, and analytical research
Cuvette Specifications
| Type | Semi Micro Cuvette (Short Height) | Optical Path Length | 10 mm |
| Article No. | VFSMC3 | Volume | 600 μL |
| Measuring Method | Fluorescence Cells | Base Type | Flat |
| Number of Windows | 4 | Wavelength Range | UV/VIS (190 – 2500 nm) |
| Outside Dimensions | |||
| Height | 45 mm (Cap Included) | Width | 12.5 mm |
| Depth | 12.5 mm | ||
| Inside Dimensions | |||
| Width | 3 mm | Depth (Inside) | 10 mm |
| Center Height (Z) | 8.5 – 20 mm | Fabrication Method | Molded* |
| Package | Cell & Screw Cap | ||
About Molded Fabrication
Molded quartz cuvettes are produced from ultra-pure quartz using precision molding technology, offering:
- Superior optical clarity and finish
- Path length tolerance of ±0.01 mm for accurate results
- Resistance to strong acids, strong bases, toluene, acetone, and most organic solvents (except HF)
- Long service life and stable performance in harsh environments
Note: This short-height cuvette is ideal for compact instruments, micro-volume analysis, and fluorescence applications requiring precise, stable, and space-saving cuvettes.
Comparison of Fabrication Types
| 1 | 2 | 3 | 4 | ||
|---|---|---|---|---|---|
| *Molded | *Fused | *Bonded / Glued | |||
| UV vis ( 190- 2500 nm) | Yes | Yes | Yes | ||
| Transmission Matched | On Request | No | No | ||
| Transmission > 80% | Yes | Yes | Yes | ||
| Resistant to Acids and Bases (except hydrofluoric acid) | Yes | Yes | No | ||
| Resistant to Organic Solvents | Yes | Yes | No | ||
| Usable upto 600°C (1112°F) | Yes | Yes | Yes | ||
| Usable upto 1200°C (2192°F) | Yes | No | No | ||
| 0 Variations Reading | On Request | No | No | ||
| Fabrication | Molded | Assembled with Quartz Powder | Assembled with Glue | ||
| Adhesives | No | No | Yes | ||
| Storage | Short Term Storage | Clean After Use | Clean After Use | ||
| Available Material | Fused Quartz Material | ||||
| Note | Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm. | ||||
