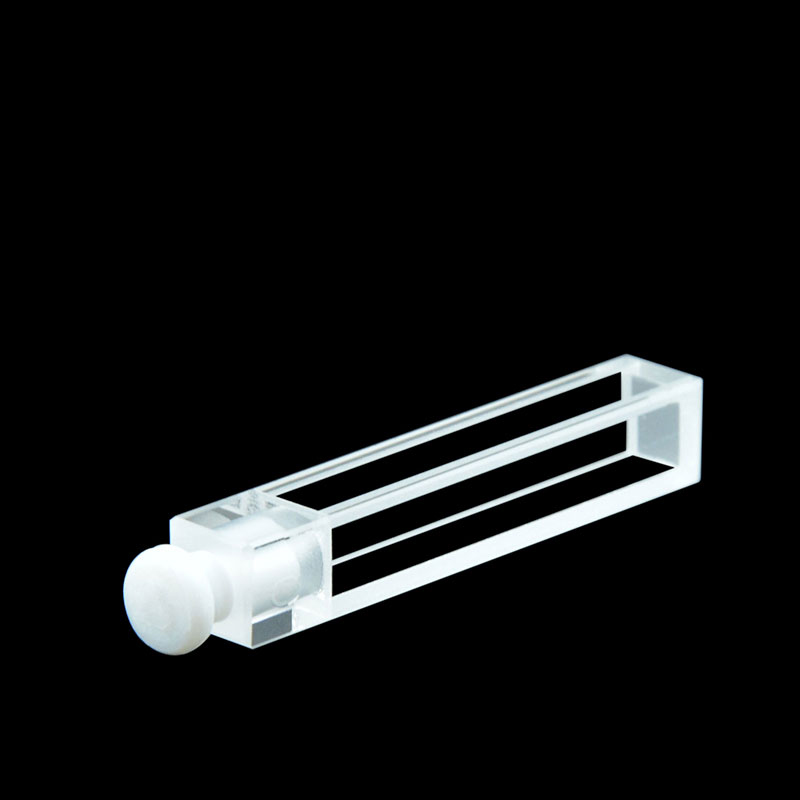

(VFPFC55) 0.875mL Micro Cuvette, Customized, Stopper, Fused, Width 5x5mm, 4 Windows

Weight	60 g
Brand	Qvarz
Resistant to Chemicals	Yes
Customizable	No

SKU: VFPFC55

(VFPFC55) 0.875mL Micro Cuvette, Customized, Stopper, Fused, Width 5x5mm, 4 Windows

(VFPFC55) 0.875mL Micro Cuvette, Customized, Stopper, Fused, Width 5x5mm, 4 Windows - Image 2

(VFPFC55) 0.875mL Micro Cuvette, Customized, Stopper, Fused, Width 5x5mm, 4 Windows - Image 3

(VFPFC55) 0.875mL Micro Cuvette, Customized, Stopper, Fused, Width 5x5mm, 4 Windows - Image 4

$198.00

In Stock

This customized cuvette is for fluorescence applications, with a path length of 10 mm. Resistant to most chemicals. Use upto 600°C. The price is for 1 piece.

In Stock

Type: Fused

SKU: VFPFC55 Categories: All Cuvettes & Cells, Custom Cuvettes, Cuvettes & Flow Cells, Fluorometer Cuvettes, Fused Cuvettes, Micro Cuvettes <3.5mL, Products, Stopper Cuvettes Tags: custom cuvette, fluorescence cuvette, stopper cuvette

Worldwide Timed Dispatch Available

Free Shipping apply to all orders over $800
Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Fast dispatch. Receive deliveries in 2 - 3 weeks.

Description

VFPFC55 – 5 × 5 mm Optical Path Micro Quartz Cuvette (Fused, 4 Windows, PTFE Stopper)

The VFPFC55 is a high-precision fused quartz cuvette with a 5 × 5 mm optical path and four clear windows, designed for fluorescence and absorption spectroscopy.
Its compact internal volume of 875 μL and integrated PTFE stopper make it ideal for sensitive experiments that require minimizing evaporation or contamination.

Key Features

5 × 5 mm optical path: provides balanced sensitivity and low sample consumption.
Four clear windows: enables side detection and excitation/emission flexibility for fluorescence measurements.
Fused fabrication: withstands temperatures up to 600 °C (1112 °F) and delivers excellent UV/VIS transmission.
PTFE stopper: prevents evaporation and contamination during sensitive measurements.
Chemical compatibility: resistant to most acids and bases, but not compatible with HF, toluene, acetone, or other strong organic solvents that can reduce cuvette lifespan.
Optical path tolerance: ±0.06 – 0.08 mm for stable and reproducible readings.
Wavelength range: UV/VIS (190 – 2500 nm).

Typical Applications

Fluorescence spectroscopy with side detection
Sample protection with stopper to reduce evaporation
Environmental, life science, and pharmaceutical research
Trace analysis requiring low volume and stable optics

Cuvette Specifications

Type	Custom Cuvette	Optical Path Length	5 × 5 mm
Article No.	VFPFC55	Volume	875 μL
Measuring Method	Fluorescence Cells	Customizable	No
Number of Windows	4	Wavelength Range	UV/VIS (190 – 2500 nm)

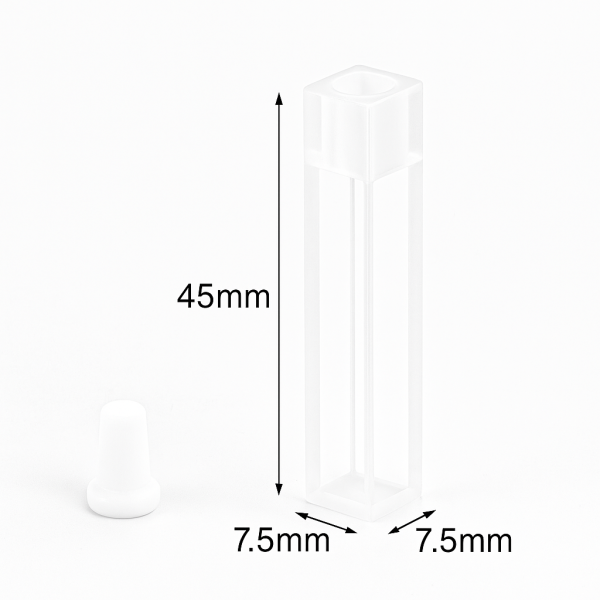

Outside Dimensions
Height	45 mm	Width	7.5 mm
Depth	7.5 mm
Inside Dimensions
Width	5 mm	Depth (Inside)	5 mm
Center Height (Z)	8.5 – 20 mm	Fabrication Method	Fused*
Package	Cell & Stopper

About Fused Fabrication

Fused quartz cuvettes are manufactured through quartz powder sintering, providing:

Temperature resistance up to 600 °C (1112 °F)
Excellent UV/VIS optical clarity
Resistance to most acids and bases
Not suitable for HF, toluene, acetone, and other strong organic solvents
Potential seam staining if used for long-term sample storage
Optical path tolerance: ±0.06 – 0.08 mm

Note: For experiments involving aggressive organic solvents or long-term storage, molded cuvettes may offer better durability.

Comparison of Fabrication Types

1	2	3	4
	*Molded	*Fused	*Bonded / Glued
UV vis ( 190- 2500 nm)	Yes	Yes	Yes
Transmission Matched	On Request	No	No
Transmission > 80%	Yes	Yes	Yes
Resistant to Acids and Bases (except hydrofluoric acid)	Yes	Yes	No
Resistant to Organic Solvents	Yes	Yes	No
Usable upto 600°C (1112°F)	Yes	Yes	Yes
Usable upto 1200°C (2192°F)	Yes	No	No
0 Variations Reading	On Request	No	No
Fabrication	Molded	Assembled with Quartz Powder	Assembled with Glue
Adhesives	No	No	Yes
Storage	Short Term Storage	Clean After Use	Clean After Use
Available Material	Fused Quartz Material
Note	Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm.

1
QVARZ Cuvettes Transmission Characteristics The following table is our cuvettes and cells made of quartz material suitable for wavelength from 190nm to 2500nm and depicts the percentage transmission for the material. IR or Glass material is not included.

Why QVARZ Cuvettes and Cells? QVARZ is world-renowned as the producer of premium quartz cuvettes. Over fifteen years of experience manufacturing quartz cuvettes ensures that every QVARZ cuvettes are manufactured to the most exacting standards for reproducible results.
Spectrophotometry cuvettes - Most spectrophotometry applications in the visible and UV ranges benefit from QVARZ spectrophotometry cuvettes. Our cuvettes made of fused quartz material deliver precise and reliable readings even at wavelengths as low as 190 nm. QVARZ cuvettes are compatible with most spectrophotometers and photometers with standard 0.2 - 100 mm path lengths. Fluorometry cuvettes - QVARZ brings two decades of experience molding high-quality spectrophotometry cuvettes to new four-sided clear cuvettes for fluorometry. Available in standard quartz material with ultra-low auto-fluorescence for the highest precision measurements. Protective packaging - QVARZ cuvettes are encased in dust-free, low scratching expanded polystyrene packaging. This ensures that premium cuvettes arrive in the laboratory ina the same pristine condition they were in at the factory, with optical quality windows and free of contaminants. Volumes for most purposes - Our cuvettes are available in a variety of ranges from macro to macro semi-micro sizes to respond to the needs of most scientific applications. We are also able to customize sample volume to deliver consistent, accurate findings. Perform consistently - QVARZ Cuvettes are constructed from high-quality fused quartz materials and are grouped by manufacturing mold cavities to ensure the lowest fluctuation in extinction coefficient. Customization - Custom cuvettes and cells are encouraged and available upon request; mechanical drawings with specifications and tolerances are prerequisites. Awesome pricing and flexibility on small quantities.
To the best of our knowledge, the technical information provided here is accurate. However, Qvarz.com assumes no liability for the accuracy of this information. The values provided here are typical at the time of manufacture and may vary over time and from batch to batch.
