(VFOB5010) 17.5 mL Dual Pathlength Cuvette, Bonded, Lightpath 10mm or 50mm, 45×52.5×12.5 mm

Weight	100 g
Brand	Qvarz
Resistant to Chemicals	No

SKU: VFOB5010

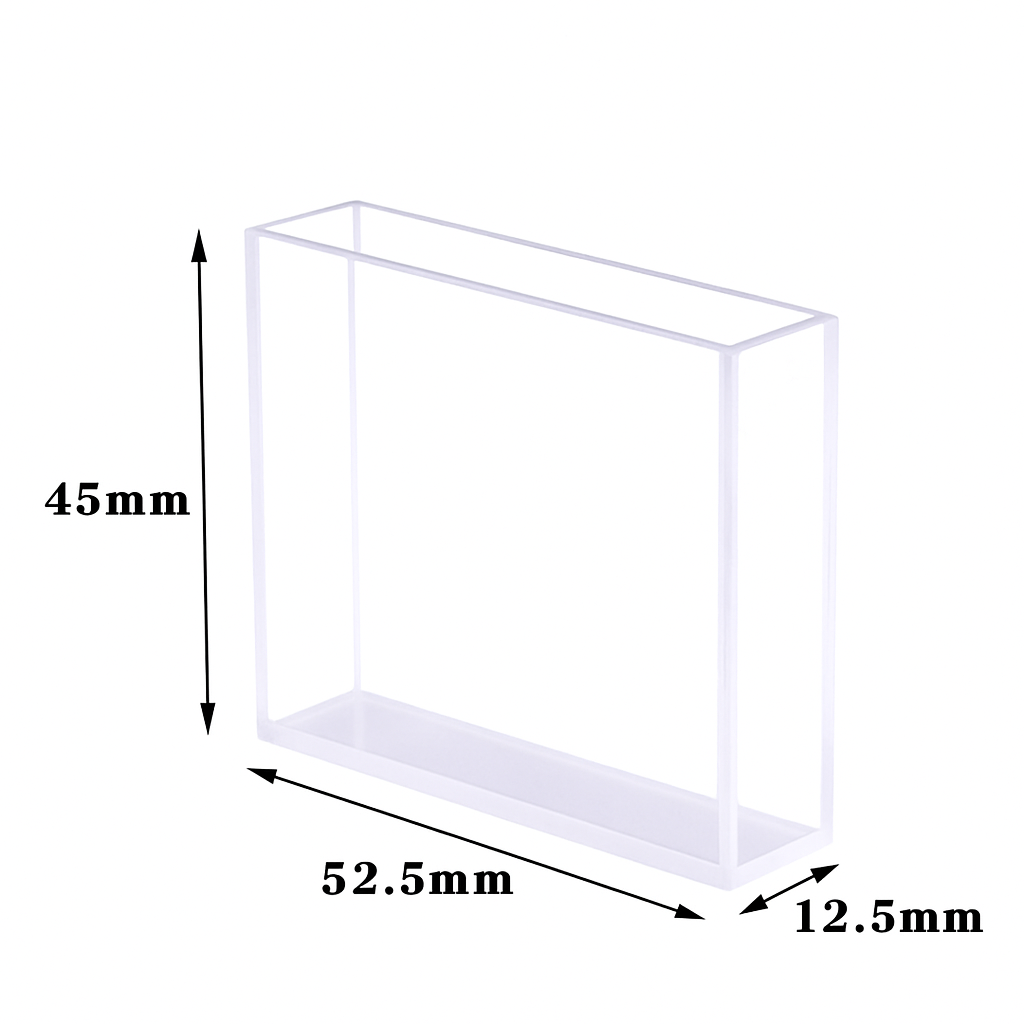

(VFOB5010) 17.5 mL Dual Pathlength Cuvette, Bonded, Lightpath 10mm or 50mm, 45x52.5x12.5 mm

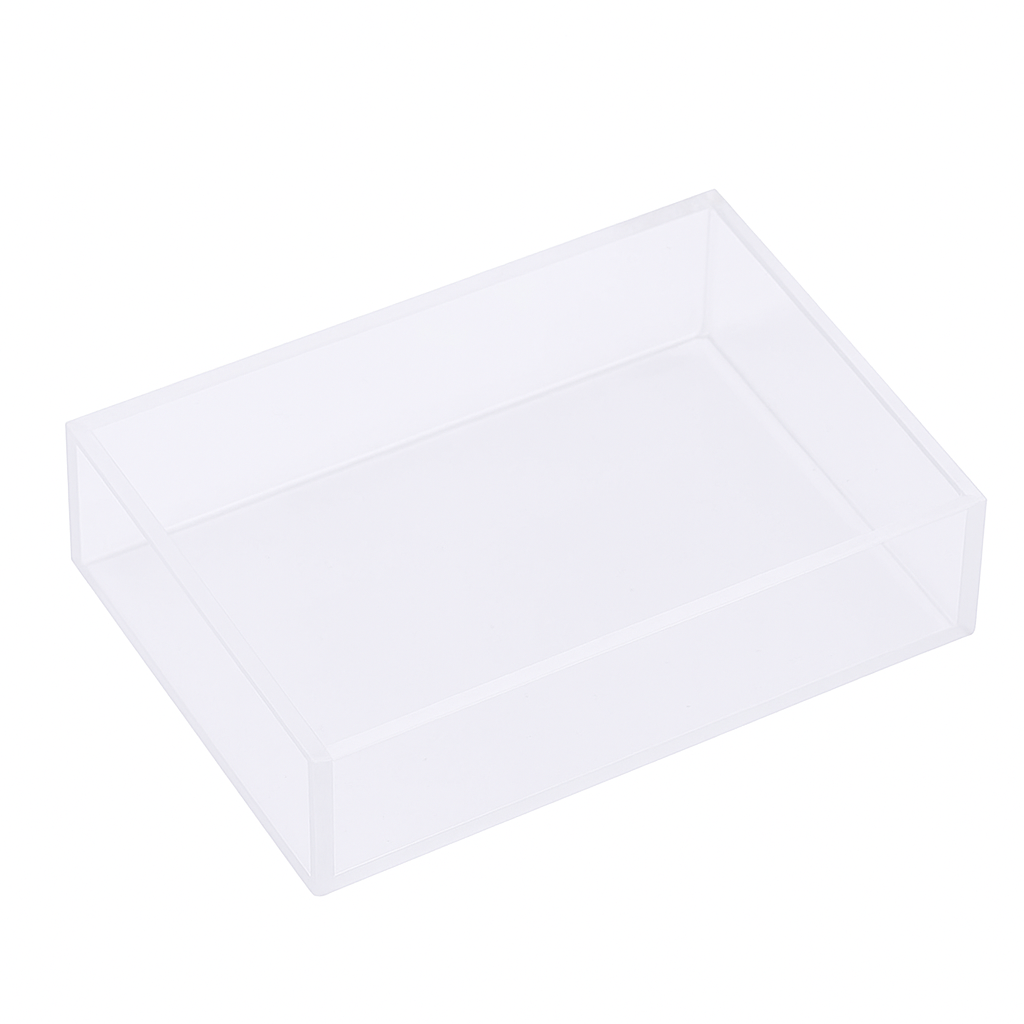

(VFOB5010) 17.5 mL Dual Pathlength Cuvette, Bonded, Lightpath 10mm or 50mm, 45x52.5x12.5 mm - Image 2

(VFOB5010) 17.5 mL Dual Pathlength Cuvette, Bonded, Lightpath 10mm or 50mm, 45x52.5x12.5 mm - Image 3

(VFOB5010) 17.5 mL Dual Pathlength Cuvette, Bonded, Lightpath 10mm or 50mm, 45x52.5x12.5 mm - Image 4

$221.00

In Stock

This wide clear wall cuvette is for fluorescence applications, with dual-path lengths of 10mm or 50mm. For aqueous samples only. Use up to 100°C. The price is for 1 piece.

In Stock

Type: Bonded

SKU: VFOB5010 Categories: All Cuvettes & Cells, Bonded Cuvettes, Custom Cuvettes, Cuvettes & Flow Cells, Fluorometer Cuvettes, Long Path Length Cuvettes, Macro Cuvettes >3.5mL, Open Top Cuvettes, Other Cuvettes, Products Tags: dual pathlength cuvette, fluorescence cuvette, open top cuvette

Worldwide Timed Dispatch Available

Free Shipping apply to all orders over $800
Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Fast dispatch. Receive deliveries in 2 - 3 weeks.

Description

VFOB5010 Dual-Pathlength Quartz Cuvette is a large-volume bonded quartz cuvette designed for fluorescence and UV/Vis spectroscopy. It features a dual path length of 10 mm and 50 mm, offering enhanced measurement flexibility for both high-concentration and trace detection applications. With a total volume of 17.5 ml and four clear optical windows, this cuvette is ideal for advanced research and analytical work requiring a longer light path and stable signal response.

Key Advantages

Dual optical path length (10 mm / 50 mm) for flexible measurement sensitivity.
Large 17.5 ml chamber supports sample-rich experiments and long-path detection.
Four clear optical windows provide excellent transmission and versatile detection angles.
Bonded fabrication provides high structural stability and chemical resistance suitable for routine lab use.
Broad wavelength range: 190–2500 nm (UV/VIS).

Typical Applications

Trace-level fluorescence or absorbance measurements requiring long path lengths
Routine UV/Vis spectroscopy for aqueous and solvent-based samples
Biochemical, pharmaceutical, and environmental analysis
High-sensitivity kinetic or concentration studies

Bonded Fabrication Notes

Bonded quartz is highly stable, with good optical quality and durability for everyday laboratory use.
Recommended for most aqueous solutions, mild solvents, and standard fluorescence assays.
Not suitable for HF and certain aggressive solvents that may attack bonding materials.
Long path length increases sensitivity, especially useful for low-concentration samples.

Cuvette Specifications

Type	17.5 ml Cuvette	Optical Path Length	10 mm or 50 mm
Article No.	VFOB5010	Volume	17.5 ml
Measuring Method	Fluorescence Cells	Clear Walls	45×52.5 mm, 45×12.5 mm
Number of Windows	4	Wavelength Range	UV/VIS (190 – 2500 nm)
Height	45 mm	Width (Inside)	50 mm
Width (Outside)	52.5 mm	Depth	10 mm
Fabrication Method	Bonded*	Package	Cell Only

Note: Clean after each use to maintain optical performance. Avoid HF and aggressive solvents that may damage bonding surfaces.

Comparison of Fabrication Types

1	2	3	4
	*Molded	*Fused	*Bonded / Glued
UV vis ( 190- 2500 nm)	Yes	Yes	Yes
Transmission Matched	On Request	No	No
Transmission > 80%	Yes	Yes	Yes
Resistant to Acids and Bases (except hydrofluoric acid)	Yes	Yes	No
Resistant to Organic Solvents	Yes	Yes	No
Usable upto 600°C (1112°F)	Yes	Yes	Yes
Usable upto 1200°C (2192°F)	Yes	No	No
0 Variations Reading	On Request	No	No
Fabrication	Molded	Assembled with Quartz Powder	Assembled with Glue
Adhesives	No	No	Yes
Storage	Short Term Storage	Clean After Use	Clean After Use
Available Material	Fused Quartz Material
Note	Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm.

1
QVARZ Cuvettes Transmission Characteristics The following table is our cuvettes and cells made of quartz material suitable for wavelength from 190nm to 2500nm and depicts the percentage transmission for the material. IR or Glass material is not included.

Why QVARZ Cuvettes and Cells? QVARZ is world-renowned as the producer of premium quartz cuvettes. Over fifteen years of experience manufacturing quartz cuvettes ensures that every QVARZ cuvettes are manufactured to the most exacting standards for reproducible results.
Spectrophotometry cuvettes - Most spectrophotometry applications in the visible and UV ranges benefit from QVARZ spectrophotometry cuvettes. Our cuvettes made of fused quartz material deliver precise and reliable readings even at wavelengths as low as 190 nm. QVARZ cuvettes are compatible with most spectrophotometers and photometers with standard 0.2 - 100 mm path lengths. Fluorometry cuvettes - QVARZ brings two decades of experience molding high-quality spectrophotometry cuvettes to new four-sided clear cuvettes for fluorometry. Available in standard quartz material with ultra-low auto-fluorescence for the highest precision measurements. Protective packaging - QVARZ cuvettes are encased in dust-free, low scratching expanded polystyrene packaging. This ensures that premium cuvettes arrive in the laboratory ina the same pristine condition they were in at the factory, with optical quality windows and free of contaminants. Volumes for most purposes - Our cuvettes are available in a variety of ranges from macro to macro semi-micro sizes to respond to the needs of most scientific applications. We are also able to customize sample volume to deliver consistent, accurate findings. Perform consistently - QVARZ Cuvettes are constructed from high-quality fused quartz materials and are grouped by manufacturing mold cavities to ensure the lowest fluctuation in extinction coefficient. Customization - Custom cuvettes and cells are encouraged and available upon request; mechanical drawings with specifications and tolerances are prerequisites. Awesome pricing and flexibility on small quantities.
To the best of our knowledge, the technical information provided here is accurate. However, Qvarz.com assumes no liability for the accuracy of this information. The values provided here are typical at the time of manufacture and may vary over time and from batch to batch.
