(VCLMN2) 0.4mL Flow Cell with PTFE Screw Cap, Airtight, 4 Windows, Lightpath 2 or 10 mm, Molded
$562.00
This flow-through cuvette is for fluorescence applications, with a path length of 2 or 10 mm. Resistant to chemicals. Use up to 1200°C (Cell Only). The price is for 1 piece.
In Stock
Add to Wishlist
CompareAdd to Wishlist
- Type: Molded
Description

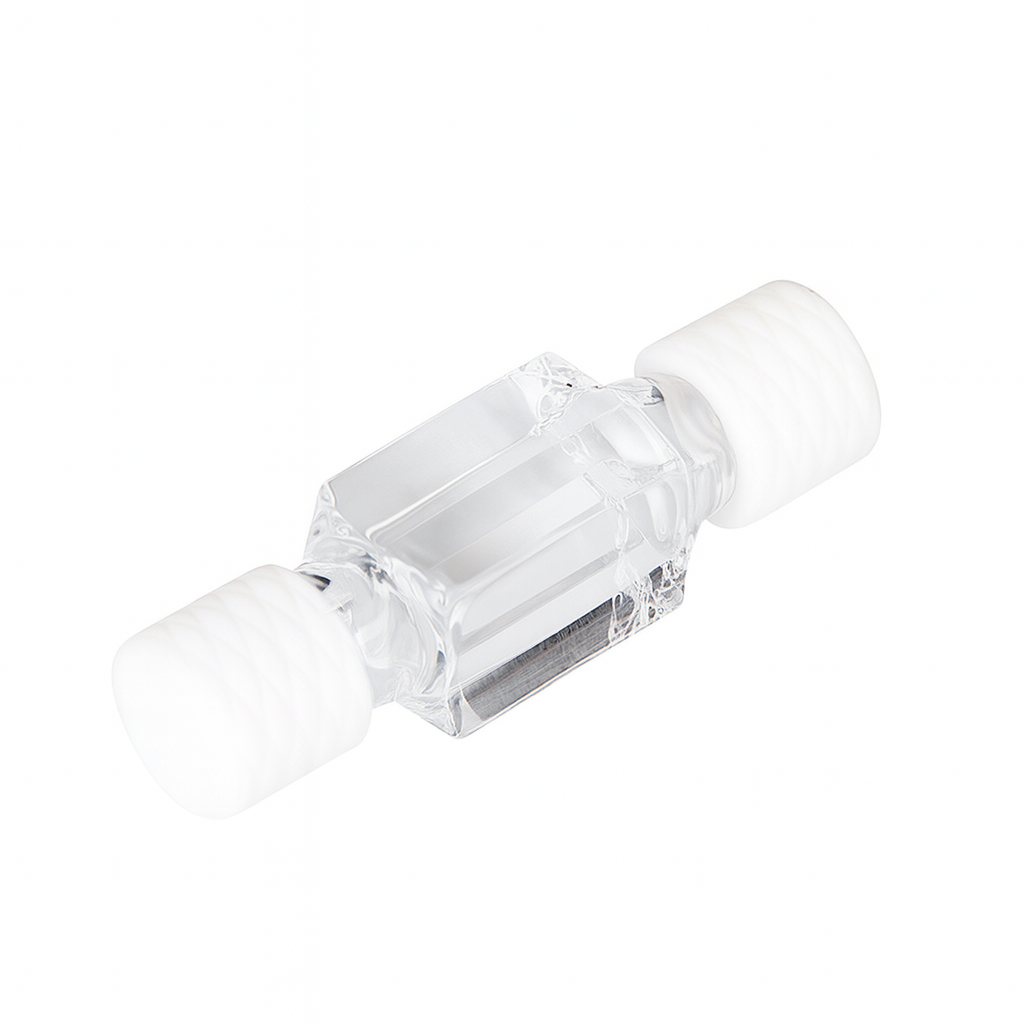

VCLMN2 Quartz Flow Screw Cap Cuvette is a high-precision flow cell designed for UV-Vis and fluorescence spectroscopy where flexibility and accuracy are essential. With an adjustable 2 mm or 10 mm optical path length and a 400 µL chamber volume, this cuvette is ideal for medium-volume, high-sensitivity measurements in both research and automated systems.
The PTFE screw caps on both ends provide excellent sealing to minimize sample loss and contamination, ensuring stable performance during continuous-flow or kinetic experiments. Made using the Molded fabrication method, this cuvette offers outstanding thermal and chemical resistance (except HF), while maintaining high optical transmission in the UV/VIS range.
Typical Applications
- UV-Vis and fluorescence measurements in flow systems
- Reaction and kinetic studies with medium sample volumes
- Process monitoring and inline analysis
- Pharmaceutical, chemical, and environmental testing
- Integration with OEM and automated detection systems
Key Features
- Dual optical path length (2 mm or 10 mm) for flexible experimental setup
- 400 µL chamber volume suitable for medium sample throughput
- 4 clear quartz windows for optimized optical access

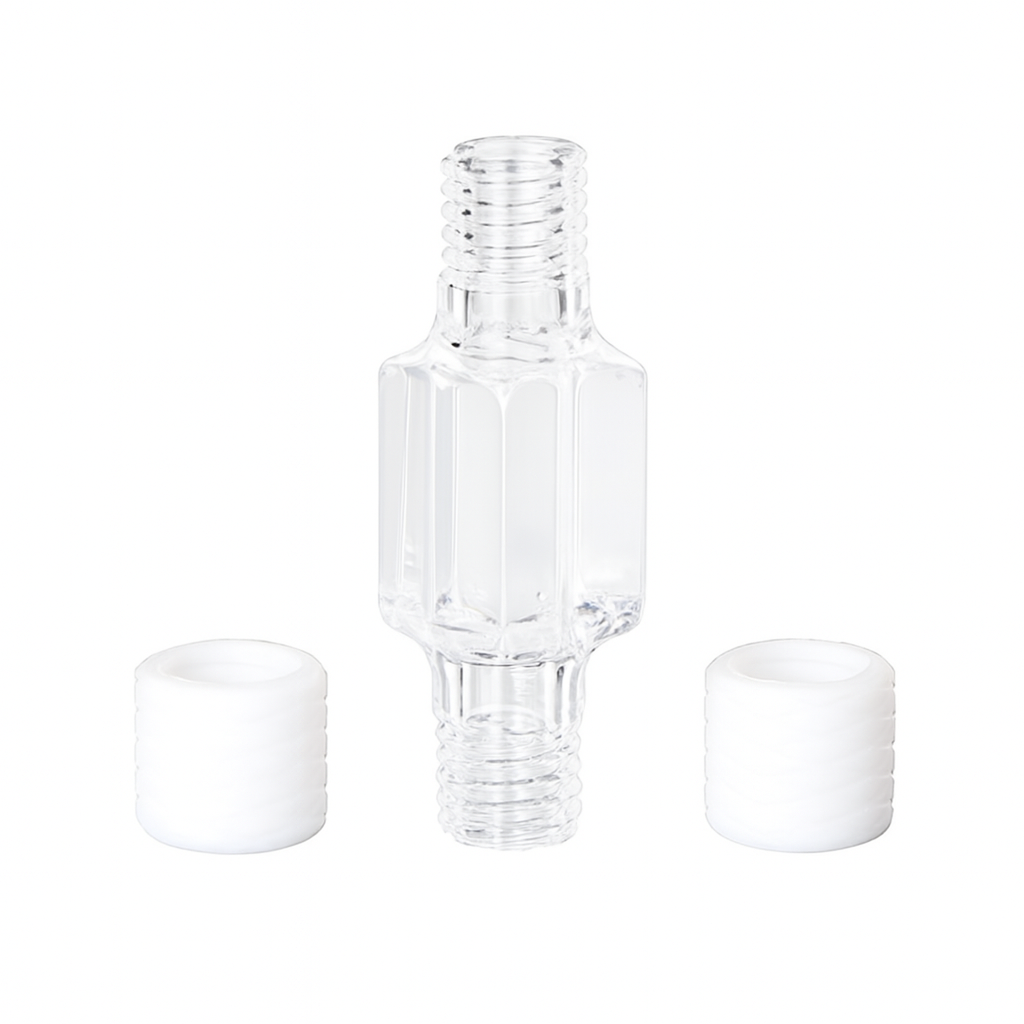

- PTFE screw caps ensure airtight sealing and easy cleaning
- Molded fabrication method offers superior thermal and chemical durability
- UV/VIS transmission range: 190–2500 nm
Technical Specifications
| Type | Flow Screw Cap Cuvette | Optical Path Length | 2 or 10 mm |
| Article No. | VCLMN2 | Volume | 400 μL |
| Measuring Method | Fluorescence Cells | Connector | Both End PTFE Screw Cap |
| Number of Windows | 4 | Wavelength Range | UV/VIS (190 – 2500 nm) |
| Outside Dimensions | Inside Dimensions | ||
| Length | 20 (47) mm | Length | 20 mm |
| Width | 12.5 mm | Width | 10 mm |
| Depth | 12.5 mm | Depth | 2 mm |
| Fabrication Method | Molded* | Package | Cell & PTFE Screw Cap |
Note: Molded fabrication offers excellent durability and resistance to temperature and chemicals, making this cuvette a robust option for long-term analytical workflows. The screw cap system enhances sealing reliability for flow and kinetic measurements.
Comparison of Fabrication Types
| 1 | 2 | 3 | 4 | ||
|---|---|---|---|---|---|
| *Molded | *Fused | *Bonded / Glued | |||
| UV vis ( 190- 2500 nm) | Yes | Yes | Yes | ||
| Transmission Matched | On Request | No | No | ||
| Transmission > 80% | Yes | Yes | Yes | ||
| Resistant to Acids and Bases (except hydrofluoric acid) | Yes | Yes | No | ||
| Resistant to Organic Solvents | Yes | Yes | No | ||
| Usable upto 600°C (1112°F) | Yes | Yes | Yes | ||
| Usable upto 1200°C (2192°F) | Yes | No | No | ||
| 0 Variations Reading | On Request | No | No | ||
| Fabrication | Molded | Assembled with Quartz Powder | Assembled with Glue | ||
| Adhesives | No | No | Yes | ||
| Storage | Short Term Storage | Clean After Use | Clean After Use | ||
| Available Material | Fused Quartz Material | ||||
| Note | Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm. | ||||
