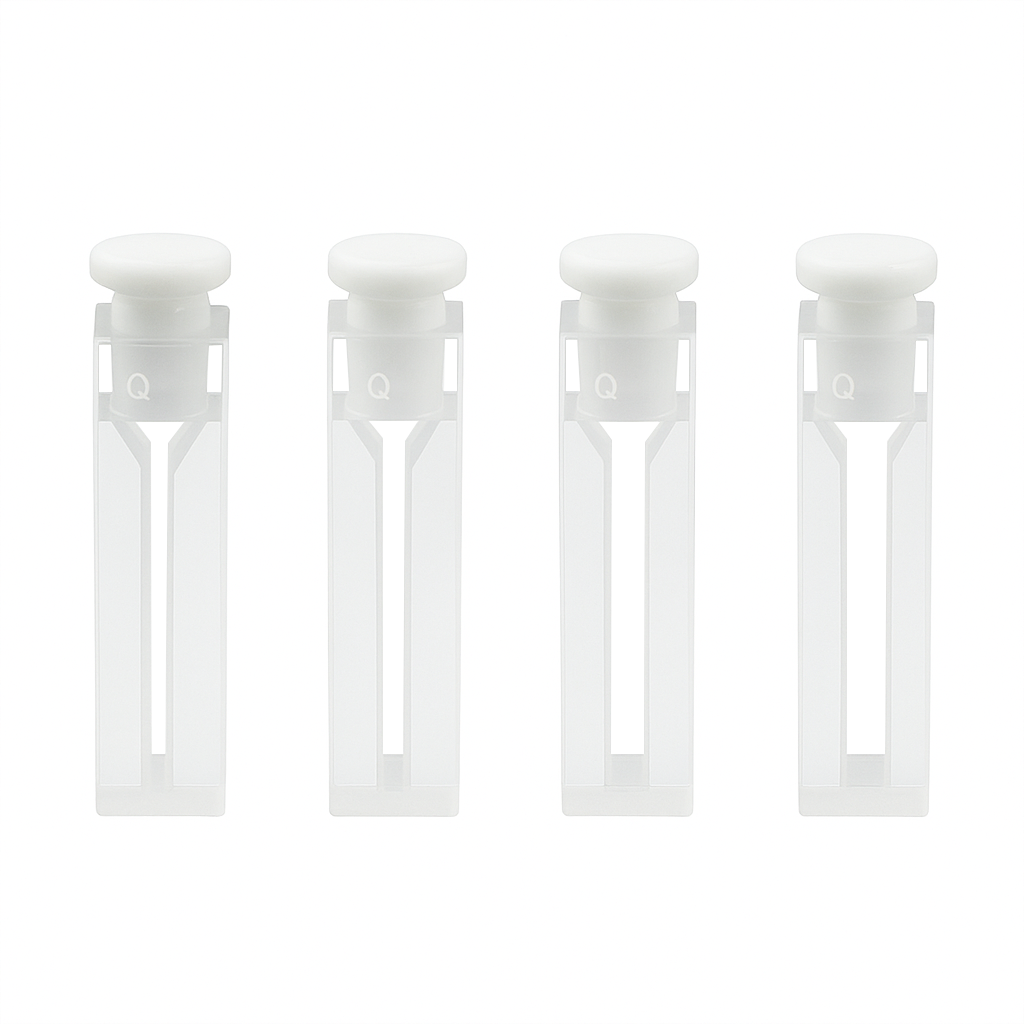

(VAPFS4) 1.4mL Semi-Micro Cuvette, PTFE Stopper, Fused, Width 4mm, 2 Windows

Weight	120 g
Brand	Qvarz
Resistant to Chemicals	Yes

SKU: VAPFS4

(VAPFS4) 1.4mL Semi-Micro Cuvette, PTFE Stopper, Fused, Width 4mm, 2 Windows

(VAPFS4) 1.4mL Semi-Micro Cuvette, PTFE Stopper, Fused, Width 4mm, 2 Windows - Image 2

~~$181.00~~ Original price was: $181.00.$168.00Current price is: $168.00.

In Stock

This semi micro airtight cuvette is for absorption applications, with a path length of 10 mm. Resistant to most chemicals. Use up to 600°C. The price is for 1 piece.

In Stock

Type: Fused

SKU: VAPFS4 Categories: Semi Micro Cuvettes, All Cuvettes & Cells, Cuvettes & Flow Cells, Fused Cuvettes, Micro Cuvettes <3.5mL, Narrow Width Cuvettes, Products, Spectrometer Cuvettes, Stopper Cuvettes Tags: narrow width cuvette, spectrometer cuvette, stopper cuvette

Worldwide Timed Dispatch Available

Free Shipping apply to all orders over $800
Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Fast dispatch. Receive deliveries in 2 - 3 weeks.

Description

VAPFS4 – 1.4 mL Semi-Micro Quartz Cuvette (Fused, 4 mm Width, 2 Windows, Stopper)

The VAPFS4 is a premium semi-micro quartz cuvette engineered for high-precision absorption spectroscopy.
With a 4 mm internal width and 2 optical windows, it offers increased sample capacity while maintaining accurate and stable optical performance. Its fused fabrication provides excellent thermal and chemical stability for demanding laboratory applications.

Key Features

Sample volume: 1.4 mL — suitable for routine and research applications.
4 mm internal width: ideal for mid-range sample volumes with enhanced sensitivity.
2 optical windows: optimized for absorbance and transmission measurements.
Fused fabrication: assembled with quartz powder, resistant to temperatures up to 600 °C (1112 °F).
Precision path length: ±0.06 – 0.08 mm tolerance.
Wavelength range: UV/VIS (190 – 2500 nm).

Typical Applications

UV/VIS absorbance spectroscopy
Biochemical and pharmaceutical research
Environmental and chemical analysis
General laboratory testing

Cuvette Specifications

Type	Semi Micro Cuvette	Optical Path Length	10 mm
Article No.	VAPFS4	Volume	1.4 mL
Measuring Method	Absorption Cells	Base Type	Flat
Number of Windows	2	Wavelength Range	UV/VIS (190 – 2500 nm)
Outside Dimensions
Height	45 mm	Width	12.5 mm
Depth	12.5 mm
Inside Dimensions
Width	4 mm	Depth (Inside)	10 mm
Center Height (Z)	8.5 – 20 mm	Fabrication Method	Fused*
Package	Cell & PTFE Stopper

About Fused Fabrication

Fused quartz cuvettes are manufactured by sintering quartz powder at high temperatures, offering:

Thermal resistance up to 600 °C (1112 °F).
High optical clarity and UV transparency.
Stable path length tolerance (±0.06 – 0.08 mm).

Usage notes:

Fused seams may stain or discolor after repeated use.
Not recommended for long-term sample storage.
Do not use with: hydrofluoric acid (HF), toluene, acetone, or other aggressive organic solvents, which can significantly shorten the cuvette’s lifespan.

Note: For experiments involving aggressive solvents or extended storage, molded quartz cuvettes offer better durability and chemical resistance.

Comparison of Fabrication Types

1	2	3	4
	*Molded	*Fused	*Bonded / Glued
UV vis ( 190- 2500 nm)	Yes	Yes	Yes
Transmission Matched	On Request	No	No
Transmission > 80%	Yes	Yes	Yes
Resistant to Acids and Bases (except hydrofluoric acid)	Yes	Yes	No
Resistant to Organic Solvents	Yes	Yes	No
Usable upto 600°C (1112°F)	Yes	Yes	Yes
Usable upto 1200°C (2192°F)	Yes	No	No
0 Variations Reading	On Request	No	No
Fabrication	Molded	Assembled with Quartz Powder	Assembled with Glue
Adhesives	No	No	Yes
Storage	Short Term Storage	Clean After Use	Clean After Use
Available Material	Fused Quartz Material
Note	Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm.

1
QVARZ Cuvettes Transmission Characteristics The following table is our cuvettes and cells made of quartz material suitable for wavelength from 190nm to 2500nm and depicts the percentage transmission for the material. IR or Glass material is not included.

Why QVARZ Cuvettes and Cells? QVARZ is world-renowned as the producer of premium quartz cuvettes. Over fifteen years of experience manufacturing quartz cuvettes ensures that every QVARZ cuvettes are manufactured to the most exacting standards for reproducible results.
Spectrophotometry cuvettes - Most spectrophotometry applications in the visible and UV ranges benefit from QVARZ spectrophotometry cuvettes. Our cuvettes made of fused quartz material deliver precise and reliable readings even at wavelengths as low as 190 nm. QVARZ cuvettes are compatible with most spectrophotometers and photometers with standard 0.2 - 100 mm path lengths. Fluorometry cuvettes - QVARZ brings two decades of experience molding high-quality spectrophotometry cuvettes to new four-sided clear cuvettes for fluorometry. Available in standard quartz material with ultra-low auto-fluorescence for the highest precision measurements. Protective packaging - QVARZ cuvettes are encased in dust-free, low scratching expanded polystyrene packaging. This ensures that premium cuvettes arrive in the laboratory ina the same pristine condition they were in at the factory, with optical quality windows and free of contaminants. Volumes for most purposes - Our cuvettes are available in a variety of ranges from macro to macro semi-micro sizes to respond to the needs of most scientific applications. We are also able to customize sample volume to deliver consistent, accurate findings. Perform consistently - QVARZ Cuvettes are constructed from high-quality fused quartz materials and are grouped by manufacturing mold cavities to ensure the lowest fluctuation in extinction coefficient. Customization - Custom cuvettes and cells are encouraged and available upon request; mechanical drawings with specifications and tolerances are prerequisites. Awesome pricing and flexibility on small quantities.
To the best of our knowledge, the technical information provided here is accurate. However, Qvarz.com assumes no liability for the accuracy of this information. The values provided here are typical at the time of manufacture and may vary over time and from batch to batch.
