(VAOMK) 3.5mL Absorption Cuvette with PTFE Lid, Molded, Round Base, Lightpath 10mm

Weight	100 g
Brand	Qvarz
Resistant to Chemicals	Yes

SKU: VAOMK

23%Hot

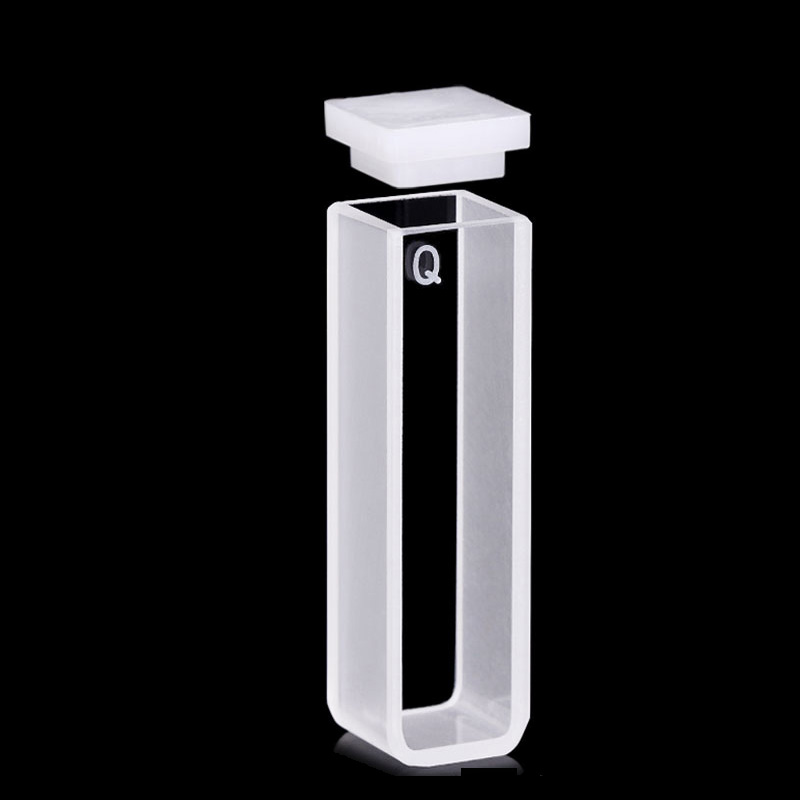

(VAOMK) 3.5mL Absorption Cuvette with PTFE Lid, Molded, Round Base, Lightpath 10mm

(VAOMK) 3.5mL Absorption Cuvette with PTFE Lid, Molded, Round Base, Lightpath 10mm - Image 2

(VAOMK) 3.5mL Absorption Cuvette with PTFE Lid, Molded, Round Base, Lightpath 10mm - Image 3

(VAOMK) 3.5mL Absorption Cuvette with PTFE Lid, Molded, Round Base, Lightpath 10mm - Image 4

~~$62.00~~ Original price was: $62.00.$48.00Current price is: $48.00.

In Stock

This absorption cuvette is for absorption work, with a path length of 10 mm. Resistant to chemicals. Use upto 1200°C. The price is for 1 piece.

In Stock

Type: Molded

SKU: VAOMK Categories: All Cuvettes & Cells, Cuvettes & Flow Cells, Molded Cuvettes, Open Top Cuvettes, Products, Spectrometer Cuvettes, Standard Cuvettes 3.5mL Tags: 10mm path length cuvette, open top cuvette, spectrometer cuvette

Worldwide Timed Dispatch Available

Free Shipping apply to all orders over $800
Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Fast dispatch. Receive deliveries in 2 - 3 weeks.

Description

VAOMK – 3.5 mL Standard Absorption Cuvette (Molded, 10 mm Lightpath, 2 Windows)

The VAOMK is a molded quartz absorption cuvette with a 10 mm optical path length and a 3.5 mL sample volume. It features a PTFE lid that provides basic protection against evaporation and contamination. The Molded Fabrication offers the highest optical precision among quartz cuvettes, excellent thermal resistance, and broad chemical compatibility — making it ideal for high-accuracy UV/VIS spectrophotometry.

Key Features

10 mm optical path length: the standard size for most UV/VIS absorption spectroscopy applications.
2 optical windows: optimized for high transmission and accurate absorbance measurements.
PTFE lid: provides simple coverage to reduce evaporation and dust contamination (not suitable for anaerobic sealing).
Molded fabrication: highest optical precision with exceptional surface flatness and tight tolerance.
Wavelength range: 190–2500 nm (UV/VIS).
Thermal resistance: from -60 °C (-76 °F) up to 1200 °C (2192 °F).
Chemical compatibility: resistant to most acids, bases, and aggressive organic solvents (except HF).
Pathlength tolerance: ±0.01 mm (highest quality standard for cuvettes).
Secure packaging: foam and bubble wrap; drop-tested from 1 meter before shipment.

Typical Applications

High-precision UV/VIS absorption spectroscopy
Environmental, pharmaceutical, and chemical analysis
Routine laboratory testing and quality control
Research requiring excellent optical consistency

Cuvette Specifications

Type	Standard Cuvette	Optical Path Length	10 mm
Article No.	VAOMK	Volume	3500 µL
Measuring Method	Absorption Cells	Transmission Matched	No
Number of Windows	2	Wavelength Range	UV/VIS (190–2500 nm)

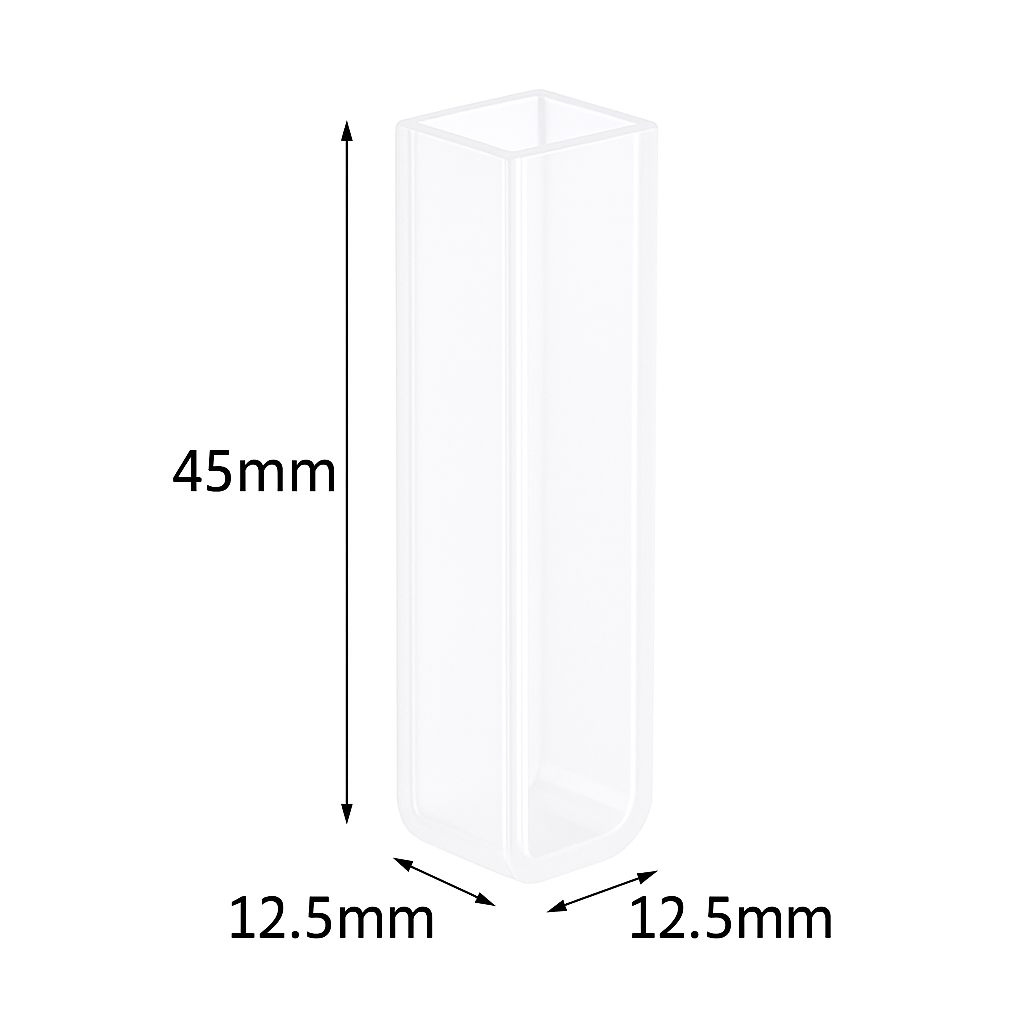

Outside Dimensions
Height	45 mm	Width	12.5 mm
Depth	12.5 mm
Inside Dimensions
Width (Inside)	10 mm	Depth (Inside)	10 mm
Center Height (Z)	8.5 – 20 mm	Fabrication Method	Molded*
Package	Cell & PTFE Lid

About Molded Fabrication

Produced from a single quartz block using precision molding technology.
Offers the highest optical quality with pathlength tolerance of ±0.01 mm.
Exceptional surface flatness ensures maximum transmission and measurement stability.
Excellent resistance to temperature and most chemical solvents (except HF).
Ideal for applications requiring high reproducibility and low measurement error.

Note: VAOMK is a premium molded quartz cuvette designed for precise absorption measurements. The PTFE lid provides basic coverage but is not intended for anaerobic or oxygen-sensitive applications.

Comparison of Fabrication Types

1	2	3	4
	*Molded	*Fused	*Bonded / Glued
UV vis ( 190- 2500 nm)	Yes	Yes	Yes
Transmission Matched	On Request	No	No
Transmission > 80%	Yes	Yes	Yes
Resistant to Acids and Bases (except hydrofluoric acid)	Yes	Yes	No
Resistant to Organic Solvents	Yes	Yes	No
Usable upto 600°C (1112°F)	Yes	Yes	Yes
Usable upto 1200°C (2192°F)	Yes	No	No
0 Variations Reading	On Request	No	No
Fabrication	Molded	Assembled with Quartz Powder	Assembled with Glue
Adhesives	No	No	Yes
Storage	Short Term Storage	Clean After Use	Clean After Use
Available Material	Fused Quartz Material
Note	Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm.

1
QVARZ Cuvettes Transmission Characteristics The following table is our cuvettes and cells made of quartz material suitable for wavelength from 190nm to 2500nm and depicts the percentage transmission for the material. IR or Glass material is not included.

Why QVARZ Cuvettes and Cells? QVARZ is world-renowned as the producer of premium quartz cuvettes. Over fifteen years of experience manufacturing quartz cuvettes ensures that every QVARZ cuvettes are manufactured to the most exacting standards for reproducible results.
Spectrophotometry cuvettes - Most spectrophotometry applications in the visible and UV ranges benefit from QVARZ spectrophotometry cuvettes. Our cuvettes made of fused quartz material deliver precise and reliable readings even at wavelengths as low as 190 nm. QVARZ cuvettes are compatible with most spectrophotometers and photometers with standard 0.2 - 100 mm path lengths. Fluorometry cuvettes - QVARZ brings two decades of experience molding high-quality spectrophotometry cuvettes to new four-sided clear cuvettes for fluorometry. Available in standard quartz material with ultra-low auto-fluorescence for the highest precision measurements. Protective packaging - QVARZ cuvettes are encased in dust-free, low scratching expanded polystyrene packaging. This ensures that premium cuvettes arrive in the laboratory ina the same pristine condition they were in at the factory, with optical quality windows and free of contaminants. Volumes for most purposes - Our cuvettes are available in a variety of ranges from macro to macro semi-micro sizes to respond to the needs of most scientific applications. We are also able to customize sample volume to deliver consistent, accurate findings. Perform consistently - QVARZ Cuvettes are constructed from high-quality fused quartz materials and are grouped by manufacturing mold cavities to ensure the lowest fluctuation in extinction coefficient. Customization - Custom cuvettes and cells are encouraged and available upon request; mechanical drawings with specifications and tolerances are prerequisites. Awesome pricing and flexibility on small quantities.
To the best of our knowledge, the technical information provided here is accurate. However, Qvarz.com assumes no liability for the accuracy of this information. The values provided here are typical at the time of manufacture and may vary over time and from batch to batch.
