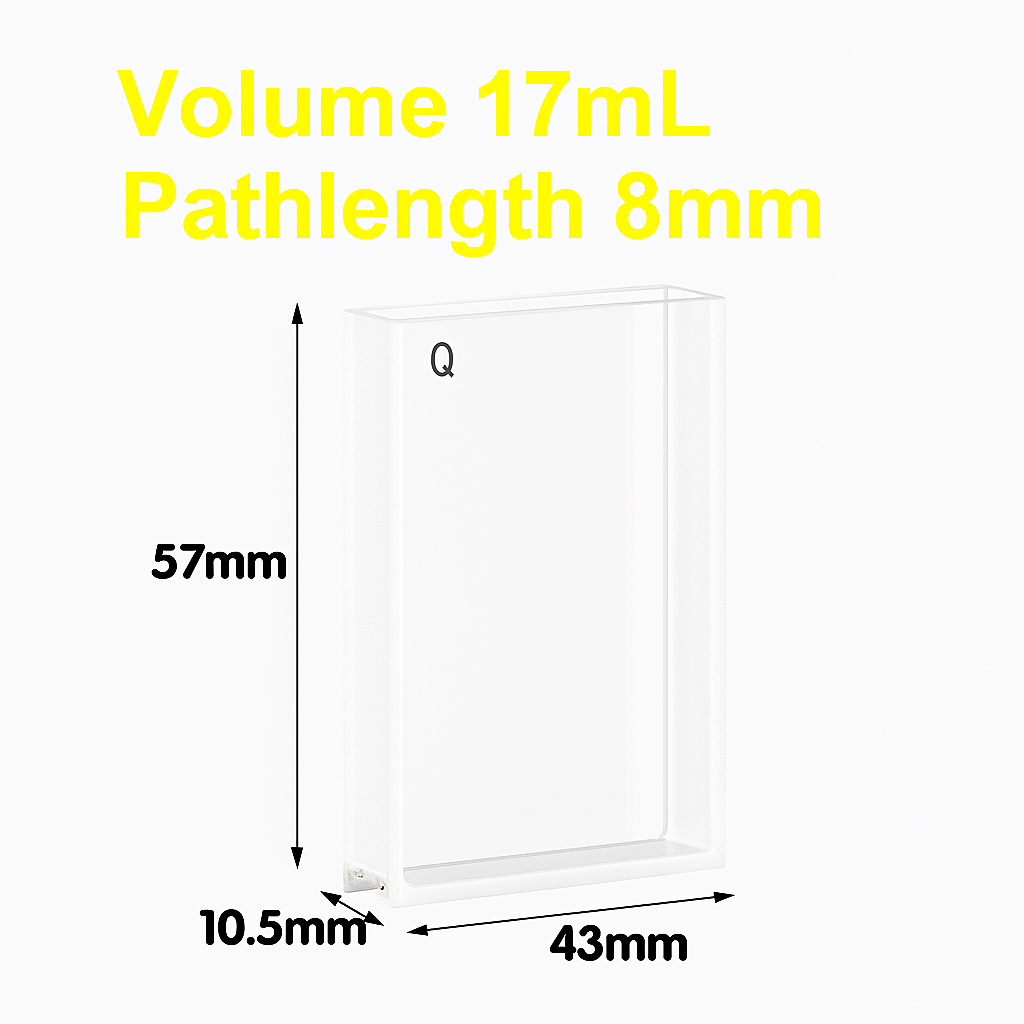

(VAOF178) 17ml Absorption Cuvette, Fused, Lightpath 8mm, 57x43x10.5 mm, 2 Clear Windows
$196.00
This wide clear wall cuvette is for absorption applications, with a path length of 8 mm. Resistant to most chemicals. Use up to 600°C. The price is for 1 piece.
In Stock
Add to Wishlist
CompareAdd to Wishlist
- Type: Fused
Description
VAOF178 Fused Quartz Absorption Cuvette is a 2-window cuvette with an 8 mm optical path length and a 17 ml volume.
It features a wide clear wall design, ideal for UV/VIS absorbance measurements where shorter path lengths are preferred for handling higher-concentration samples.
Fused fabrication ensures superior thermal stability and excellent chemical resistance, making it well-suited for demanding laboratory environments.
Key Features
- 8 mm optical path length — ideal for medium to high concentration absorbance measurements.
- 2-window design — optimized for standard straight-beam UV/VIS spectroscopy.
- Fused fabrication — high thermal resistance up to 600 °C and chemical durability for most acids and bases.
- Wide wall geometry — supports stable optical transmission with minimal background interference.
- Broad wavelength range — 190 – 2500 nm, suitable for UV/VIS and NIR applications.
Typical Applications
- UV/VIS absorbance and transmission studies.
- Quantification of concentrated samples or strong absorbers.
- Protein and nucleic acid measurements at 260/280 nm.
- Environmental and chemical analysis.
- Quality control in R&D and production labs.
Fused Fabrication Notes
- Fused fabrication offers excellent temperature and chemical resistance.
- Not suitable for hydrofluoric acid (HF) or strong organic solvents like toluene and acetone.
- Powder seams may discolor with some samples but do not affect performance.
- Typical path length tolerance is ±0.06 – 0.08 mm.
Cuvette Specifications
| Type | Absorption Quartz Cuvette | Optical Path Length | 8 mm |
| Article No. | VAOF178 | Volume | 17 ml |
| Measuring Method | Absorption Cells | Clear Walls | 57 × 43 mm |
| Number of Windows | 2 | Wavelength Range | UV/VIS (190 – 2500 nm) |
| Height | 57 mm | Width (Inside) | 40.5 mm |
| Width (Outside) | 43 mm | Depth (Inside) | 8 mm |
| Depth (Outside) | 10.5 mm | Center Height (Z) | 8.5 – 20 mm |
| Fabrication Method | Fused* | Package | Cell Only |
Note: Fused fabrication provides excellent thermal and chemical durability, making this cuvette ideal for demanding UV/VIS absorbance applications.
Avoid use with HF or strong organic solvents. Powder seams may stain but do not affect performance.
The 2-window design offers stable optical transmission and consistent measurement results.
Comparison of Fabrication Types
| 1 | 2 | 3 | 4 | ||
|---|---|---|---|---|---|
| *Molded | *Fused | *Bonded / Glued | |||
| UV vis ( 190- 2500 nm) | Yes | Yes | Yes | ||
| Transmission Matched | On Request | No | No | ||
| Transmission > 80% | Yes | Yes | Yes | ||
| Resistant to Acids and Bases (except hydrofluoric acid) | Yes | Yes | No | ||
| Resistant to Organic Solvents | Yes | Yes | No | ||
| Usable upto 600°C (1112°F) | Yes | Yes | Yes | ||
| Usable upto 1200°C (2192°F) | Yes | No | No | ||
| 0 Variations Reading | On Request | No | No | ||
| Fabrication | Molded | Assembled with Quartz Powder | Assembled with Glue | ||
| Adhesives | No | No | Yes | ||
| Storage | Short Term Storage | Clean After Use | Clean After Use | ||
| Available Material | Fused Quartz Material | ||||
| Note | Molded and fused cuvettes and cells are assembled by direct fusion without the use of adhesives throughout the production process. This guarantees resistance against corrosive chemicals and high temperature. Each quartz cuvette and cell has excellent transmission from 190nm to 2500nm. | ||||
